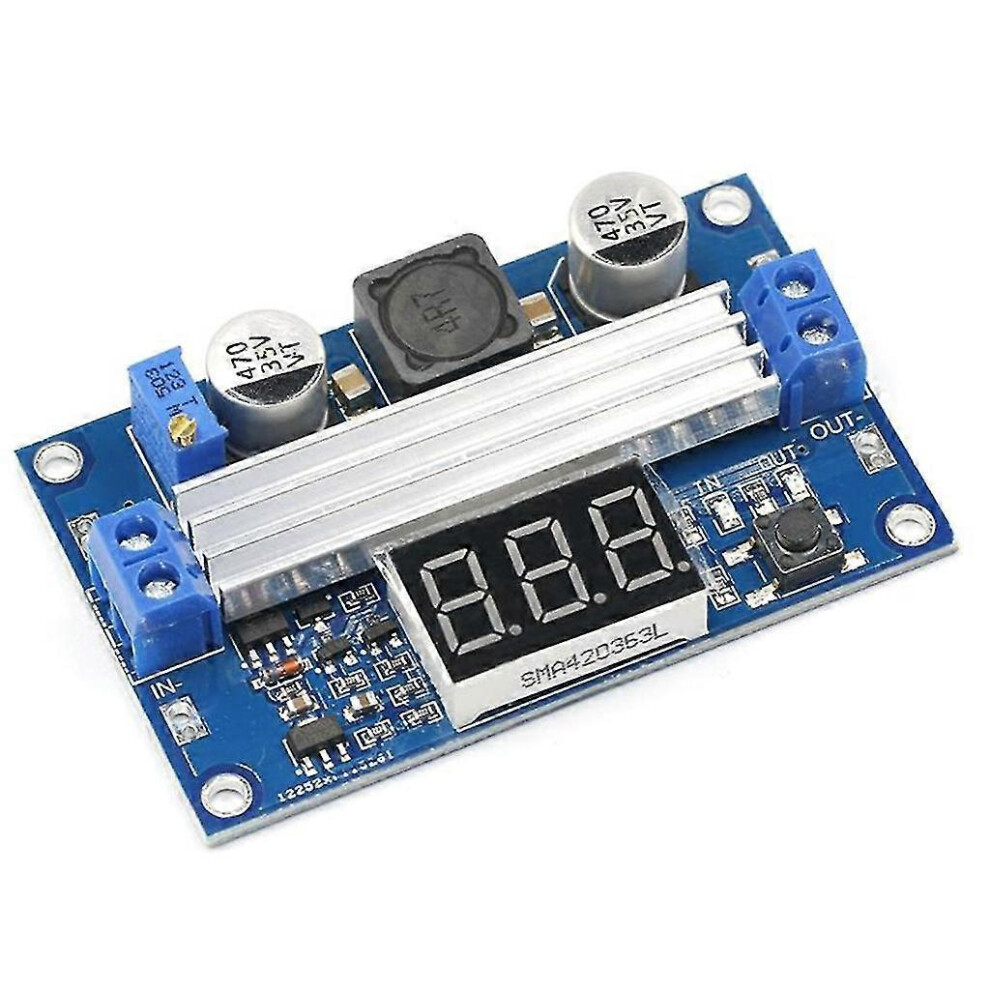

DC-DC Boost Converter Step Up Power Module 100W 3-35V Input 3.5-35V Output Voltmeter Display Short Circuit Protection 96.7% Efficiency

DC-DC Boost Converter Step Up Power Module 100W 3-35V Input 3.5-35V Output Voltmeter Display Short Circuit Protection 96.7% Efficiency Περιγραφή

Product Details 1. Advanced microprocessor voltmeter display for accurate voltage monitoring 2. High-efficiency design with power MOSFET technology, achieving up to 96.4% conversion efficiency 3. Imported high-power low-resistance MOS tube with large package for stable performance 4. Ultra-wide voltage operation supporting up to 128W output when input and output voltages are above 20V 5. Long-life high-frequency low-ESR aluminum electrolytic capacitors for lower output ripple 6. 12A integrated high-quality inductor enabling stable long-term operation at 7A input current Specification 1. Input voltage: DC3~35V (Note: voltmeter fails when input voltage is less than 4V) 2. Input current: peak 9A (recommended use within 7A) 3. Output voltage: DC3.5~35V (output voltage must be higher than input voltage) 4. Output current: Max 6A (recommended use within 5A) 5. Output power: 75W (reaches 100W when input and output voltages are greater than 16V) 6. Conversion efficiency: Max 96.7% 7. On-board voltmeter range: 4~40V, error 0.1V 8. Short circuit protection: Yes (current limit 14A) 9. Input reversal protection: No Package Includes 1. 1x 100W Step-up Booster Module Warm Tips 1. Allow 0-1cm error due to manual measurement 2. Allow slight chromatic aberration due to different display resolutions 3. When connecting high-power loads, power on first then connect the load to avoid current limit self-locking protection 4. For input reversal protection, please series connect a high current diode if necessary
