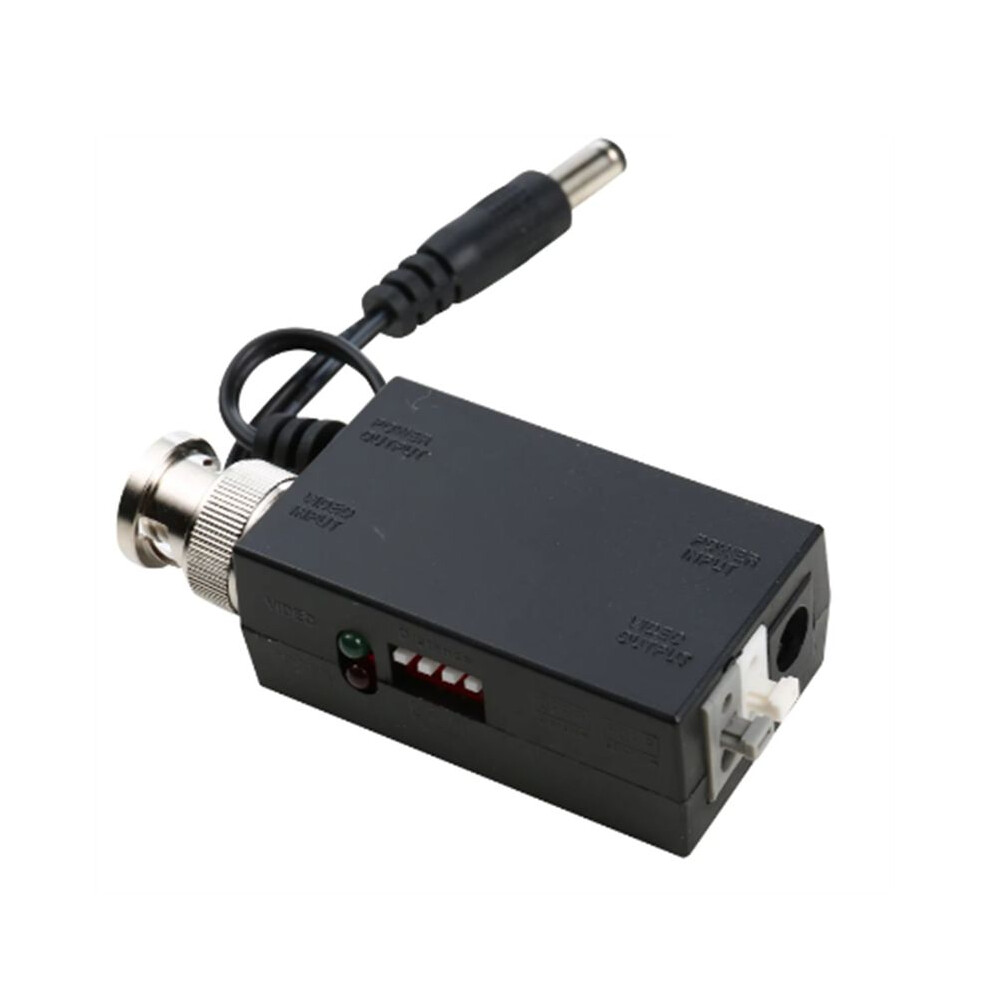

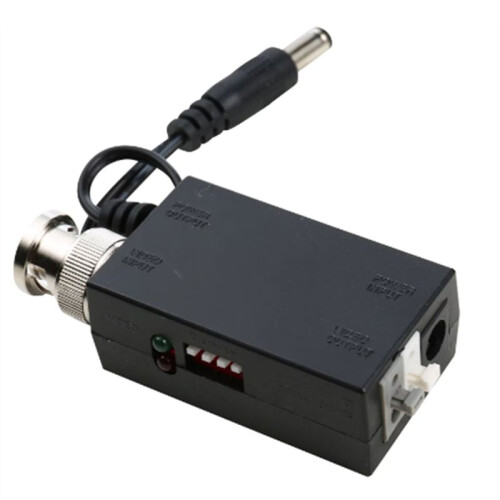

DC12V 1CH Active UTP Video Transmitter Balun BNC Video Balun for CCTV Camera DVR System

DC12V 1CH Active UTP Video Transmitter Balun BNC Video Balun for CCTV Camera DVR System Περιγραφή

1. Ultra-low power consumption design, Less than 100mW
2. Ultra-small design, convenient and flexible for customers to install.
3. Unique power supply collinear design. Use this product to save a 12V power supply
4. Convenient, fast and stable press card interface. Installation is more convenient and faster.
5. Only professional grade 5 detonators and pure copper BNC heads are available.

Power supply part input power: 12V
Power consumption:Less than 100mW
Video transmission performance compatible with video standards PAL, NTSC, SECAM
Signal bandwidth:6MHz
Transmission distance:
1200 meters (passive twisted pair reception)
2200 meters (active twisted pair reception)
Common mode rejection ratio:Greater than 60dB
Signal interface part twisted pair video input port spring type terminal block.
Coaxial video output port card pin metric BNC socket, 75 ohm impedance.
Common power output 5mm
LED indicates that the power indicator is red, and it lights when power is .
The signal indicator is green, and it lights when there is a video signal.

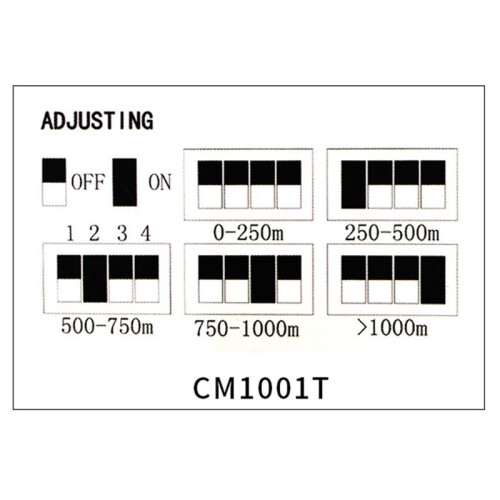

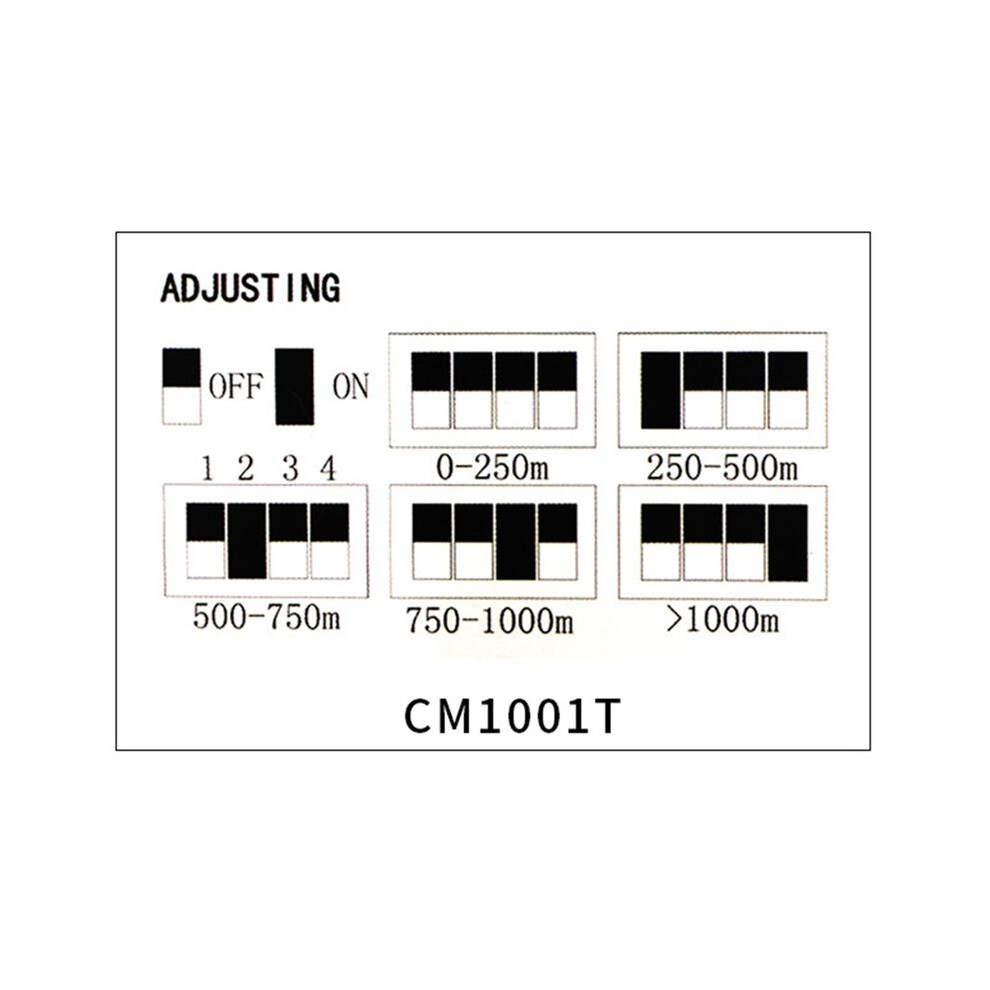

Adjustment mode dial 0-250m; 250-500m; 500-750m; 750-1000m; Greater than 1000m
Protection level of the whole machine:
electrostatic protection: contact discharge level 4 (8KV), air discharge level 3 (8KV)
-protection level:2KV
Appearance size:65mmx27mmx18mm
Working environment:
working temperature:-15-80
Storage temperature:-40-150
Working humidity:0-95% (no condensation)
Due to different product batches, the appearance may vary, which does not affect the use.
Type:Transmitter
Colour:Black
Material:Plastic

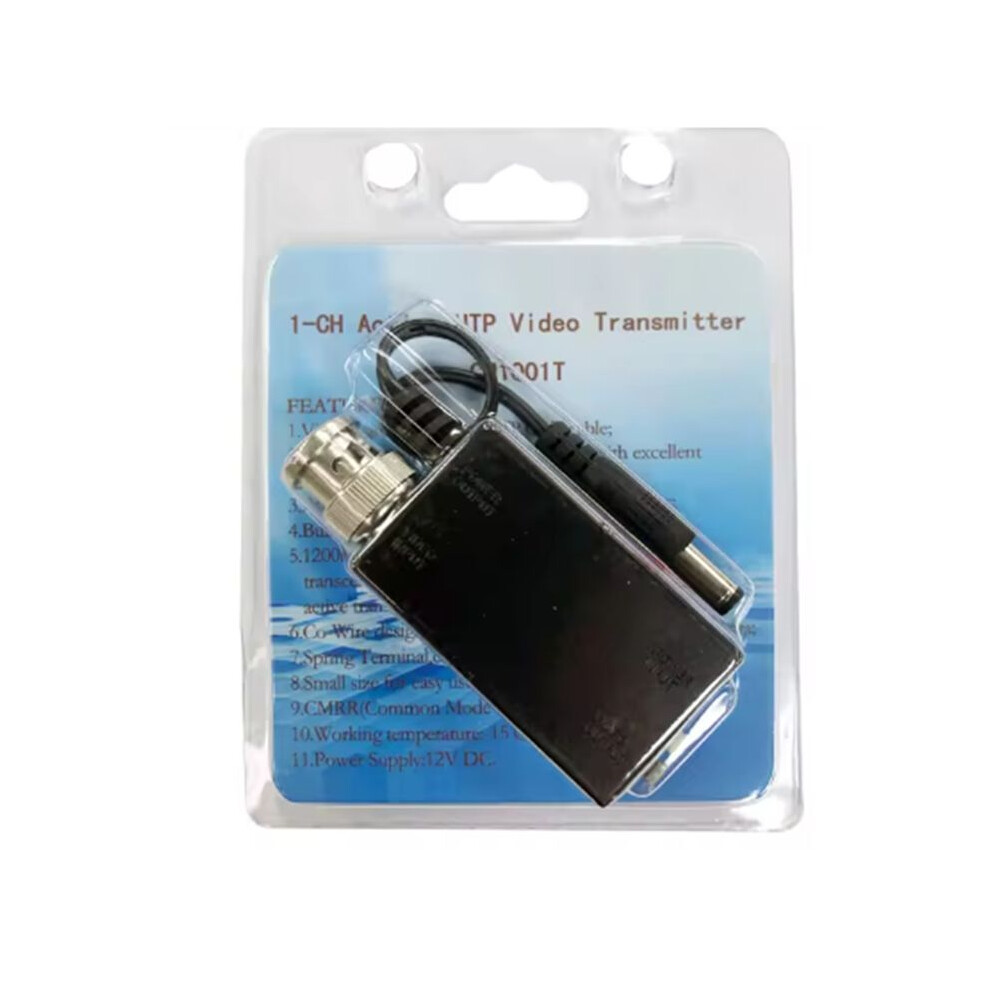

Package Contents:
1 * Transmitter
