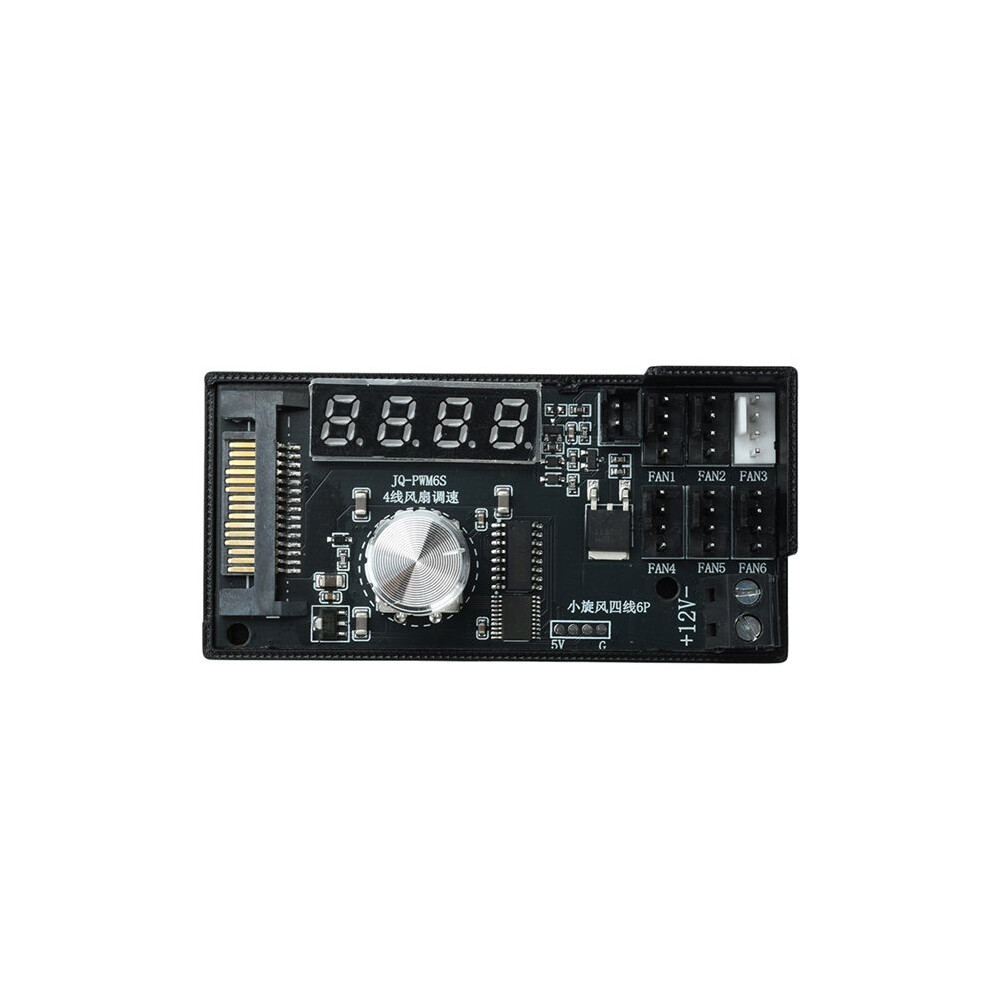

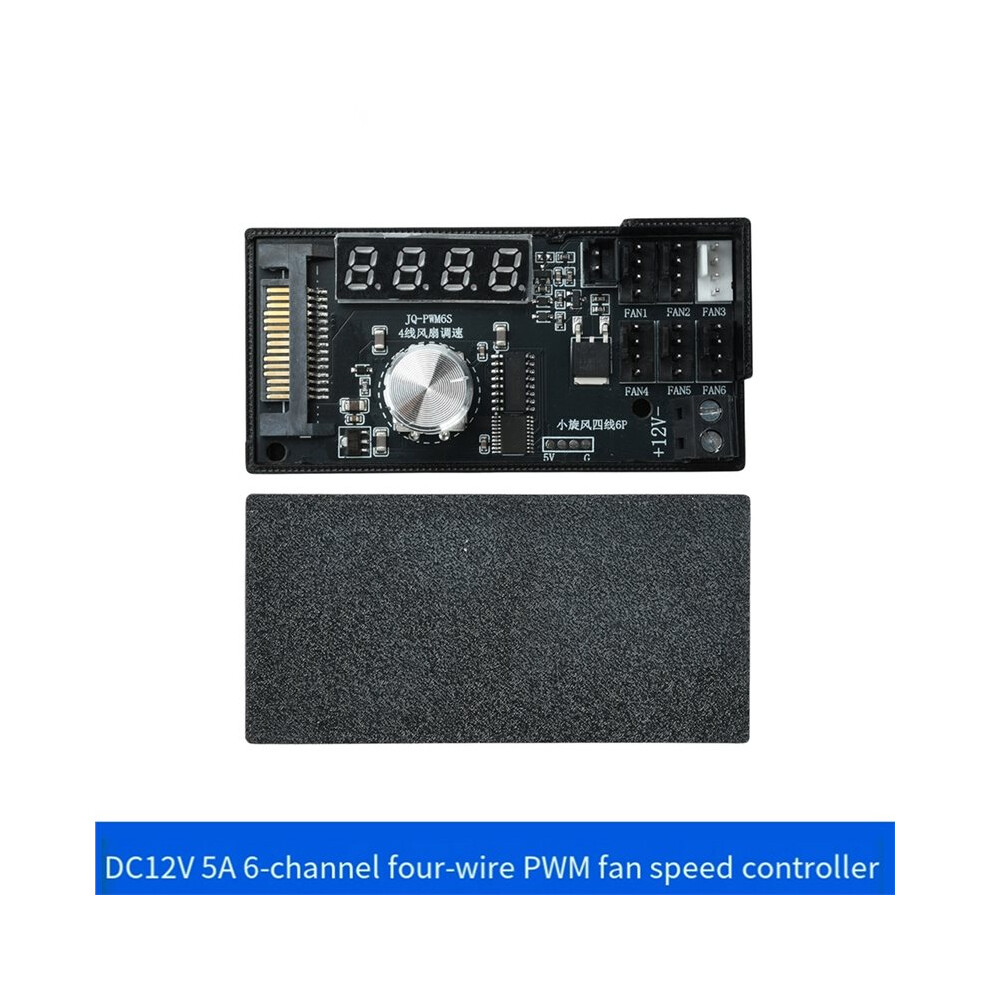

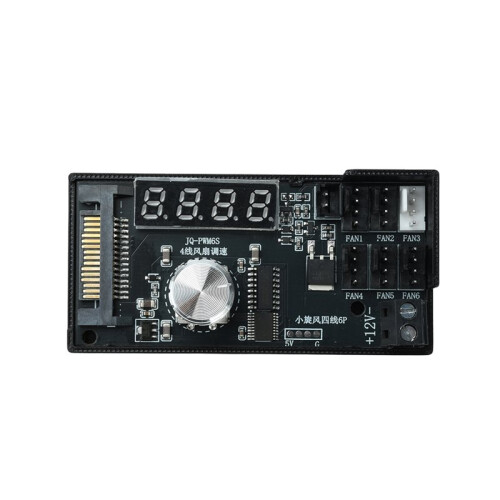

DC12V 5A 6-Channel PWM Fan Speed Controller Digital RPM Display Interface Manual Adjust PC Case Fan Regulator Hub

DC12V 5A 6-Channel PWM Fan Speed Controller Digital RPM Display Interface Manual Adjust PC Case Fan Regulator Hub Περιγραφή

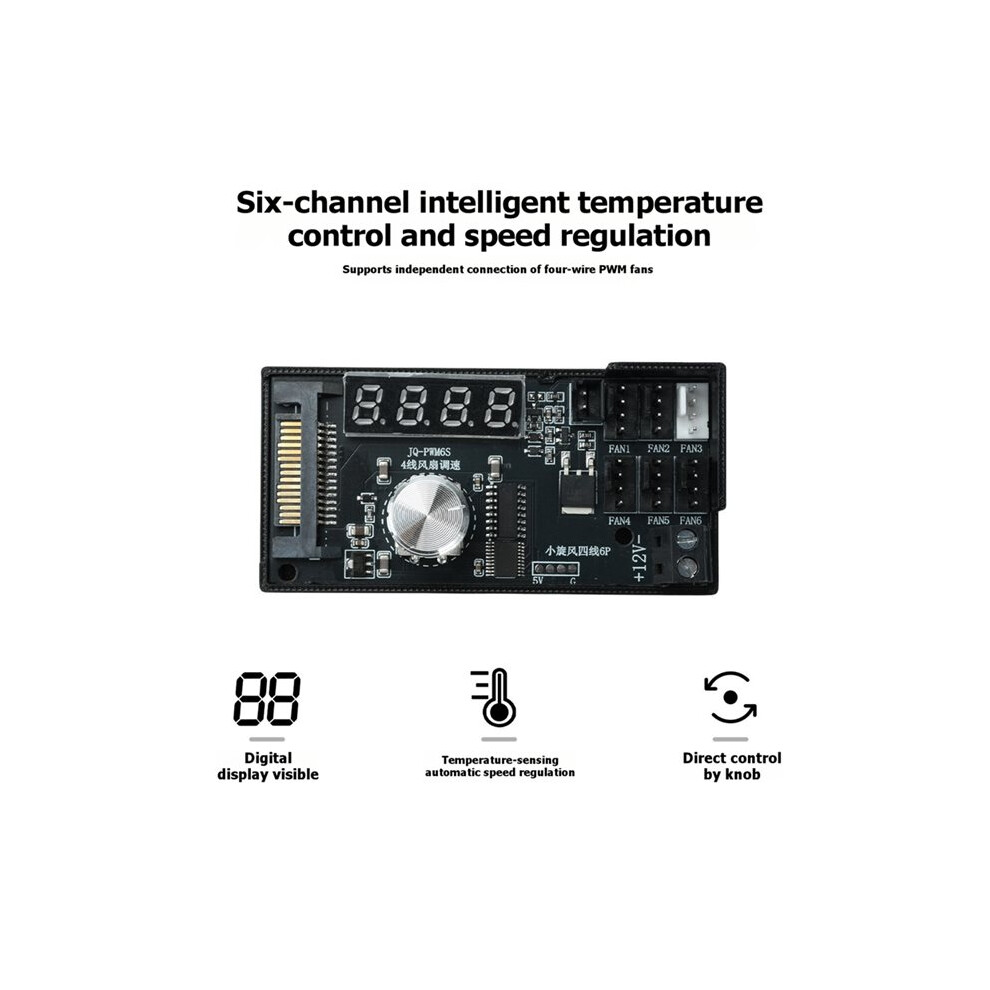

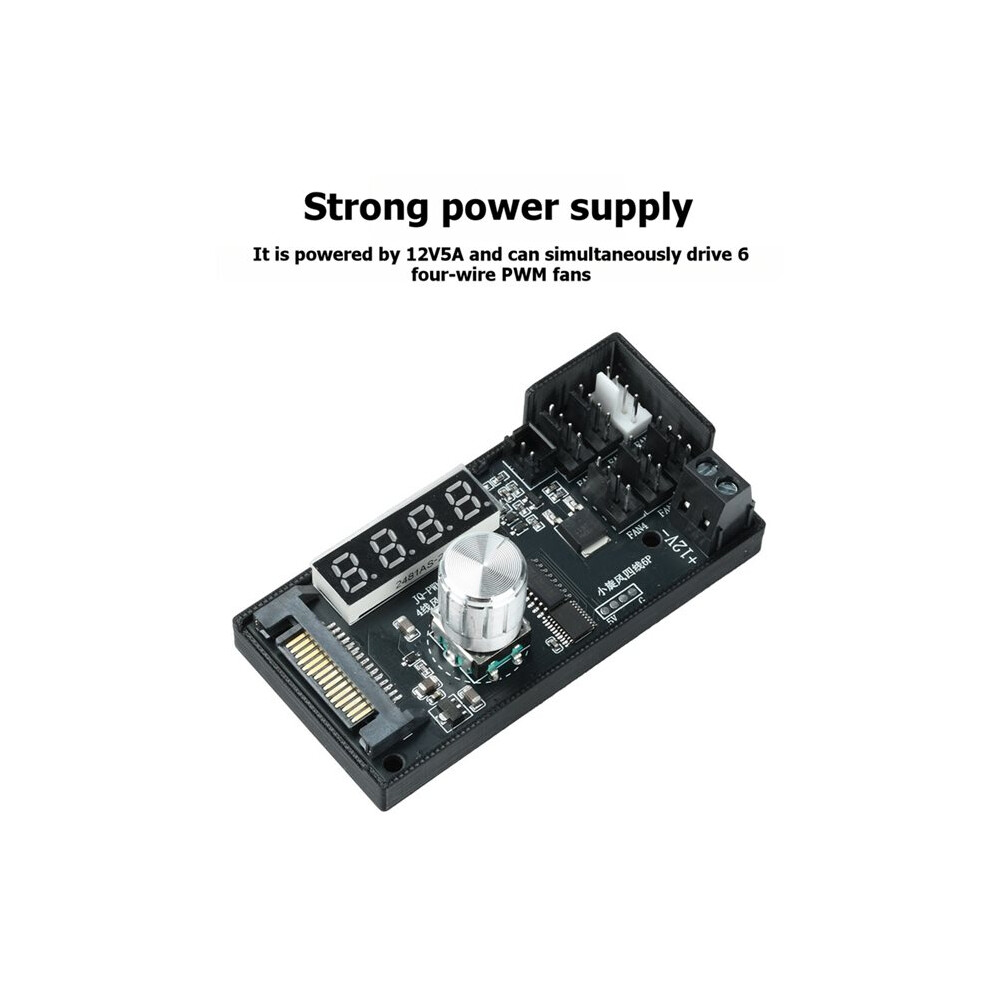

1. Powerful Power Supply: 12V 5A power supply, capable of simultaneously driving 6 four-wire PWM fans.

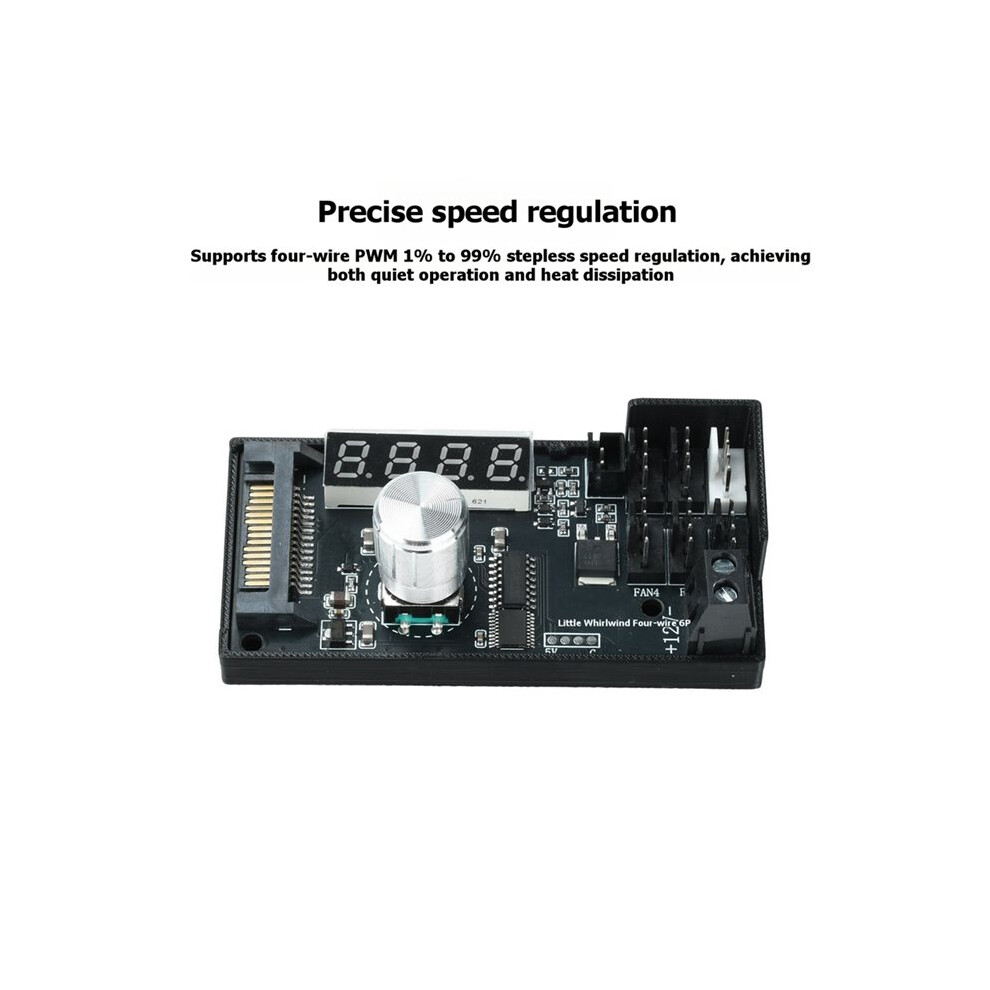

2. Precise Speed Control: Supports stepless speed control of four-wire PWM from 1% to 99%, achieving both quiet operation and excellent heat dissipation.

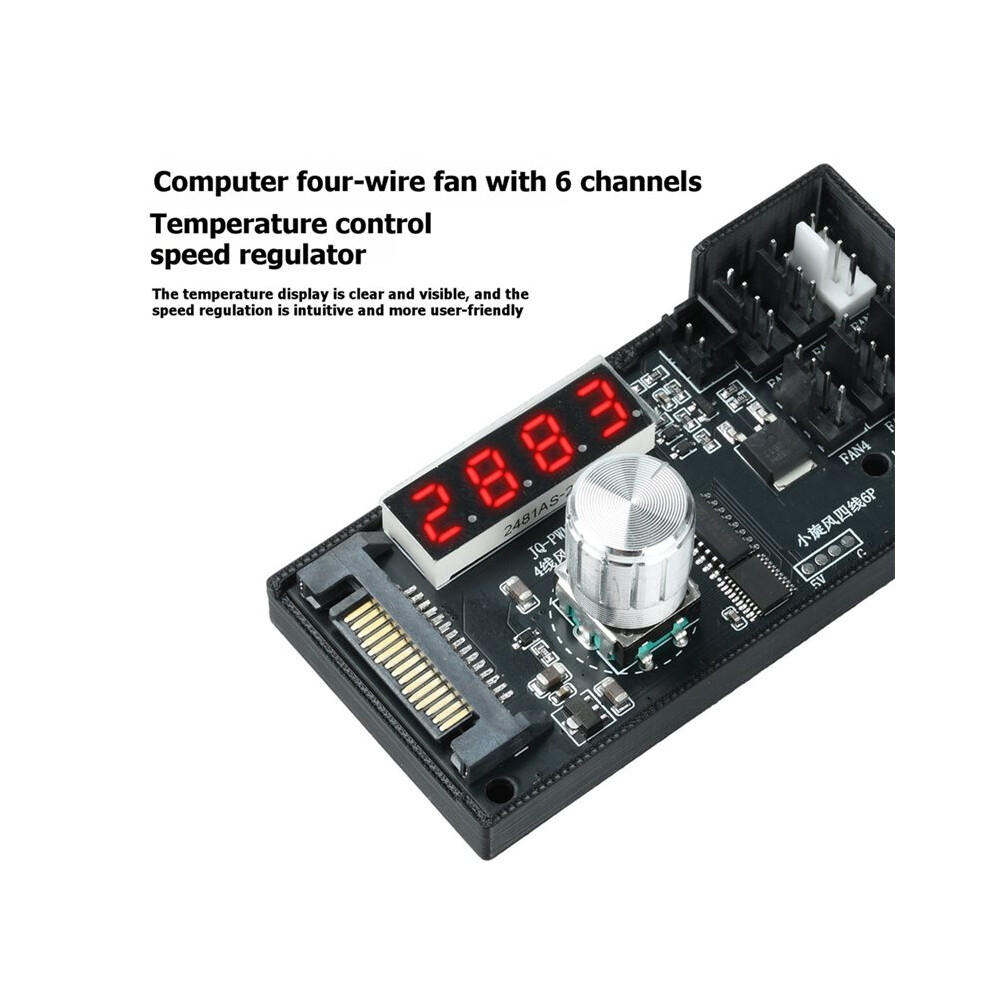

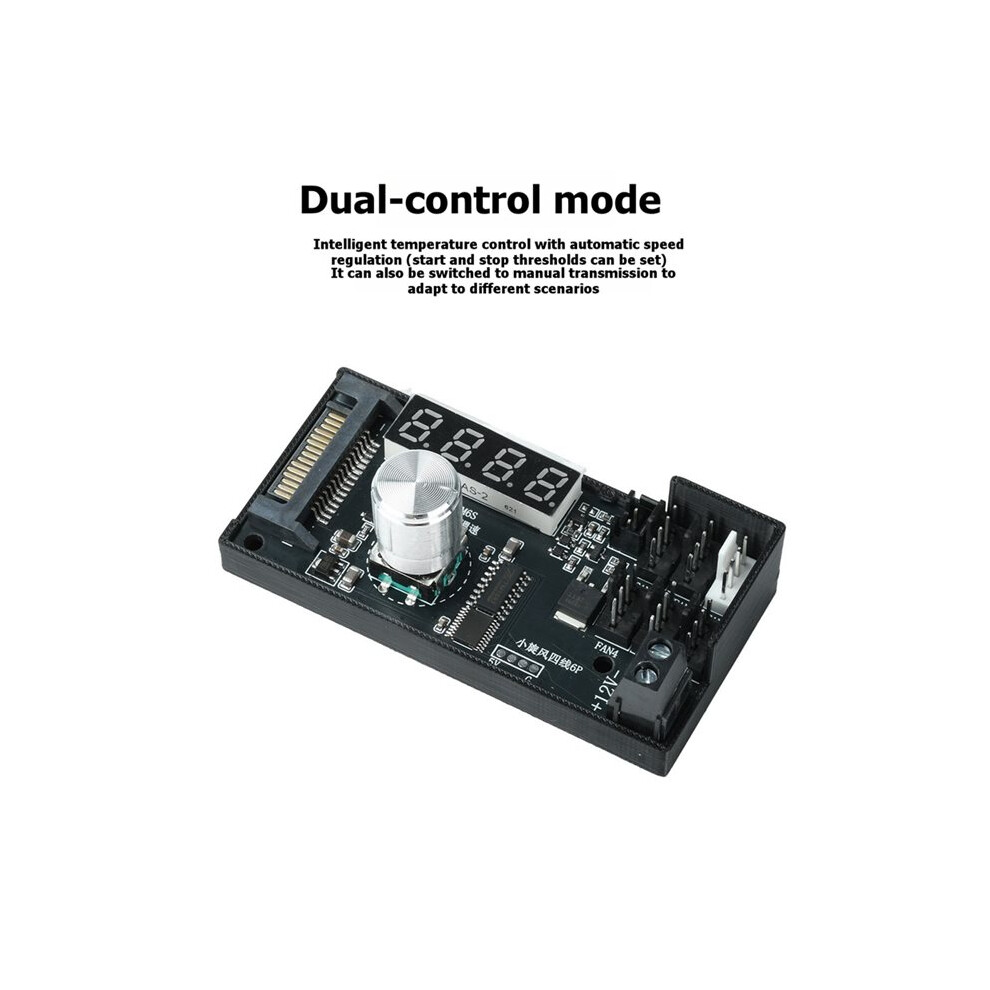

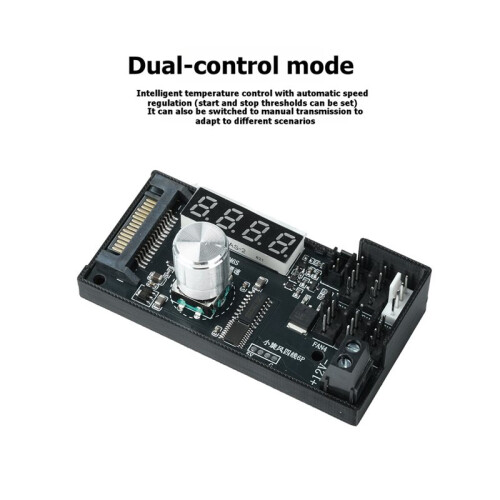

3. Dual Control Mode: Intelligent temperature control for automatic speed adjustment (start/stop thresholds can be set), and manual mode can also be used to adapt to different scenarios.

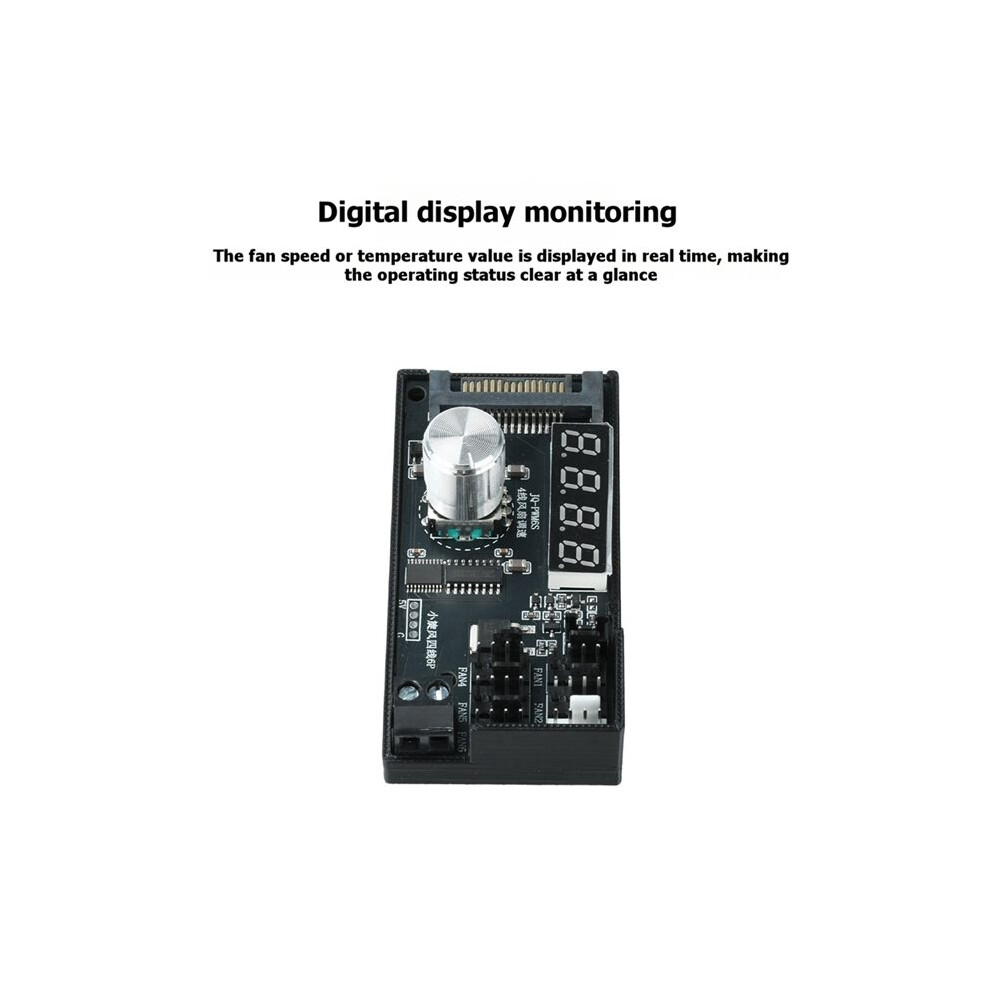

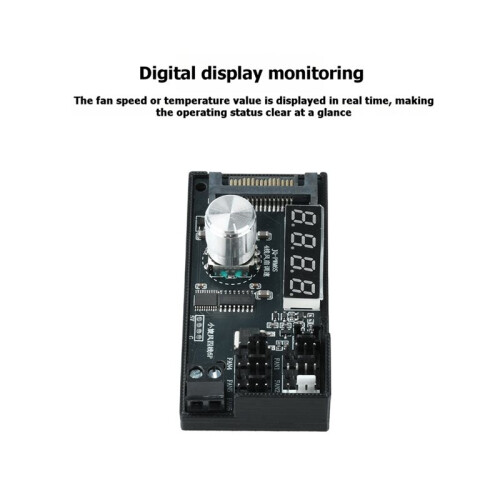

4. Digital Display Monitoring: Real- display of fan speed or temperature values, providing a clear overview of the operating status.

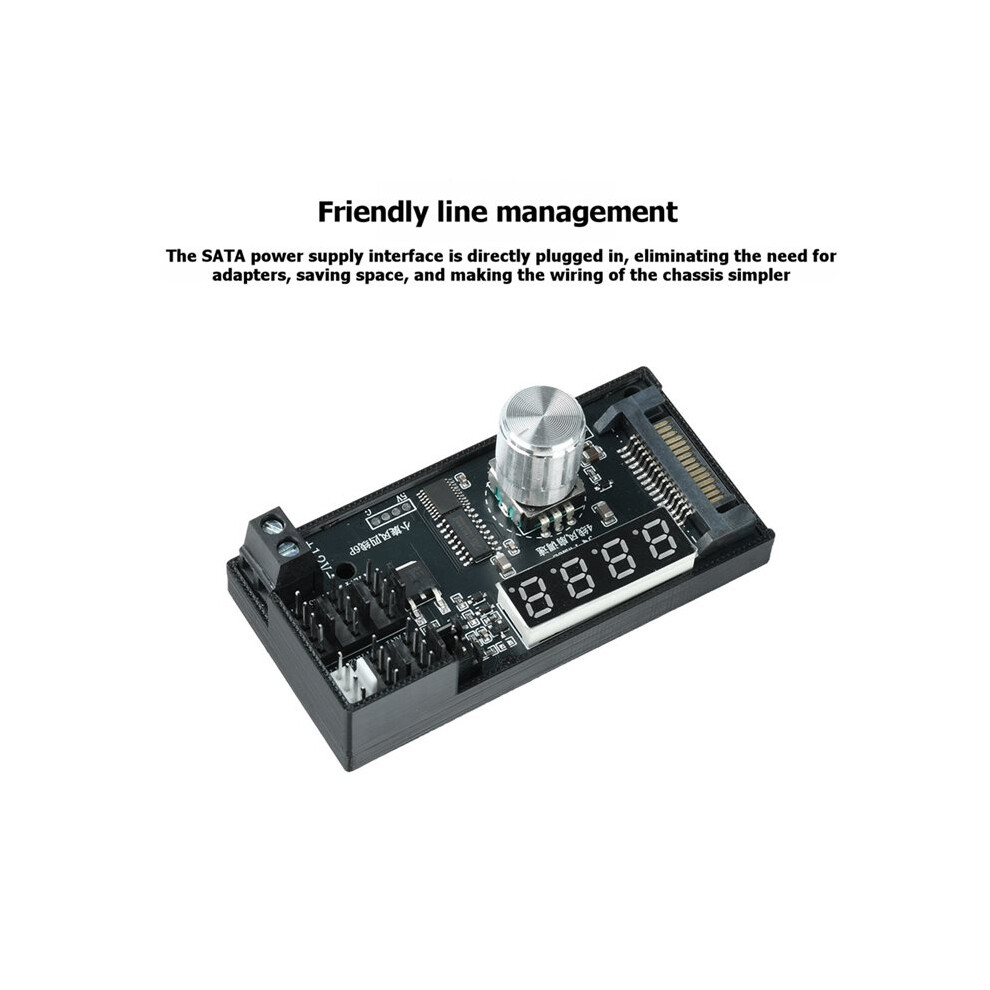

5. Cable Management-Friendly: Direct power connector eliminates the need for adapters, saves space, and makes cable management in the chassis simpler.

Product Parameters

Operating Voltage: 12V

Adjustment Method: Encoder Adjustment

Maximum Output Current: 5A

Speed/Temperature Display: Short press the knob to between temperature and speed display

Speed Control Mode: Disconnect the temperature probe, power off and restart to enter manual speed control mode

Temperature Probe: NTC 10K 3950B

Operating Instructions

Long press the knob for 1 second to enter settings

Short press the knob to display LXX-Initial Temperature

Short press again to display HXX-Maximum Speed Temperature

Short press again to display -XX, indicating temperature recovery

Short press again to display OFF0, indicating screen off setting (OFF0-screen , OFF1-screen off)

Short press again to display PF0, indicating output inversion setting (0-no inversion, 1-inversion)
Color: Black
Material: PCB

Package Contents:
1*Fan speed controller
