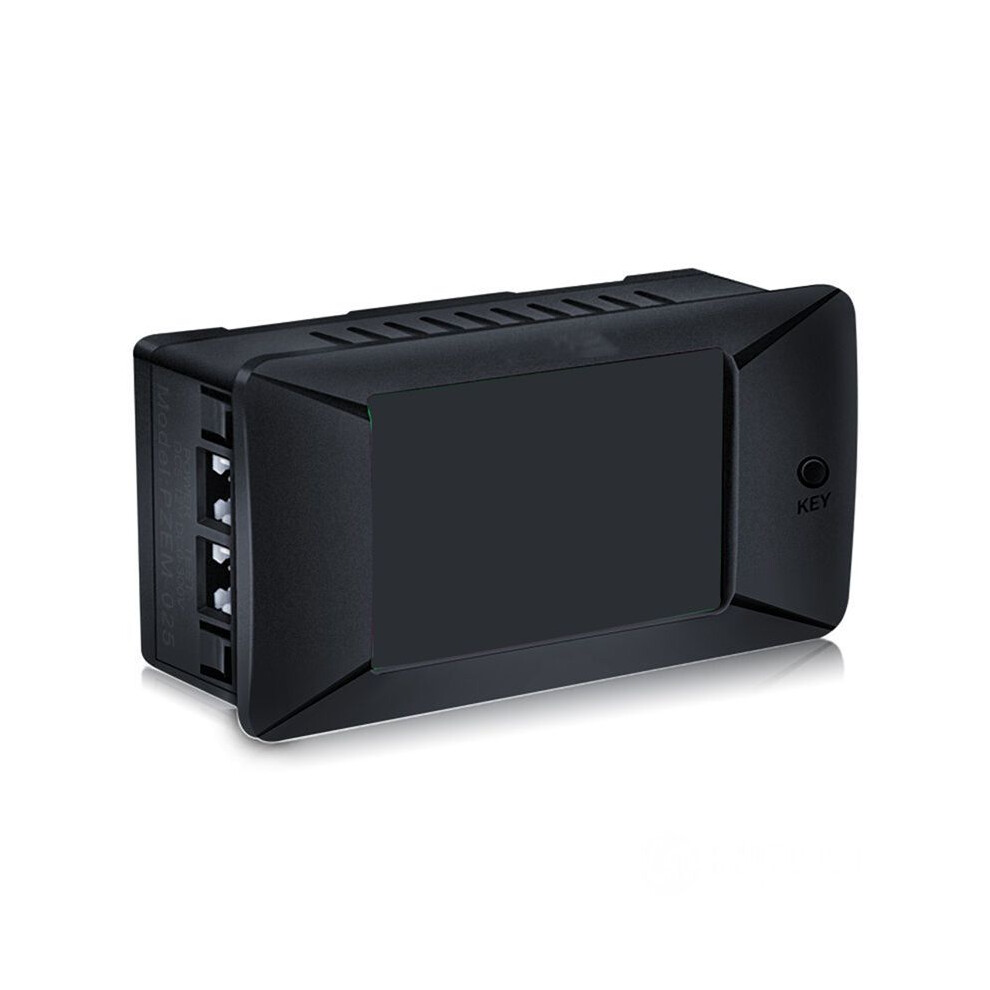

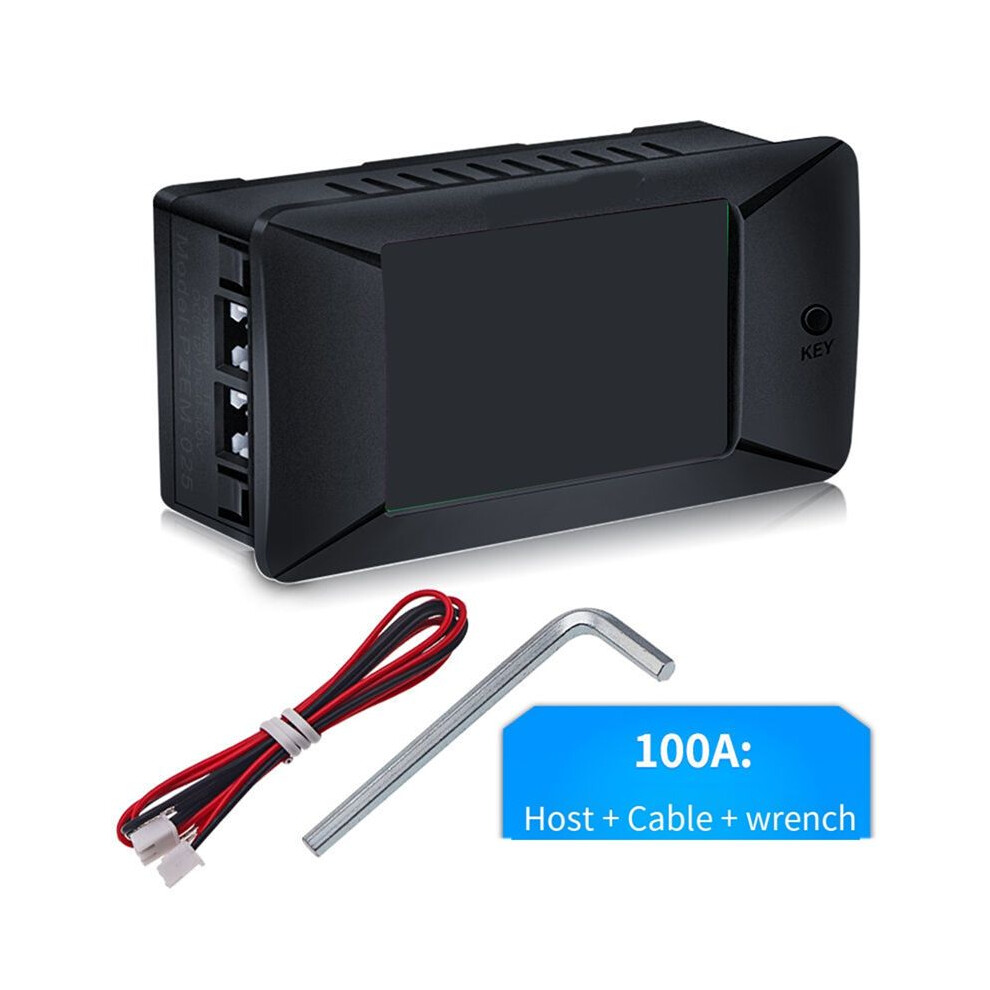

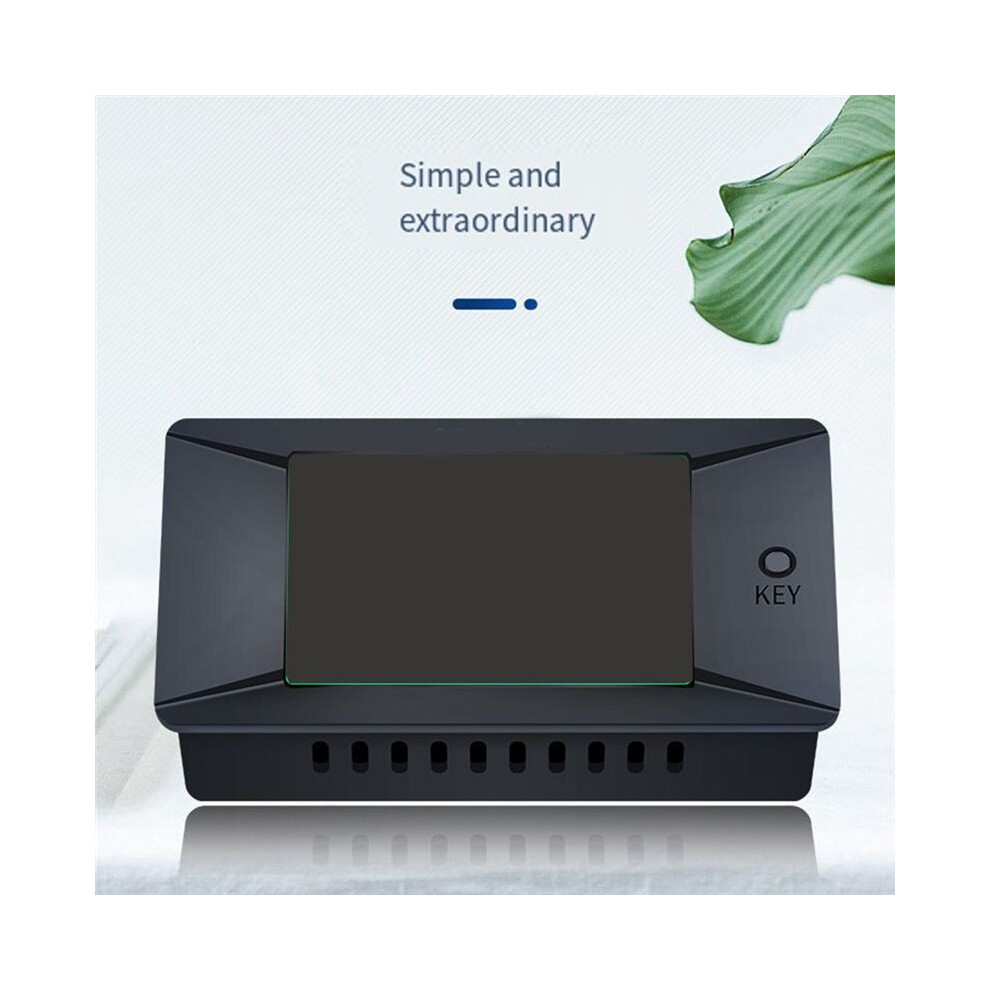

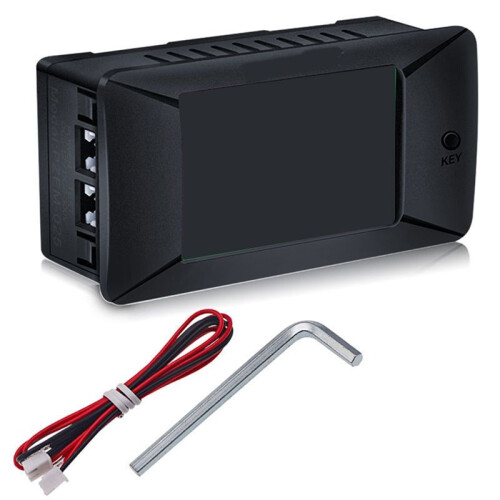

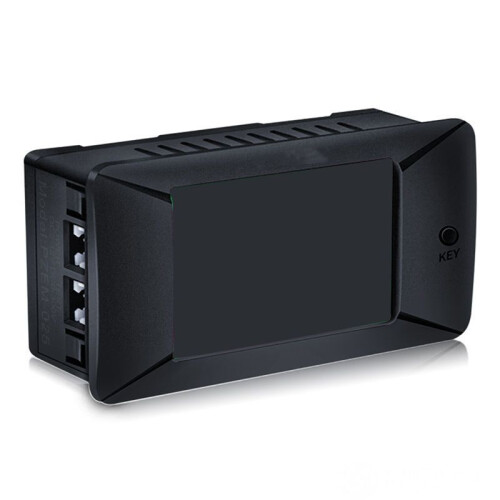

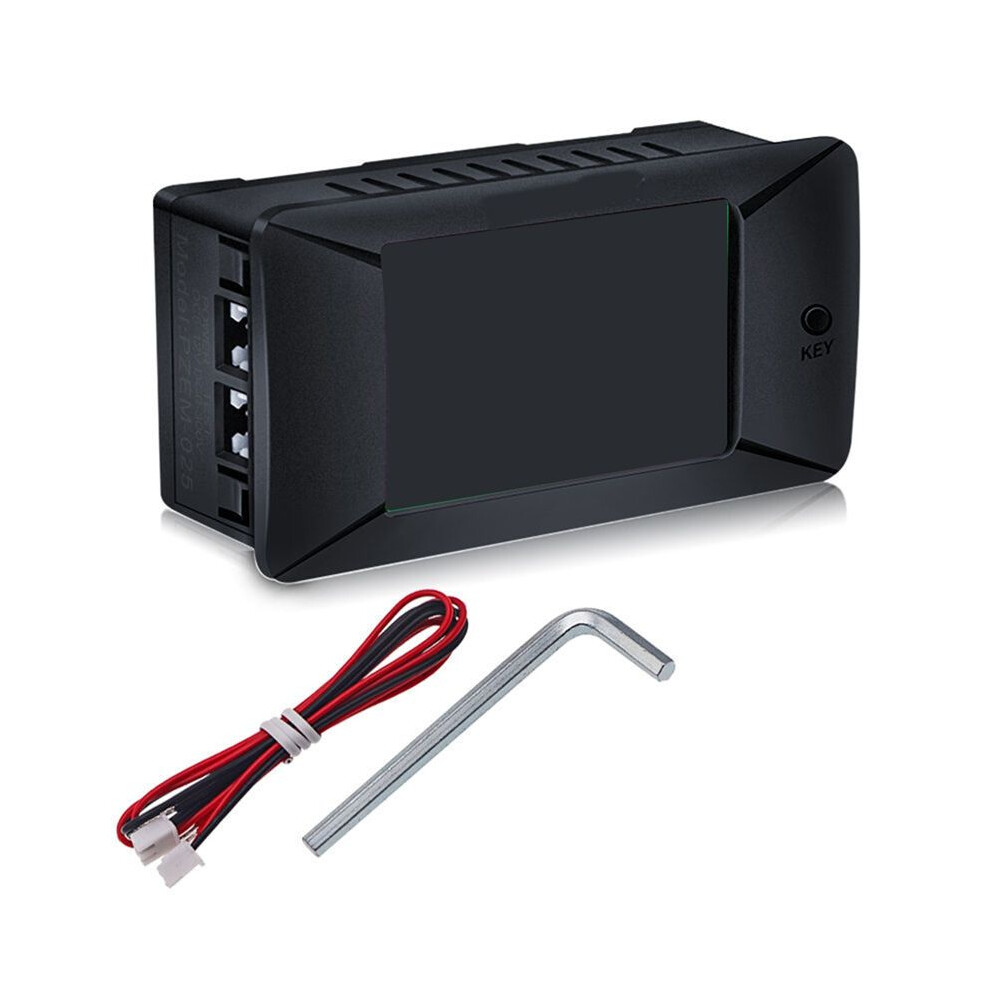

DC5-12V 100A Shunt Bulit-in Digital Battery Tester Two-Way Ammeter Voltmeter Power Watt Meter

DC5-12V 100A Shunt Bulit-in Digital Battery Tester Two-Way Ammeter Voltmeter Power Watt Meter Περιγραφή

HTN wide viewing angle liquid crystal screen, clearly distinguishable. Green backlight, high contrast.
It has the reverse indication of voltage, current, power, consumption, current and consumption.
The voltmeter is simple to install, embedded installation, minimalist wiring.

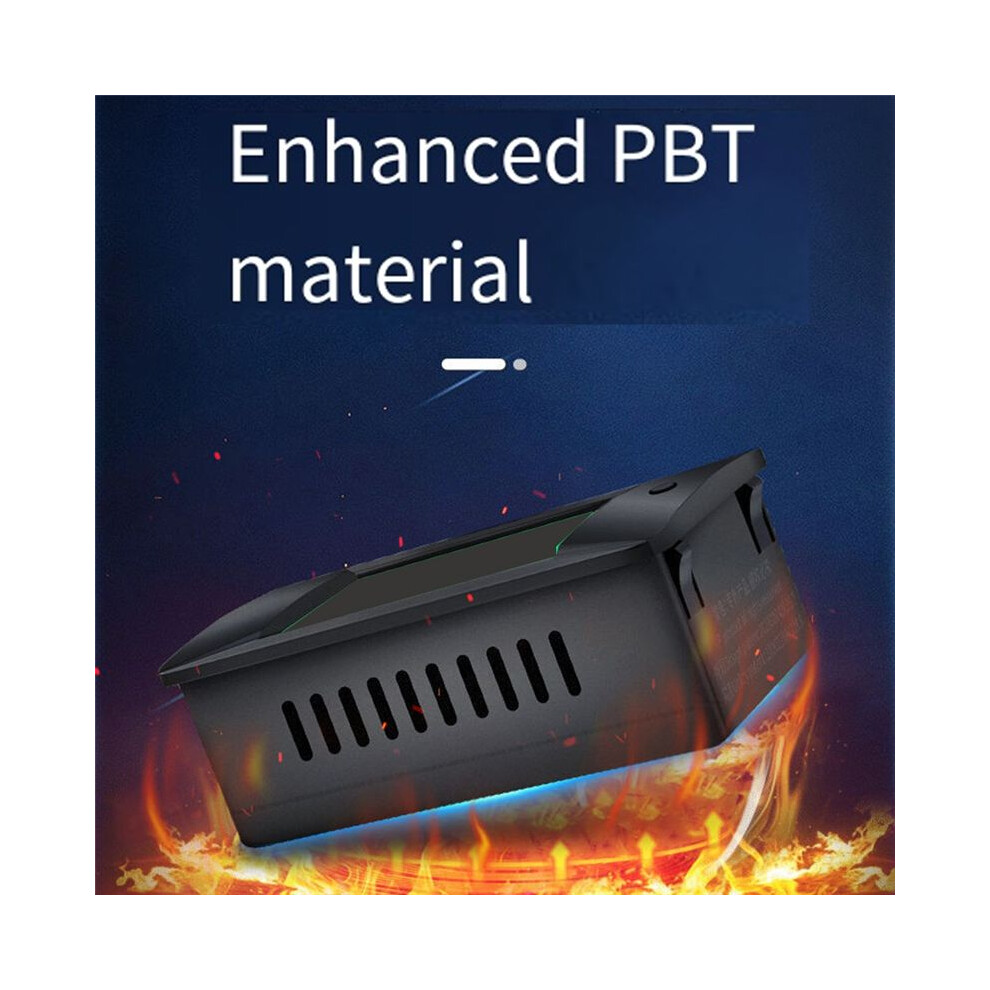

Digital display voltmeter is an industrial design and integrated built‑in shunt. Tester uses reinforced PBT material, high temperature resistance, durable.
The product appearance and printed words may vary depending the batch, but this does not affect use.

Item Type:Digital Display Voltmeter
Specification:100A
Input Voltage:DC5-12V
Measuring Voltage:DC0-300V
Producr Size:Approx. 85.3x44x32mm/3.4x1.7x1.3in
Backlit Control: short press the button to turn or off the backlight
Consumption Reset: long press the button for more than 3 seconds to reset consumption
Current Indication: the current has a direction indication, the "-" sign indicates the reverse direction, otherwise it means the forward direction
Consumption Indication: consumption has direction indication, "-" sign indicates reverse direction, otherwise it means forward direction
The direction of consumption accumulation is judged according to the direction of the current, the current is positive, the consumption increases, the maximum is 999KWH, and the overflow is maintained, unless manually cleared; the current is reversed, the consumption decreases, the maximum is -999KWH, and the overflow is maintained, unless manually cleared.

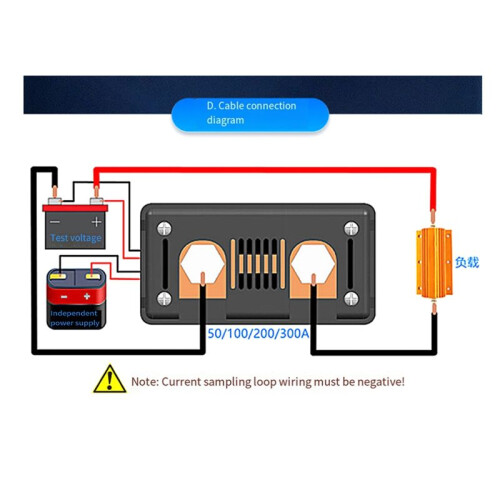

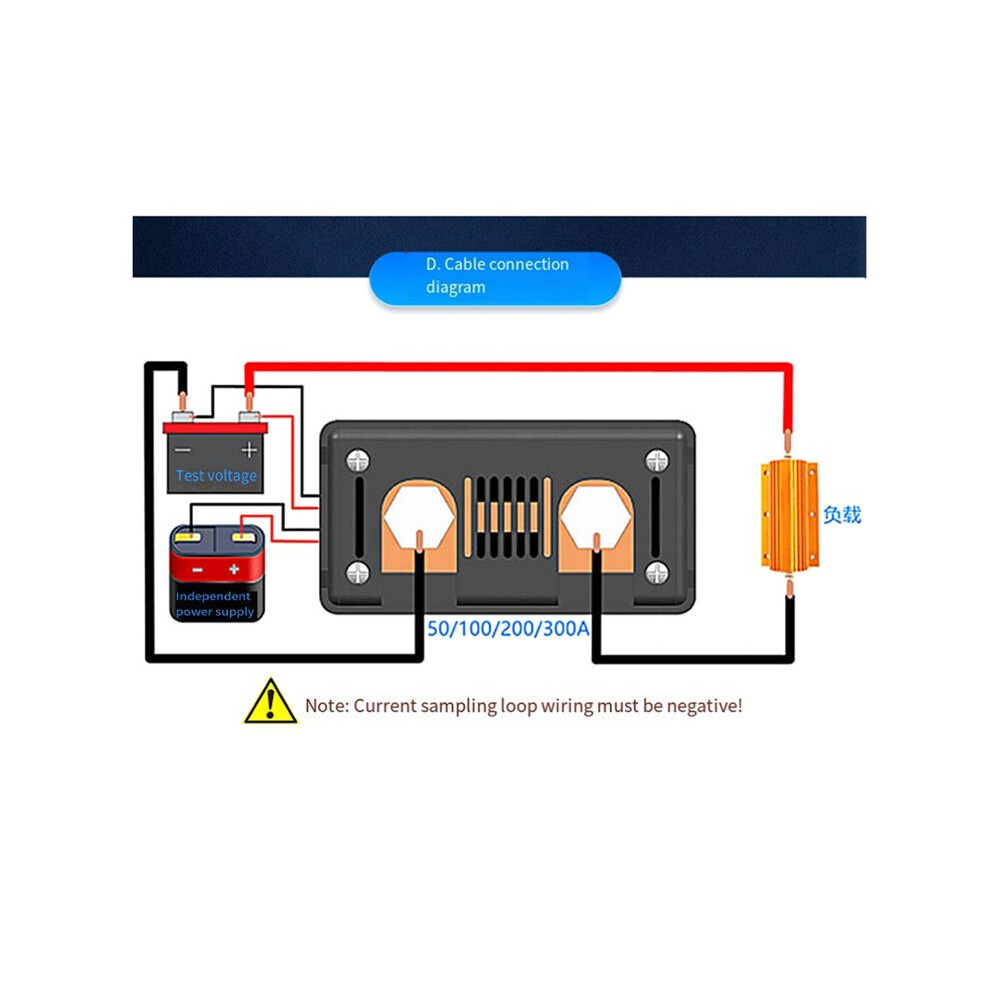

Way of Working:
Direct Power Supply: direct power supply for test voltage, measuring range: 8-300V
Independent Power Supply: working voltage range: DC5-12V, measuring range: 0-300V
Data Saving: consumption and backlight status can be saved w
