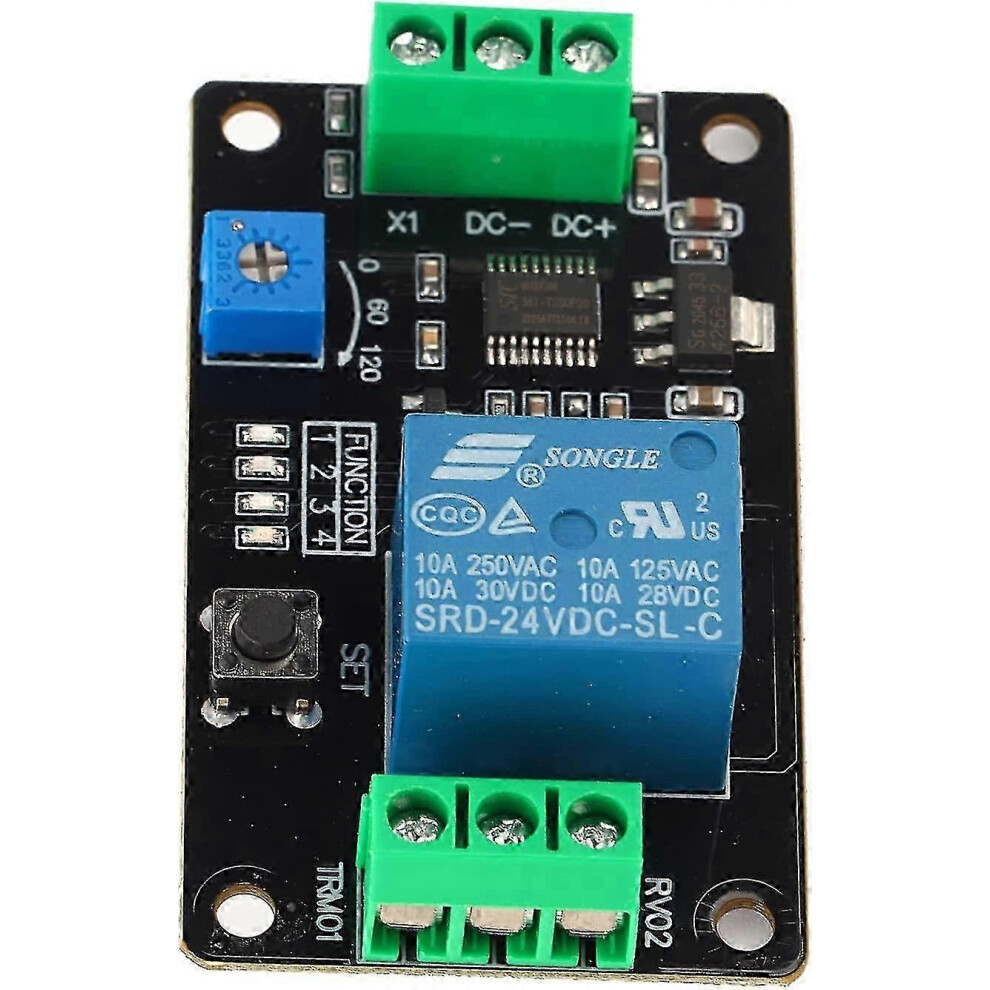

Delay Relay Module, 24V DC, 0.1-120s Adjustable Timing, 4 Selectable Functions, Anti Reverse Connection, 1 Pack

Delay Relay Module, 24V DC, 0.1-120s Adjustable Timing, 4 Selectable Functions, Anti Reverse Connection, 1 Pack Περιγραφή

Product Details 1. Multiple delay functions including delay pull-in, delay disconnection, self-locking and trigger delay for flexible timing control 2. Power supply anti-reverse connection protection prevents module damage from reverse power connection 3. Three working voltage options (5V/12V/24V) available to meet different application requirements 4. Adjustable timing range from 0.1 seconds to 120 seconds for customised time settings 5. Parameter saving function ensures settings are retained even when power is off Specification 1. Working Voltage: DC 5V, 12V, 24V (should not exceed +/-10% of nominal voltage) 2. Working Current: Less than 80mA at 5V (less than 1mA when relay not operating), less than 35mA at 12V (less than 1mA when relay not operating), less than 18mA at 24V (less than 1mA when relay not operating) 3. Operating Temperature: Recommended -20C to 60C (limit range -30C to 70C) 4. Load Capacity: Relay normally open port - DC 0-30V/10A, AC 0-250V/10A; Relay normally closed port - DC 0-28V/10A, AC 0-125V/10A 5. Size: 60mm35mm20mm (LWH) / 2.36in1.38in0.79in Package List 1. 1 x 24V Delay Relay Module Warm Tips 1. Allow 1-2cm error due to manual measurement 2. Color may vary slightly due to lighting effects in photos compared to actual product 3. Ensure correct voltage selection to avoid module damage 4. Follow wiring instructions for proper connection of input and output interfaces
