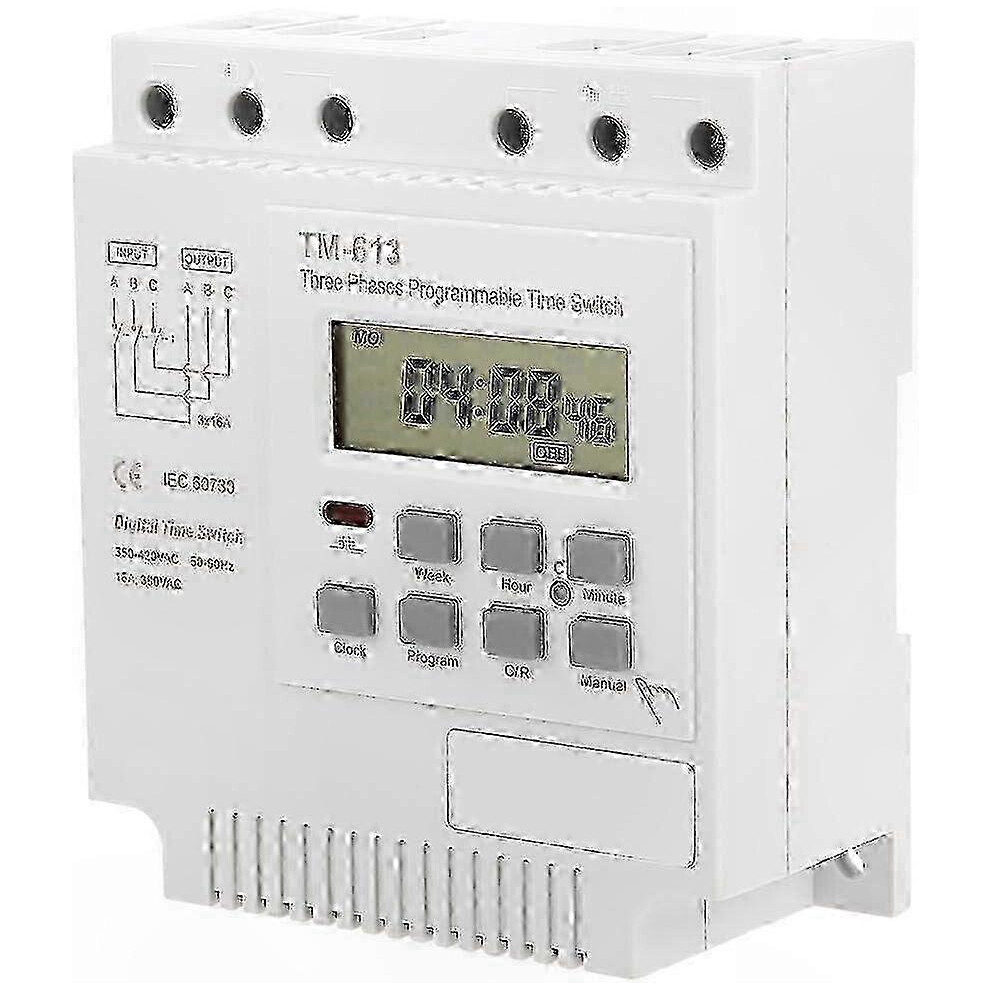

Digital 3-Phase Timer Relay Switch, 380V 16A 50-60Hz, Programmable Weekly, Three-Wire Input Output, 4kW Load, DIN Rail Mount

Digital 3-Phase Timer Relay Switch, 380V 16A 50-60Hz, Programmable Weekly, Three-Wire Input Output, 4kW Load, DIN Rail Mount Περιγραφή

Product Details 1. Three-wire input and output design addresses wiring challenges for users unable to connect a neutral wire, reducing installation complexity 2. Supports up to 4 kW maximum load, eliminating the need for an external contactor in many applications 3. Weekly timer function allows up to 17 programmable cycles per week with intervals as short as one minute, supporting temporary manual override for immediate on/off control 4. Built-in rechargeable battery retains settings during power interruptions, no need to reprogram after power loss 5. Suitable for use with 350V-420V AC three-phase motors and various equipment such as water pumps, fish pond aerators, rice steamers, water heaters, display panels, neon lights, and fans Specification 1. Model: DDS528 2. Rated Voltage: 230V AC 3. Rated Current: 5-32A 4. Load Capacity: 0.05Ib - Imax (direct connection type) or 0.02Ib - Imax (transformer connection type) 5. Display: LCD 6. Backlight: None 7. Power Indicator: Green LED 8. Energy Pulse Indicator: Red LED (flashes approximately 80ms when signal is present) 9. Mounting: 35mm DIN rail 10. Operating Environment: -25C to 55C, up to 95% RH 11. Dimensions: 78.5 x 36.5 mm (3.09 x 1.44 inches) 12. Package Weight: Approximately 131g (4.6 oz) Package Contents 1. 1 x Timer Relay 2. 1 x Mounting Clip 3. 4 x Sealing Plugs Warm Tips 1. Due to differences in monitor displays and lighting conditions, actual product color may vary slightly from images 2. Please allow slight variations due to manual measurement 3. Simply set the desired timing after connecting the power cable, compatible with standard 380V AC systems
