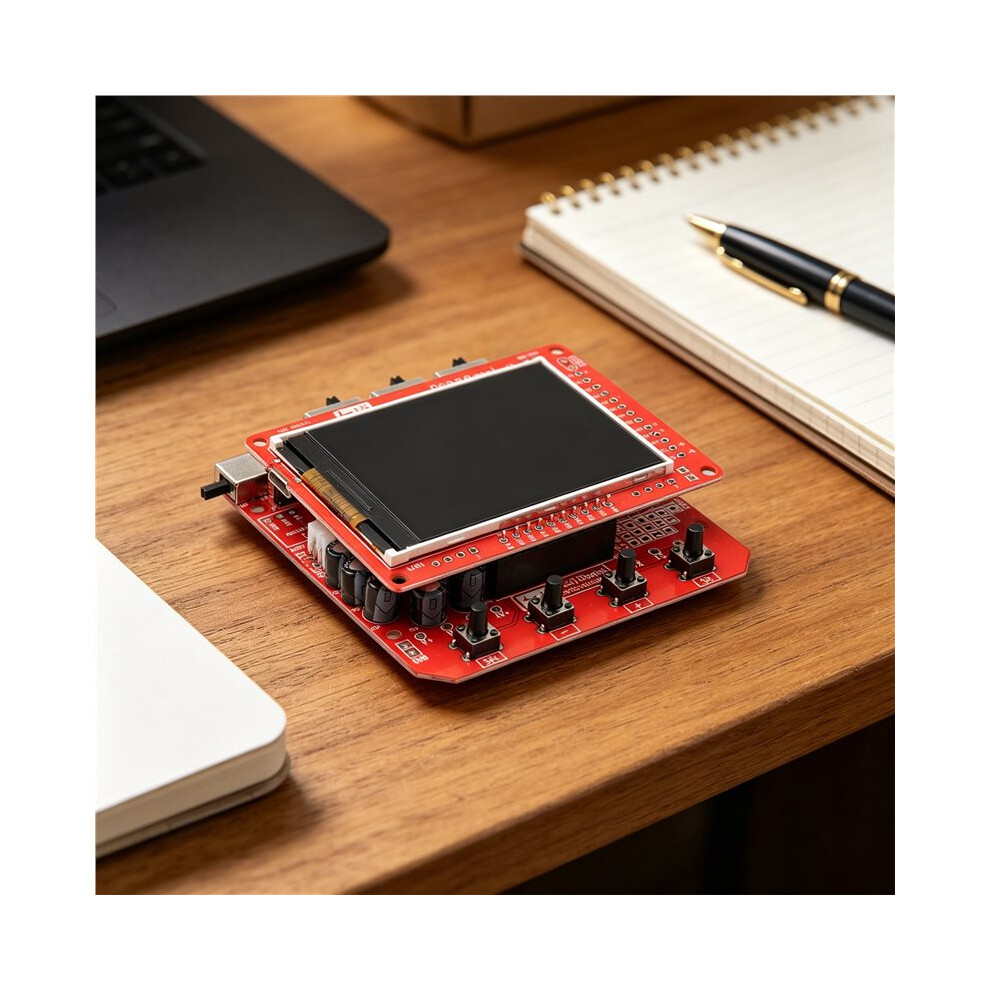

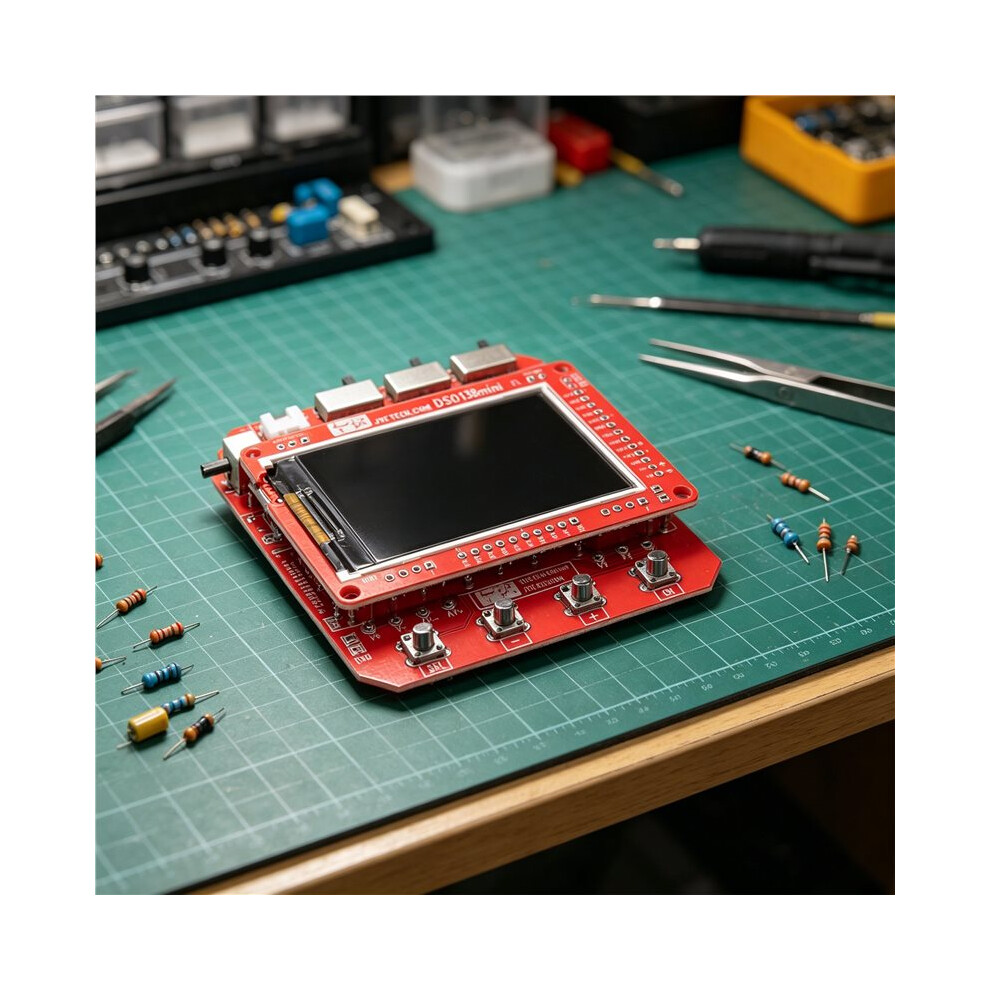

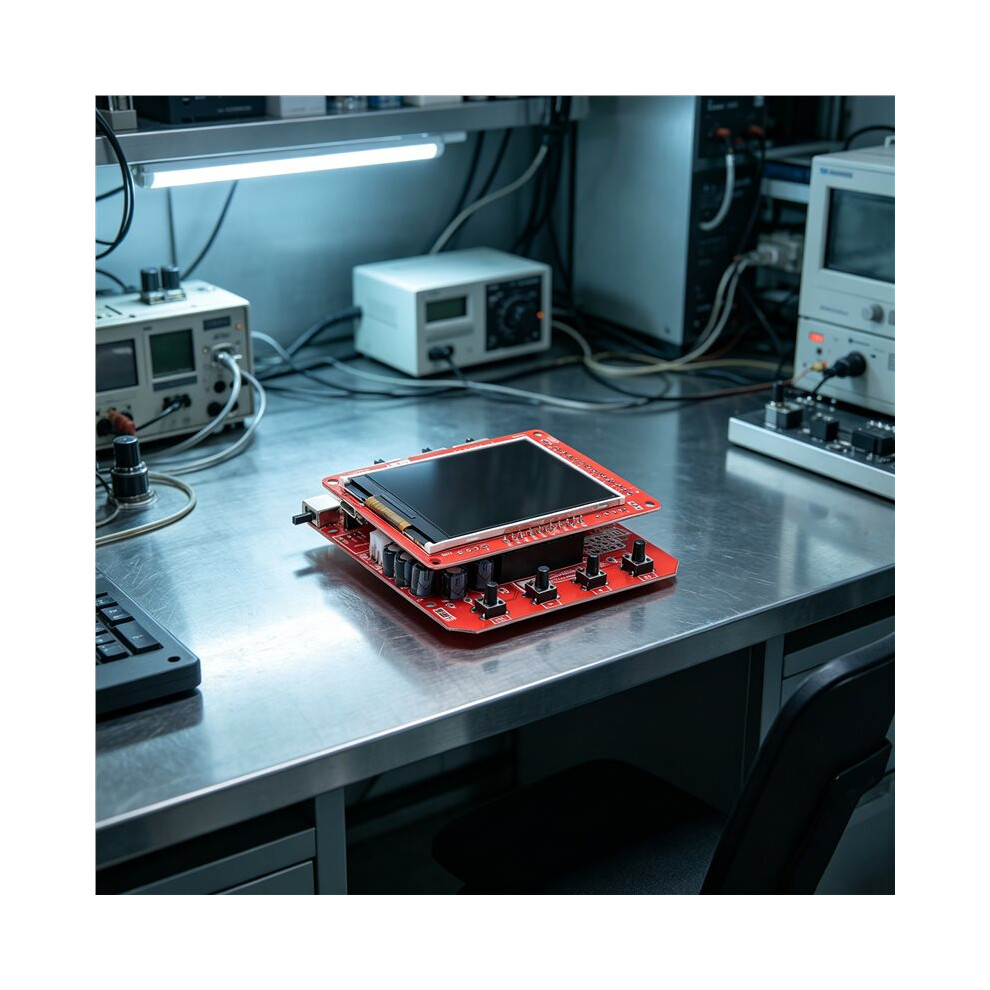

DSO138Mini Digital Oscilloscope Kit DIY Learning Pocket-Size DSO138 Upgrade(Spare Parts)

DSO138Mini Digital Oscilloscope Kit DIY Learning Pocket-Size DSO138 Upgrade(Spare Parts) Περιγραφή

DSO138mini brings in the following improvements: 1. Better structure and smaller size
2. USB or battery powered. 3. External trigger input.
4. Serial output of waveform data. 5. universal controller.
DSO138mini make MCU and LCD stay in one PCB to avoid problematic pin-header connections that was used in DSO138. This not only increase product reliability but also allow the main board to become a flexible universal purpose controller.
DSO138mini's trigger can work reliably under 10us and 20us timebase settings.Waveform data can be outputted through serial port and the data can be easily displayed PC with help of other software like Gnuplot. This photo shows the same waveform displayed PC using Gnuplot.

Specification:
Major features of DSO138
Sampling rate: 1Msps max
Built-in 1KHz/3.3V test signal
Waveform freeze (HOLD) function available
Save/recall waveform
Serial waveform data output
Vertical:
Number of Channel: 1
Analog Bandwidth: 0 - 200KHz
Sensitivity: 10mV/Div - 5V/Div
Sensitivity error: less than 5%
Resolution: 12-bit
Input Impedance: 1M ohm
Maximum Input voltage: 50Vpk
Coupling: , AC, GND
Horizontal:
Max Real- Sampling Rate: 1Msps
Timebase: 10us/Div - 500s/Div
Record Length: 1024 points
Trigger:
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising/falling
Trigger Position: 1/2 of buffer size fixed
Display: 2.4-inch color TFT LCD with 320 x 240 resolution
Power Supply: 3.5V - 6V
Supply Current: 120mA@5V
Physical Dimensions: 7 x 8cm/2.76 x 3.15inch
Type: Spare Parts
Colour: Red
Material: plastic

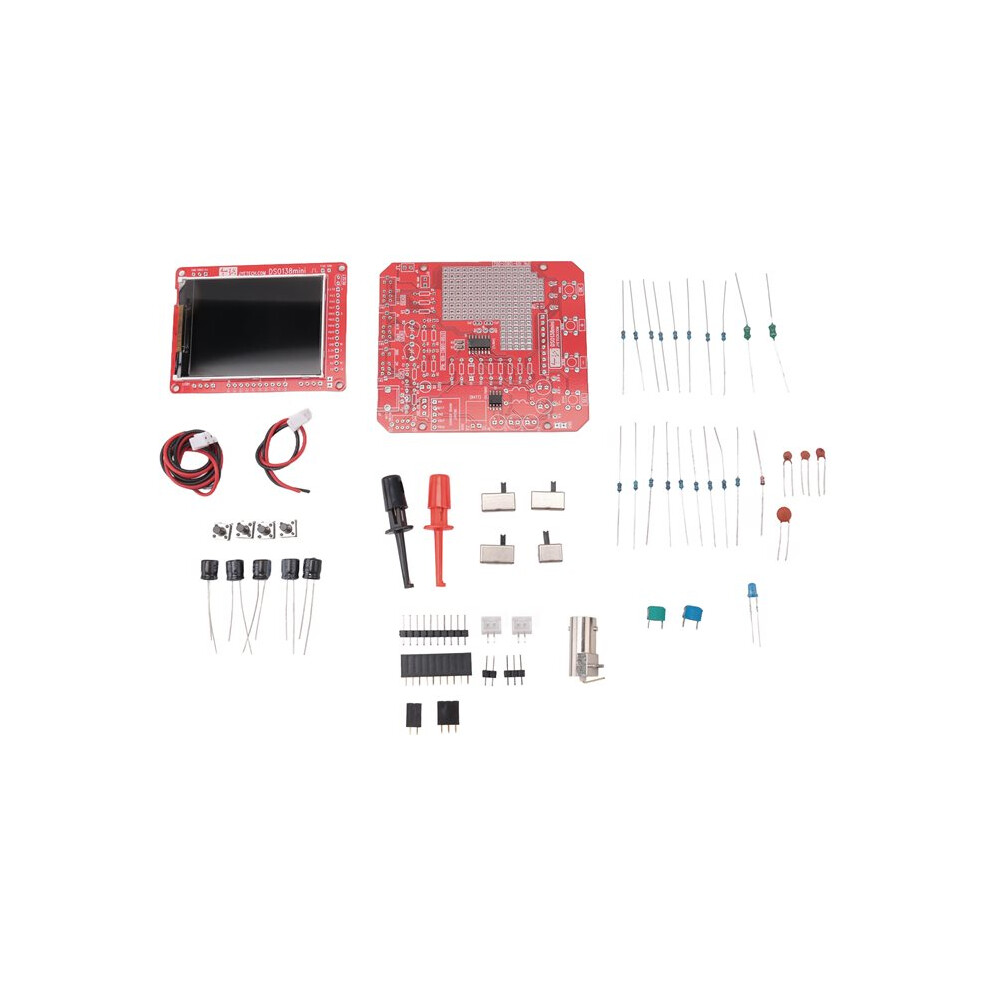

Package Contents:
1 set x DSO138mini oscilloscope kit
