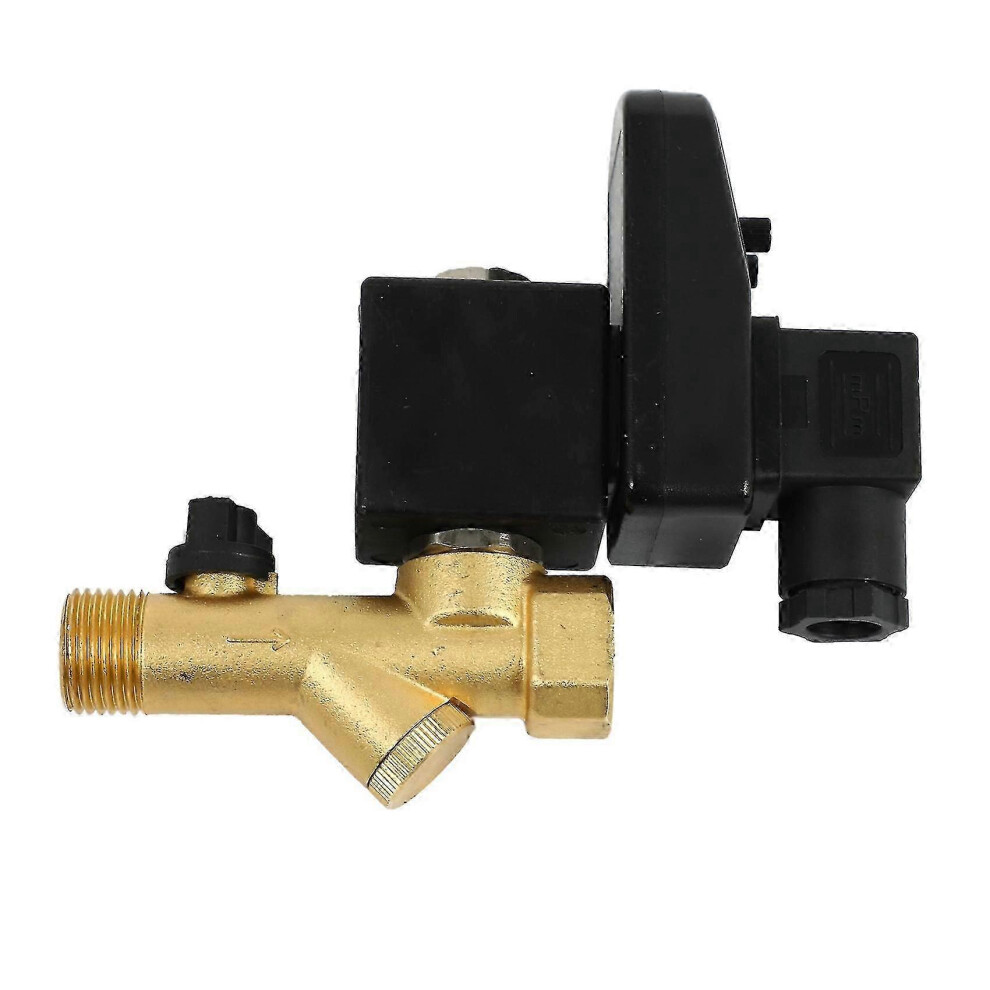

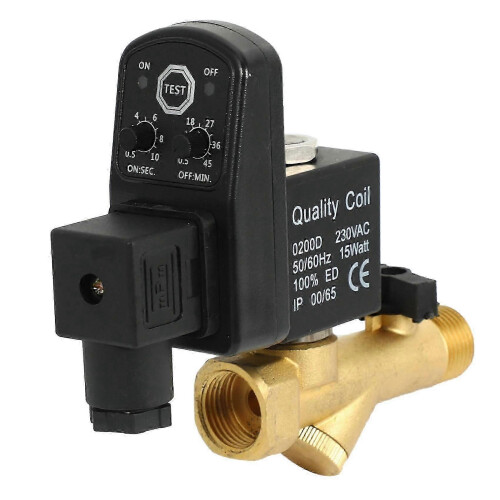

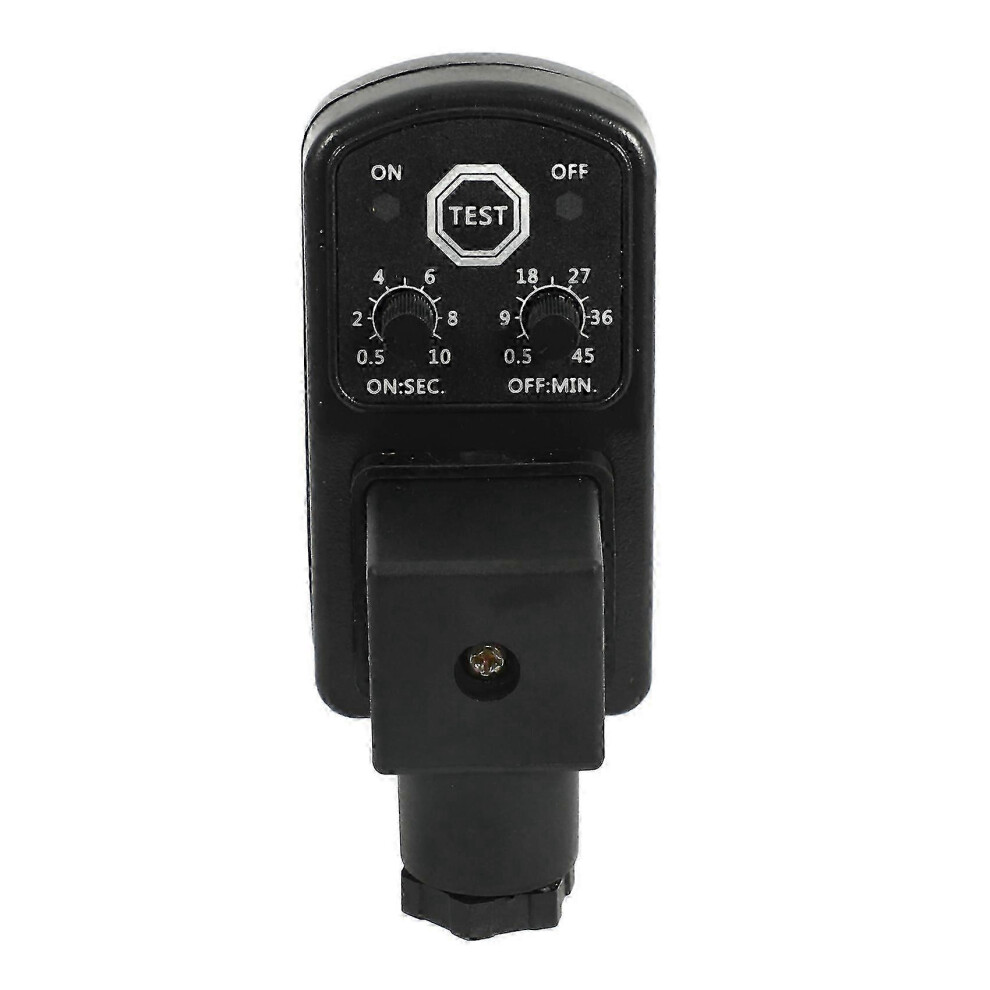

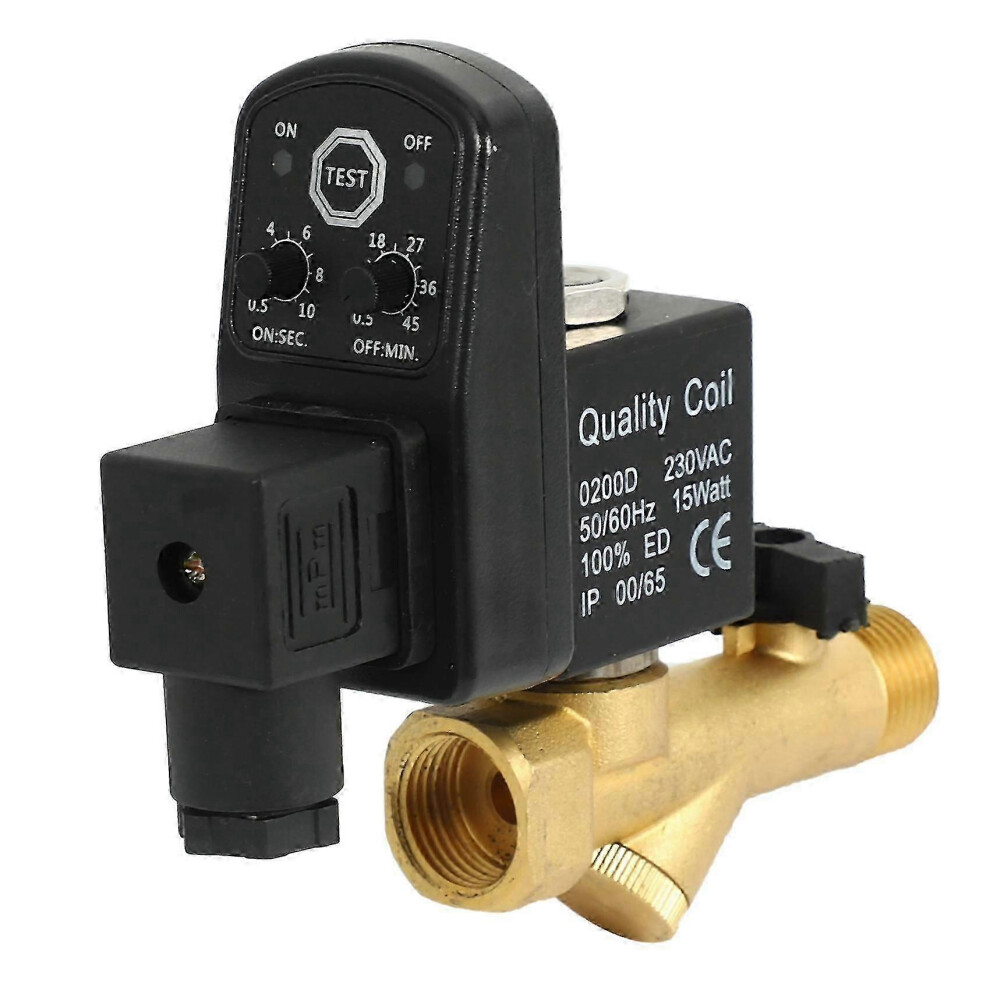

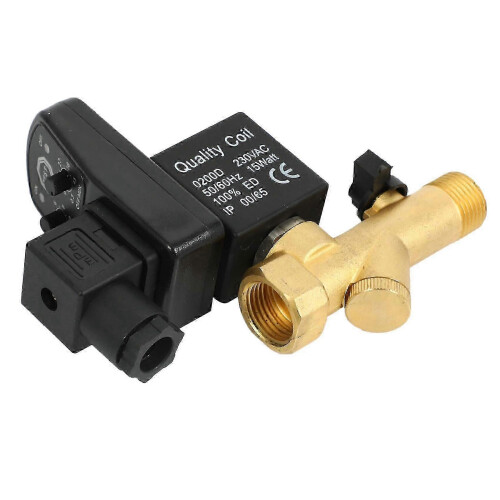

Electronic Timed 2-Way 1/2 Inch AC 220V Automatic Drain Valve for Compressor Gas Tank

Electronic Timed 2-Way 1/2 Inch AC 220V Automatic Drain Valve for Compressor Gas Tank Περιγραφή

Product Details 1. Timed automatic drainage prevents compressed air system blockages and maintains efficient operation 2. IP65 protection grade ensures reliable performance in harsh industrial environments 3. Wide voltage range (24-240V AC/DC) allows flexible installation in various electrical systems 4. LED indicator provides clear visual status of valve operation Specification Parameters 1. Material: Metal 2. Colour: Gold + Black 3. In/Out Port Size: 1/2 inch 4. Aperture: 5 mm 5. Voltage Range: 24-240V AC/DC 50/60Hz (+/-10%) 6. Maximum Working Pressure: 1.6 Mpa 7. Maximum Temperature: 90 Celsius 8. Ambient Temperature: -40 Celsius to 60 Celsius 9. Discharge Time (ON): 0.5--10 seconds 10. Time Interval (OFF): 0.5--45 minutes 11. Protection Grade: IP65 12. Insulation: Class H 13. Largest Current Consumption: 4mA Package Contents 1. 1 x Electronic drain valve Warm Tips 1. Clean the compressed system before installation 2. Note the direction when installing the valve: outlet should not have hose against impact 3. Ensure supply voltage matches drain valve voltage: positive pole must connect to connector "1" when using DC 4. Tighten the long screw on the terminal box to prevent water damage 5. When installing, ensure compressed air has been emptied and power supply has been switched off 6. Light and different displays may cause color variations from the real product 7. Measurement allowed error is +/- 1-3cm
