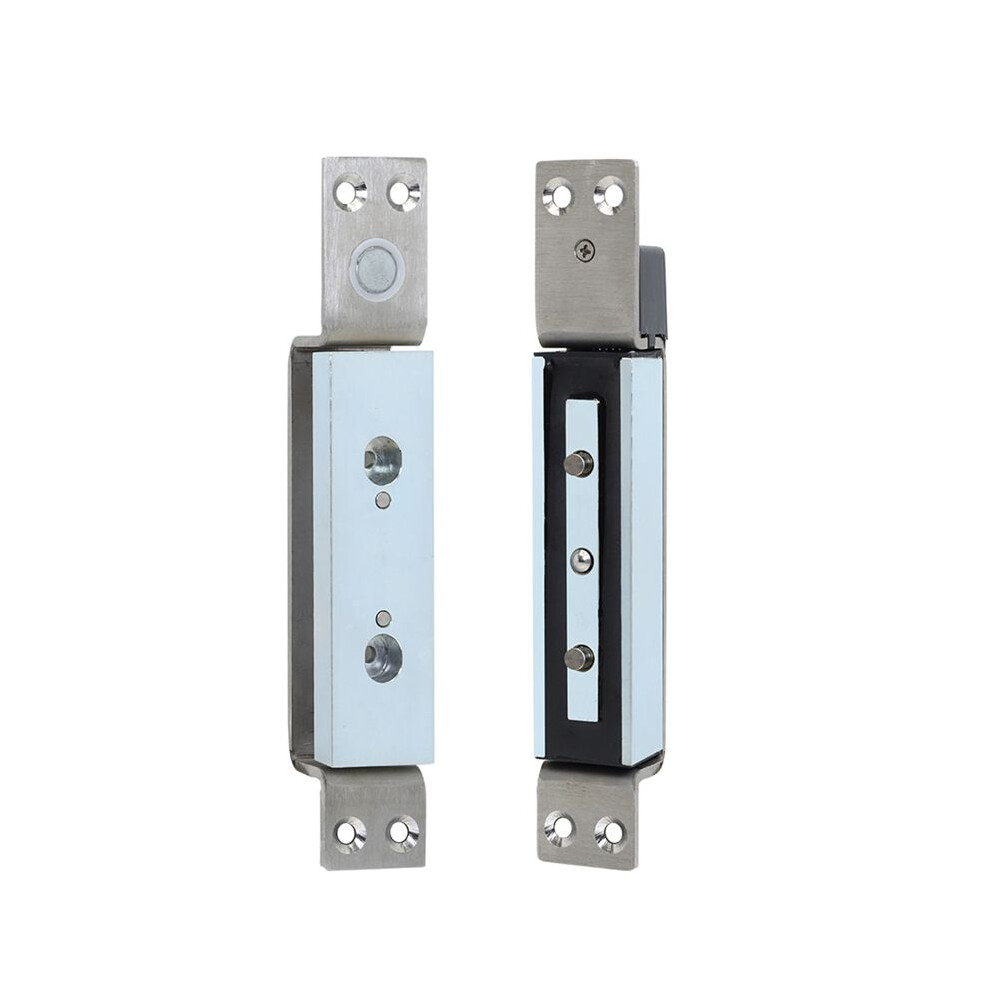

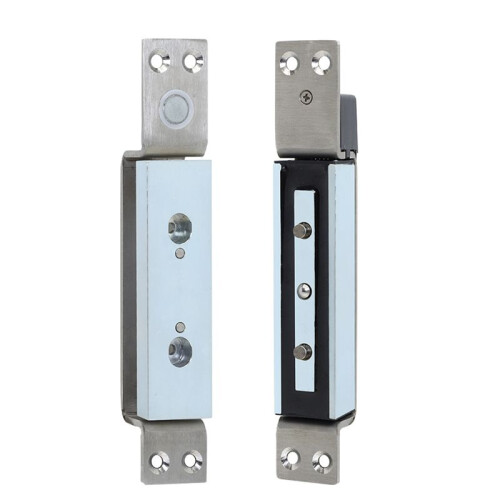

Embedded Electromagnetic Shear Lock Concealed Electric Magnetic Door Lock with Delay for Access Control Systems

Embedded Electromagnetic Shear Lock Concealed Electric Magnetic Door Lock with Delay for Access Control Systems Περιγραφή

Electromagnet: The shear lock contains a powerful electromagnet. When an electric current passes through it, the electromagnet generates a strong magnetic field that locks the door
Shear Force: In addition to the magnetic force, the shear lock utilizes the shear force between the door and the door frame to increase locking strength. This means that even if the electromagnetic force fails (such as during a power outage), the mechanical shear force can still provide a level of security
Shear locks provide very high locking strength by combining electromagnetic and mechanical shear forces, making them difficult to forcibly breach
Since shear locks rely primarily magnetic force, there is no mechanical wear like in traditional mechanical locks, leading to a longer lifespan

Working voltage:dc12v-dc24v
Working current:
DC12V starting current 1.6A maintaining current 0.22a
DC24V starting current 1A, maintaining current 0.13A
Feedback signal: NC - short circuit COM dry contact signal when the lock is powered and opened. NO - disconnect the COM dry contact signal when the lock is powered and opened
Adsorption spacing: within 4mm
Ambient temperature: -40 - +55
Lock delay : 0/3/6/9 seconds adjustable
(The product printed words may vary depending the batch, but this does not affect use)
Color:As Shown
Material:Aluminum Alloy

Package Contents:
1 * Electromagnetic Shear Lock
