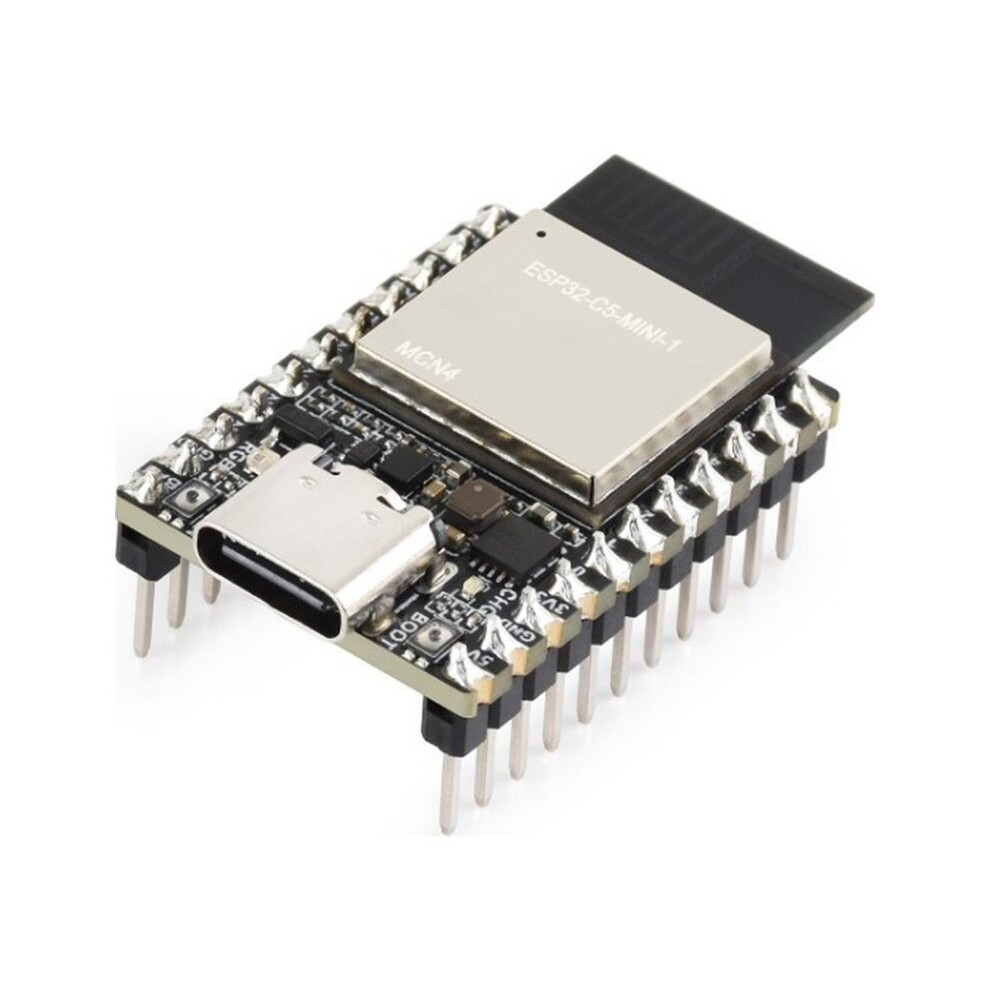

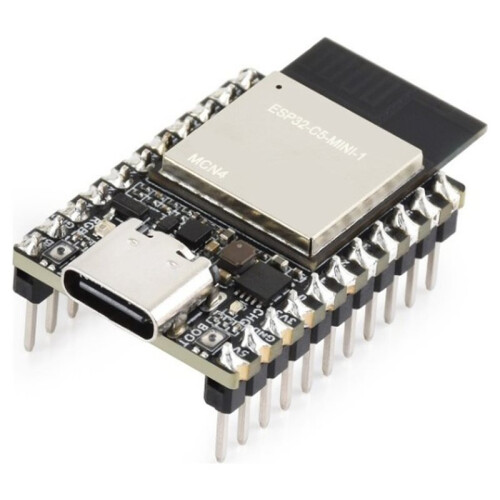

ESP32-C5 Dual-Band Wi-Fi 6 Development Board with 4MB Flash ESP32-C5--1 Module Onboard Antenna, Pre-Soldered

ESP32-C5 Dual-Band Wi-Fi 6 Development Board with 4MB Flash ESP32-C5--1 Module Onboard Antenna, Pre-Soldered Περιγραφή

The ESP32-C5--KIT is a compact, entry-level RISC-V microcontroller development board integrating 2.4GHz and 5GHz dual-band Wi-Fi 6, 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread). Suitable for home, industrial automation, healthcare, consumer electronics and other applications.
Adopts ESP32-C5--1 series module, which is equipped with a RISC-V 32-bit single-core processor, to 240MHz main frequency, built-in 320KB ROM, 384KB Static RAM, 16KB LP Static RAM and 4MB Flash.
Onboard MP1605GTF-Z - buck-boost chip provides a stable 3.3V output with a load current of to 2A. Also integrates ETA6098 power management circuit, supporting Lithium Batt power supply, charging status indication, and Batt voltage monitoring.
You can choose ESP-IDF, for or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:
Adopts ESP32-C5--1 series module with RISC-V 32-bit single-core processor, to 240MHz main frequency
Integrated 320KB ROM, 384KB Static RAM, 16KB LP Static RAM and 4MB Flash
Integrated 2.4GHz and 5GHz dual-band Wi-Fi 6, 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Onboard USB Type-C port, easier to use, supporting convenient power supply and development debugging
Onboard MP1605GTF-Z high-efficiency - buck-boost chip with a load current of to 2A
Onboard ETA6098 power management circuit, supporting Lithium Batt power supply, charging status indication, and Batt voltage monitoring
Rich peripheral interfaces including USB, UART, I2C, SPI, ADC, PWM and more for flexible function expansion
Castellated module allows soldering directly to carrier boards
Supports multiple low-power operating states, adjustabl
