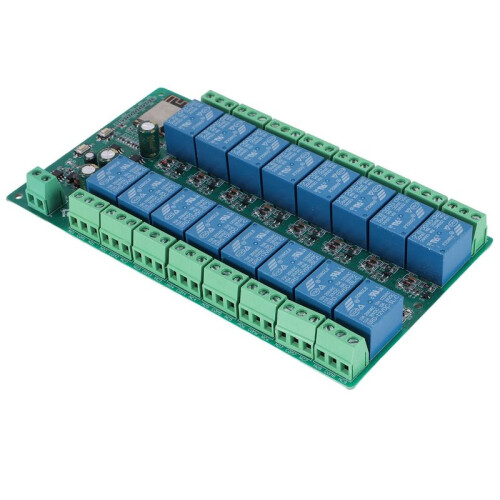

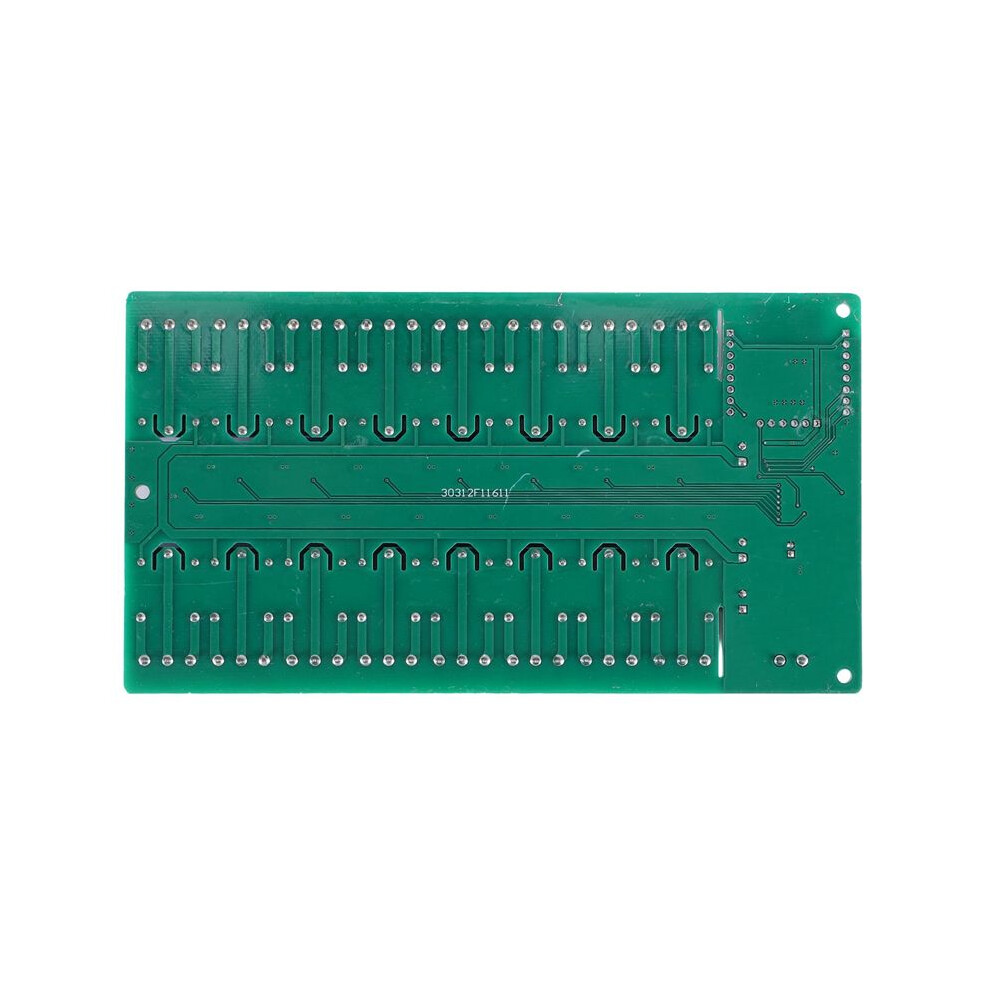

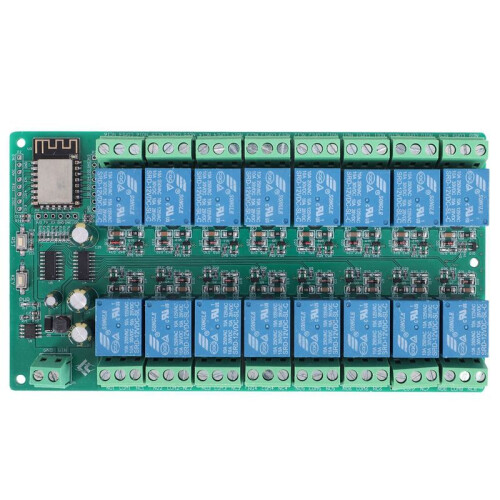

ESP8266 WIFI 16 Channel Relay Module ESP-12F Development Board Power, 16 Way Relay Module, Supply Mode 12V

ESP8266 WIFI 16 Channel Relay Module ESP-12F Development Board Power, 16 Way Relay Module, Supply Mode 12V Περιγραφή

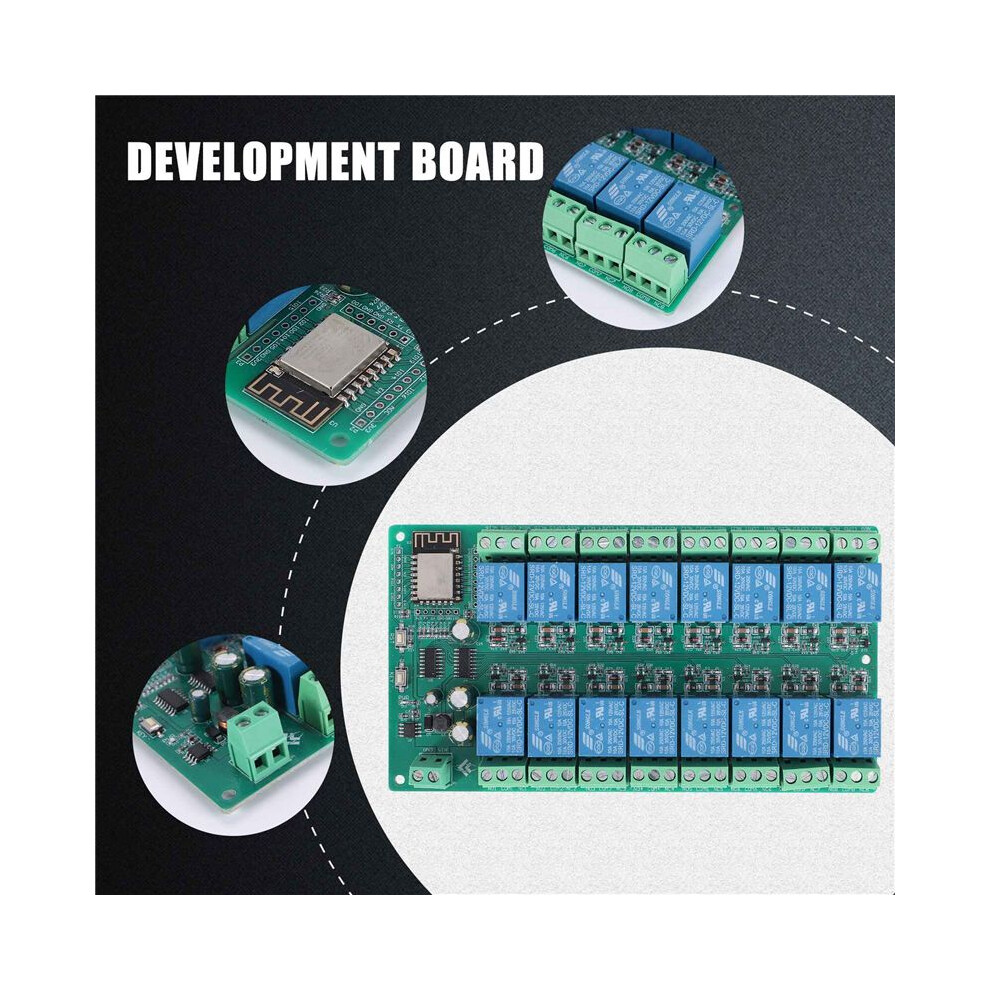

Mature and stable esp-12f WiFi module board, large capacity 4mbyte flash.

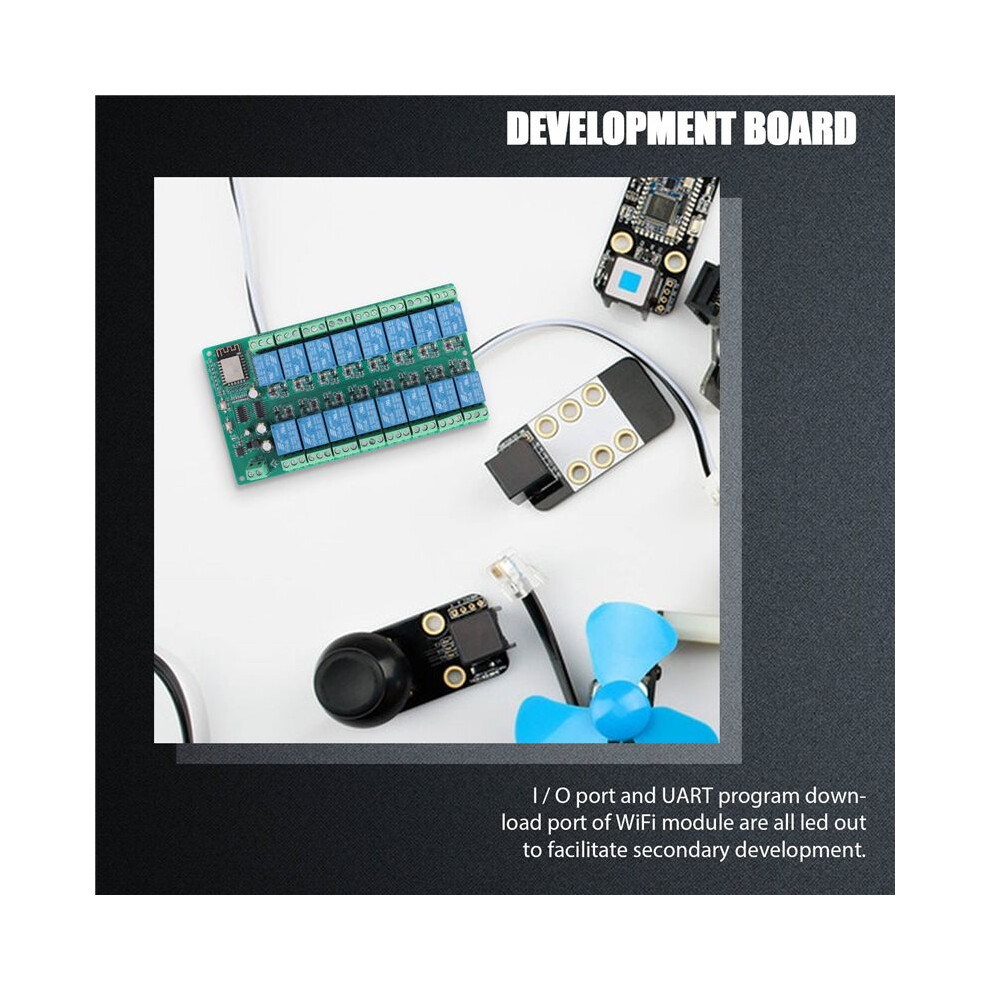

I / O port and UART program download port of WiFi module are all led out to facilitate secondary development.
The power supply mode supports DC12 v.
RST reset button and a programmable button for the onboard WiFi module.
Esp-12f supports the use of eclipse / for LDE and other development tools, and provides reference programs under for development environment.

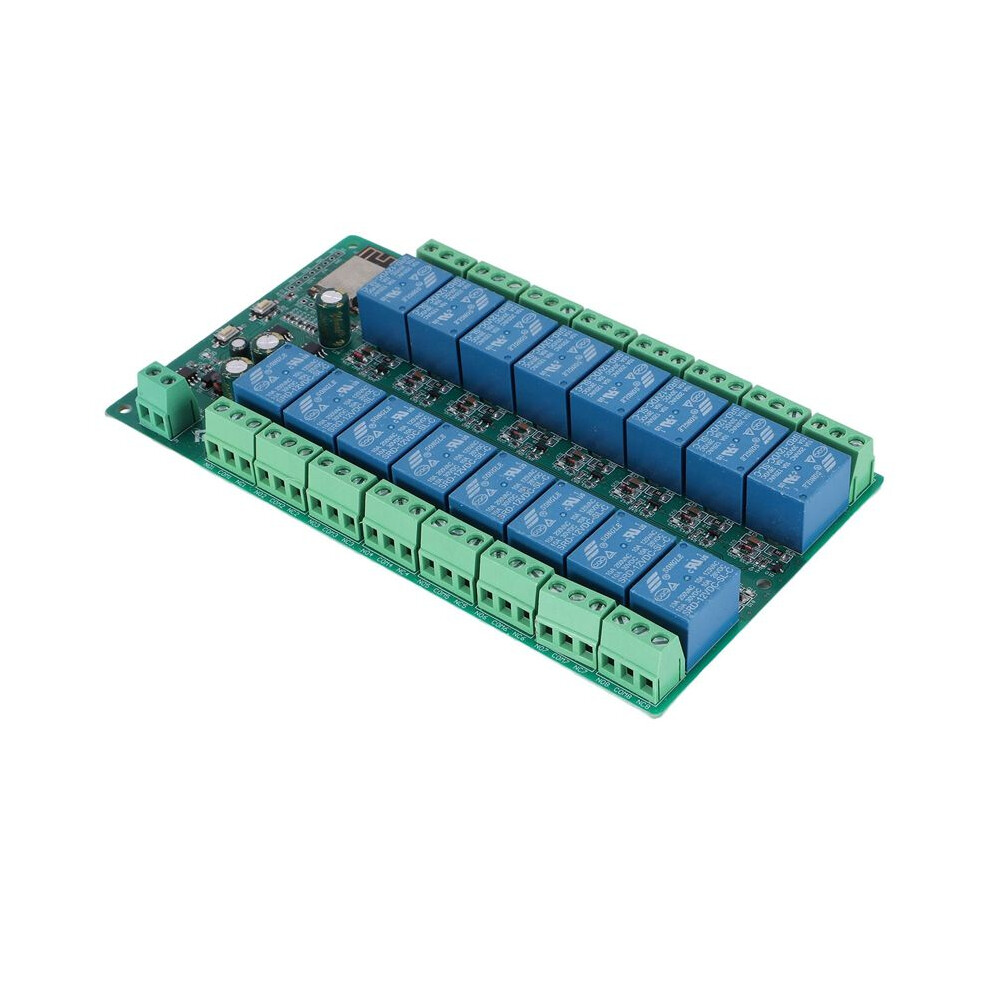

board 16 channel 24 V / 10 a relay, output signal, suitable for controlling the load whose working voltage is within AC 250 V / 30 v.

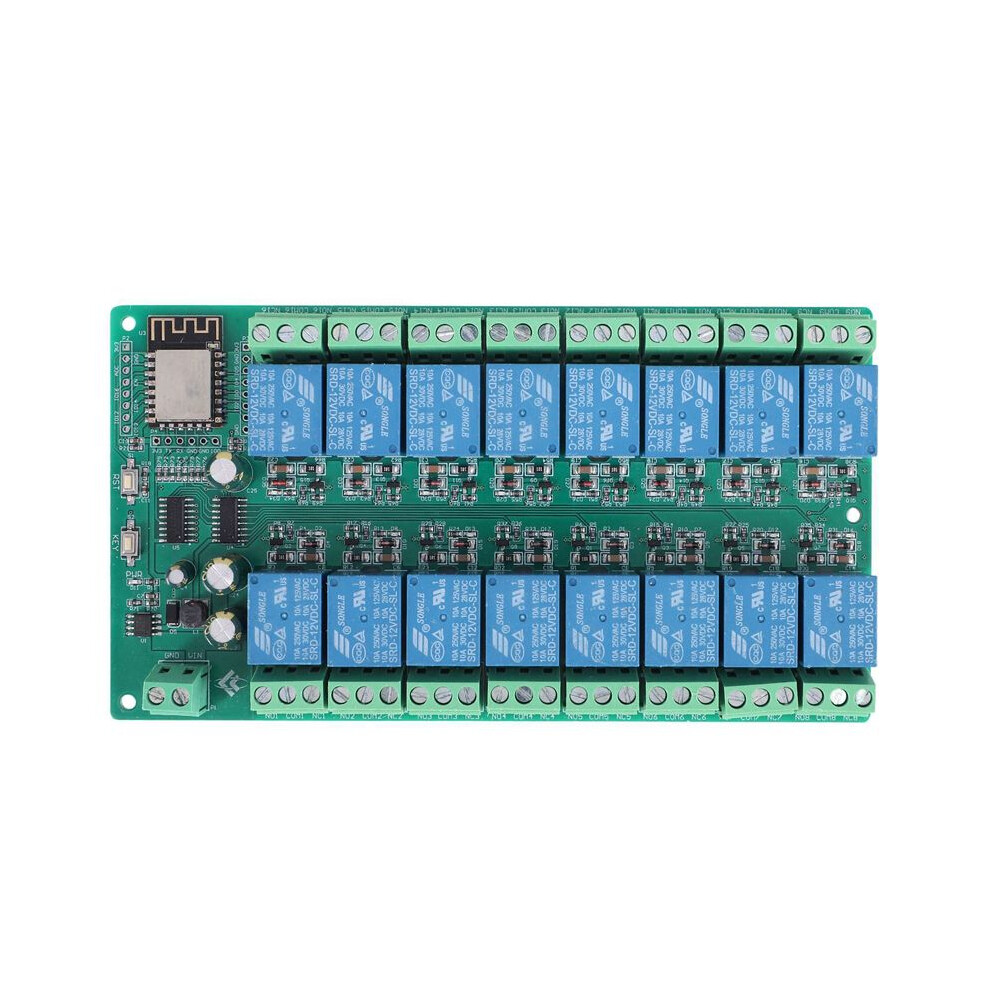

board power indicator, relay indicator and one module with LED.
Two -board shift registers 74HC595 control the relay .
The 16 way relay is controlled by two 74HC595 cascades, so the corresponding control program of 595 is needed to open and close the relay. The reference program has been provided.
Burning and writing port: GND, Rx, TX and 3.3V of esp8266 are respectively connected with GND, TX, RX and 3.3V of external TTL serial port module. IO0 needs to be connected with GND when downloading, and then disconnect IO0 and GND after downloading.
Relay output terminal:
NC: normally closed end, the relay is short circuited with com before closing and suspended after closing; COM: common end.
No: normal start, the relay is suspended before closing, and it is short circuited with com after closing.

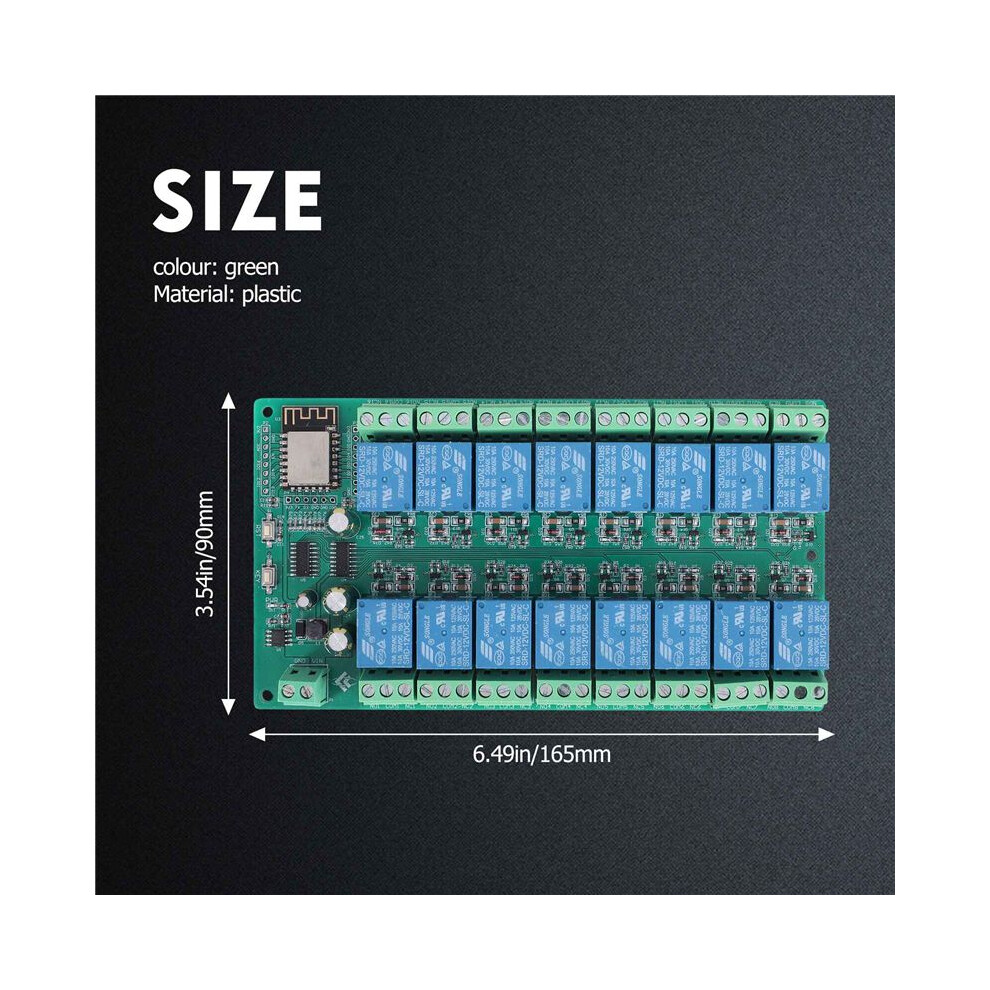

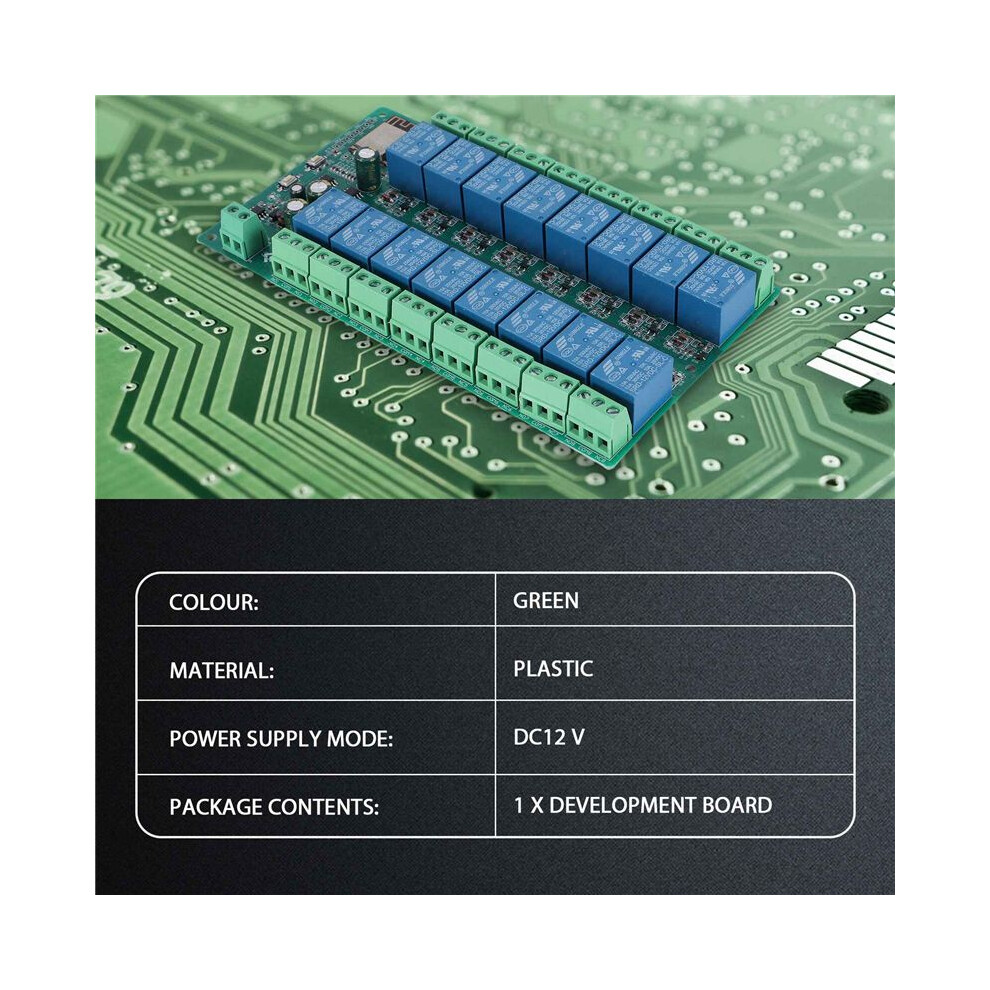

colour: green
Material: plastic

Package Contents:
1 x Development Board
