Extraction Machine Tooth Extractor Motor Gear Extractor Aircraft Modeling Tools Extractor Rama Gear Remover

Extraction Machine Tooth Extractor Motor Gear Extractor Aircraft Modeling Tools Extractor Rama Gear Remover Περιγραφή

Features: Convenient to carry, and compact, and it is easy to install and disassemble.
Suitable for remote control model, car inner rings and other dense components install and disassemble.
6kinds pins. This gear puller set includes 6 pins for pulling pinion gears of different sizes.
Designed for removing bearings, inner rings and other dense components your car.
Made of metal material, efficient, wear resistant, stable and reliability, easy to use.

Pins Size: 0.9mm,1.6mm,1.9mm,2.0mm,2.9mm,3.9mm
1. Please select the needle according to the size of the motor shaft diameter. Do not use a motor with too small needle and too large shaft diameter for tooth extraction, otherwise the ejector pin will be broken. The glued gear must be heated to melt the glue before tooth extraction!!
2. Select the tooth puller thimble you need, install the tooth puller rotating rod, and tighten the screw (Note: For a table thimble, the screw should not be too tight).
3. Install the gear puller rotating rod into the gear puller bracket.
4. Install the gear puller traveling plate.
5. Clip the motor into the gear puller traveling plate and move it until the motor shaft aligns with the gear puller ejector pin.
6. Rotate the gear puller lever uniformly in a clockwise direction to pull out the motor gear.
7. Gear with a maximum outer diameter of 11 mm and a tooth height of 12 mm can be extracted.
Color: Silver
Material: Metal

Package Contents:

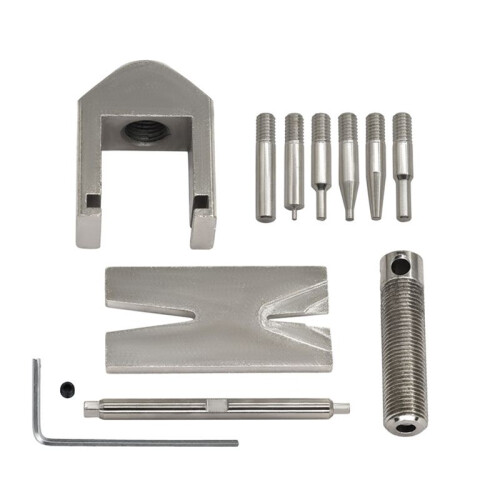

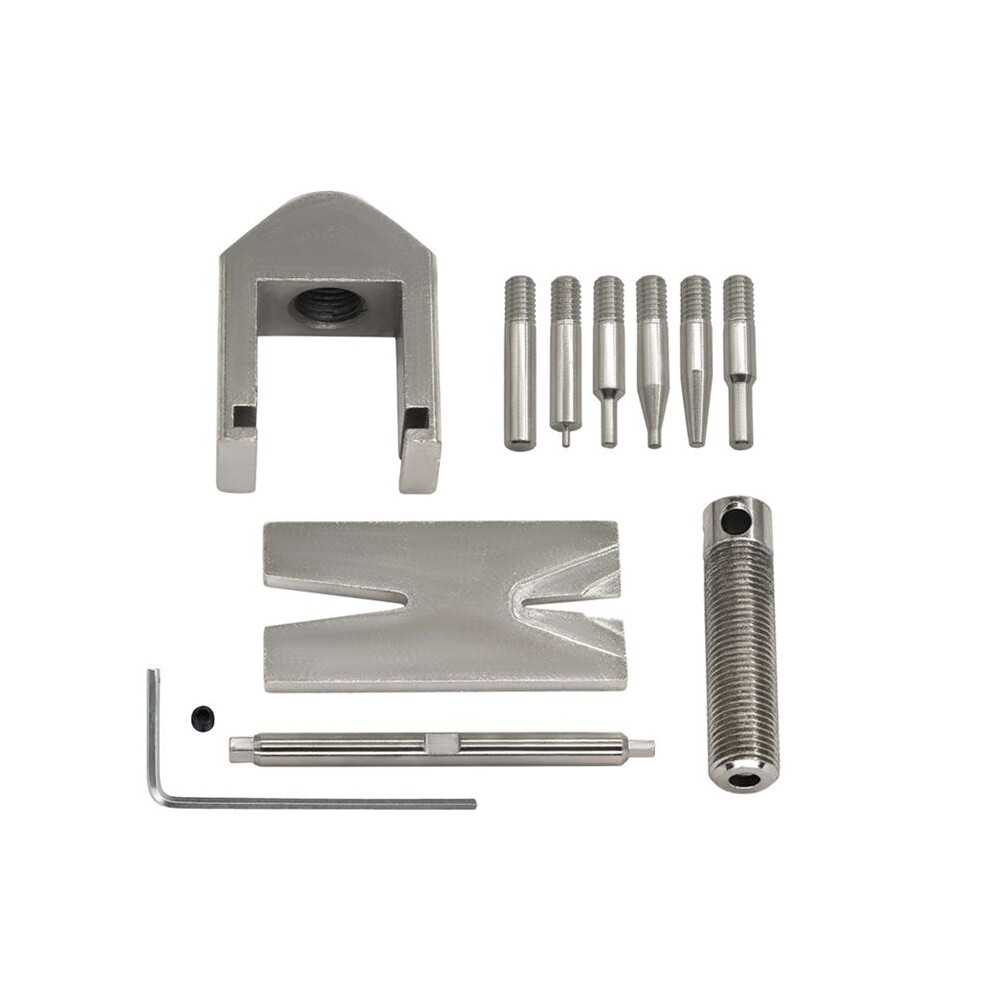

1x Pinion Gear Puller Remover Tool Kit
