Fiat Sgw Bypass Security Gateway Fca Dodge Adapter

Fiat Sgw Bypass Security Gateway Fca Dodge Adapter Περιγραφή

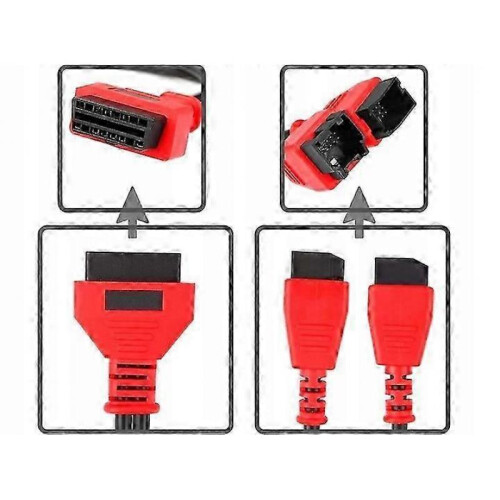

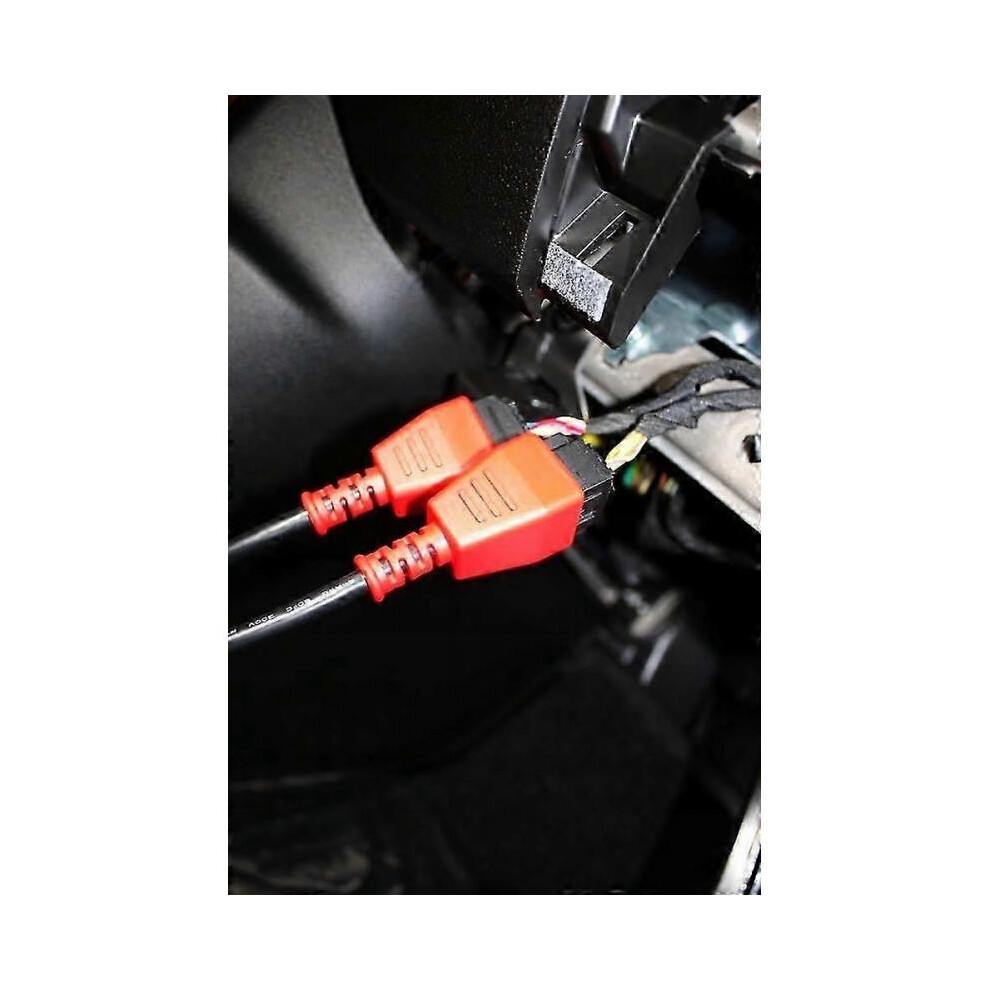

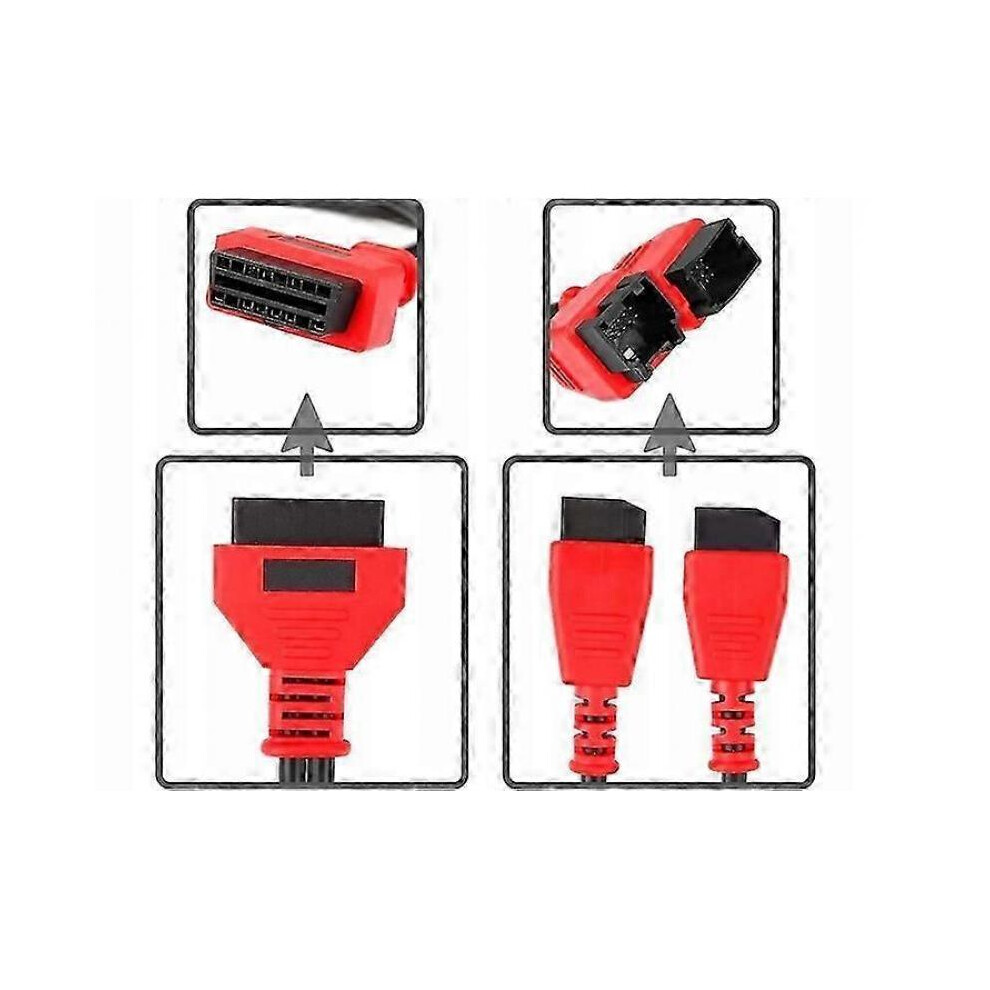

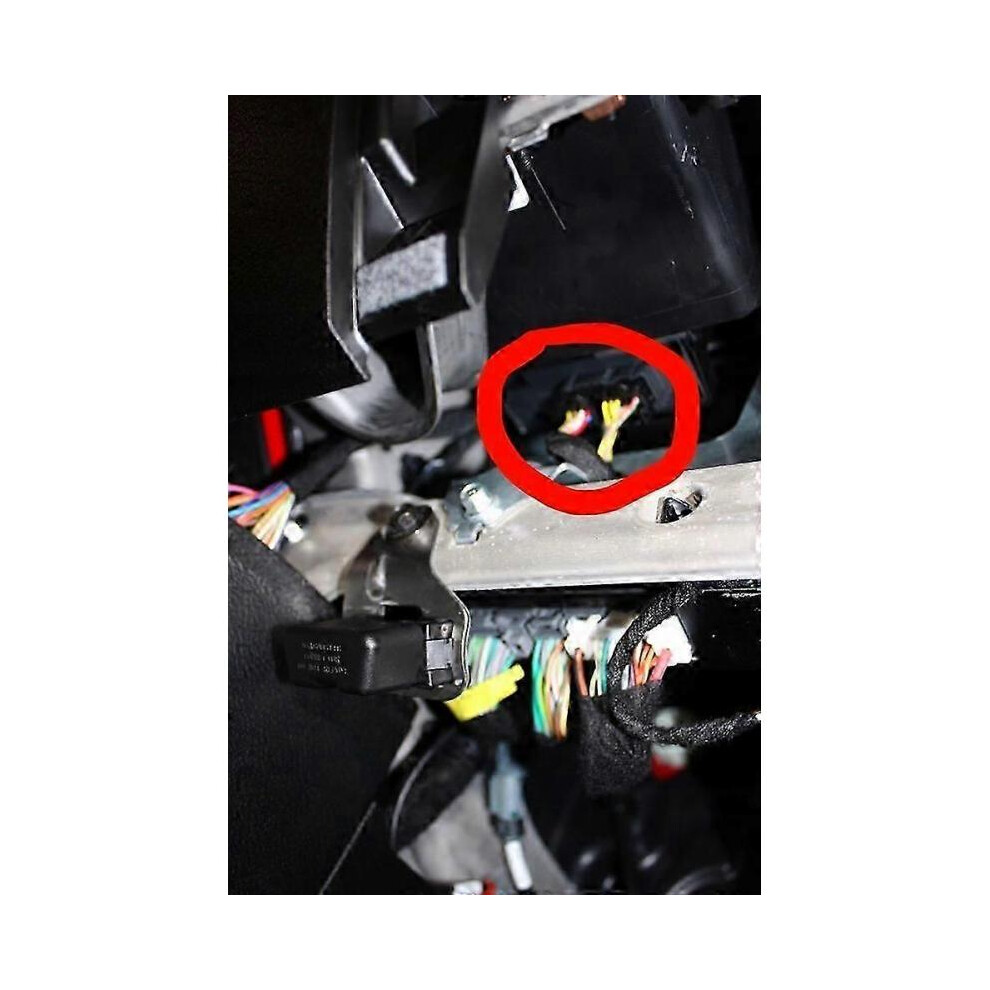

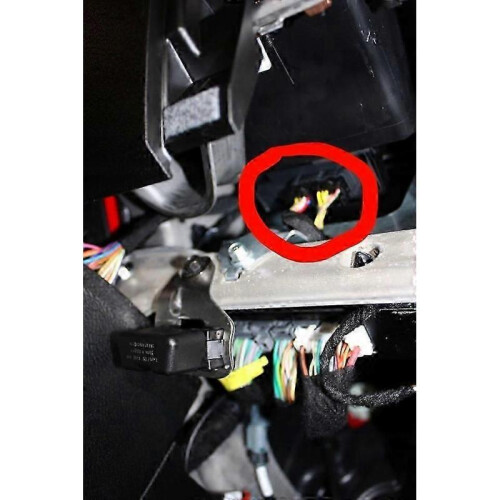

ORIGINAL ADAPTER DEDICATED TO VEHICLES OF THE FCA GROUP Solidly made adapter thanks to which you can bypass the Security Gateway module (SGM \/ SGW) and perform full diagnostics in FCA group cars: Alfa Romeo Chrysler Dodge Fiat Jeep Lancia RAM produced after 2018. Security Gateway module The Security Gateway module (SGM \/ SGW) is a factory protection in FCA group cars, which limits diagnostic inquiries only to read, e.g. information about the controller, current parameters or fault codes. SGM \/ SGW Bypass Adapter With the help of the adapter you gain access to advanced diagnostic commands blocked by SGM \/ SGW, such as: Erase fault codes, Launching actuator tests, Launching adaptation and coding. The adapter proves necessary for the FCA Group to access 80% of 2018 and 100% of 2019 models . To use the adapter, it is enough to replace the factory 12pin and 8 pin connectors of the SGM \/ SGW module with the adapter connectors. The location of the SGM \/ SGW varies, but is most often located in the passenger side panel - near the glove compartment or behind the radio. It can also be located on the rear of the fuse box . TESTED AND SAFE PRODUCT Specification: Length: 30cm Extremely durable materials and high-quality workmanship give the cable excellent flexibility and durability. Fast transmission. No disruptions in data transfer. Solid rubber material , strong and durable. Operating temperature 0 to 60C, Storage temperature -20 to 70C, Power from the vehicle, Connector: OBD2\/eOBD\/jOBD Works with diagnostic devices: interfaces scanners testers Multiecuscan Note that the adapter is also compatible with dedicated interfaces for the Multiecuscan program. Jscan Note that the adapter is also compatible with dedicated interfaces for Jscan applications. Professional Interfaces The adapter is compatible with universal professional diagnostic testers such as: Launch, Autel, ThinkScan, TopDon, MultiDiag PRO etc. Sample photos from the assembly, connecting the adapter in a vehicle from the FCA group.
