For MATEK POWER MODULE PM20S-2 2x Independent Step-Down Voltage Regulators 9V-85V for FPV Drone

For MATEK POWER MODULE PM20S-2 2x Independent Step-Down Voltage Regulators 9V-85V for FPV Drone Περιγραφή

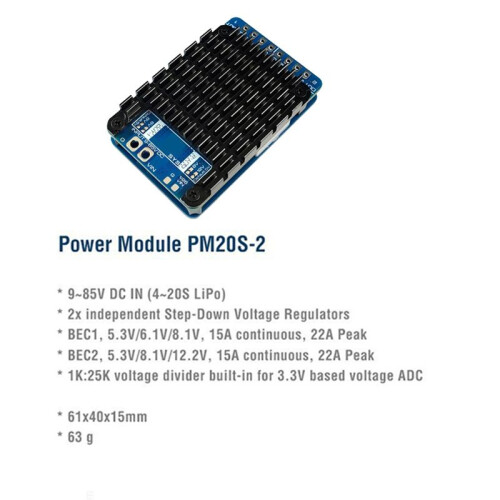

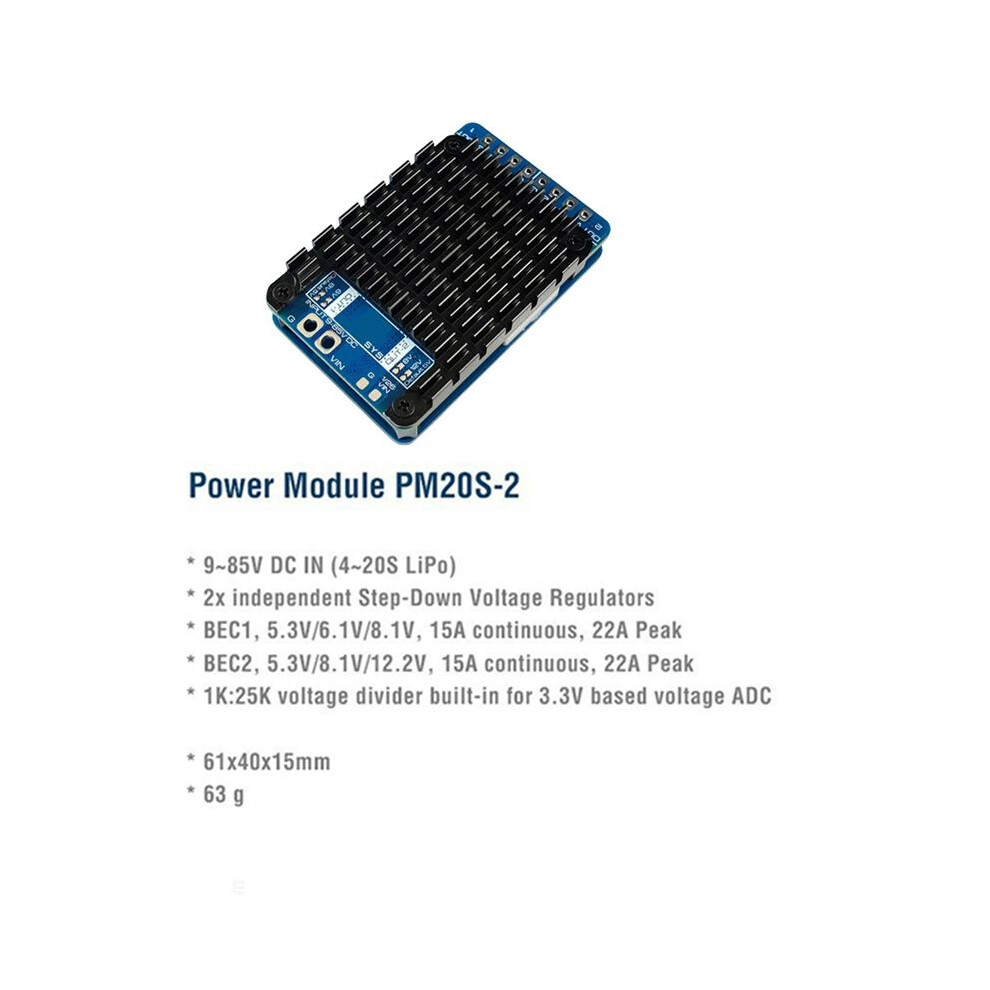

PM20S-2 is made with 100V components.Support 9V to 85V operating Input voltage with 85V TVS protection,2x independent Step-Down Voltage Regulators.
Regulator 1, 5.3V / 6.1V / 8.1V output options. supports typical continuous output current of to 15A, current of to 22A.
Regulator 2, 5.3V / 8.1V / 12.2V output options. supports typical continuous output current of to 15A, current of to 22A.
1K:25K voltage divider built-in for 3.3V based voltage ADC,3D step file PM20S-2.zip.

Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Regulator 1
Output voltage 5.3V / 6.1V / 8.1V options.
Output voltage tolerance 1.5%
Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
Supports typical continuous output current of to 15A, current of to 22A.
Output ripple 25mV (VIN=42V, Output 5.3V @ 5A), 35mV (VIN=58V, Output 5.3V @ 15A)
Standby current: 10-30mA
Reverse Input voltage protection: No
Thermal Shutdown 150C
Output Short-circuit tolerant (1 seconds)
Overcurrent protection & self-recovery
Tip: Input voltage greater than equal 15V is required for continuous output current of 15A
Regulator 2
Output voltage 5.3V / 8.1V/12.2V options.
Output voltage tolerance 1.5%
Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
Supports typical continuous output current of to 15A, current of to 22A.
Output ripple 58mV (VIN=58V, Output 12V @ 5A)
Standby current: 10-30mA
Thermal Shutdown 150C
Output Short-circuit tolerant (1 seconds)
Overcurrent protection & self-recovery
Tip: Input voltage greater than equal 15V is required for continuous output current of 15A
