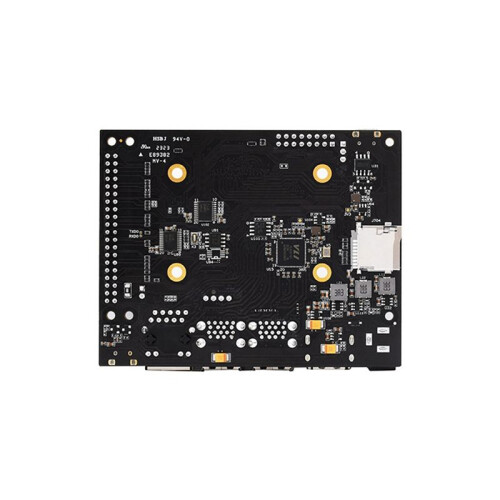

For RDK X3 Module Carrier Board USB3.0 RJ45 Ethernet Enhancing Efficiency with MIPICSI 40PIN Adapter Board Module

For RDK X3 Module Carrier Board USB3.0 RJ45 Ethernet Enhancing Efficiency with MIPICSI 40PIN Adapter Board Module Περιγραφή

For RDK X3 Module Carrier Board, as the supporting baseboard of X3 module, provides rich configurations and interfaces, including USB3.0, Ethernet, , MIPI CSI, MIPIDSI, 40PIN header, etc., which facilitates users to verify and develop the functions of the module.

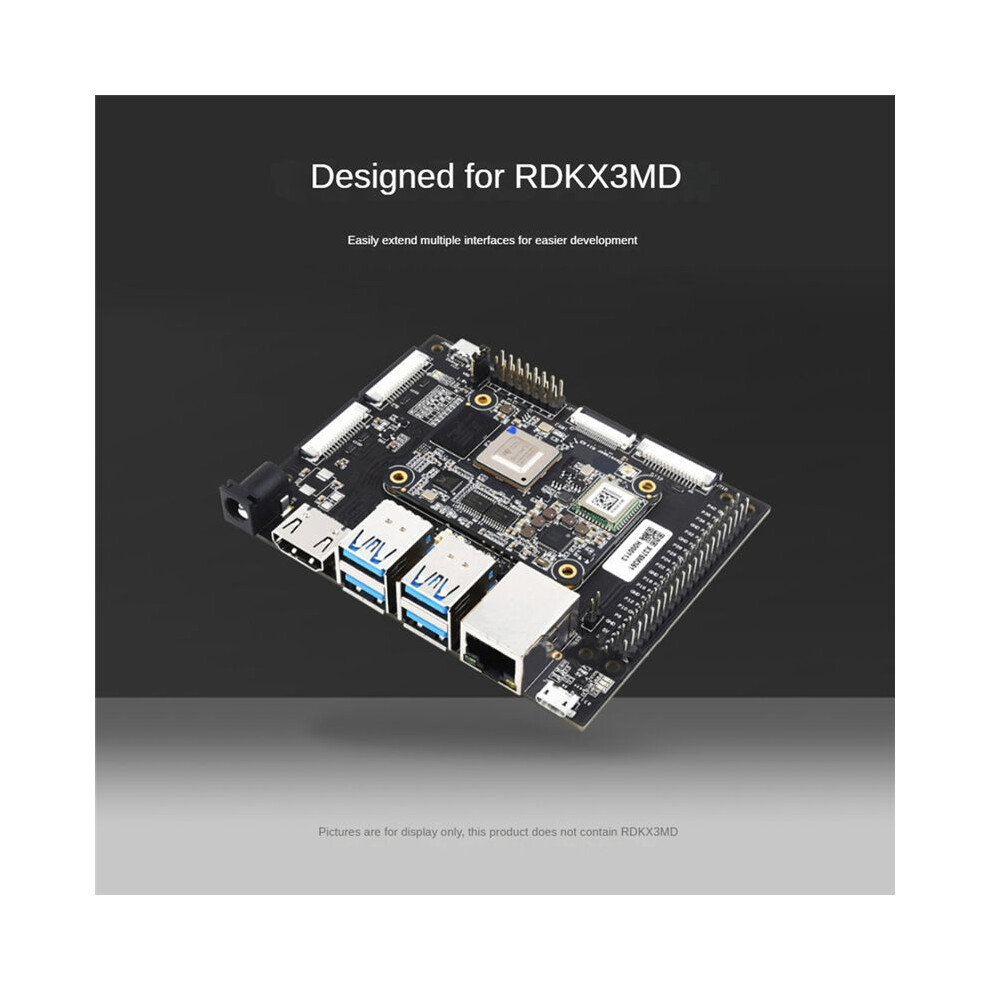

Designed specifically for RDK X3 MD, it can easily expand multiple interfaces to help development more easily.
Support access to multiple devices to facilitate users to verify and develop the functions of the module.
Provide additional interfaces and functions for seamless customization and advanced development.
perfect for experienced individuals who want to use expansion boards for advanced development and customization to meet their needs.

Core board holder: Applicable to all versions of for RDK X3 Module
Ethernet: Gigabit Ethernet RJ45 interface
USB: USB 3.0Host interface x 4, Micro-USB2.0Device interface x 1, Micro-USB interface x 1 (USB to serial port, debug interface)
Connector: 40PIN GPIO interface, compatible with for Raspberry Pi 40PIN interface, 16PIN function control IO
Display: MIPI interface (15PIN 1.0mm FPC connector), interface x 1, support 4K30fps output
Camera: MIPI CSI 2- interface x 2 (15PIN 1.0mm FPC connector), MIP CSI 4- interface x 1 (24PIN 0.5mm FPC connector)
Real- clock: with battery interface
Storage: onboard Micro- card slot (applicable to versions without eMMC)
Fan interface: adjustable speed, measurable speed, 12V
Power input: 12V/2A voltage input
Due to different batches, the printed words the product will be different, which does not affect use.
Colour:Black
Material:PCB

Package Contents:
1 * for RDK X3 Module Carrier Board
