FPC Breakout Board for Raspberry Pi 5 or RP2350 HSTX - 22 Pin 0.5mm for Adafruit

FPC Breakout Board for Raspberry Pi 5 or RP2350 HSTX - 22 Pin 0.5mm for Adafruit Περιγραφή

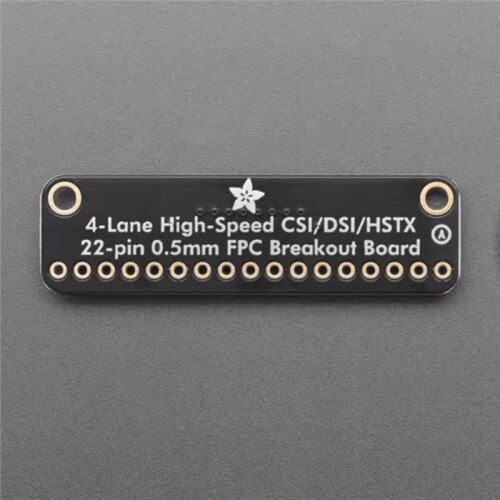

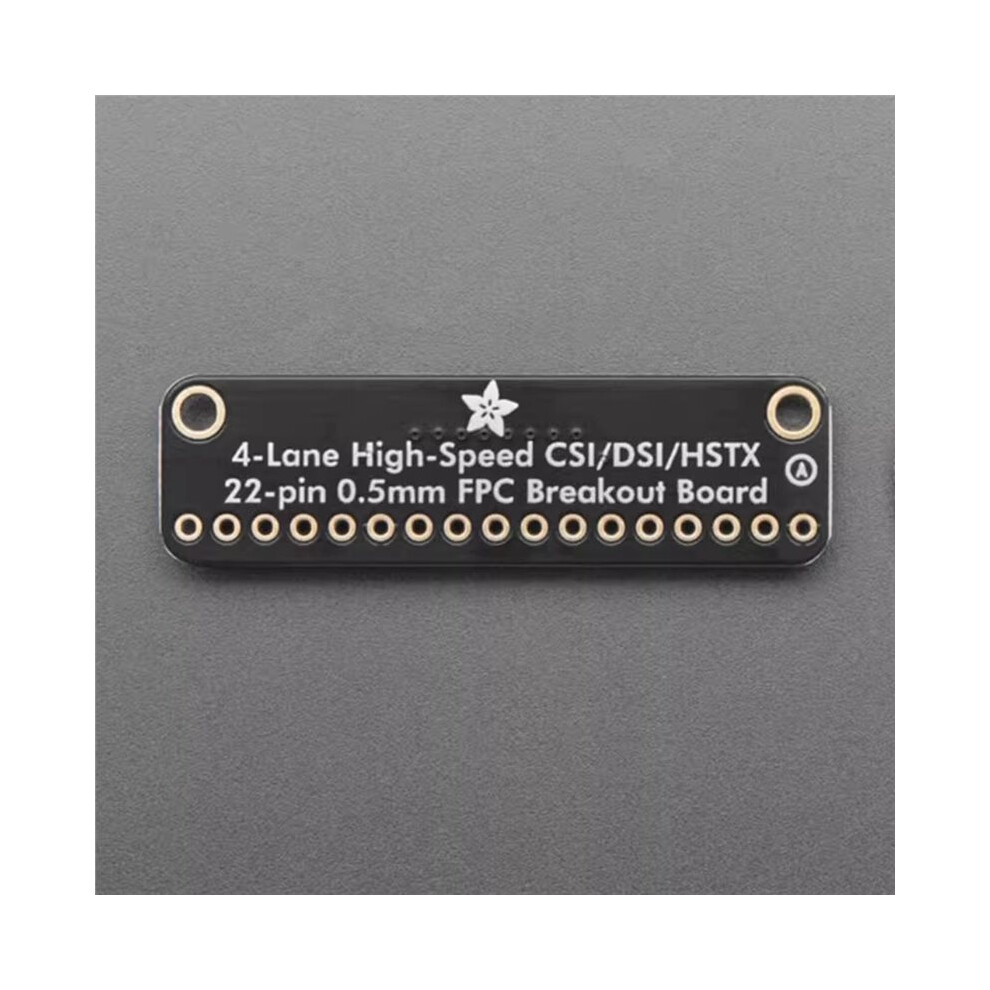

The FPC Breakout is a compact breakout board designed to simplify access to high-speed video and data interfaces. It serves as a bridge between the delicate, fine-pitch FPC (Flat Flexible Cable) connectors found modern single-board computers and microcontrollers, and a more accessible format for prototyping and custom projects.
This breakout is ideal for makers and engineers who need to create custom display setups, prototype with high-speed interfaces, or adapt displays and HSTX modules for use in non-standard configurations.
This board is specifically designed for two primary platforms: for Raspberry Pi 5: It breaks out the (Display Serial Interface) port, which is used for connecting official and compatible displays .
For RP2350 Microcontrollers: It breaks out the HSTX (High-Speed Transmit) interface, a feature certain RP2350 boards that allows for high-speed video output without needing the PIO (Programmable I/O) typically required the RP2040 .

Key Features

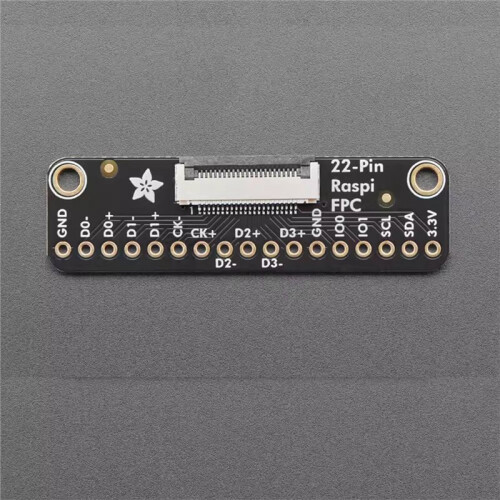

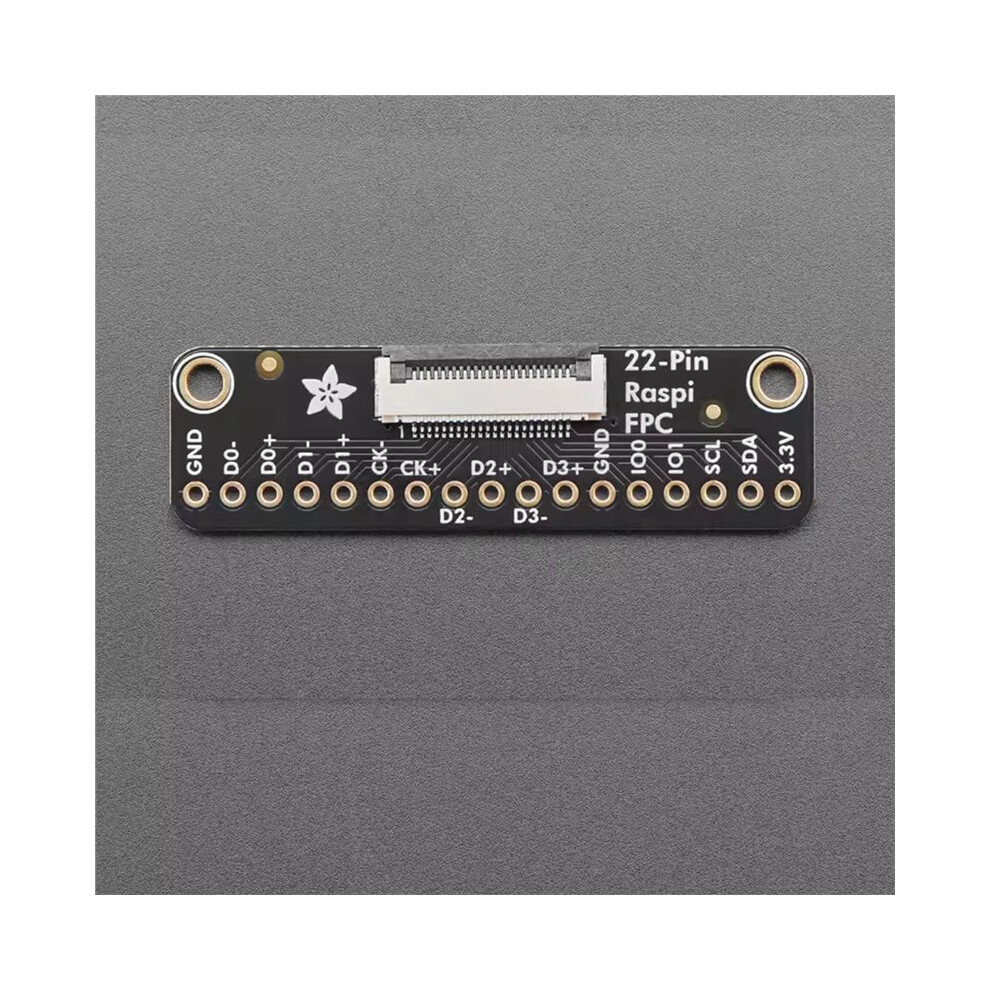

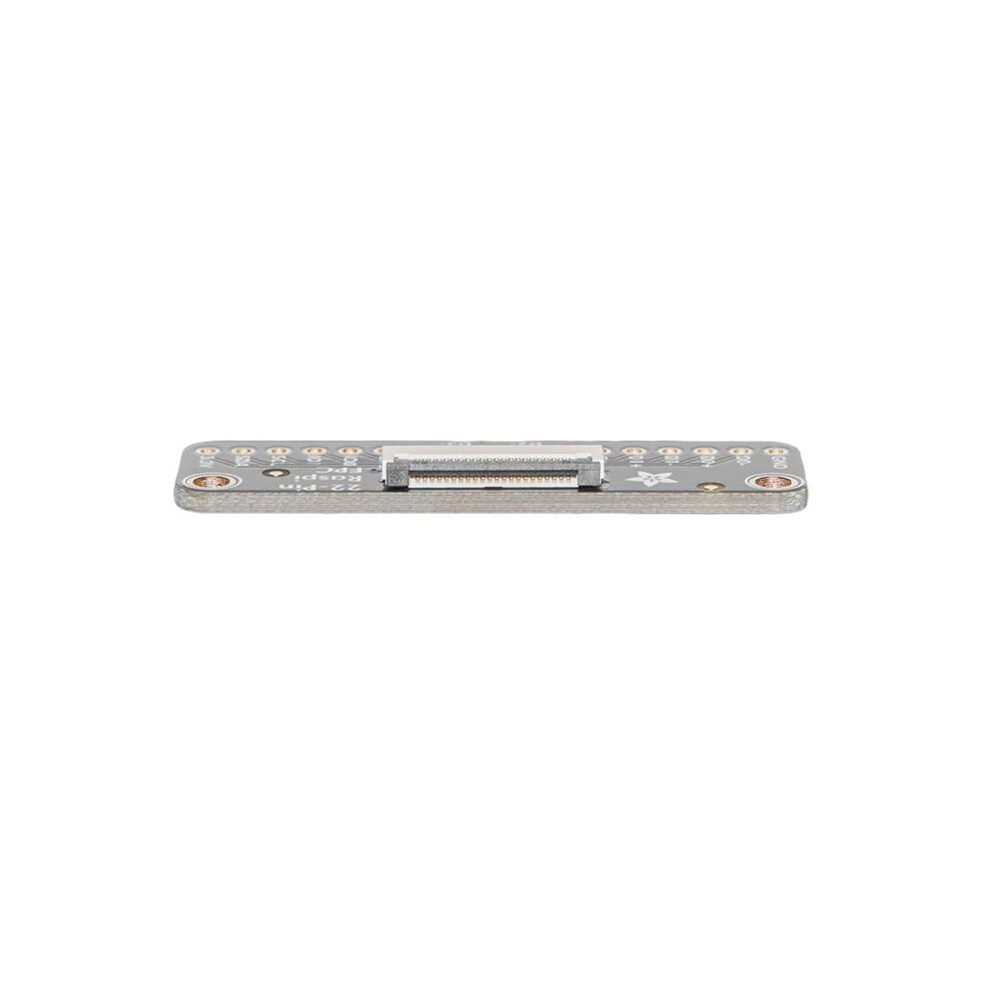

Core Function: Breaks out a 22-pin, 0.5mm pitch FPC connector to a more accessible format, allowing for easy connection to breadboards, jumper wires, or other prototyping tools.
High-Speed Data Channels: For Raspberry Pi 5, it provides access to 4 differential data channels and a differential clock
For RP2350 HSTX, it provides access to 3 differential data channels and a differential clock.
Additional I/O: The breakout also routes 3.3V power, an I2C bus, and two general-purpose GPIO pins for convenient access .
Signal Integrity: The board features a large ground plane and carefully routed traces to maintain signal quality. However, users should note that using long wires, solder connections, or breadboards with these high-speed signals carries a risk of signal degradation and interference .

Specification
Connector Type: 22-pi
