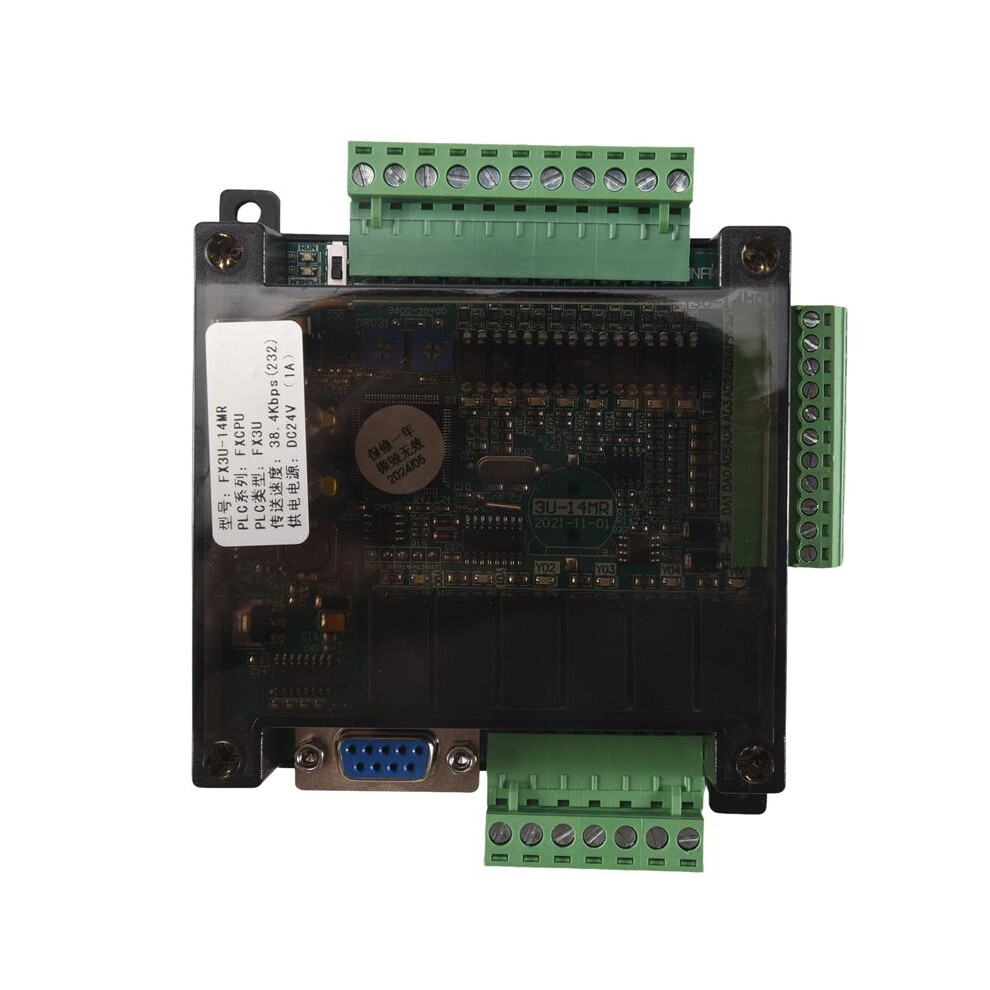

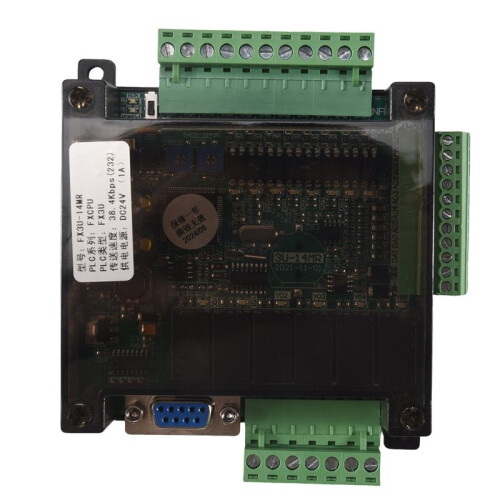

FX3U-14MR PLC Industrial Control Board 8 Input 6 Output Programmable Control Relay Output, 24 V PLC Control
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 130,000 κριτικές με βαθμολογία « Άριστα »
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Προτεραιότητα (4,07 €) | Πεμ 6 - Σαβ 8 Αυγ
Πωλείται από: JJBRDZ
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Τα πιο δημοφιλή στο Επεκτάσεις μάσκας προσώπου
Περίληψη
- Input point X-element x0-x7, DC24 input, low level valid.X0-5 is the high-speed count input (default: 12K, 100KHz).
- Analog input: six-way analog input, 12-bit accuracy, input voltage: 0-10V, 0-20mA;read the analog size with the RD3A guideline.The corresponding values 0-4095. Analog input of the two-way potentiometer, D8030, D8031.analog voltage WR3A command that corresponds to the value 0-4095.
- Analog Output: 2-Channel Analog Output, 12-bit Accuracy, Output Voltage: 0-10V.Analog Voltage Output WR3A Command, which is 0-4095.
- relay or transistor output, relay output current 5A. Transistor output DC24V has the current maximum 1A.Y0-1 is a high-speed output (maximum 100K). The PWM period is 0-32767US. The maximum speed current is 1A. External load common termination + 24, the other end received the PLC output connection Y.
- Intermediate relay M: M0-M3071, the power loss maintenance range can be adjusted.
FX3U-14MR PLC Industrial Control Board 8 Input 6 Output Programmable Control Relay Output, 24 V PLC Control Περιγραφή
Input point X-element x0-x7, DC24 input, low level valid.X0-5 is the high-speed count input (default: 12K, 100KHz).
Analog input: six-way analog input, 12-bit accuracy, input voltage: 0-10V, 0-20mA;read the analog size with the RD3A guideline.The corresponding values 0-4095. Analog input of the two-way potentiometer, D8030, D8031.analog voltage WR3A command that corresponds to the value 0-4095.
Analog Output: 2-Channel Analog Output, 12-bit Accuracy, Output Voltage: 0-10V.Analog Voltage Output WR3A Command, which is 0-4095.
relay or transistor output, relay output current 5A. Transistor output DC24V has the current maximum 1A.Y0-1 is a high-speed output (maximum 100K). The PWM period is 0-32767US. The maximum speed current is 1A. External load common termination + 24, the other end received the PLC output connection Y.
Intermediate relay M: M0-M3071, the power loss maintenance range can be adjusted.
Material:plastic
colour:Green+black
Package Contents:
1 * PLC Industrial Control Board
Λεπτομέρειες
| OPC | PWJGVW2 |
|---|---|
| Μάρκα | Torribaly |
| Κωδικοί | 6033720974980 (EAN) |
| Πληροφορίες προϊόντος και ασφάλειας |
Στοιχεία Προϊόντος
| Height | 5cm |
|---|---|
| Width | 13cm |
| Length | 14cm |
| Weight | 0.236kg |
| Colour | Green&black |
| Material | plastic |
