Grbl CNC Z-Axis Router Mill Touch Plate Tool Setting Probe Milling Tool for CNC DIY Engraving Machine Tool

Grbl CNC Z-Axis Router Mill Touch Plate Tool Setting Probe Milling Tool for CNC DIY Engraving Machine Tool Περιγραφή

The function of the tool setting instrument The measurement and compensation of the tool offset value in five directions can effectively eliminate the error and inefficiency caused by manual tool setting.
No matter what kind of cutting tool is used for workpiece contour turning or milling, all tool tip points or tool axis lines involved in cutting must be adjusted or compensated so that they are accurately located at the same theoretical point or axis of the workpiece coordinate system -

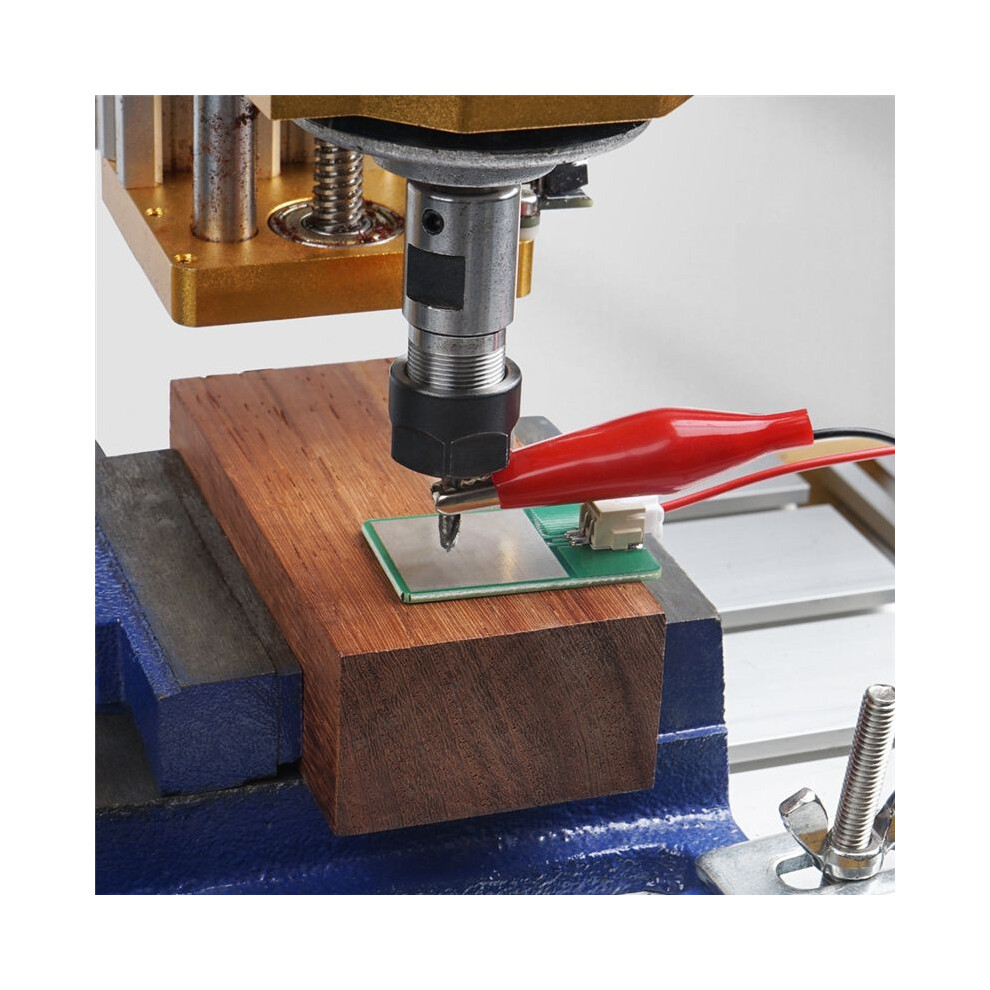

How to use:
1.Alligator clip is fixed the cutter
2.DuPont port has been connected to the control board (A5 interface the 3018pro control board)
3.Place (plastic + aluminum plate) under the tool
[GRBL Z-probe]CNC Router Tool Setting Automatic Tool Setter. Thickness: 1.6mm (0.03mm)
[Tool Setting Function] It can accurately locate the working surface, and is most suitable for PCB engraving.
[Easy to Use]You can refer to our video to understand how to use it correctly.

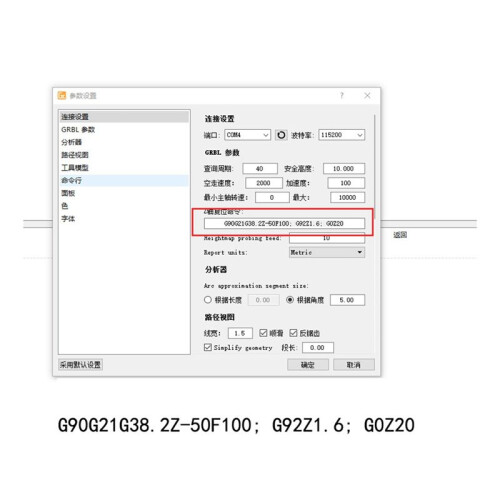

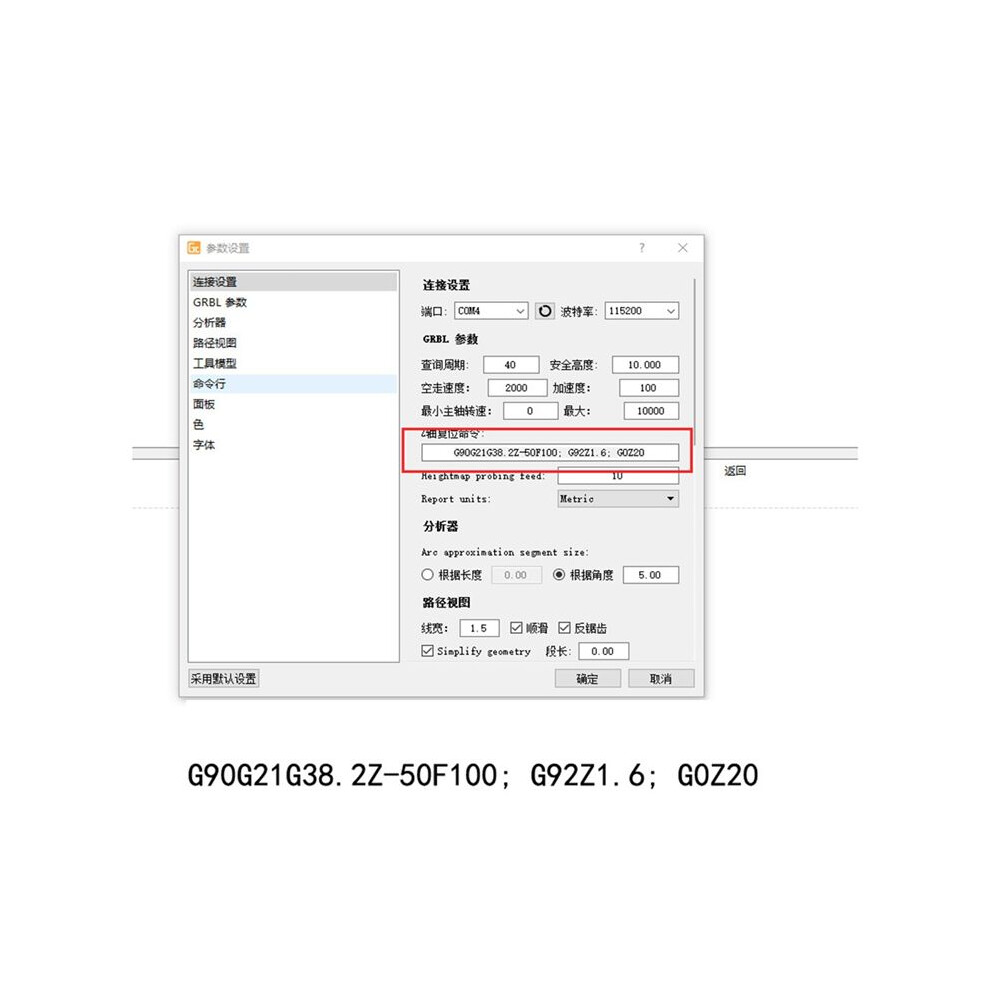

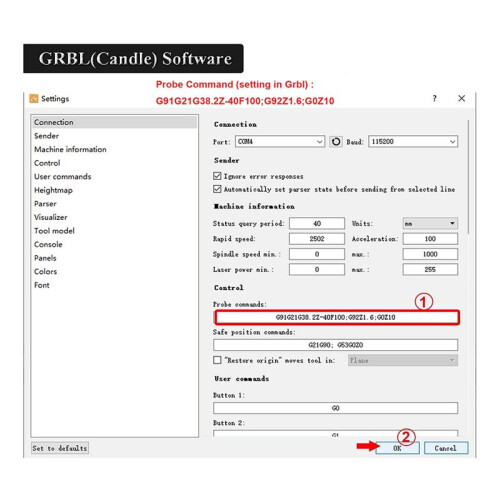

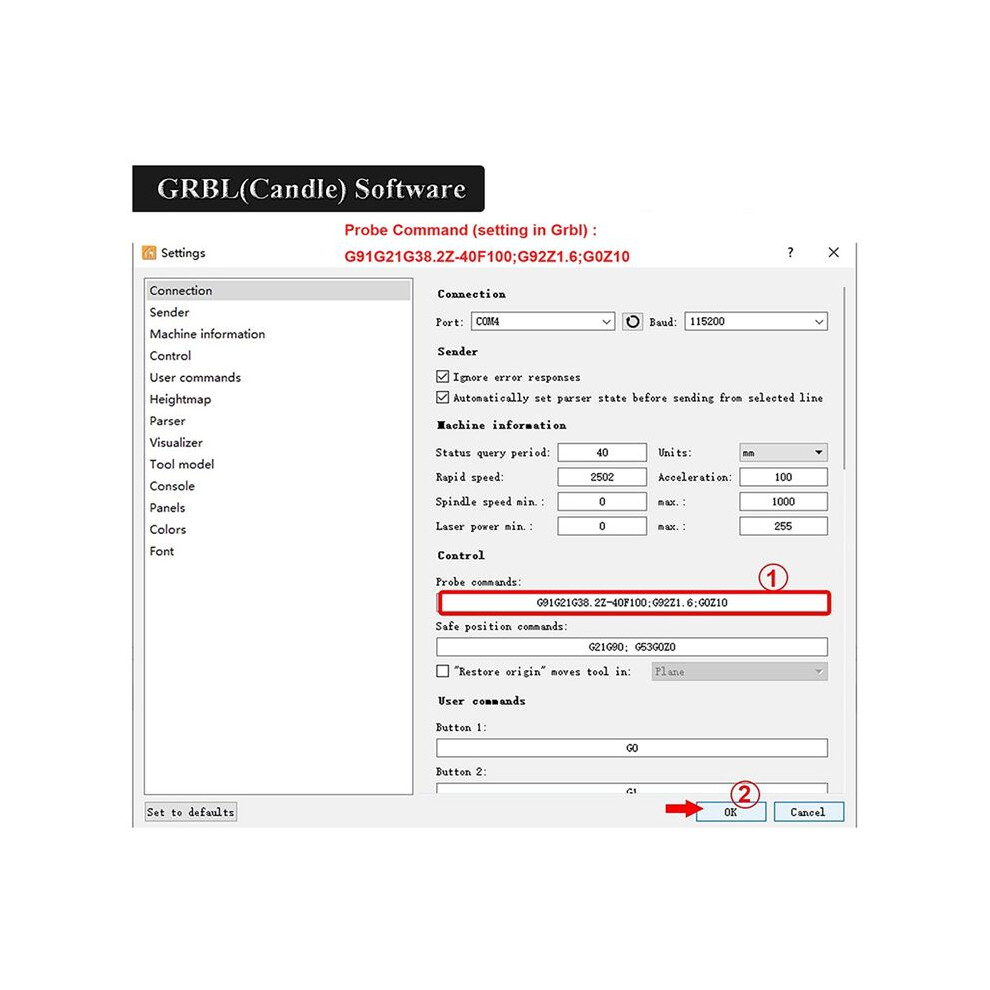

[Probe Command]Please change the Probe command in Grbl to: G91G21G38.2Z-30F100;G92Z1.6;G0Z5F10
Material: PC+Metal
colour: As shown

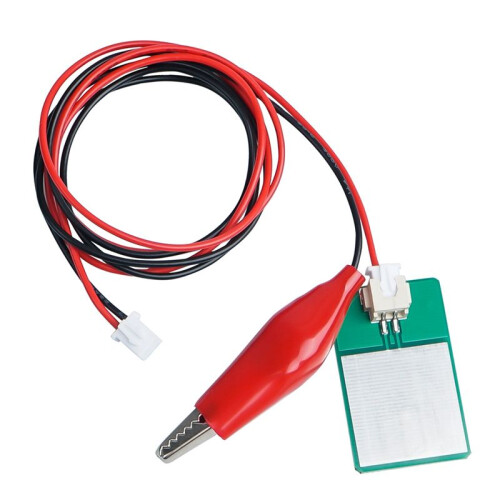

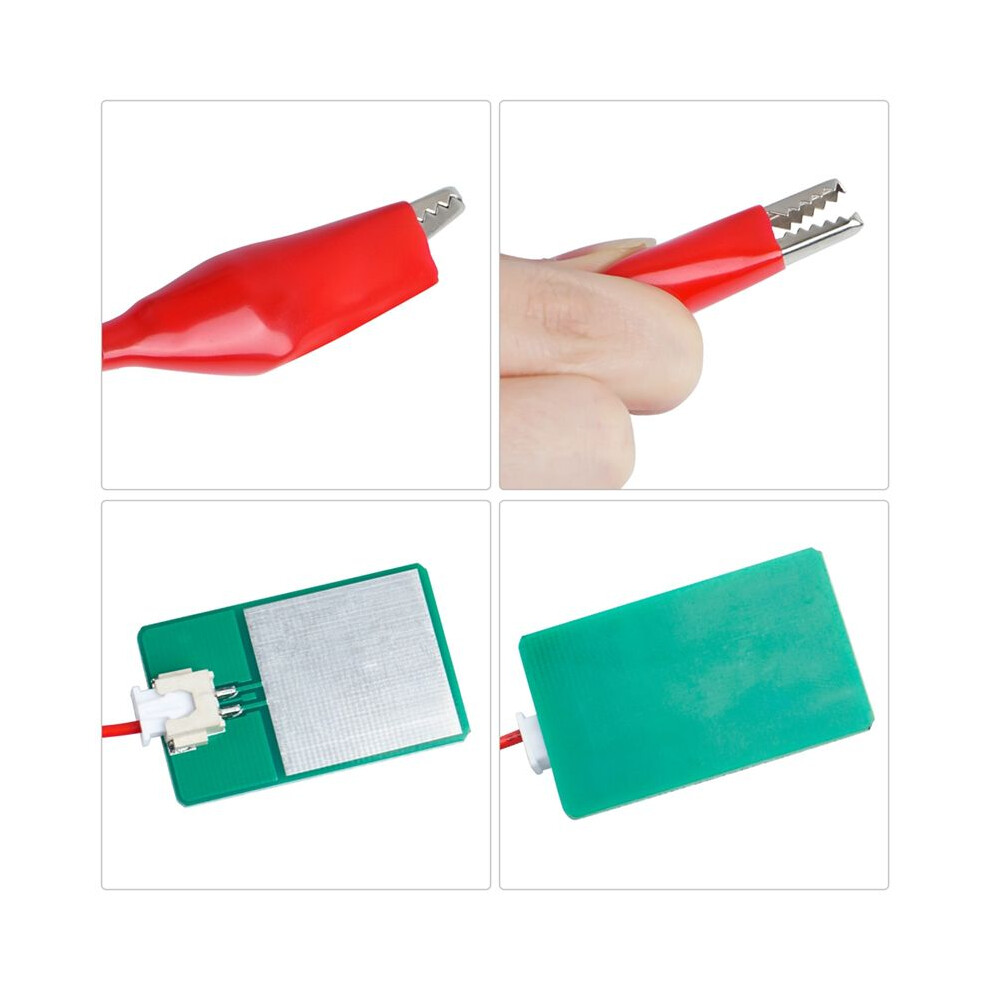

Package Contents:
1 x Clamp
1 x Wire
1 x Probe board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
