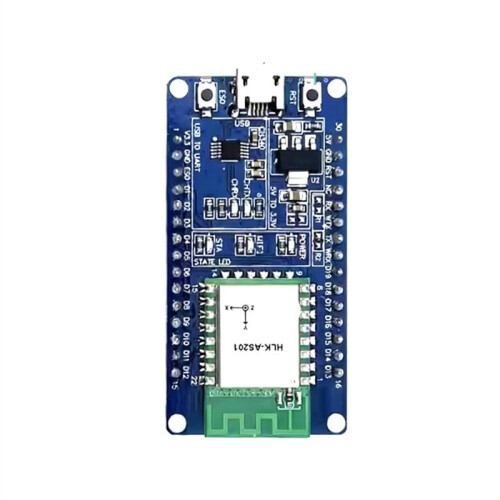

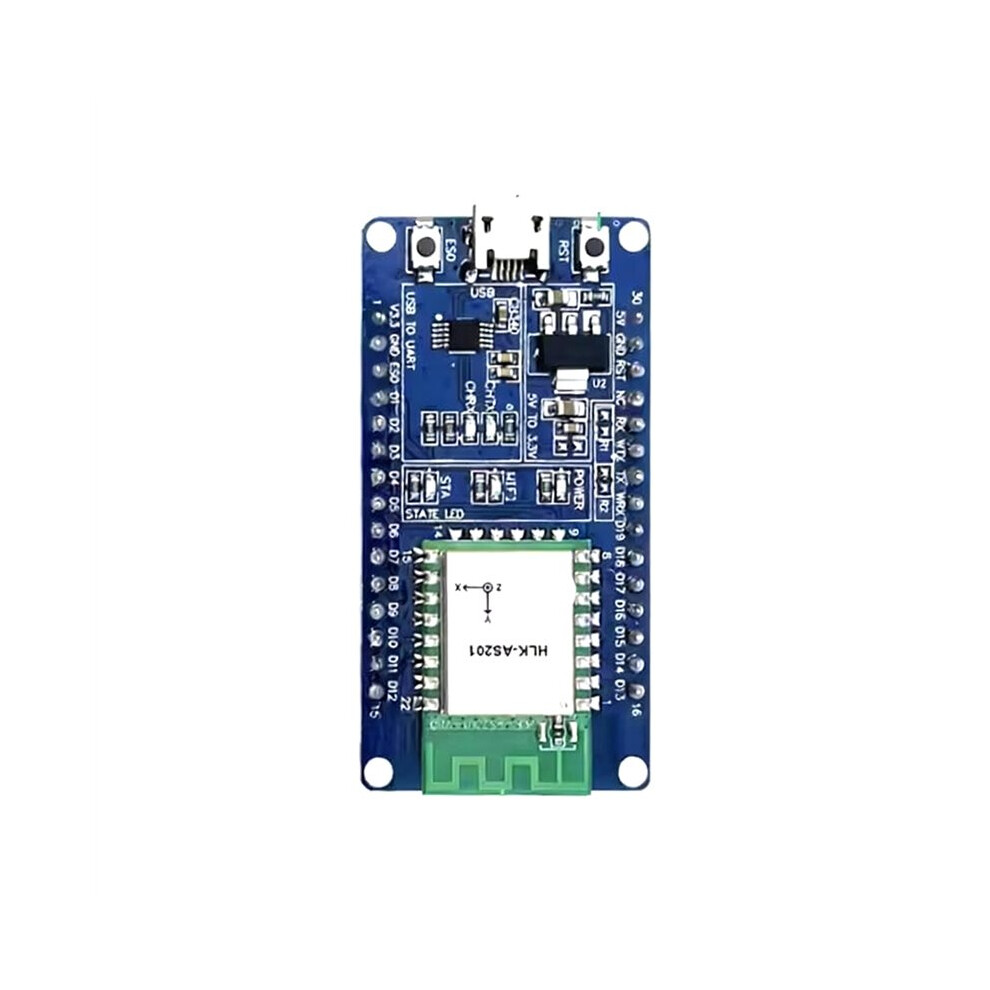

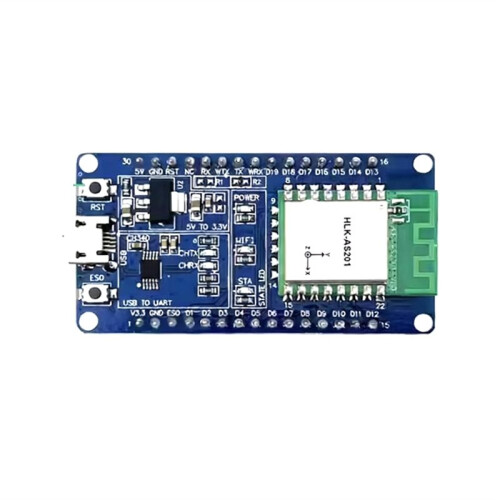

HLK-AS201 10-Axis Accelerometer Gyroscope MEMS Sensor Attitude Inclination Magnetic Field Motion

HLK-AS201 10-Axis Accelerometer Gyroscope MEMS Sensor Attitude Inclination Magnetic Field Motion Περιγραφή

Introduction: The module integrates high-precision accelerometers, gyroscopes, magnetometers, and barometers, and uses high-performance microprocessors and advanced filtering algorithms to quickly calculate the real- attitude of the module.
The module integrates high-precision accelerometers, gyroscopes, magnetometers, and barometers.
Adopting advanced digital filtering technology can effectively reduce measurement noise and improve measurement accuracy
The Z-axis heading angle is filtered and fused with a geomagnetic sensor, which solves the cumulative error caused by the drift of gyroscope integration in the 6-axis algorithm, long term stable output of heading angle data.

Attention:
Due to magnetic field detection, calibration is required before use, and it is necessary to stay away from the magnetic field during use at least 20 centimeters away from hard magnetic objects such as interference areas, electronic devices, magnets, speakers, etc
High performance 32-bit floating-point DSP processor with a running frequency of to 240MHz
Based BLE5.1 wireless transmission, the speed is faster and the transmission distance is longer, reaching to 50m in open environments
Support OTA wireless upgrade module firmware
Default onboard antenna, with extremely low cost control and strong wireless signal under low-cost conditions
Wide working voltage of 1.8V to 3.4V, typical value of 3.0V
Color:As Shown
Material:PCB

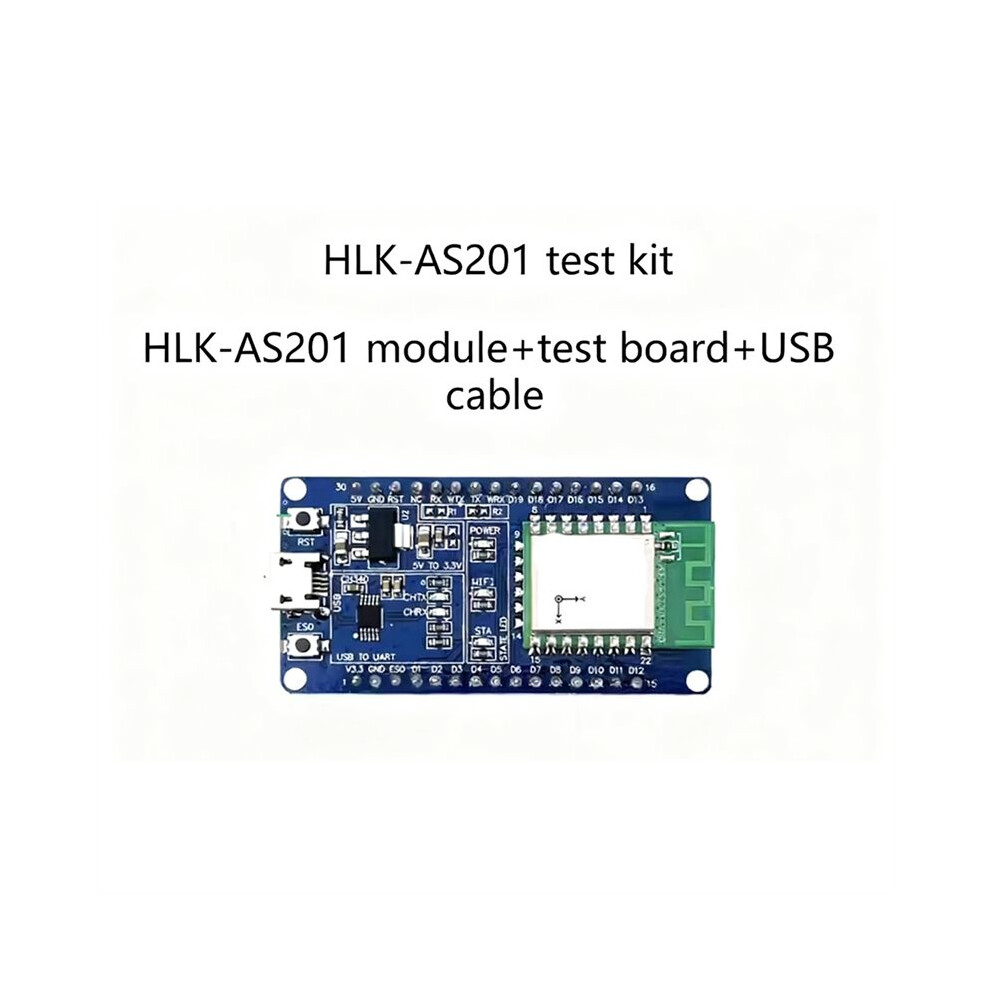

Package Contents:
1 * Module
