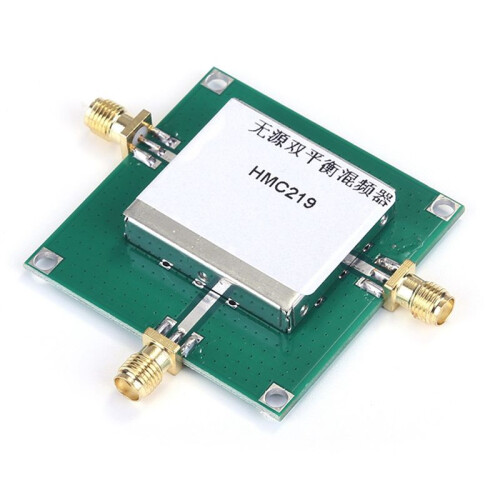

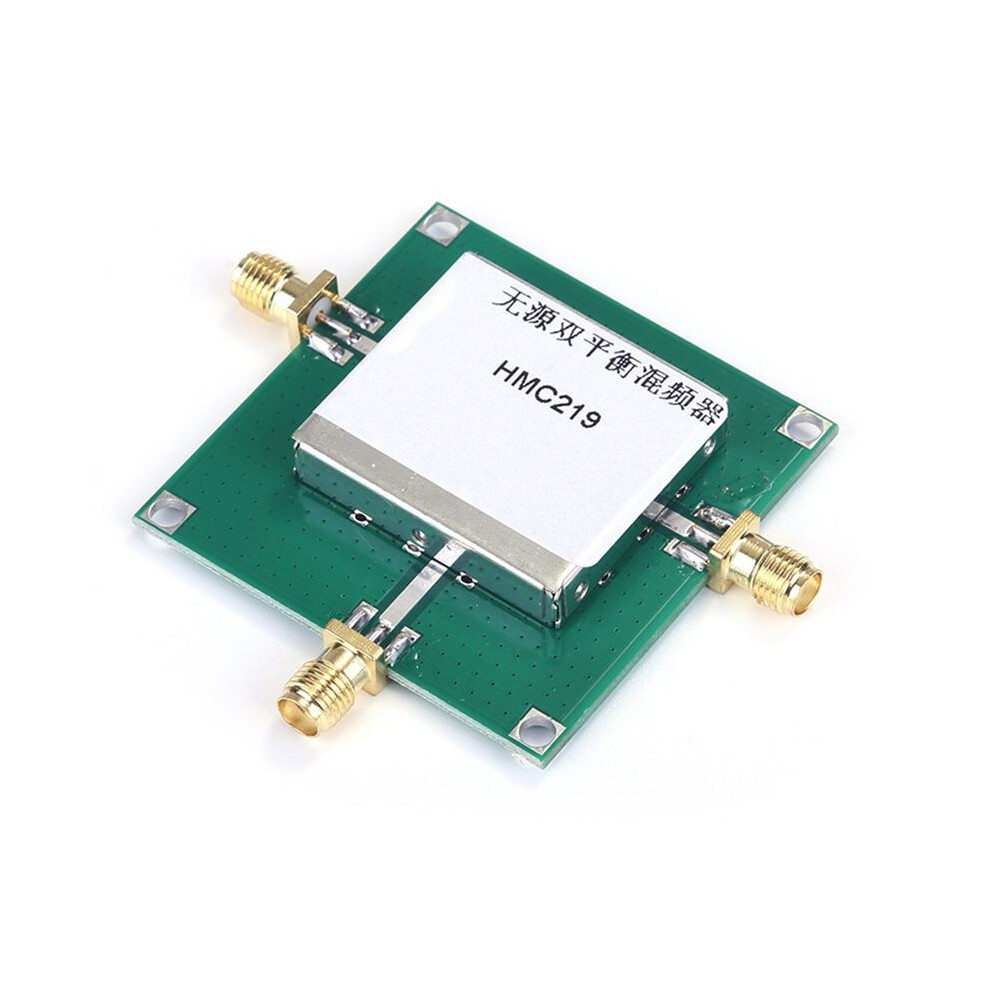

HMC219 Passive Double Balanced Mixer Module 7GHz GaAs MMIC -and-Down Inverter Dual Phase Modulator

HMC219 Passive Double Balanced Mixer Module 7GHz GaAs MMIC -and-Down Inverter Dual Phase Modulator Περιγραφή

The HMC219 is a high-performance passive double-balanced mixer. Utilizing GaAs Schottky diodes and an innovative transformer balun structure, it offers a wide operating frequency range and stable performance. It is suitable for a variety of applications, including upconversion, downconversion, bi-phase modulation/demodulation, and phase comparison.


Feature
Frequency Range:
RF/LO: 2.5 GHz to 7 GHz
IF: to 3 GHz
Low Mixing Loss: Only 9 dB
High Isolation:
LO/RF Isolation: 40 dB
LO/IF Isolation: 35 dB
Low Noise Figure (NF): 8 dB
High Linearity (P1dB): 11 dBm
LO Drive Power: 13 dBm
Passive Design, No External Bias Required
Model: HMC219
Operating Temperature: -40C to +85C

Applications:
Microwave Communication Systems
and Satellite Communications
Test and Measurement Equipment
Wireless Infrastructure (5G/4G Base Stations)
Modemization, Demodulation, and Phase Detection Circuits

Advantages Compared to Similar Models: Compared to the HMC175 and HMC213, the HMC219 offers a wider operating frequency ( to 7 GHz), higher isolation (LO/RF 40 dB), and lower mixing loss (9 dB), making it ideal for high-frequency, high-linearity applications.
Color: Green
Material: PCB+Metal

Package Contents:
1*HMC219 Passive Double-Balanced Mixer
