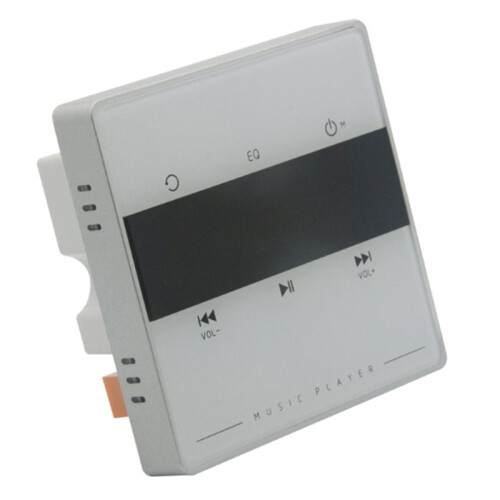

Home Audio System,Music System,Ceiling Speaker System,BT Digital Stereo Amplifier, in Wall Amplifier with Touch Key

Home Audio System,Music System,Ceiling Speaker System,BT Digital Stereo Amplifier, in Wall Amplifier with Touch Key Περιγραφή

Use new digital amplifier technology: low distortion, low noise, high efficiency, good sound quality.
Five audio options: two public audio (Cabling input) and three local source (built-in: FM + TF card + USB function).
Radio: install full-automatic digital FM radio internally, 30 radio stations storage .
Volume Adjustment:32-level electronic volume control.
Adjust the high and bass sound

[Product Technical Specifications]

• Power supply: AC230V/110V

• Output power: 12W+12W (MAX)

• Input impedance: 47KΩ

• Output impedance: 8Ω

• Total Harmonic Distortion: 0.03%

• Frequency Response: 20Hz-20KHz

• Infrared remote control distance: 10M



[Product Using Reminder]

• Supporting bottom box: embed the 86*86MM standard bottom box.

• Cable: Four kinds of cables are used in the system: First,wire: 1-2 square; Second, audio cable (two-core shielded cable: commonly known as the microphone cable): RVVP2 * 0.3 RVVP2 * 0.5 RVVP2 * 0.75; Third, speaker cable: RVH2 * 100 RVH2 * 200. Fourth, antenna: any core wire is ok,such as a copper wire.

• Wiring reminder: When there are multiple points (multiple rooms, multiple products), the wiring is in parallel, or connected through the junction box

• Details to see the product manual.
Color: White
Material: plastic

Package Contents:
1*amplifier
1* Remote Control(Without 1 button battery)
