Lora Wireless Transceiver Remote Switching Data Transfer Module 433M Data Transmission Radio Wall-Mounted

Lora Wireless Transceiver Remote Switching Data Transfer Module 433M Data Transmission Radio Wall-Mounted Περιγραφή

The products are used in pairs and need to be received and sent in order to be used normally.

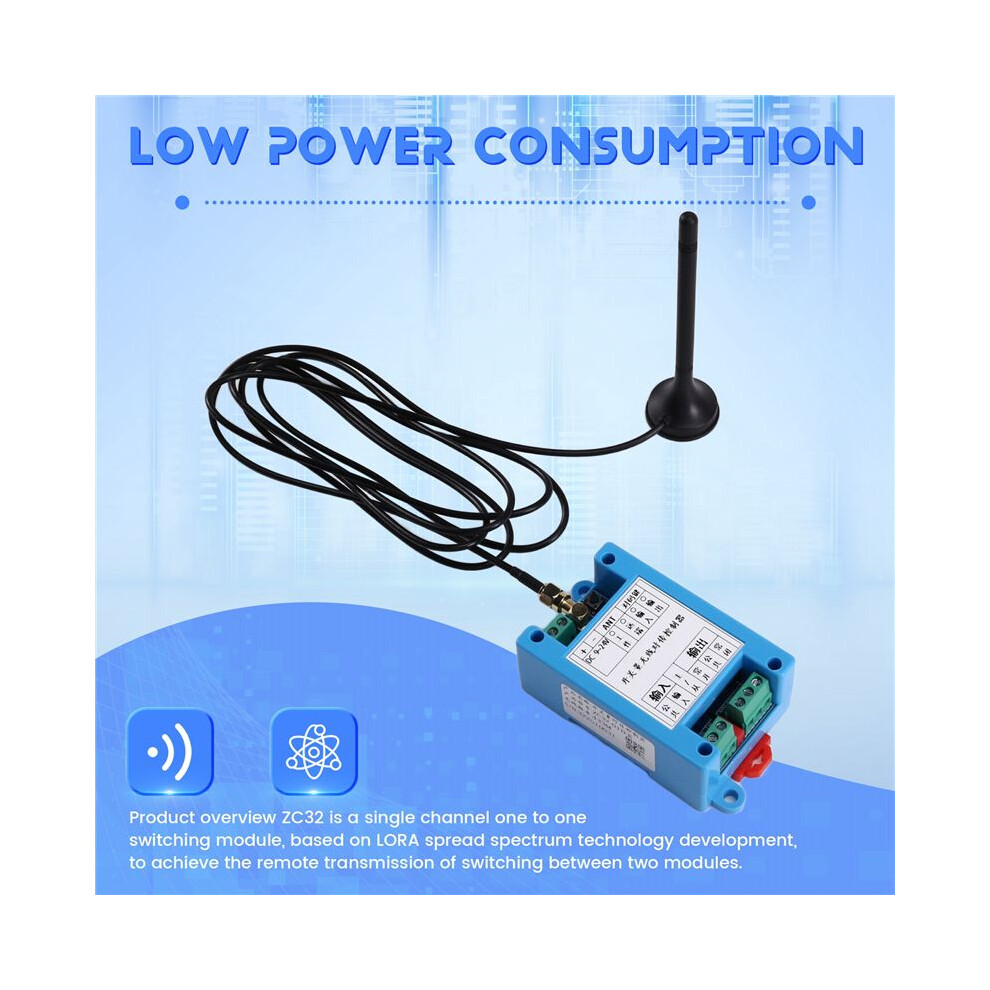

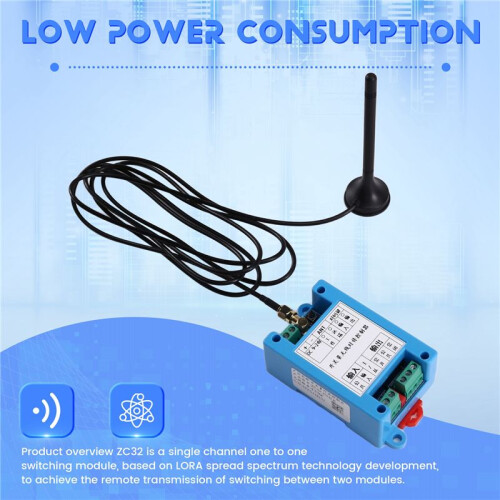

Product overview ZC32 is a single channel one to one switching module, based LORA spread spectrum technology development, to achieve the remote transmission of switching between two modules.

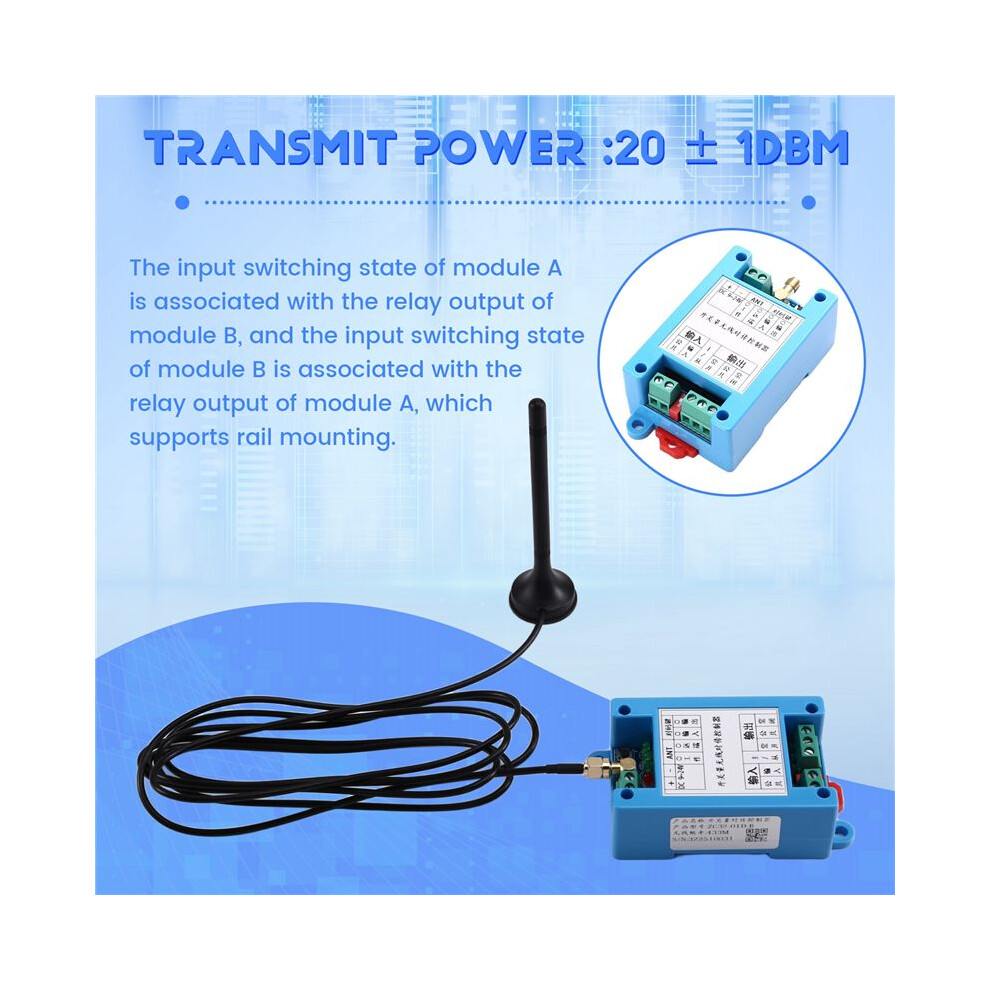

The input switching state of module A is associated with the relay output of module B, and the input switching state of module B is associated with the relay output of module A, which supports rail mounting. To achieve barrier-free long-distance control, widely used in industrial automation, remote monitoring, intelligent agriculture and other fields.

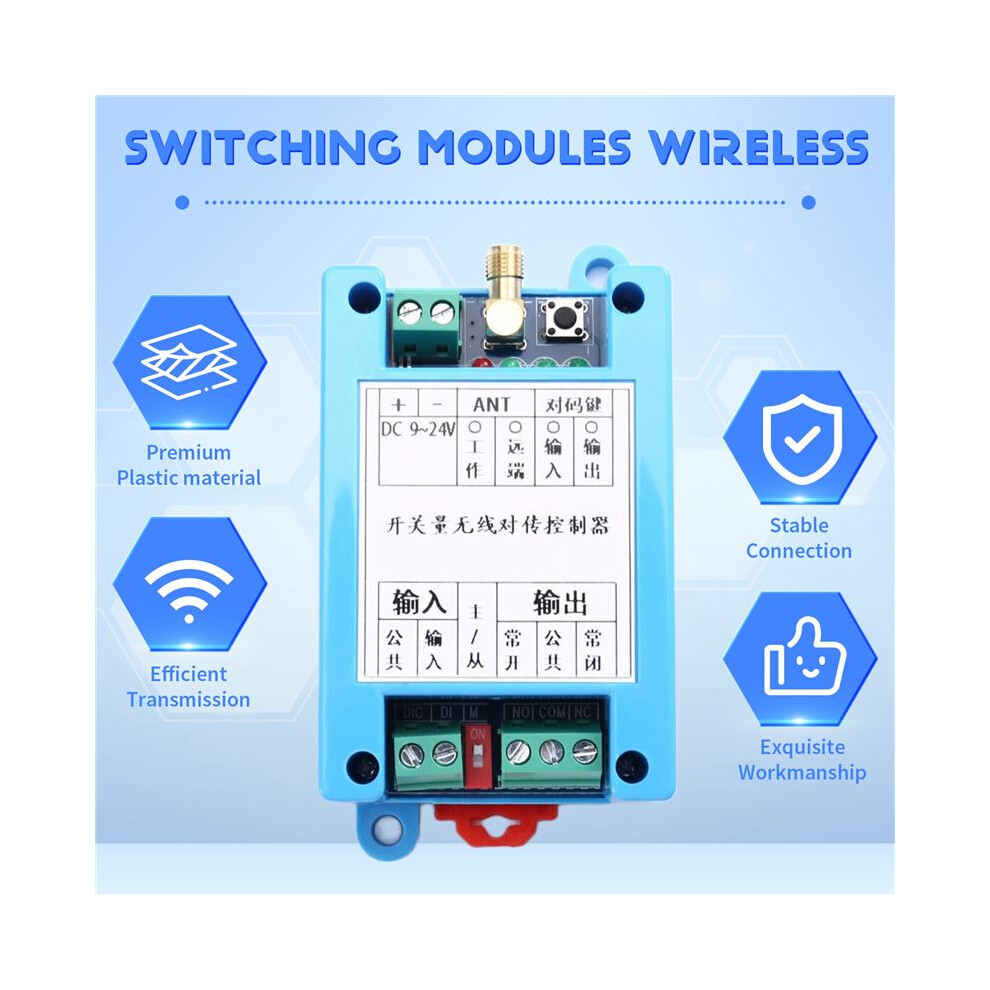

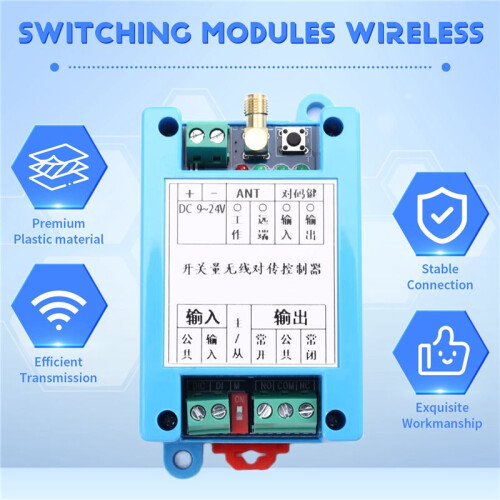

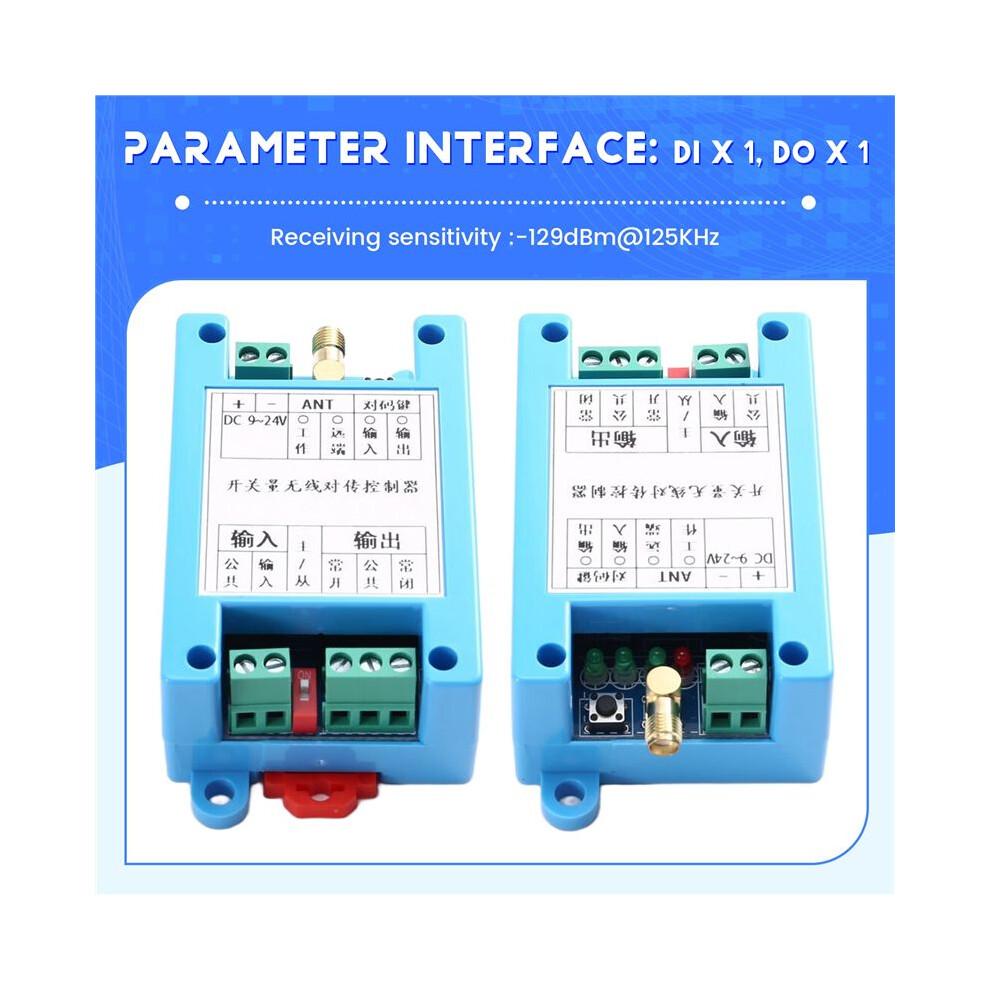

Product parameter Interface:DI x 1, DO x 1
The output supports point-and-click and self-locking modes Communication protocol: User-defined protocol
Power supply :9-24VDC
Power consumption :Less than 0.3W
Transmit power :20 1dBm
Receiving sensitivity :-129dBm@125KHz
Communication distance : 3000m @2400bps (open environment)
DI input: Supports N-type input and dry contact input replication
DO output: Relay output: AC 277V 10A
28V 10A
Working environment :-20~65 0%RH-90%RH (non-condensation)
Storage conditions :-20-80 0%RH-90%RH (non-condensation)

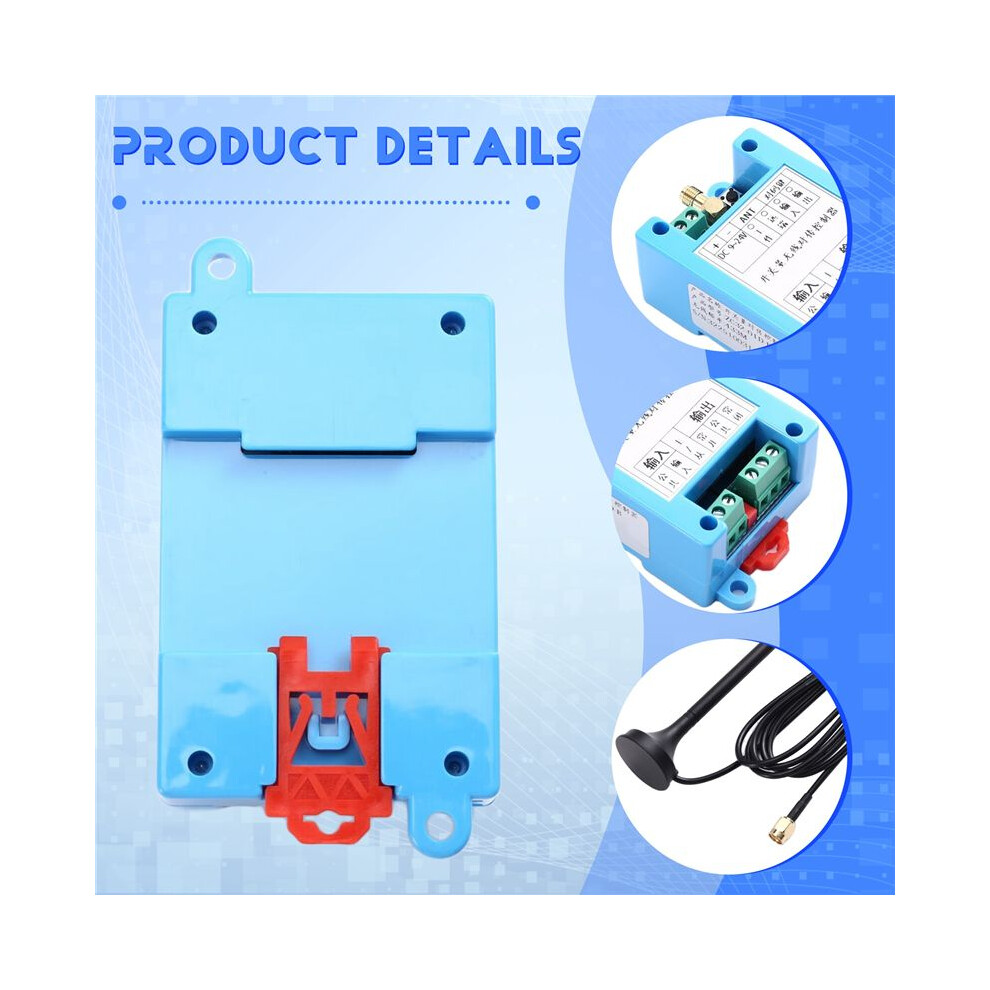

Mounting method: Wall hanging Install.
Color: As Shown
Material: plastic

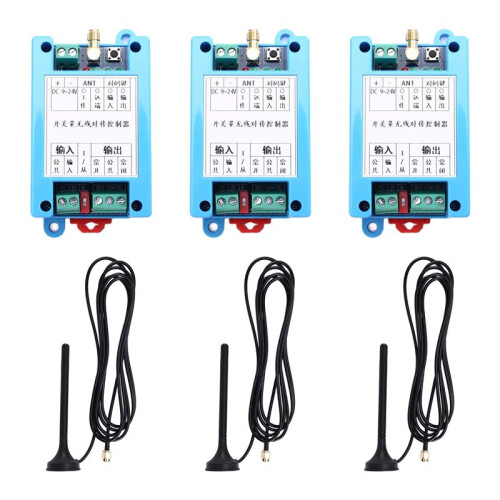

Package Contents:

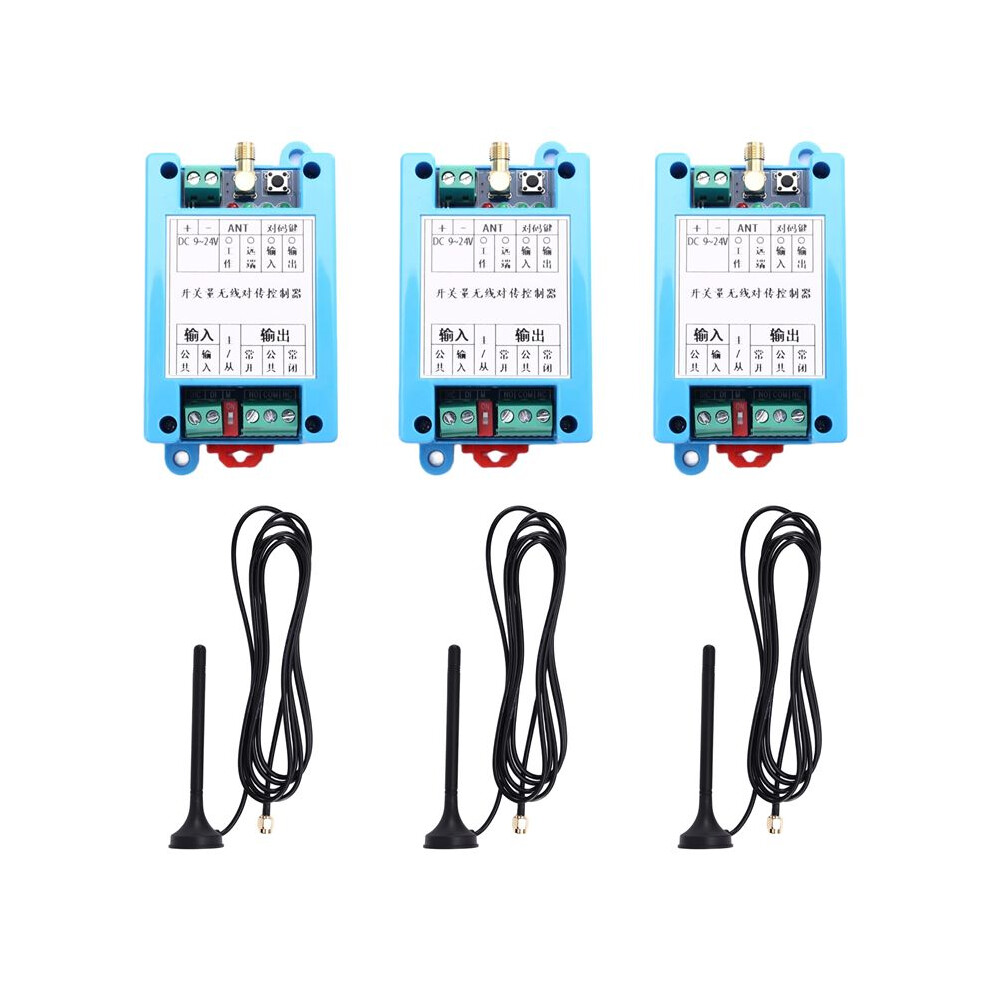

1 * Transmitter
2 * Receivers
