Mach3 V3.25 USB Driver Motion Controller 5 Axis CNC Board Z Tool Setter for CNC Router Cutting Engraving Milling Machine

Mach3 V3.25 USB Driver Motion Controller 5 Axis CNC Board Z Tool Setter for CNC Router Cutting Engraving Milling Machine Περιγραφή

1. Comaptible with MACH3 software.
2. Support windows XP, WIN7, WIN8, WIN10, support tablet computers, as well as 64-bit systems.

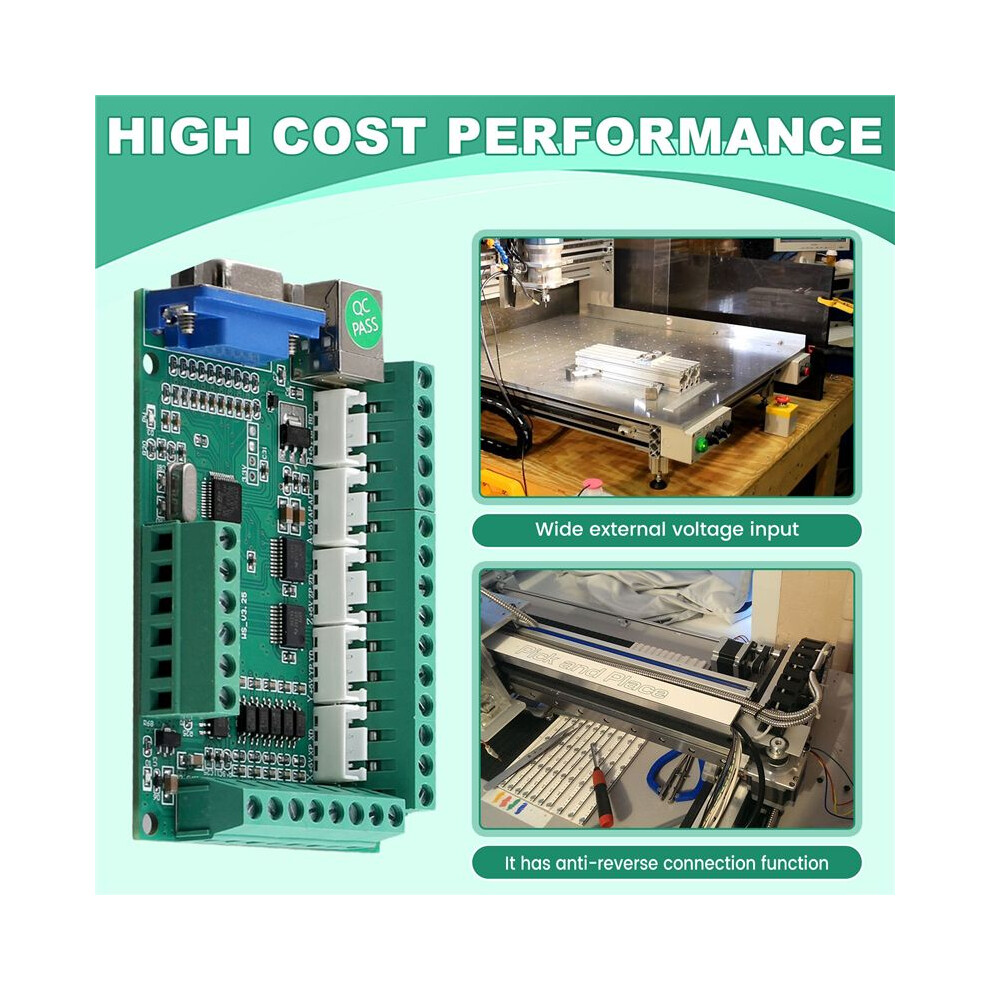

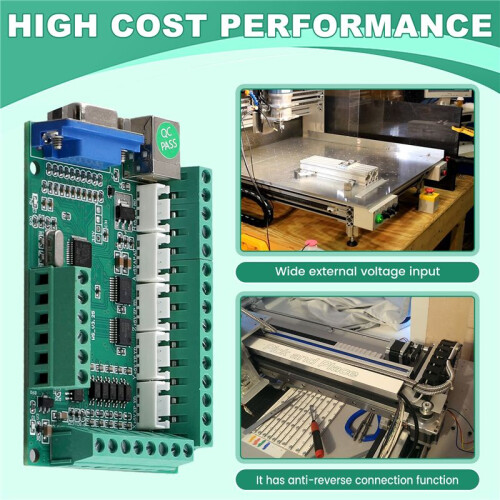

3. External wide voltage input, 12-24V, and anti-reverse connection function.
4. All input signals are isolated by optical coupling, which can be connected to emergency stop, tool setting, limit, return to zero, etc., to ensure computer safety.
5. It provides 0-10V analog voltage output isolated by optocoupler, and can control the frequency converter input by 0-10V analog voltage to control the spindle speed.

Provide PWM output (5V level) isolated by optocoupler to control other PWM controlled spindle speed controllers.
Provide 4 output (5V level), which can be connected to a relay module with optocoupler to control water cooling, spray, etc.
It can be connected to a stepping motor driver with a common anode or common cathode input, a level of 5V, and an optocoupler input.
At the same , a 5-axis interface cable socket (HX2.54) is provided, which is convenient for connecting the stepper motor driver.
Set inverter:
1. Set the inverter to external terminal start.
2. Set the frequency control mode of the inverter to analog (0-10V) input control.

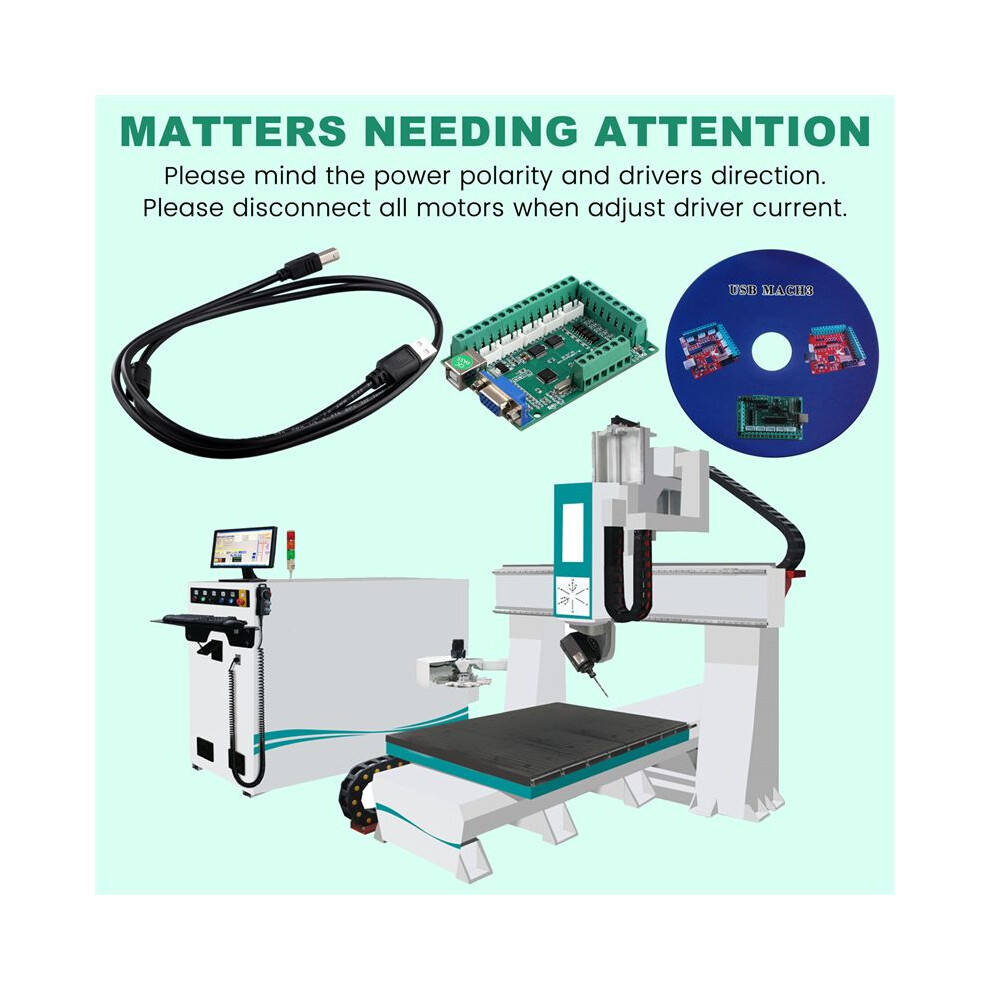

Caution!
Please mind the power polarity and drivers direction.
Please don't put the drivers or motors /off when power .
Please disconnect all motors when adjust driver current.
The colors and styles of cables and CDs are random and cannot be specified, which will not affect their use.
Colour:Green

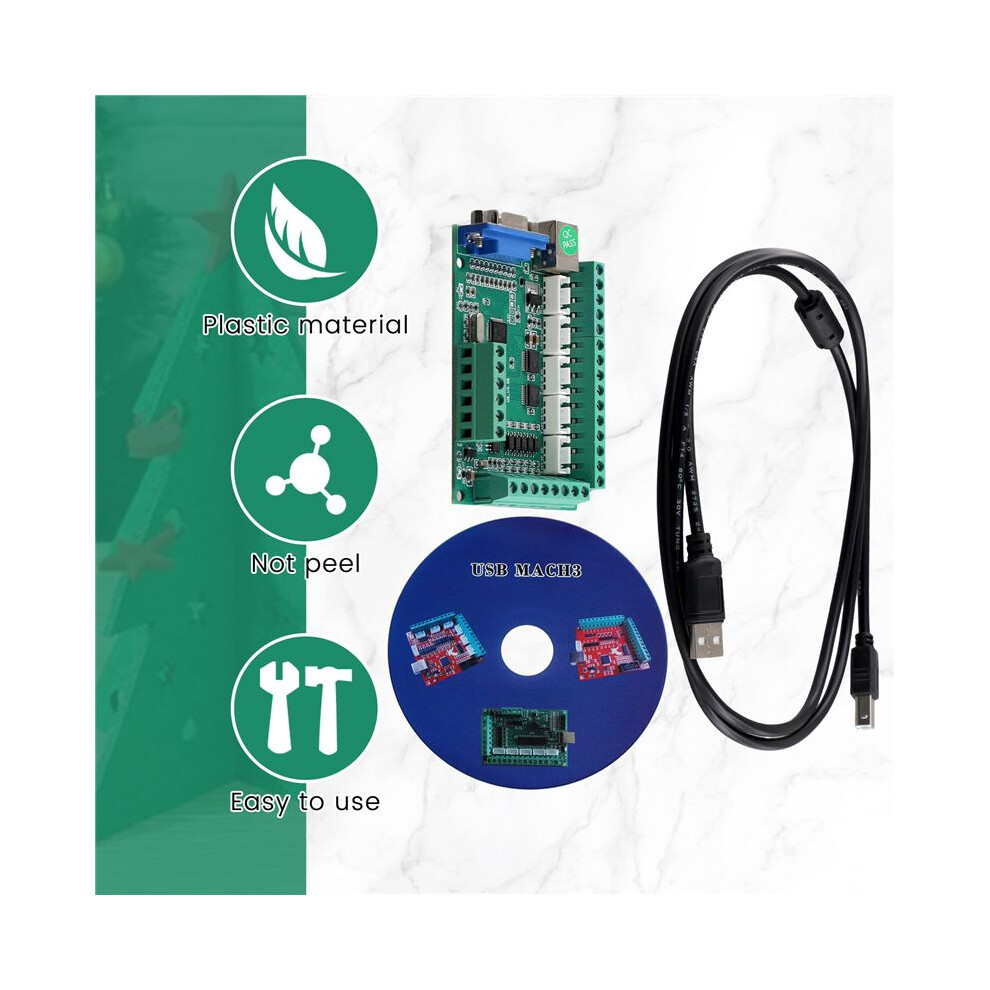

Material:Plastic

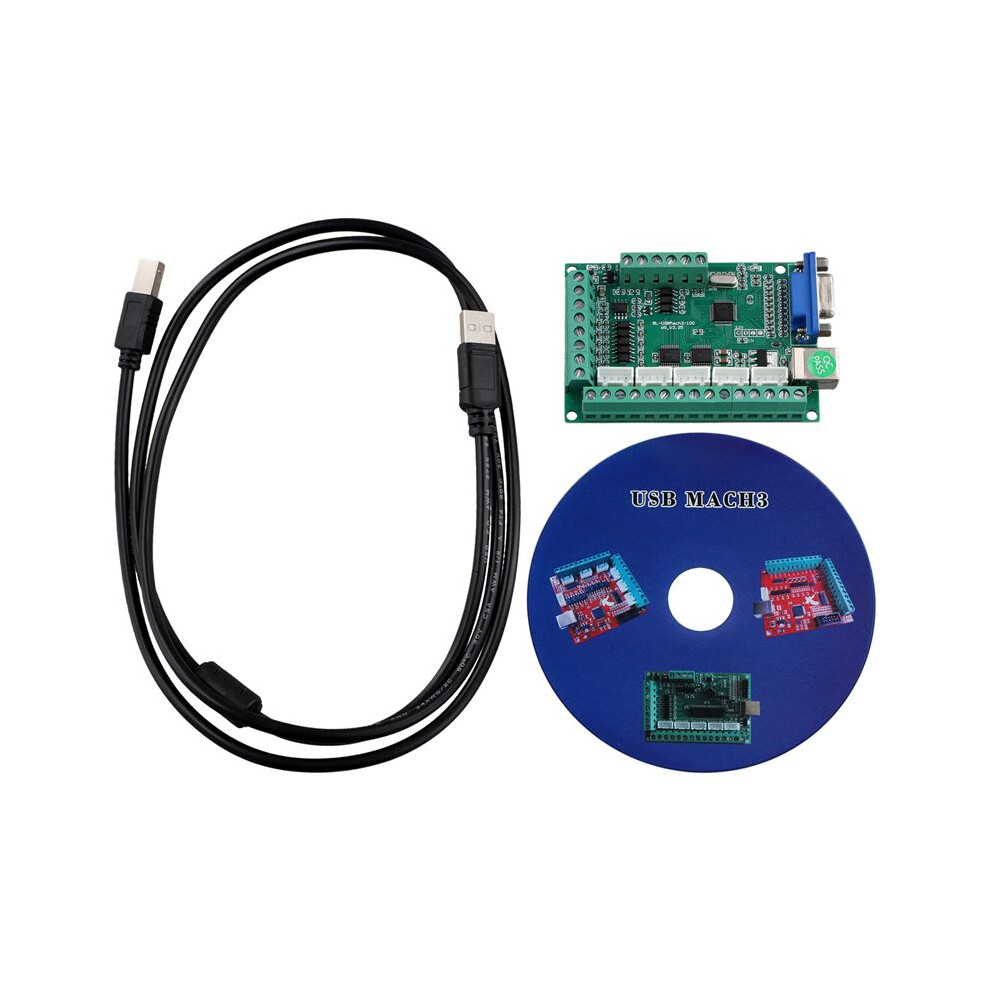

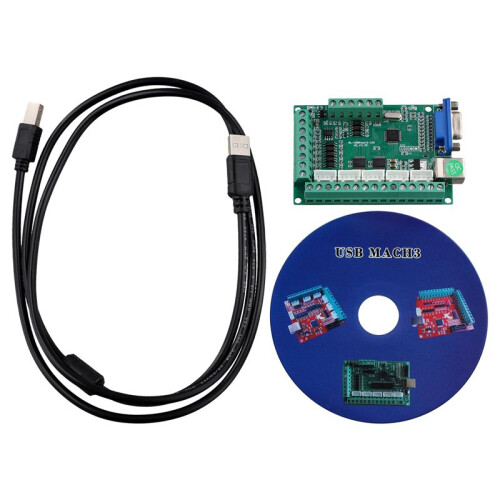

Package Contents:
1 x V3.25 5-axis control card

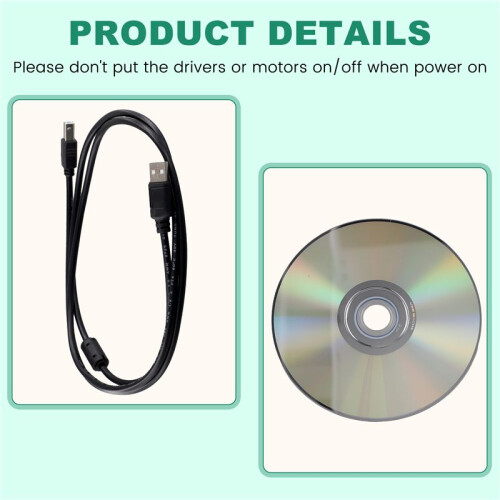

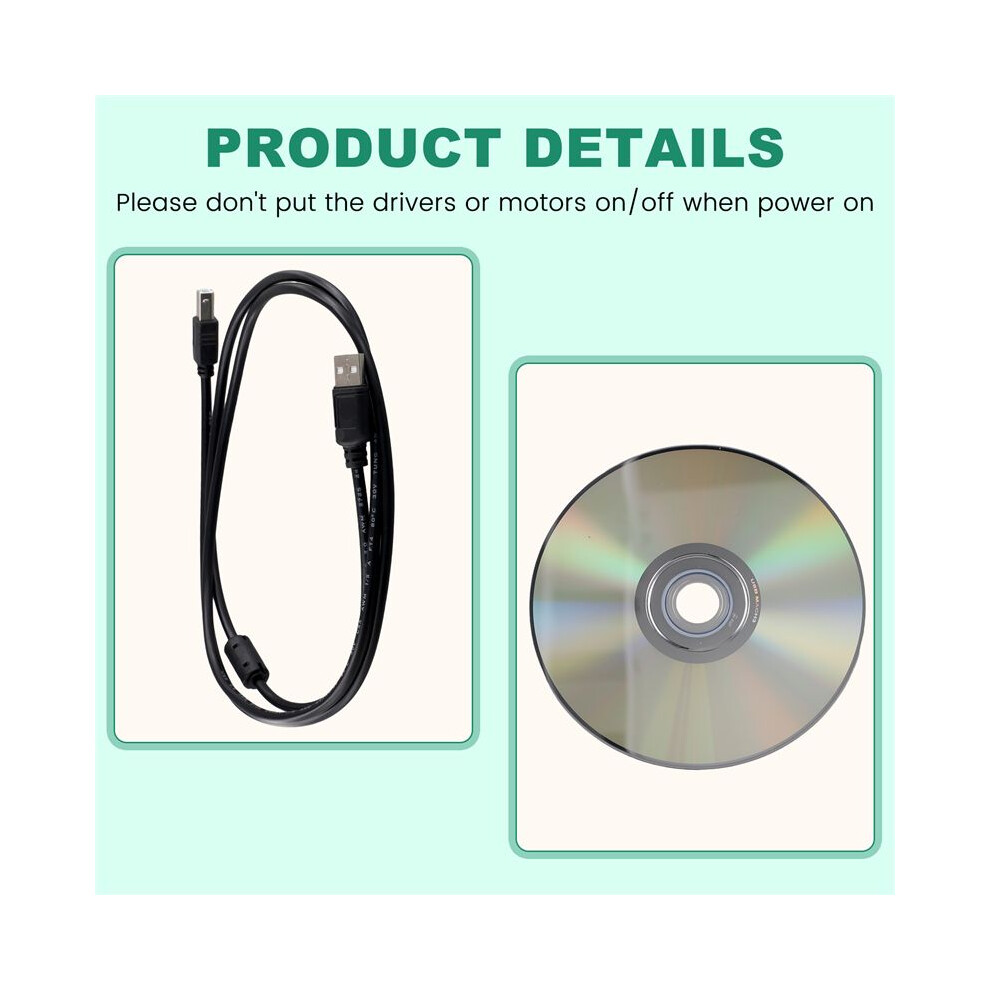

1 x USB Cable
1 x CD
