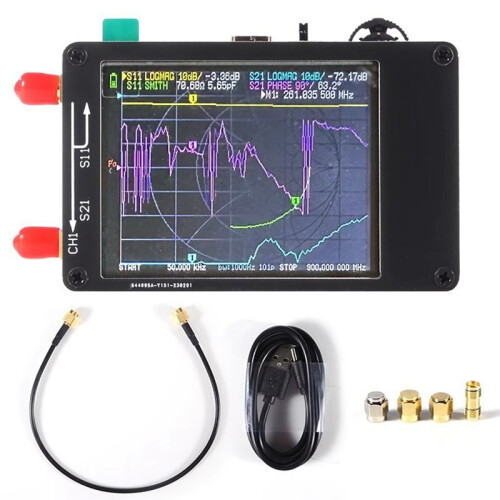

Multifunction Upgraded Version of Antenna Vector Network Antenna Analyzer MF VHF UHF with Card Analyzer

Multifunction Upgraded Version of Antenna Vector Network Antenna Analyzer MF VHF UHF with Card Analyzer Περιγραφή

Lower Power Supply Noise, Smaller Noise When Using Harmonics;
Built-In 400mah Battery, Micro- Supports To 32gb, And Only Supports Spi Mode.
Add A Micro- Card To Save Test Data; This Is A Diy Product That Provides As Complete A Vector Network Measurement Function As Possible In A Credit Card Size. Contains A 2.8-Inch Touch Screen, 400mah Battery, Tx/Rx Mode Measurement, And Can Measure Complete S11 And S21 Parameters. If You Need To Obtain S12 And S22, You Need To Manually Change The Transceiver Port Wiring.
Add Rtc Support;
Modify The Port Names To Port1 And Port2

Description:
1. Measurement Frequency: 50KHz ~ 1.5GHz
2. Rf Output: -13dbm (Maximum -9dbm)
3. Frequency Accuracy: Less than 2ppm
4. Frequency Stability: Less than 0.5ppm
5. Measurement Range: Measurement Range: 70db (50khz-300 Mhz), (50db (300m-900mhz), 40db (900m-1500mhz));
6. Port Swr: Less than 1.1
7. Display: 2.8-Inch Tft (320x240)
8. Usb Interface: Usb Type-C Communication Mode: Cdc (Serial)
9. Power Supply: Usb 5V 120mA, Built-In 400mAh Battery, Maximum Charging Current 1a, Can Be Used Continuously For More Than 4 Hours
10. Number Of Calibration Points: 101 (Fixed)
11. Number Of Scanning Points: 101 (Fixed)
12. Display Traces: 4, Markers: 4, Settings Saved: 5
color: Black
Material: ABS

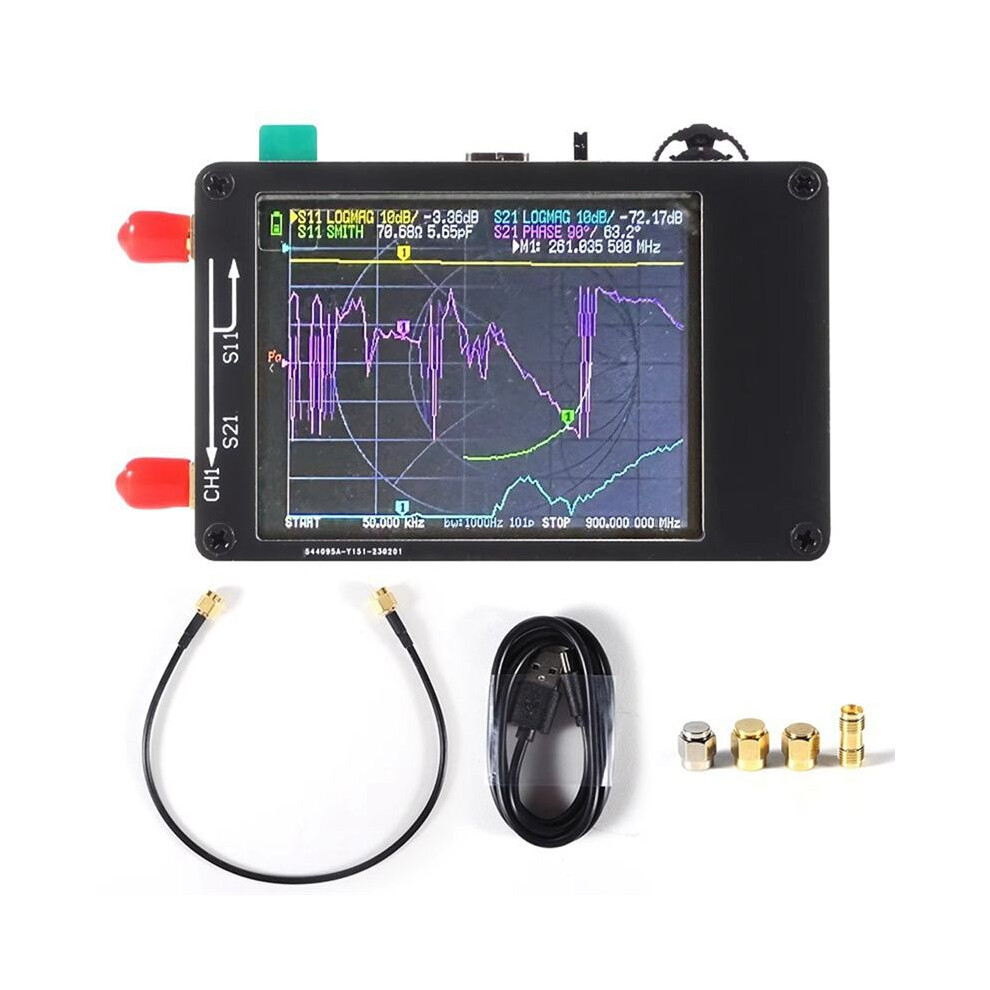

Package Contents:
1 x Host (Including 2.8-Inch Touch Screen, 400mAh Battery)
2 x 20cm SMA Male To Male RG174 RF Cable
1 x Type-C To Type-C Cable
1 x USB Type-C Data Cable
1 x Touch Pen
1 x Pick
1 x SMA Simple Calibration Kit Load
1 x SMA Simple Calibration Kit OPEN
1 x SMA Simple Calibration Kit SHORT
1 x SMA Female To Female Connector
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Whic
