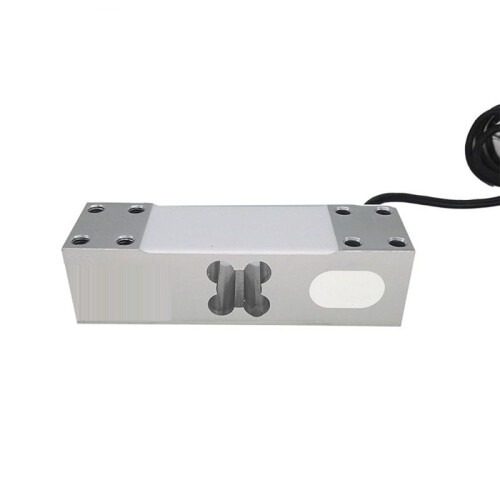

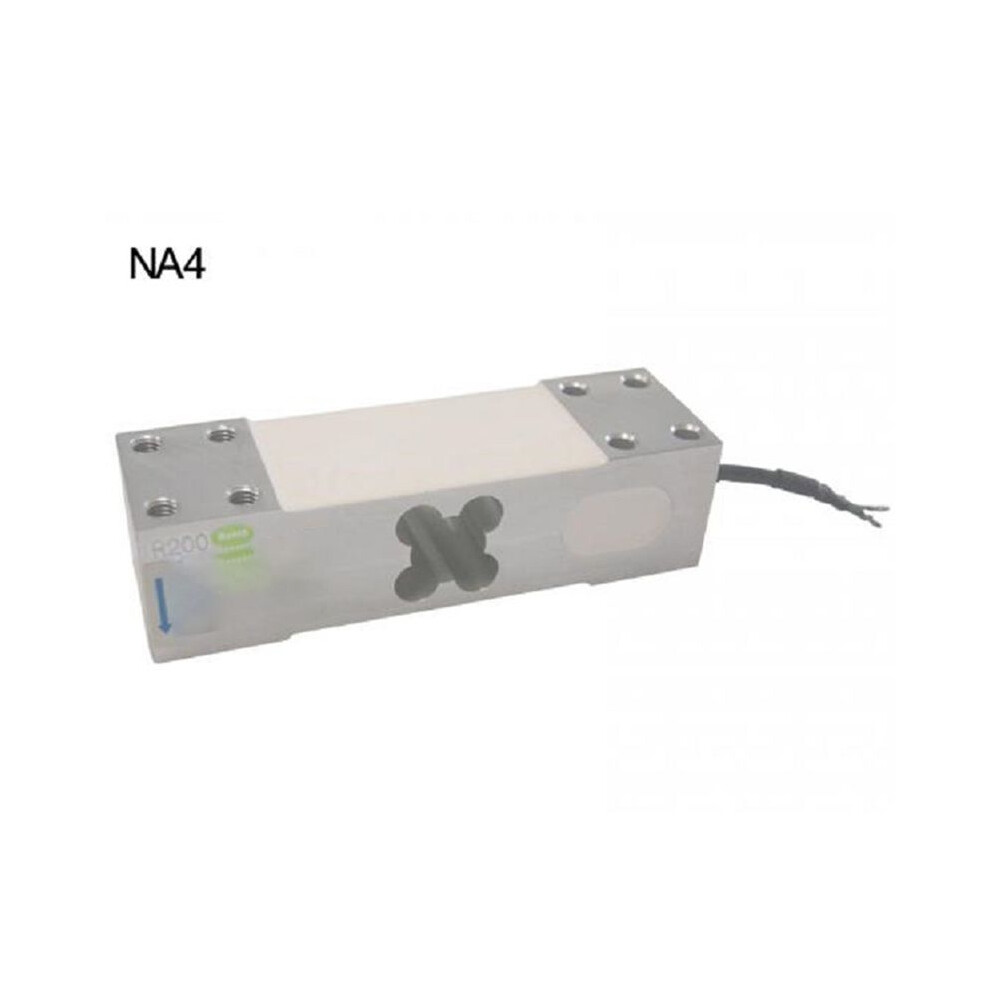

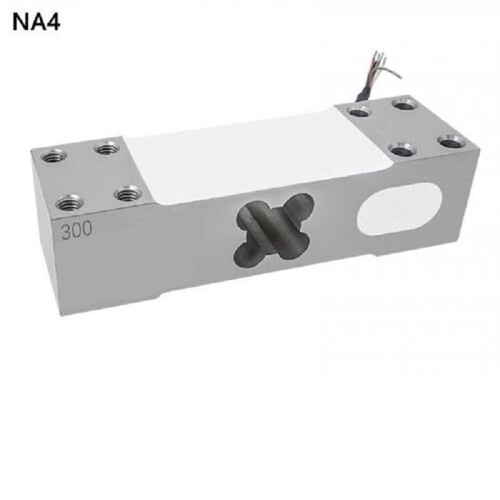

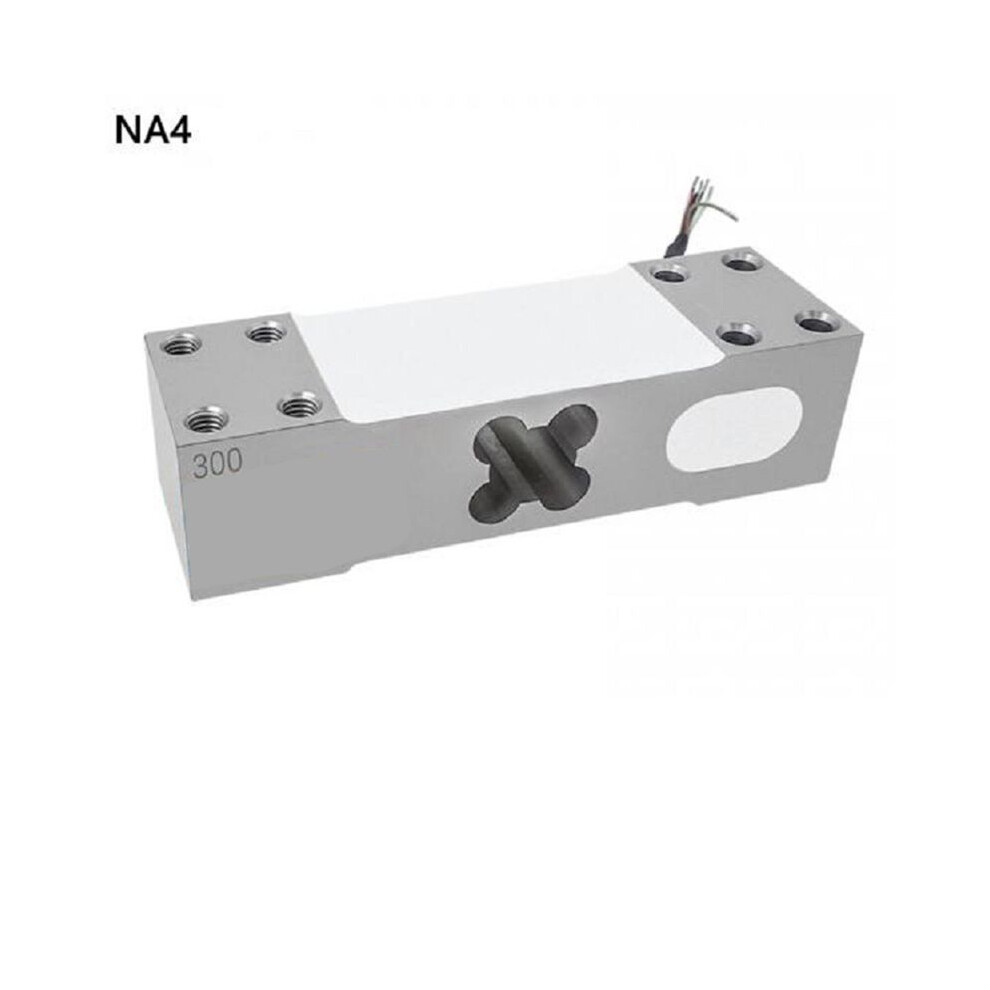

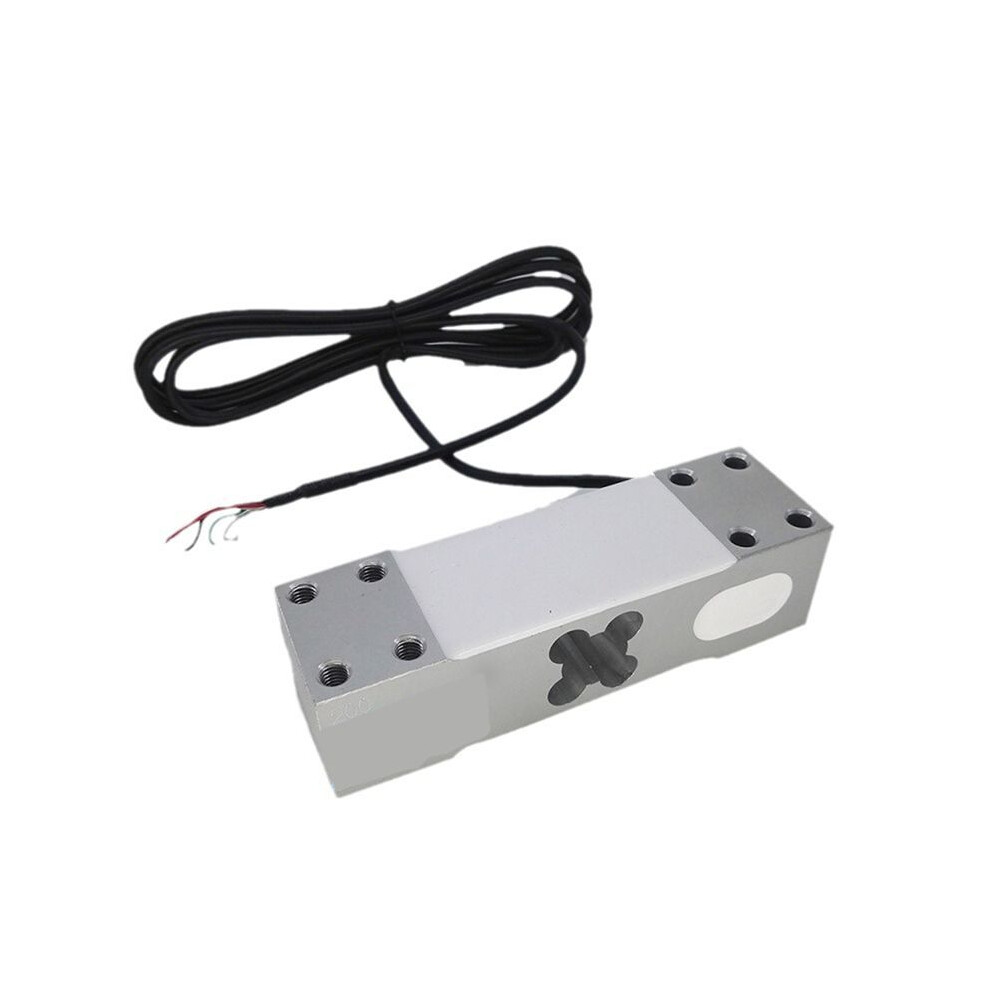

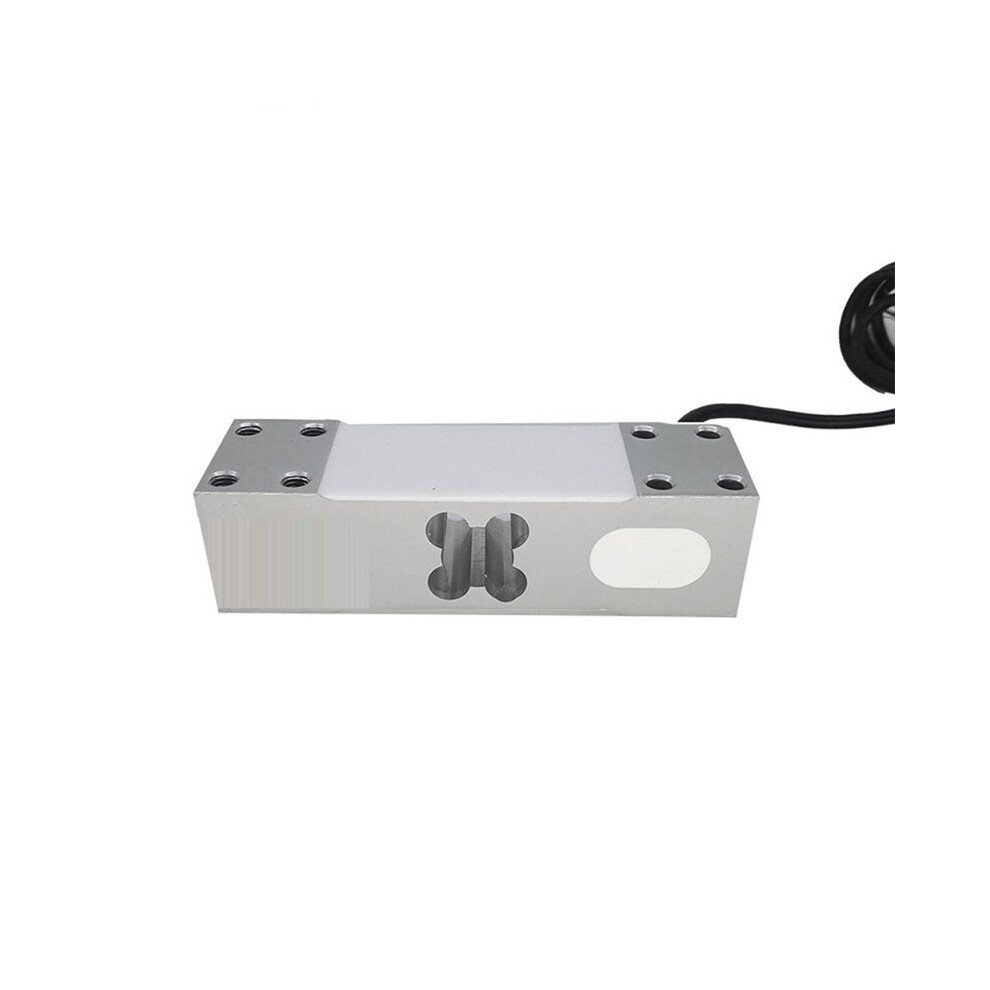

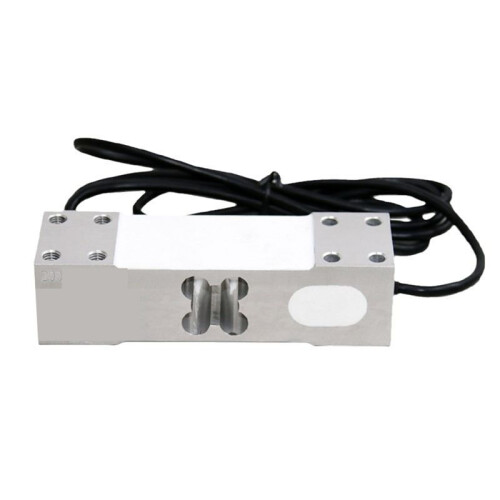

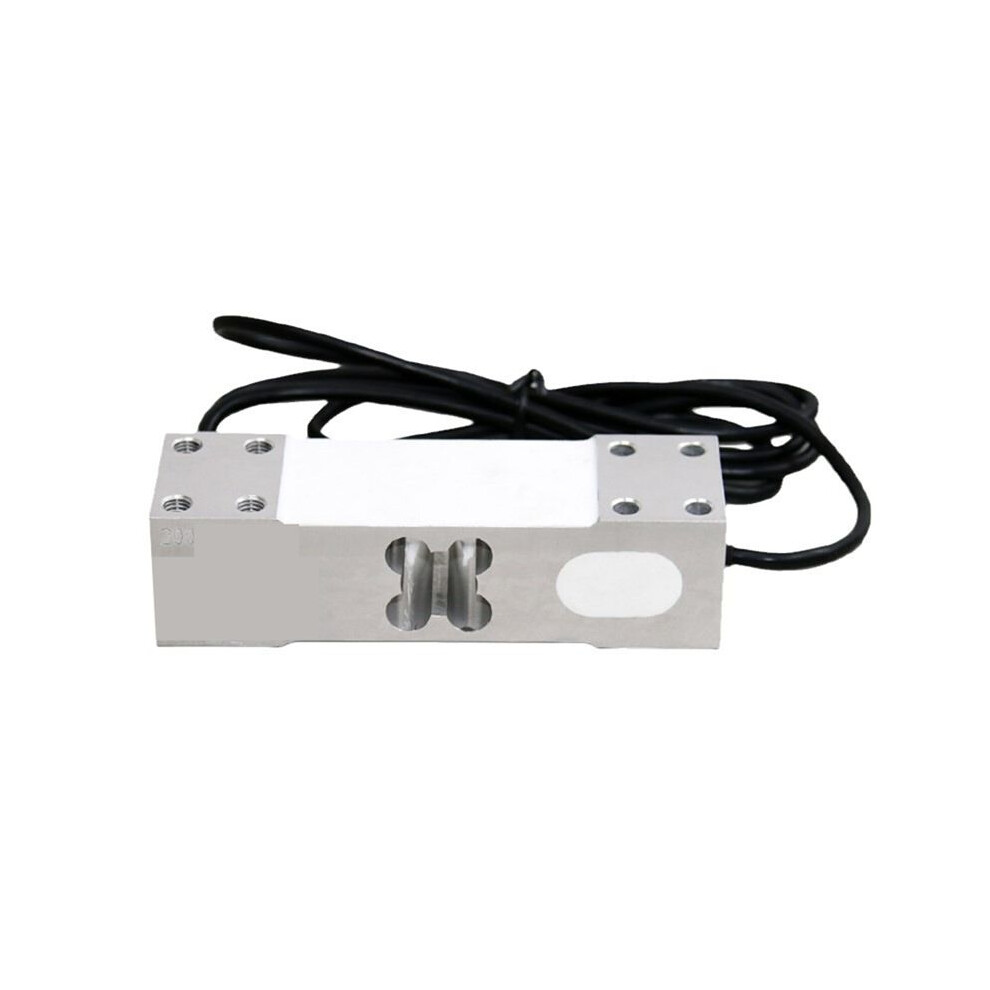

NA4 Weighing Sensor Load Cells Electronic Scale Sensor 200KG

NA4 Weighing Sensor Load Cells Electronic Scale Sensor 200KG Περιγραφή

The elastic body of the sensor is made of aluminum alloy material; Surface anodizing treatment
White glue seal, four corner correction, easy calibration
High precision, with multiple accuracy levels available from C3 to C5
Application fields: Widely used in electronic pricing scales, weighing scales, counting scales and other large platform electronic scales, packaging machinery equipment, etc.

Rated output:2.0 mV/V5%
Zero Balance:0.0200 mV/V
Non-linear:0.02 %R.O.
Hysteresis:0.02 %R.O.
Repeatability:0.02 %R.O.
Creep (30 minutes):0.02 %R.O.
Back to Zero (30 minutes):0.02 %R.O.
Overload rate:150 %R.O.
Overload rate:200 %R.O.
Output temperature effect:0.002 %R.O./
Zero temperature effect:0.003 %R.O./
Input impedance:41015 Ω
Output impedance:3505 Ω
Insulation impedance:greater than equal 5000 MΩ/(50VDC)
Recommend operating voltage:5-12 VDC
Operating voltage:15 VDC
Operating temperature range:-20-60
Cable:Φ5 x 2m
Recommend table size:500x600 mm;600x600 mm
Wiring mode:Red: Power +, Black: Power-, Green: Signal +, White: Signal-
Rated load:200KG
Color:As Shown
Material:Aluminum alloy

Package Contents:
1 * Load Cells
