New AC 220V Delay Relay Cycle Timer Control Adjustable Timing Relay Delay Timing Relays

New AC 220V Delay Relay Cycle Timer Control Adjustable Timing Relay Delay Timing Relays Περιγραφή

1.With high-quality shell,dust-proof and flame-retardant.
2.With LED indicator,display working status.
3.It has many uses,such as exhaust fans,motors,cooling fans,germicidal lamps,humidifiers,heaters,etc.
4.There are 9 different delay times,you can choose by yourself.

1.Product Name:Delay Off Module
2.Number of Control Channels:1 output
3.Power Supply Voltage:AC 220V
4.Output Voltage:AC220V
5.Output Current:7A
6.Control Power:Incandescent lamp 1400W (Max), saving lamp 300W (Max)
7.Standby Power Consumption:12mA(Max)
8.Working Power Consumption:43mA
9.Optional Delay:1,5,10,15,25,30,60,120,180 minutes (9 parameters can be adjusted by themselves).
10.Work Temperature:-25-85
11.Work Humidity:5%-95%RH
Working uses:
1, exhaust fans, motors, cooling fans, germicidal lamps, humidifiers, heaters and other electrical appliances automatically shut down at regular intervals.

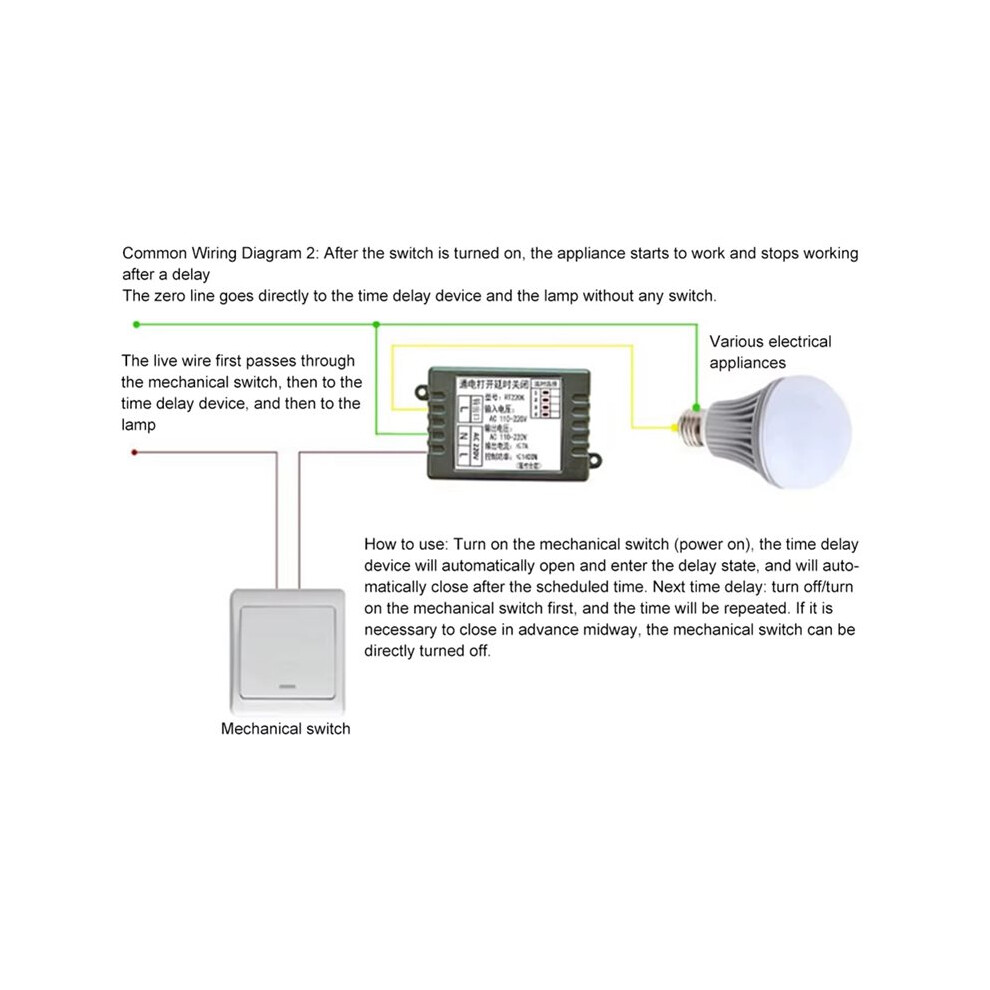

2, kitchen, bathroom, toilet, bedroom, etc. exhaust fan off after the exhaust fan continues to work for a period of automatically off (combined with a double to achieve power-off delay off function - refer to wiring diagram 3).
Note: 1, after the delay has arrived, the indicator light will flash to indicate.
2, after the delay to the following start again need to disconnect the power supply for more than 2 seconds to wait for the remaining power to run out before restarting
Color: Black
Material: ABS

Package Contents:
1 x 220V Power- Delay Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
