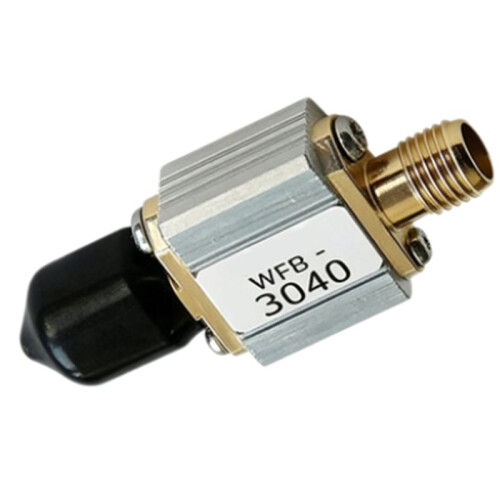

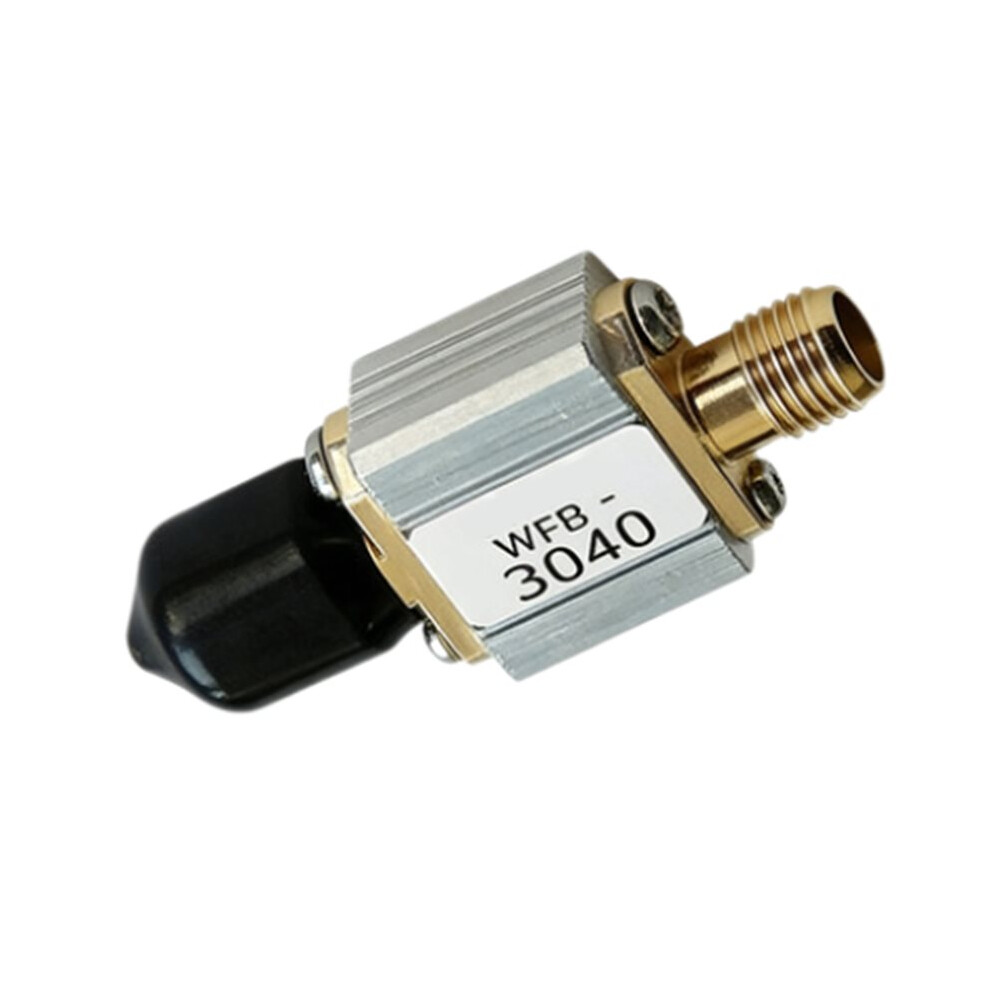

NMRF 3.6G Broadband Wireless Communication Dedicated Bandpass Filter 3100-4100MHz SMA Interface WFB-3040 Band-Pass Filter

NMRF 3.6G Broadband Wireless Communication Dedicated Bandpass Filter 3100-4100MHz SMA Interface WFB-3040 Band-Pass Filter Περιγραφή

This product is a broadband bandpass filter with a center frequency of 3600MHz, designed with a multi-layer thin film circuit structure and featuring non cutoff characteristics. A 1dB bandwidth of approximately 700MHz covers the frequency range of 3100MHz to 4100MHz.
The product is designed specifically for wireless communication systems in the 3.6G frequency band, suitable for receiving front-end of UWB, WiMAX, WiFi and other devices. It can effectively filter out out out of band interference signals, reduce system noise, and improve the dynamic range of reception.
Frequency range: 3100-4100MHz, center frequency: 3600MHz, impedance: 50Ohms, 1dB passband: 3300-3900MHz, insertion loss:< 1.5dB@3500-3700MHz Maximum carrying power: 5W (37dBm) @ 1 minute, interface type: SMA male/SMA female.The working temperature range is -40 to+85 .
Frequency response characteristics: sweep frequency range: 40-8000MHz, vertical scale: 10dB per grid, marked bandwidth: 3dB, response curve shows good in band flatness, excellent out of band suppression performance, smooth transition.
Attention: This product is an RF passive component with symmetrical RF characteristics at both ends, and there is no need to distinguish directions during installation. The maximum carrying power of 5W is the 1-minute test value under continuous wave conditions, and it is recommended to leave a margin for long-term use.

Color: As Shown
Material: Metal

Package Contents:
1 * Bandpass Filter
