Node T114 Meshtastic Tracker Nordic NRF52840 SX1262 LoRaWAN for Positioning Devboard TFT Display BLE WiFi,B

Node T114 Meshtastic Tracker Nordic NRF52840 SX1262 LoRaWAN for Positioning Devboard TFT Display BLE WiFi,B Περιγραφή

MCU nRF52840 (), LoRa chip SX1262.
Low power consumption, deep sleep 11uA.

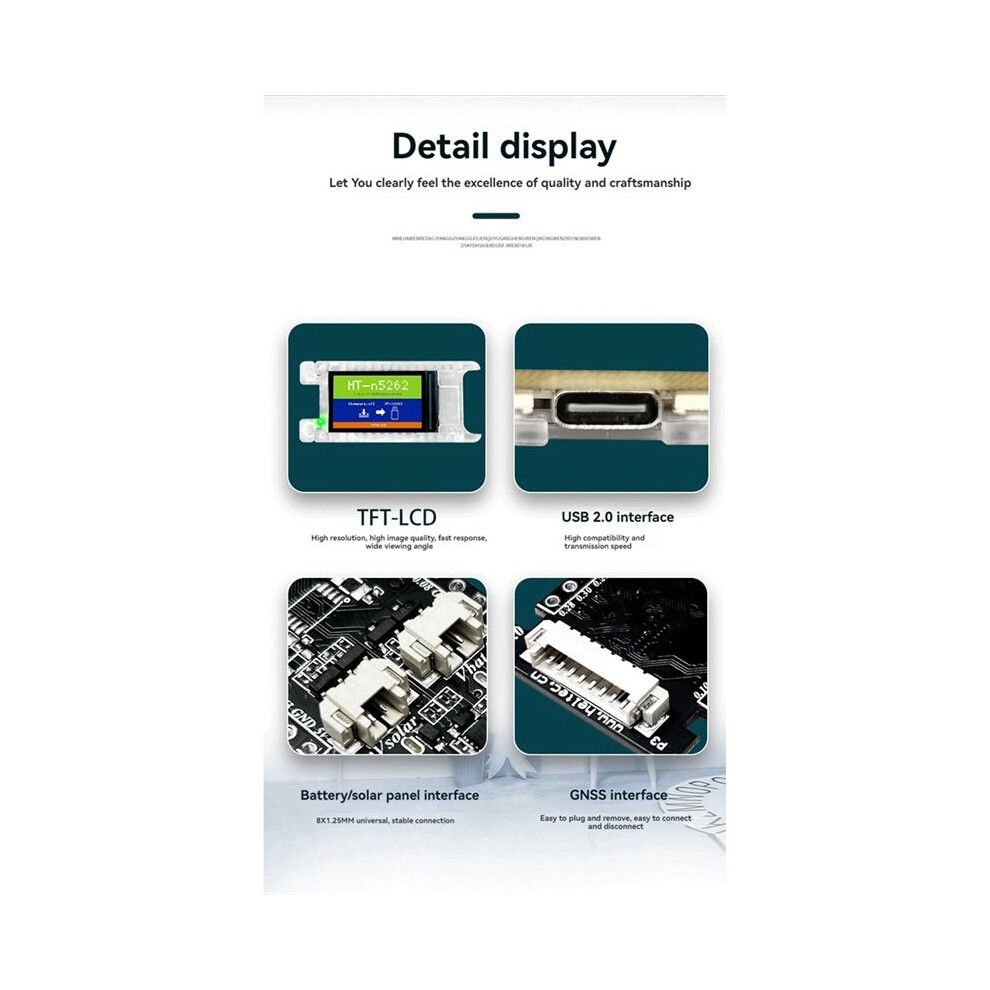

Powerful display function, onboard 1.14-inch TFT-LCD display.
135 (H) RGBx240 (V) can display 262K colors.

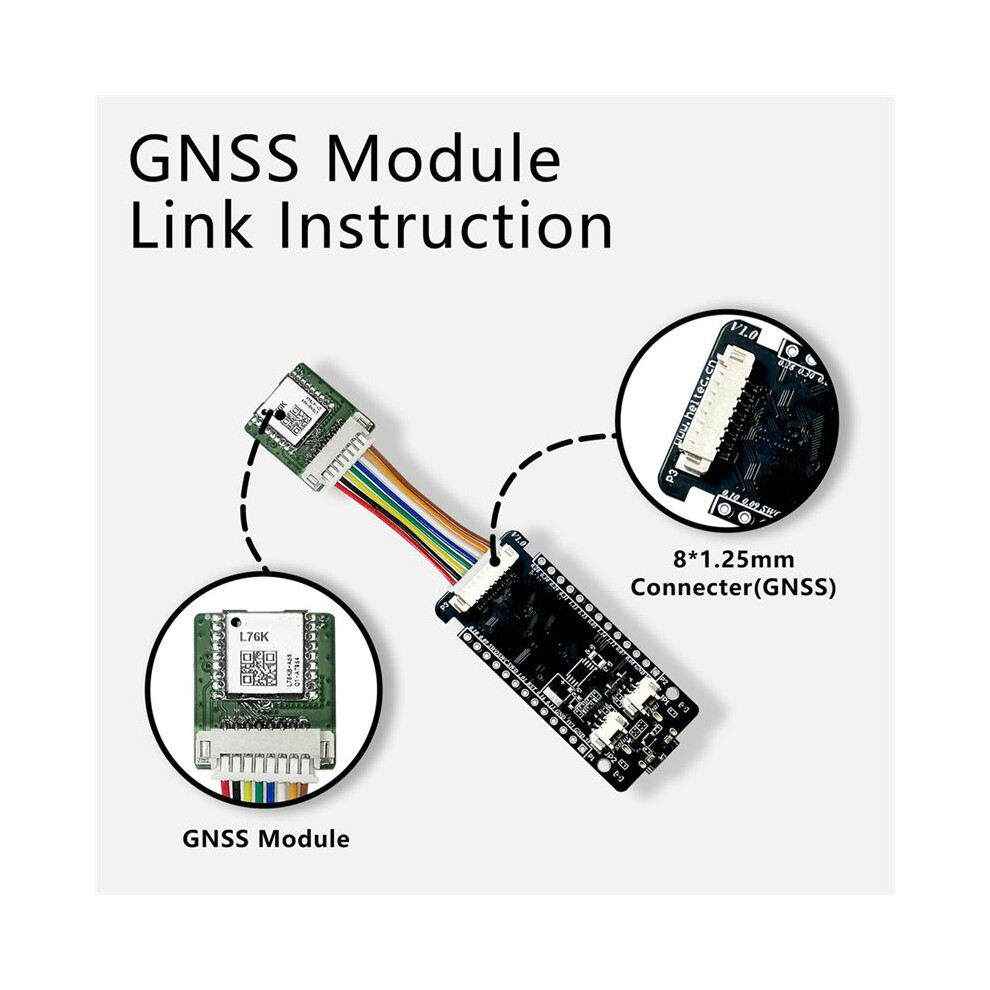

Rich interfaces (2x1.25mm LiPo connector, 2x1.25mm solar panel connector, 8x1.25mm GNSS module connector) greatly increase the scalability of the board.

MCU:nRF52840
LoRa Node Chip:SX1262
Memory:1M ROM 256KB
: 5, mesh, BLE
Storage temperature:-30-80
Operating temperature:-20-70
Operating Humidity:90%(No condensing)
Power Supply:3-5.5V (USB),3-4.2(Battery)
Display Module:LH114T-F03
Screen Size:1.14 Inch
Display Resolution:135RGB x240
Active Area:22.7 mm(H)x 42.72(V)mm
Display Colors:262K
Hardware Resource:USB 2.0, 2*RGB, 2*Button, 4*SPI, 2*TWI, 2*UART,4*PWM, QPSI, I2S, PDM,QDEC Etc.
Interface:Type-C USB, 2x1.25 lithium battery connector, 2x1.25 solar panel connector, LoRa ANT (IPEX1.0), 8x1.25 GPS module connector, 2x13x2.54 Header Pin
Note:Due to different production batches, there are differences in silk screen printing/appearance, which does not affect usage.
Type:B:863-928mhz
Colour:Transparent & Black
Material:PCB+Plastic

Package Contents:
1 * T114 With Screen kit
1 * GNSS Module
