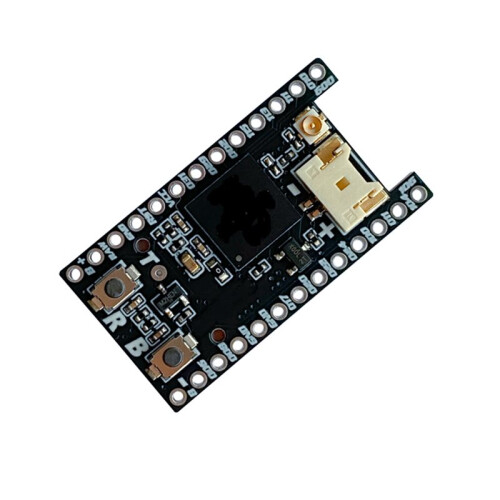

Pro Micro SX1262 Module Specifically Designed for Nice /Superbini/Pro Micro Support for Meshtastic

Pro Micro SX1262 Module Specifically Designed for Nice /Superbini/Pro Micro Support for Meshtastic Περιγραφή

Supporting LoRa & LoRaWAN frequency from 868 to 928 MHz and tp +21 dBm highly efficient transmitted power.
Equipped with an onboard IPEX antenna connector and high-quality oscillator of the TCXO(Temperature Compensate Crystal Oscillator), it ensures stable operation at the high and low temperature environment of industry.
It is designed for wireless sensor networks and other IoT devices, especially those requiring battery-powered, low-power consumption, and long-range connectivity.
It can be applied in various fields such as Meshtastic, sensor networks, environmental monitoring, asset tracking, education, and innovation.

Features
which supports LoRa and FSK modulation.
the maximum transmit power is to +22 dBm. The module achieves high sensitivity to-148 dBm,
Frequency coverage from 868 MHz to 928 MHz.
Integrated battery voltage divider resistor (10M-10M).
Integrated power mosfets for swithching external hardware.
Firmware Name:firmware-nrf52_promicro_diy_tcxo
Color: Black
Material: PCB

Package Contents:
1 X Pro Micro SX1262 module;
2 X 2.54 13P Pin Header;
2 X 2.54 13P Female Header;
1 X antenna;
1 X MX1.25 2P battery connection cable;
