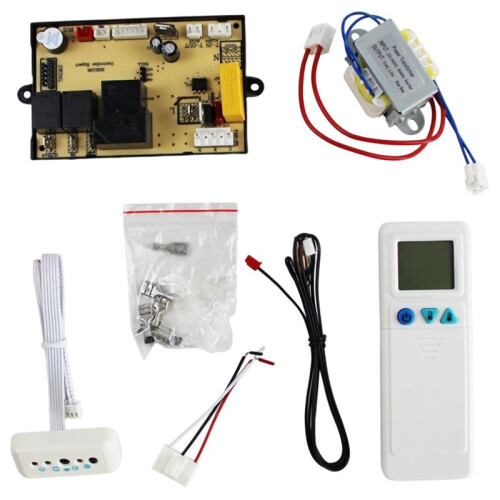

QD-U05PGC+ Air Conditioner Control Board Universal AC PCB Control Board System Only for Wall-Mounted Air Conditioners

QD-U05PGC+ Air Conditioner Control Board Universal AC PCB Control Board System Only for Wall-Mounted Air Conditioners Περιγραφή

Only for Wall-mounted Air Conditioners
220V Fixed-frequency Cold-Warm Wall-Mounted Split Air Conditioner (Main Adapter)
1HP, 1.5HP household wall-mounted units, compatible with all brands' fixed-frequency heating and cooling models with PG direct-drive motors: For Gree, For Midea, For , For Chigo, For Aux, For TCL, For , For , For , and other wall-mounted units.
Control board electronic components The location and appearance may vary, but this will not affect the use.

Small PG motor window air conditioner, small ducted air conditioner (fixed frequency) with a capacity of 1.5 horsepower or less, compatible with refrigerants R22/R410A.
Only supports fixed-frequency compressors, with a maximum compatibility of 1.5-horsepower fixed-frequency outdoor units, and does not support high-power models
II. Completely Incompatible Models Inverter Air Conditioners (All Series Excluded): Lacks inverter drive circuitry, cannot drive inverter compressors, and inverter PG indoor units cannot be used.
AC tap-type three-speed wall-mounted air conditioner: If the QD-U02B is compatible with a standard AC fan, this unit cannot drive the tap motor.
2HP and above floor-standing units, 380V three-phase central air conditioners, and 5HP high-power fixed-frequency units: Insufficient relay load may easily burn out the mainboard.
Cooling-only air conditioners: Built-in four-way valve heating control logic; retrofitting to cooling-only mode will cause functional malfunctions. A dedicated cooling-only PG board must be purchased.
Multi-split systems, heat pumps, and inverter ducted air conditioners are not compatible.
Remote Control: not include 2 AAA batteries
Color: Random
Material: Plastic+PCB

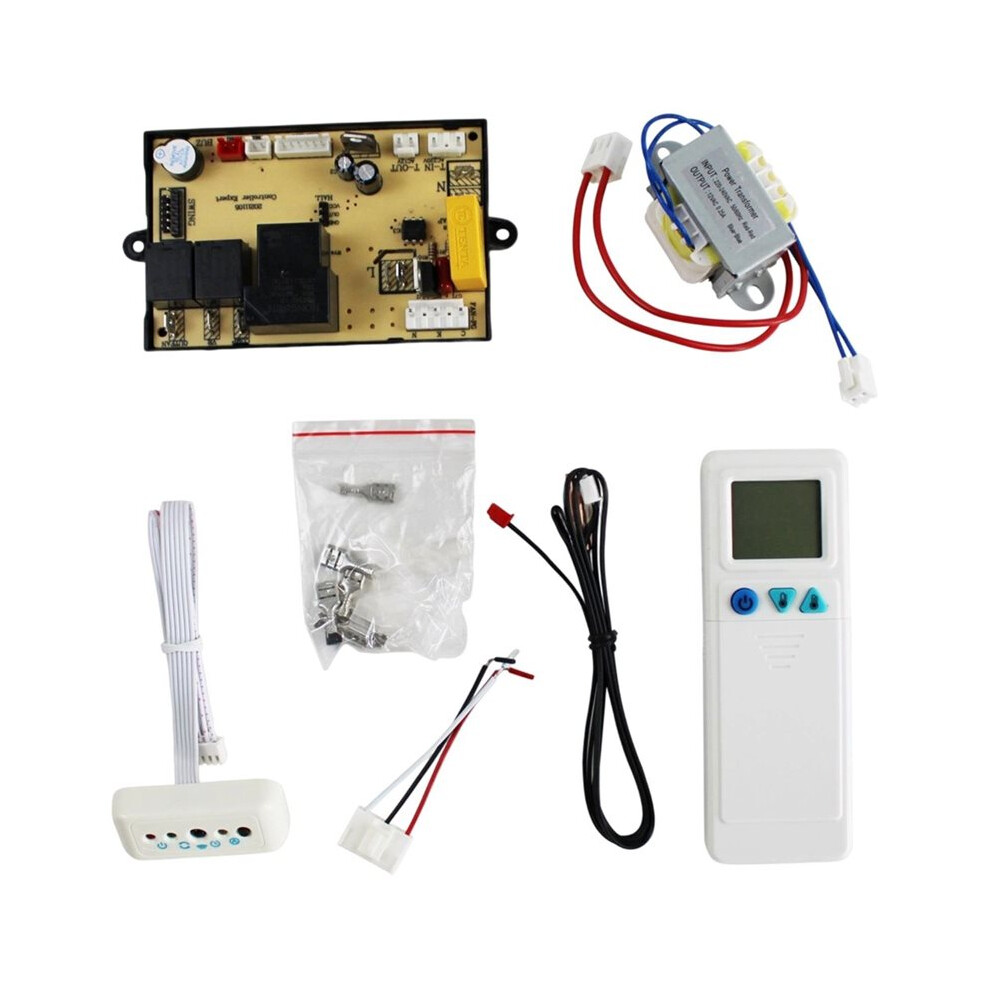

Package Contents:
1*Control Board Kit
