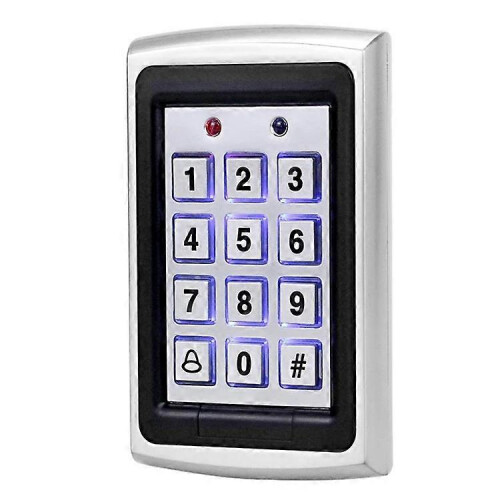

Standalone Keypad Access Control System with Proximity Card Reader, 500 Users, Vandal Resistant

Standalone Keypad Access Control System with Proximity Card Reader, 500 Users, Vandal Resistant Περιγραφή

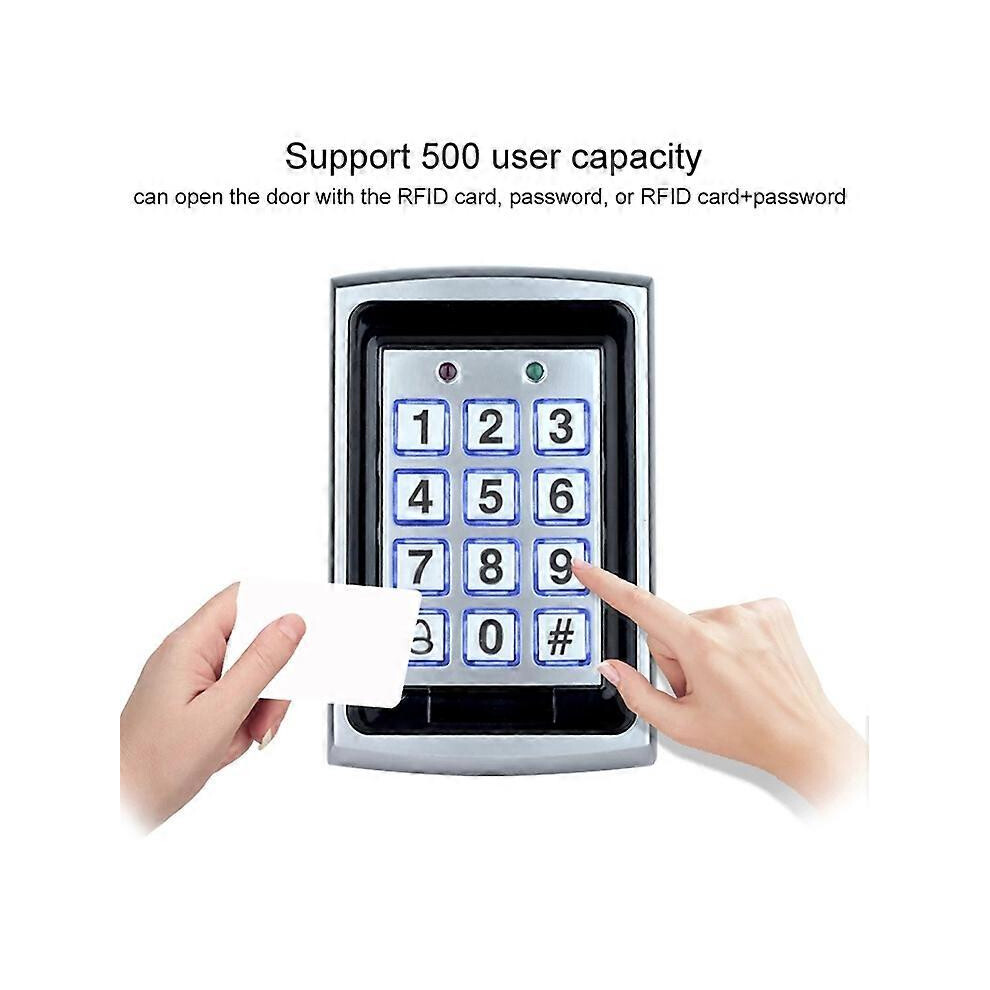

Product Details 1. Vandal-resistant design suitable for external applications, ensuring durability in various environments 2. Built-in proximity card reader (125KHz ASK modulation) with 65mm read range, enabling convenient access 3. Integrated keypad for PIN code entry, offering flexible access options 4. Supports up to 500 users, ideal for small to medium-sized premises 5. Four open door modes available, meeting different access control requirements 6. Auxiliary input & output with eight auxiliary modes, enhancing security monitoring capabilities Specification 1. Dimensions: 120L x 76W x 27H mm (4.72L x 2.99W x 1.06H inches) 2. Weight: 450g (0.99 lbs) 3. Colour: Silver 4. Operating Voltage: 12VDC from a regulated power supply 5. Input current: Standby 40mA (not including attached devices), Max 130mA (not including attached devices) 6. Outputs: Lock Strike Relay From C (5A), Auxiliary Relay From C (5A), Lock/Strike Control Output Collector Open Output (25mA), Auxiliary Control Output Collector Open Output (25mA) 7. Inputs: REX (N.O., Dry Contact), Auxiliary Input (In/Monitor: N.C., Dry Contact in; Monitor Mode: N.O. Dry Contact Input Mode) 8. Proximity reader read range: 65mm 9. Modulation: ASK at 125 kHz 10. Compatible with ALL 26-Bit EM Cards Package List 1. Standalone Keypad Access Control System (7612) Warm Tips 1. Read range depends on electrical environment and proximity to metal 2. For tamper bell, chime, siren, battery backup, and tamper output features, use with IBA Power Supplies 3. Siren time and lock strike release time are programmable
