Tab5 Keyboard 70-Key Physical Keyboard Input Expansion Module for Tab5, Keyboard for Tab5, Two Onboard RGB LEDs

Tab5 Keyboard 70-Key Physical Keyboard Input Expansion Module for Tab5, Keyboard for Tab5, Two Onboard RGB LEDs Περιγραφή

Tab5 Keyboard is a 70-key physical keyboard input expansion module designed specifically for Tab5. It connects directly to the host via Tab5 Ext.Port1, enabling a plug-and- input experience.
The module integrates an STM32F030C8T6 main control chip, responsible for keyboard matrix scanning and communication processing. The preloaded firmware supports three operating modes: Normal, HID, and Character, adapting to different interaction requirements.

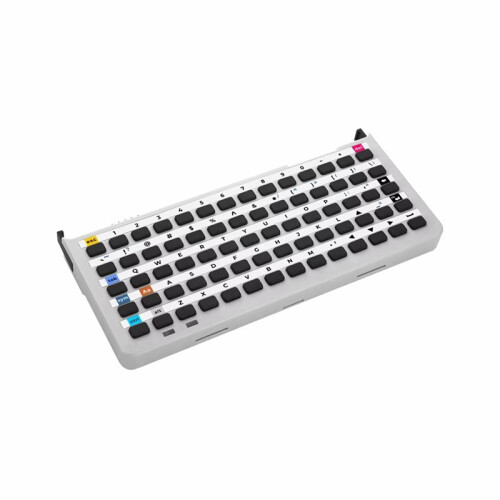

The keyboard adopts a 14 x 5 matrix design, supports multiple simultaneous key presses, and provides a complete set of letters, numbers, symbols, and commonly used function keys such as Aa, Ctrl, Sym, Alt, Tab, Esc, and direction keys.
The device communicates with Tab5 via I2C and provides an independent interrupt pin for low-latency real- reporting of key events.
Two onboard RGB LEDs can be used for full-color status indication. With a compact structure and simple connection method, it is suitable for text input, command interaction, and various portable applications that require a physical keyboard.

Features:
Uses STM32F030C8T6 as the main control chip
Designed for Tab5, plug and via direct connection to the expansion port
Three operating modes to meet diverse requirements
14 x 5 matrix, supports multiple simultaneous key presses
Complete key layout with various commonly used function keys
I2C communication with low-latency reporting through an interrupt pin
Onboard dual RGB LEDs for colorful status indication

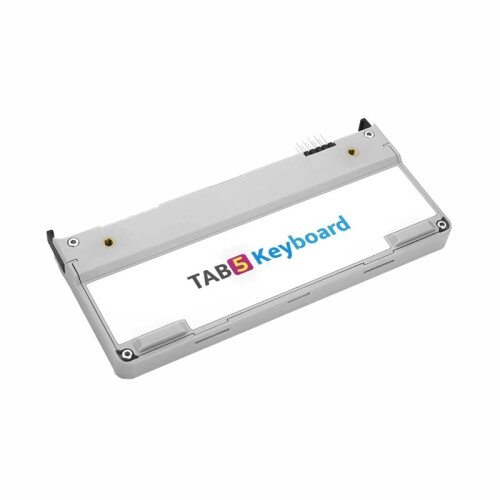

Side latches securely lock onto Tab5; two M3 screw mounting holes reserved the back
Compact structure with strong adaptability for portable scenarios

Applications:
Text input
Command interaction
Portable application scenarios
Educational programming and maker projects

Specifications
