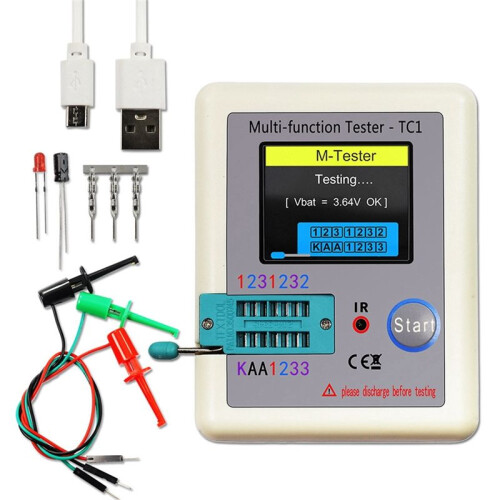

-TC1 TC1 Display Multifunctional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor

-TC1 TC1 Display Multifunctional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor Περιγραφή

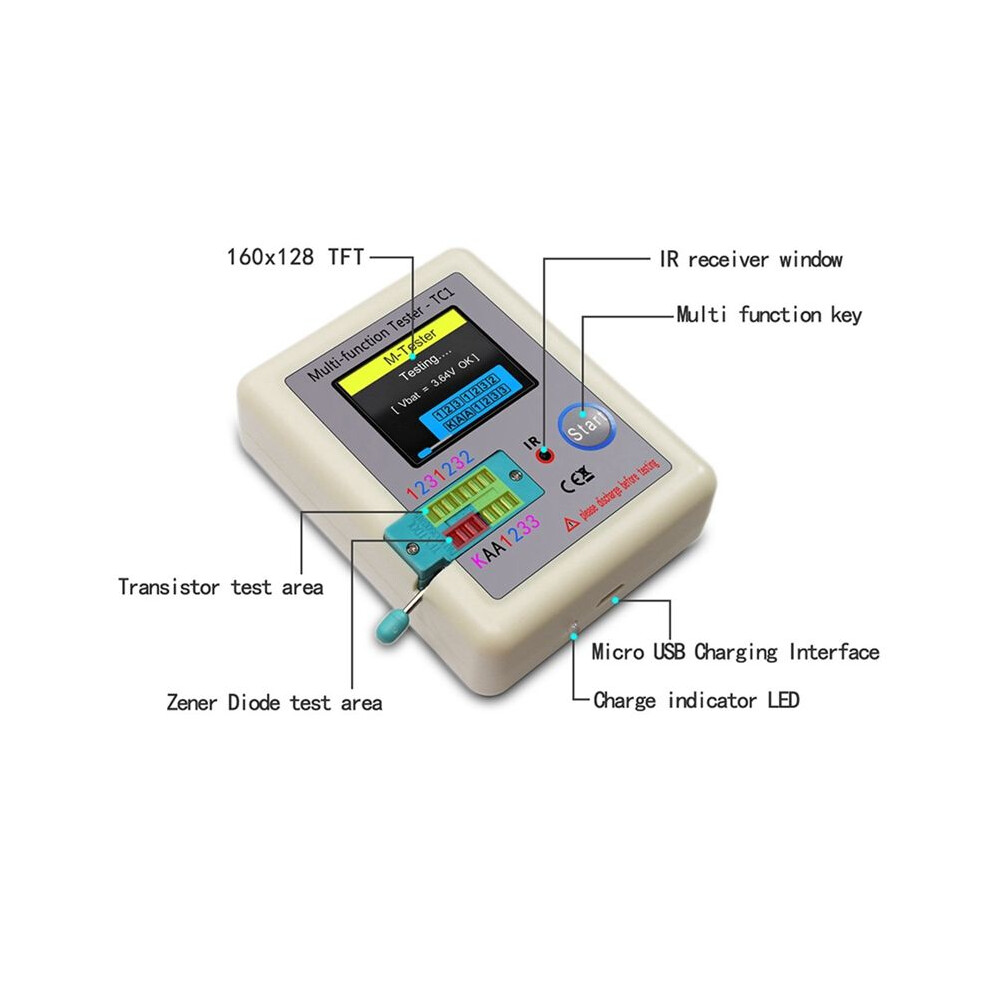

Transistor Detection: After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle, press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: Always discharge the capacitor before connecting them to the tester! The tester may be damaged before you turn it !
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

Feature:
Self test with automatic calibration
Display:TFT Screen, Color Screen
Diode Range: less than 4.5V
Zener Diode:Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT less than 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Power Voltage: 3.7V
Power: Built-in Rechargeable Lithium Battery
Measurement results using TFT graphic display (160x128)
One-button operation
Auto power off (timeout setting)
Built-in high-capacity rechargeable lithium-ion battery
Lithium-ion battery voltage detection
Support Chinese and English
Warning: Built-in lithium-ion battery, it is strictly forbidden to immerse the tester in water or near heat source!
Warning: For your personal safety, please strictly observe the specifications and precautions for using lithium-ion batteries!
Material: Plastic
colour: As shown

Package Contents:
1 x -TC1 Transistor Tester Kit
