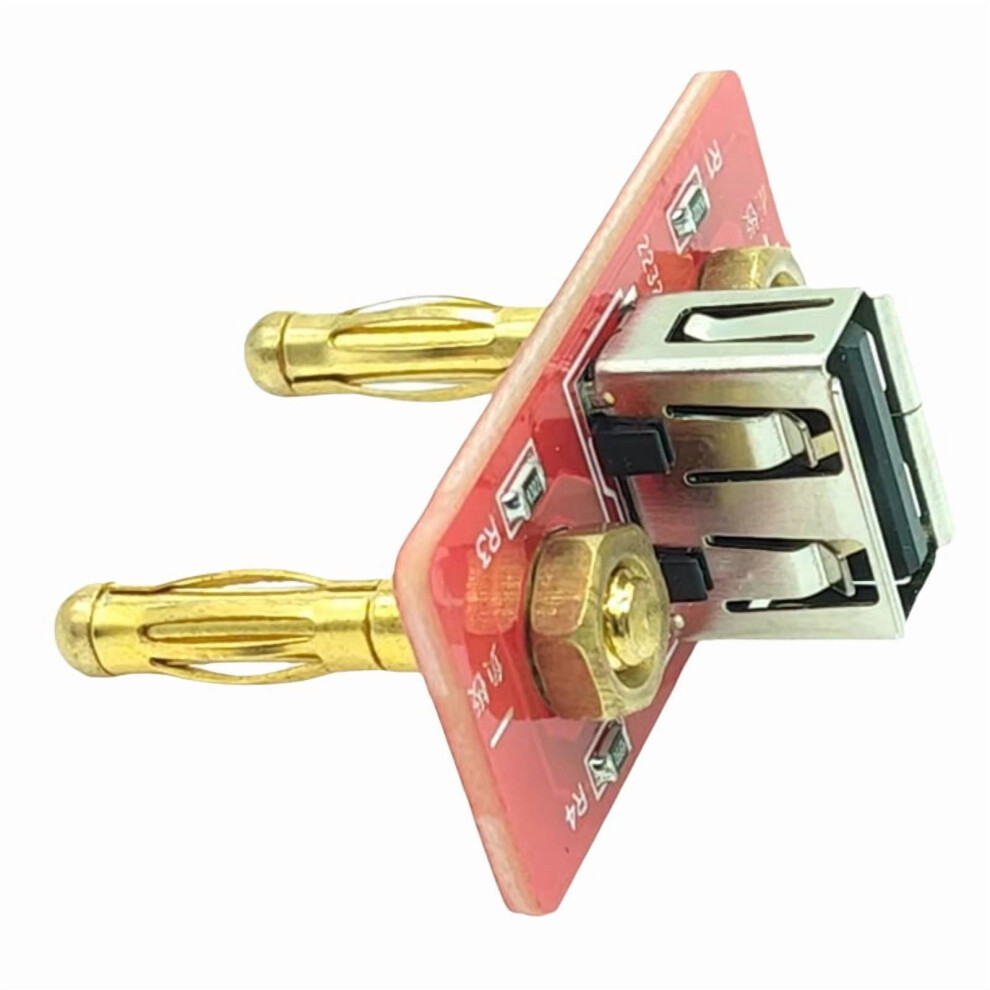

USB A DC Power Supply5V for Phone Charging and Current

USB A DC Power Supply5V for Phone Charging and Current Περιγραφή

Usage: This USB A port is used on DC power supply output port, the distance of the positive(+) and negative(-) port must be19.05mm, besides, need set the DC power supply output voltage to5V, get the USA A port positive and negative electrodes align with that of the DC power supply output port. then it can charge for mobile phone and pad, also can test if the charging current is right, it is easy for the repair to check if the charging is right for both mobile phone and pad. it also included for and for recognize resistor, it can change with2.4A current. By testing, it can charge for Mobile phone with2A current. Note: 1. Must make sure the + and - on the USB A port is align with the DC power supply output port, can't reversed. 2. Make sure the DC power supply output voltage must be5V, the current need to be a bit higher than the charging current to the charging is working right. 3. The charging current is mainly depends on the recognition ability of the phone, the Max. charging current maybe only1A for some mobile phone. Color: Material: ABS Package Contents: 1x19.05mm Distance Banana Plug Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
