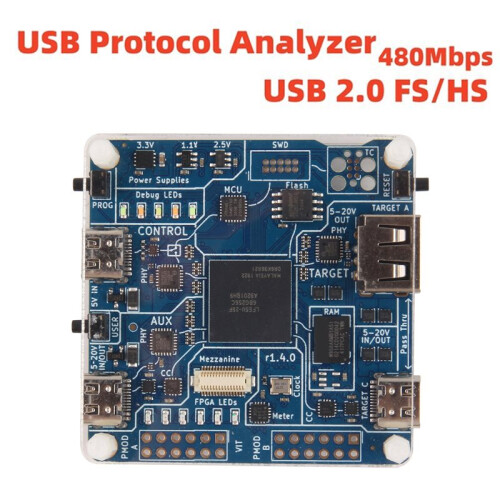

USB Protocol Analyzer for Cynthion USB 2.0 FS/HS 480Mbps High-Speed Data Monitoring Debugging Tool for Developers

USB Protocol Analyzer for Cynthion USB 2.0 FS/HS 480Mbps High-Speed Data Monitoring Debugging Tool for Developers Περιγραφή

for Cynthion is a fully reconfigurable test instrument that provides all the hardware, gateway software, firmware and software needed to use and master USB. The following Cynthion
Application scenarios:1, low speed, full speed and high-speed USB protocol analysis. for Cynthion offers everything you need for passive USB monitoring. Add analysis software and you have a fully functional USB analyzer capable of passively capturing USB traffic and to 16 associated digital signals.
2, create your own low speed, full speed or high speed USB device. provides Amaranth Gateway software, allowing

Technical Specifications

Open-source tool development: yosys + nextpnr

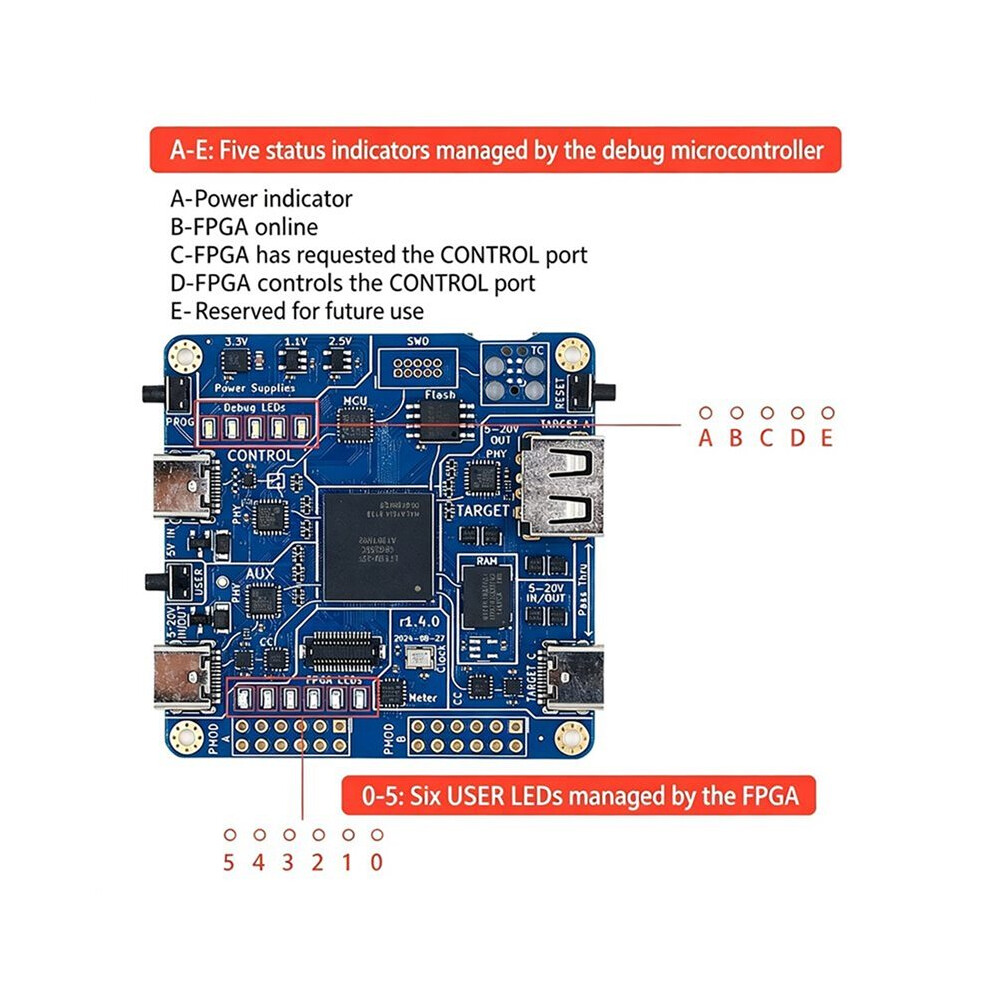

Three high-speed USB interfaces, each connected to a USB3343 PHY capable of operating at speeds to 480Mbps. Two USB Type-C connectors ( the left) for device mode communication. One USB Type-C connector ( the right) for host mode communication, device mode communication, or USB analysis. One USB Type-A connector ( the right, shared with the Type-C connector) for host mode communication or USB analysis.
Color:
Material: plastic

Package Contents:

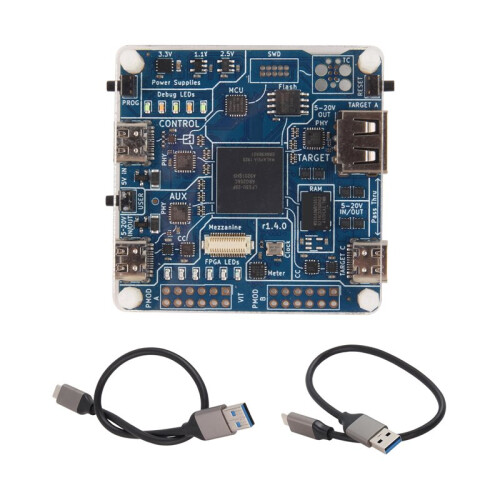

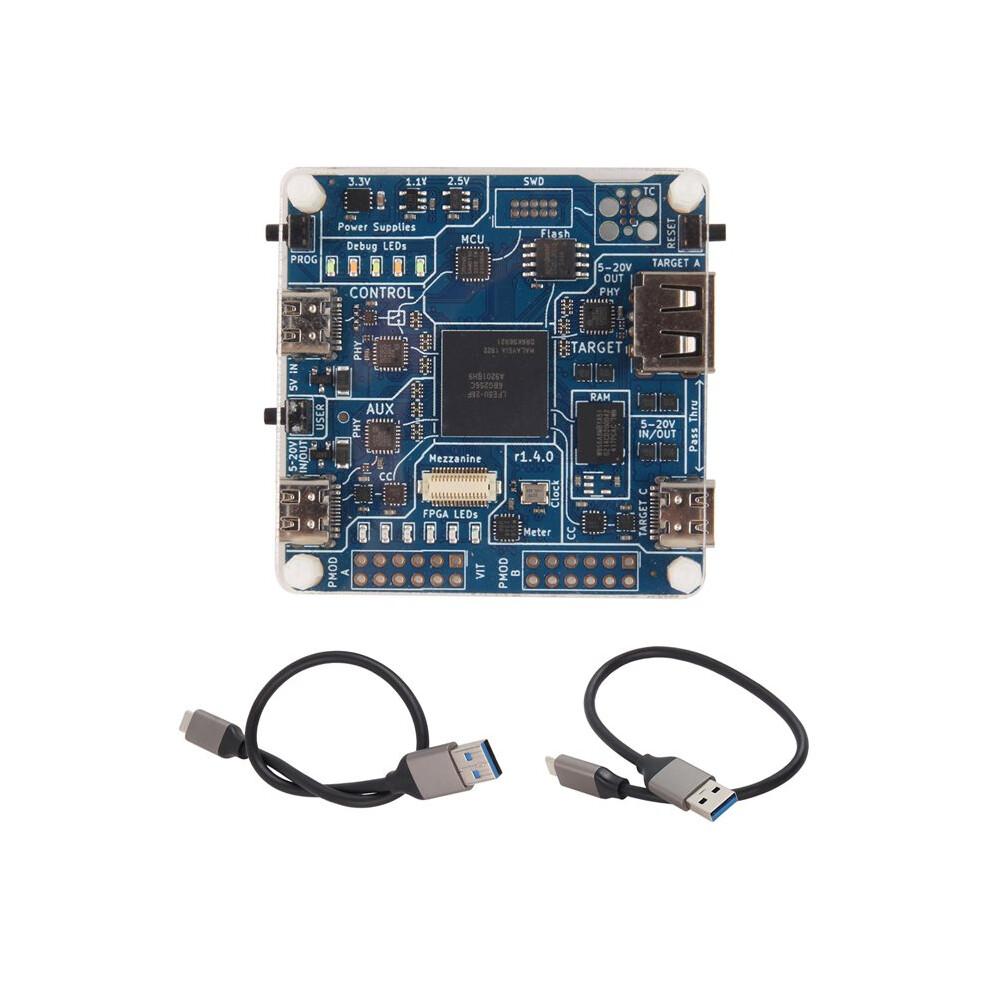

1*USB Protocol Analyzer,2*usb cable
