V7.0 RF Power Meter 10GHz Power Detector 30dBm Max Input N-Type Connector USB-C Port

V7.0 RF Power Meter 10GHz Power Detector 30dBm Max Input N-Type Connector USB-C Port Περιγραφή

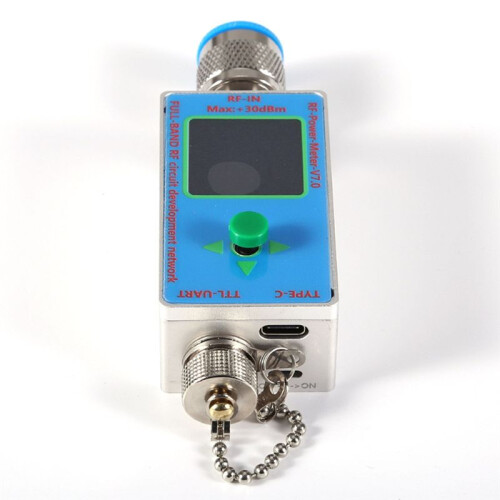

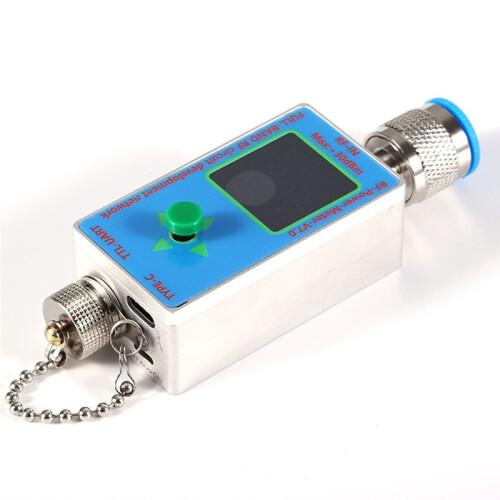

Introducing the RF Power Meter-V7.0, a state-of-the-art RF power meter designed for precision and reliability. Capable of measuring frequencies to 10GHz, this device ensures accurate readings for a wide range of RF applications. With a maximum input power of 30dBm, it is ideal for both amateur and professional use.
Equipped with a durable N-Type connector and a convenient USB Type-C port for easy connectivity and power supply, this meter is both versatile and user-friendly. Its compact design and robust construction make it suitable for laboratory, field, and industrial environments.

Measuring power range -60-+30dBm (0 to -40dbm has good linearity. When the input signal is greater than 0 to +30dbm, the internal digital attenuator ATT=30DB, OFFSET=+30DB can be set to display the measured power value after actual measurement
Measurement power resolution 0.1 dBm;
Measurement frequency range 100K-10GHz (different models have different frequency ranges);
Input impedance: 50Ω;
Dynamic range: 90dB;
Working voltage 5VDC (powered by TYPE-C );
Charging current: 300mA
Colour:As shown
Material:Aluminum Alloy
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

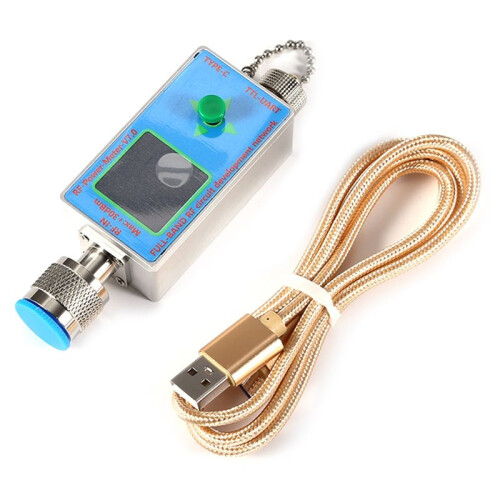

Package Contents:
1 * V7.0 RF Power Meter kit
