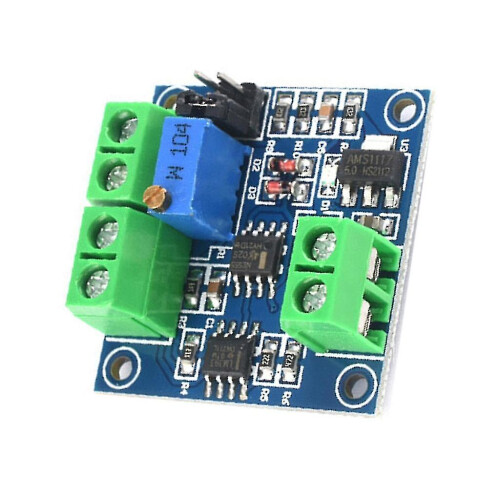

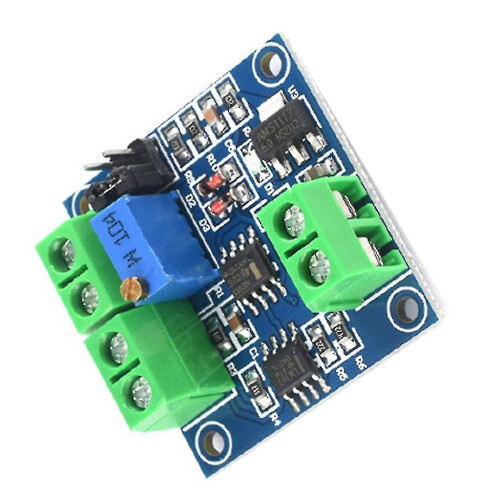

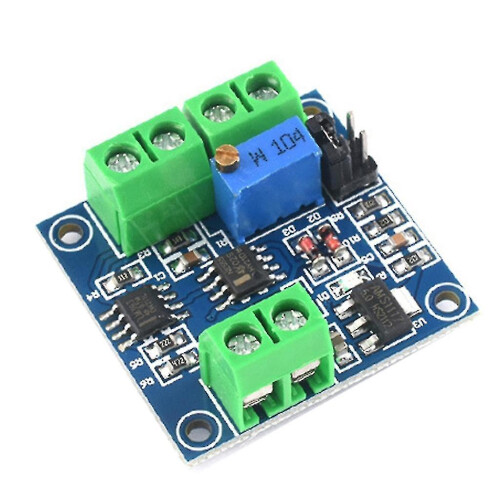

Voltage to PWM Converter Module 0-5V 0-10V Analog Input Signal Generator
New
19,56 €
Παρόμοια προϊόντα που πιστεύουμε ότι θα σου αρέσουν
Would you like us to let you know when it's back?
Περιγραφή & Λεπτομέρειες
Voltage to PWM Converter Module 0-5V 0-10V Analog Input Signal Generator Περιγραφή
Product Details ①. Converts 0-5V/0-10V voltage to PWM output, enabling duty cycle adjustment via voltage control ②. Converts PWM digital signal to 0-10V analog signal, with output voltage adjusted by PWM duty cycle ③. Dual conversion functionality allows both voltage-to-PWM and PWM-to-voltage operations Specification ①. Working voltage: DC 5V-12V ②. Output PWM frequency: approximately 50KHz ③. PWM amplitude: 5V ④. Conversion range: 0-5V/0-10V ⑤. Voltage conversion: 0%-100% PWM ⑥. Tolerance: 1%-3% ⑦. Pin configuration: VCC (5V-12V), GND (working ground), VIN (0-10V input), GND (signal negative), GND (output ground), PWM (output) Package List ①. 1 x Voltage to PWM Converter Module Warm Tips ①. Ensure correct polarity when connecting VCC and GND to prevent damage ②. Input voltage range (0-5V or 0-10V) should match selected mode ③. Duty cycle accuracy can be adjusted using the potentiometer ④. Always connect signal ground terminals properly for stable operation
Λεπτομέρειες
| OPC | PVVTDBY |
|---|---|
| Κωδικοί | 6901168212967 (EAN) |
