VU Meter Header with LED Backlight for Audio Level Testing, Movable Coil Type, 16.7Hz

VU Meter Header with LED Backlight for Audio Level Testing, Movable Coil Type, 16.7Hz Περιγραφή

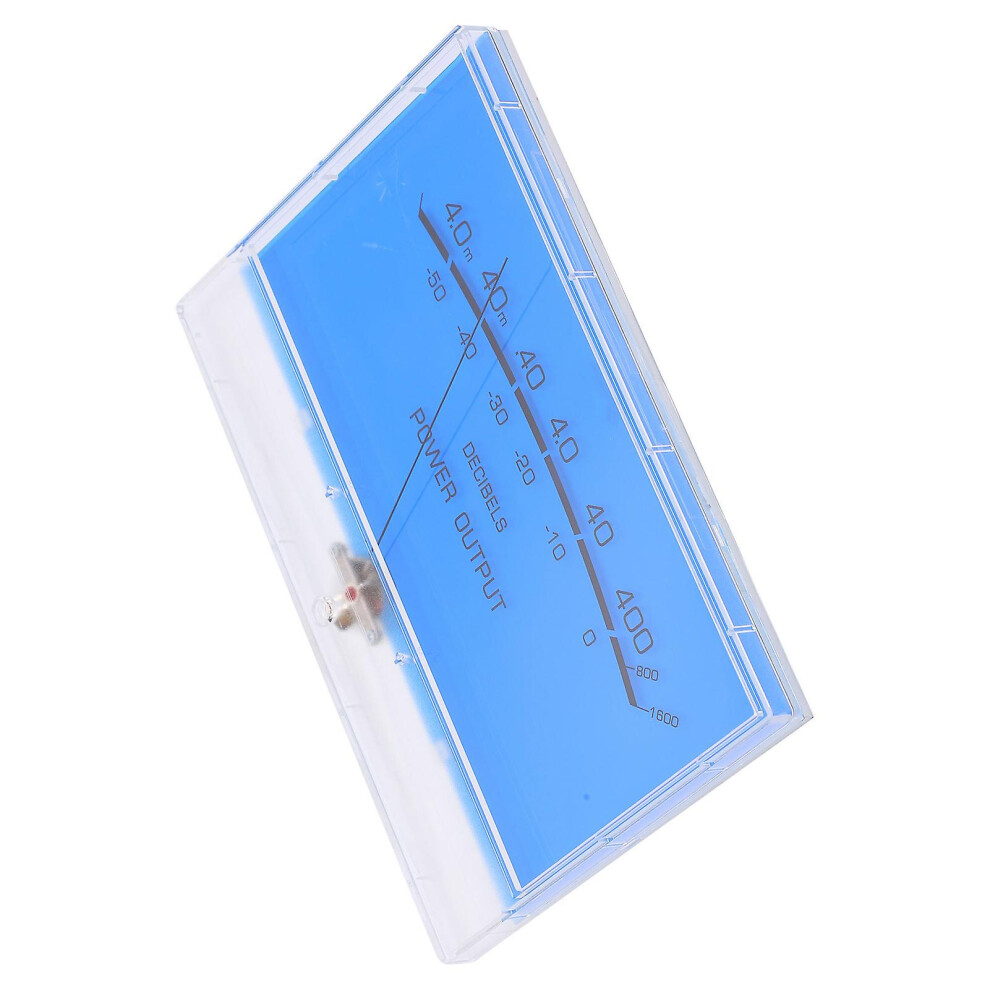

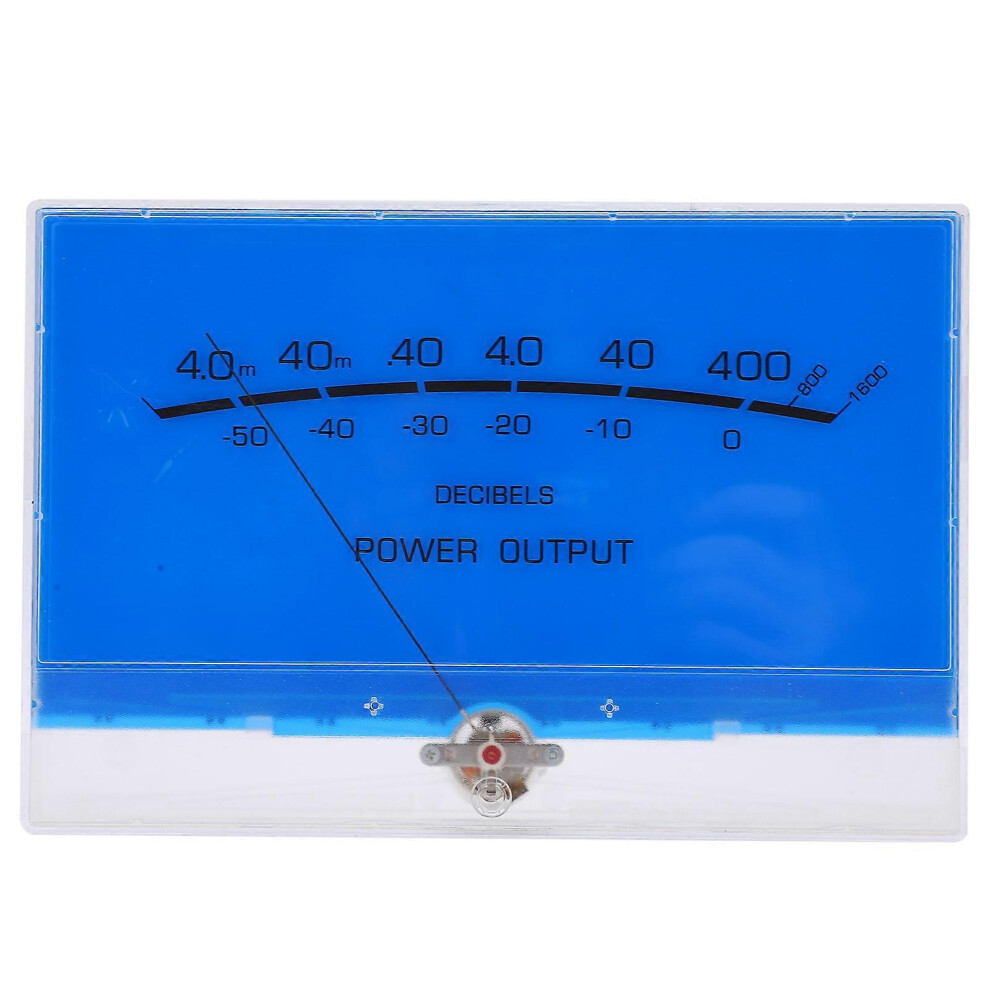

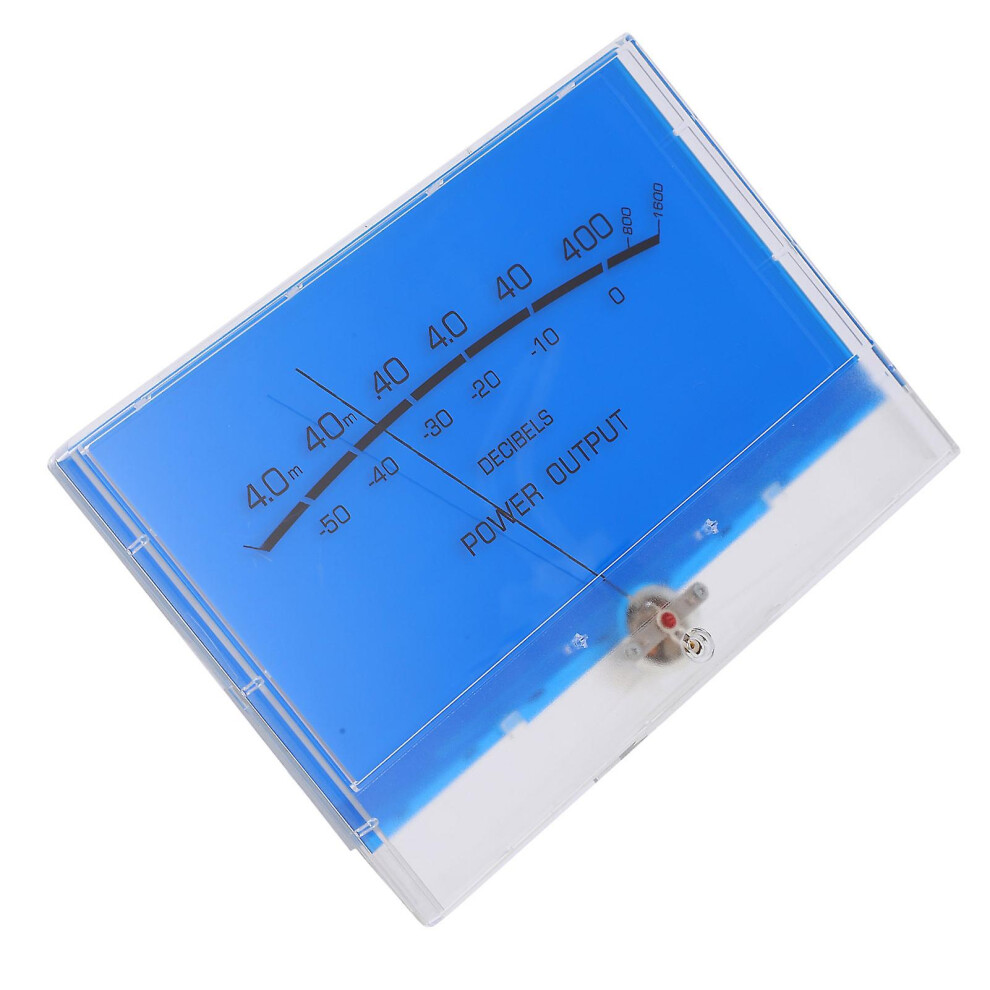

Product Details 1. LED backlight with pointer display allows quick and intuitive reading of measurement results 2. High impedance, strong magnetic and large damping ensure high stability and low power consumption for reliable use 3. Movable coil type with 16.7Hz vibration frequency accurately indicates sound intensity level 4. Made of PMMA material, providing durability and wear resistance for long service life 5. Easy to install and disassemble, suitable for various audio setups and DIY projects Specification 1. Material: PMMA 2. Model: P-200-BGB-S0532 3. Type: Movable Coil Type 4. Pointer Swing Direction: From left to right 5. Pointer Length: 1071mm (4.210.04 inches) from the needle end to the axis 6. Pointer Width: 0.450.05mm (0.0180.002 inches) 7. Maximum Current Sensitivity: 1200ua10% 8. Internal DC Impedance: 2050Ω10% 9. Friction: 1mm (0.04 inches) 10. Vibration Frequency: 16.7hz (1000 Times/Min) 11. Operating Temperature Limit: 703 (158F5.4F) 12. Storage Temperature Limit: -203 (-4F5.4F) 13. Purpose: Used to indicate the degree of sound intensity 14. Applicable Scenarios: DIY, recording studio, home audio, car audio transformation, etc. Package List 1. 1 x VU Meter Header Warm Tips 1. Operate the meter within the specified temperature and humidity range (20, 70% humidity) for optimal performance 2. Handle the pointer carefully during installation to avoid damage affecting measurement accuracy
