White Ducky S3 - Wi-Fi USB Automation ESP32-S3 Development Board for Programmable USB Keyboard Automation

White Ducky S3 - Wi-Fi USB Automation ESP32-S3 Development Board for Programmable USB Keyboard Automation Περιγραφή

The White Ducky S3 is a compact ESP32-S3 development board for programmable USB keyboard automation, hands- learning, desktop workflow demonstrations.
Upload a plain-text payload.txt script over Wi-Fi, save it to onboard storage and trigger USB keyboard actions from your phone or computer's browser.

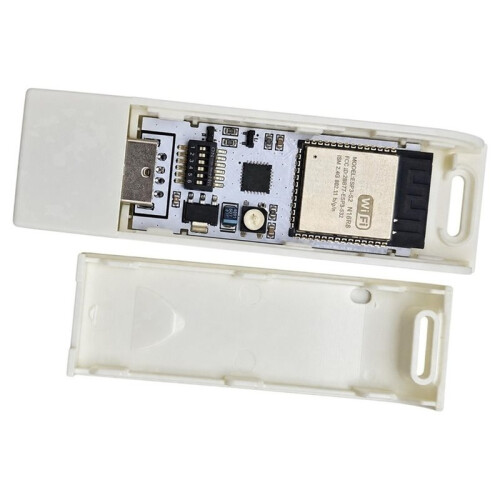

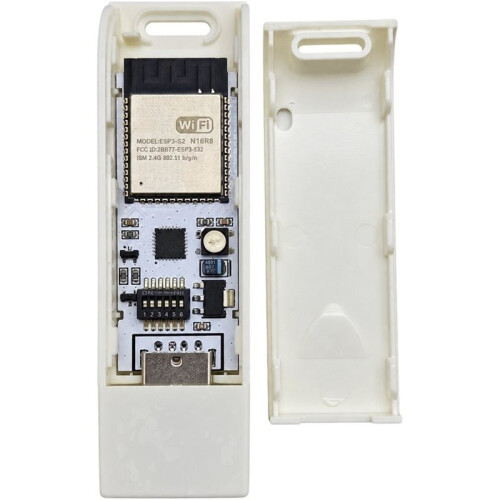

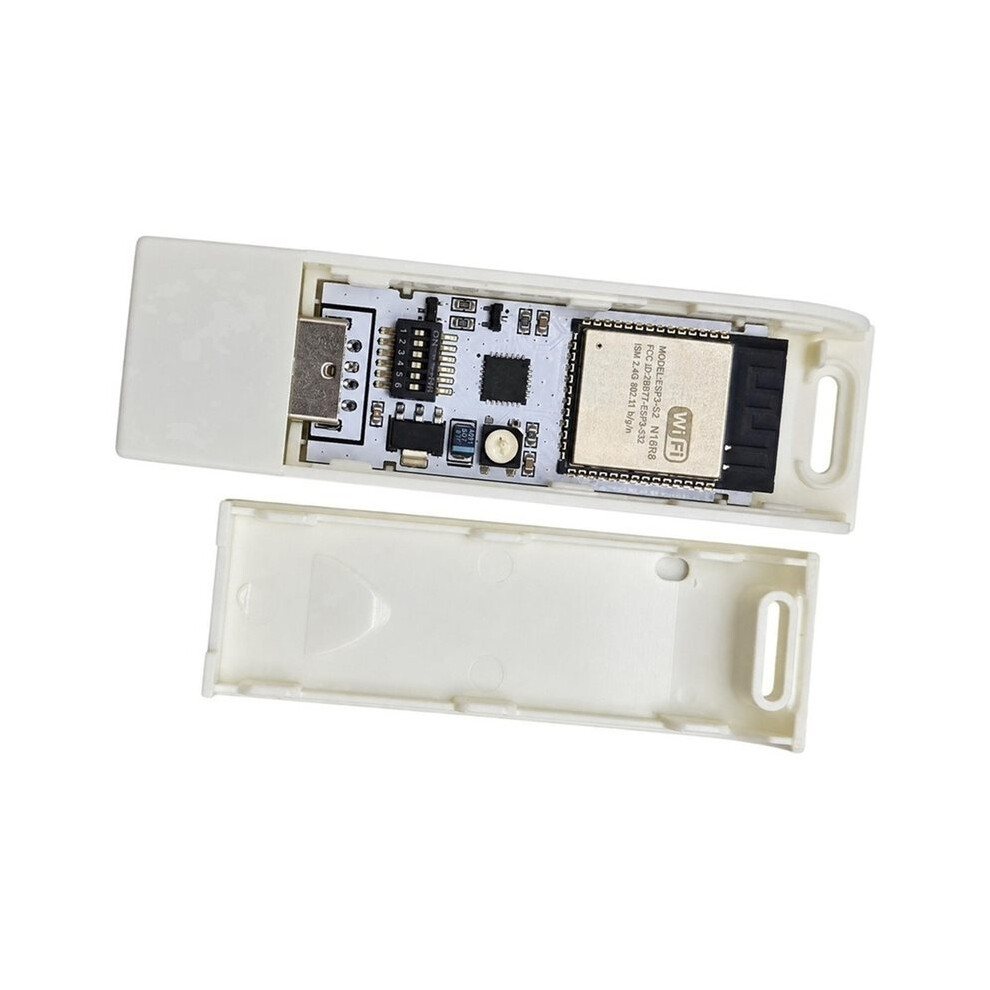

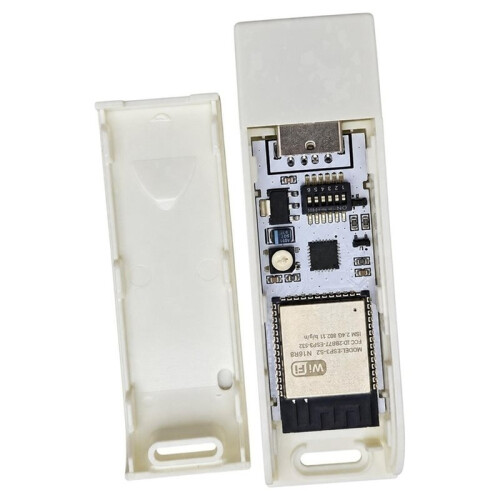

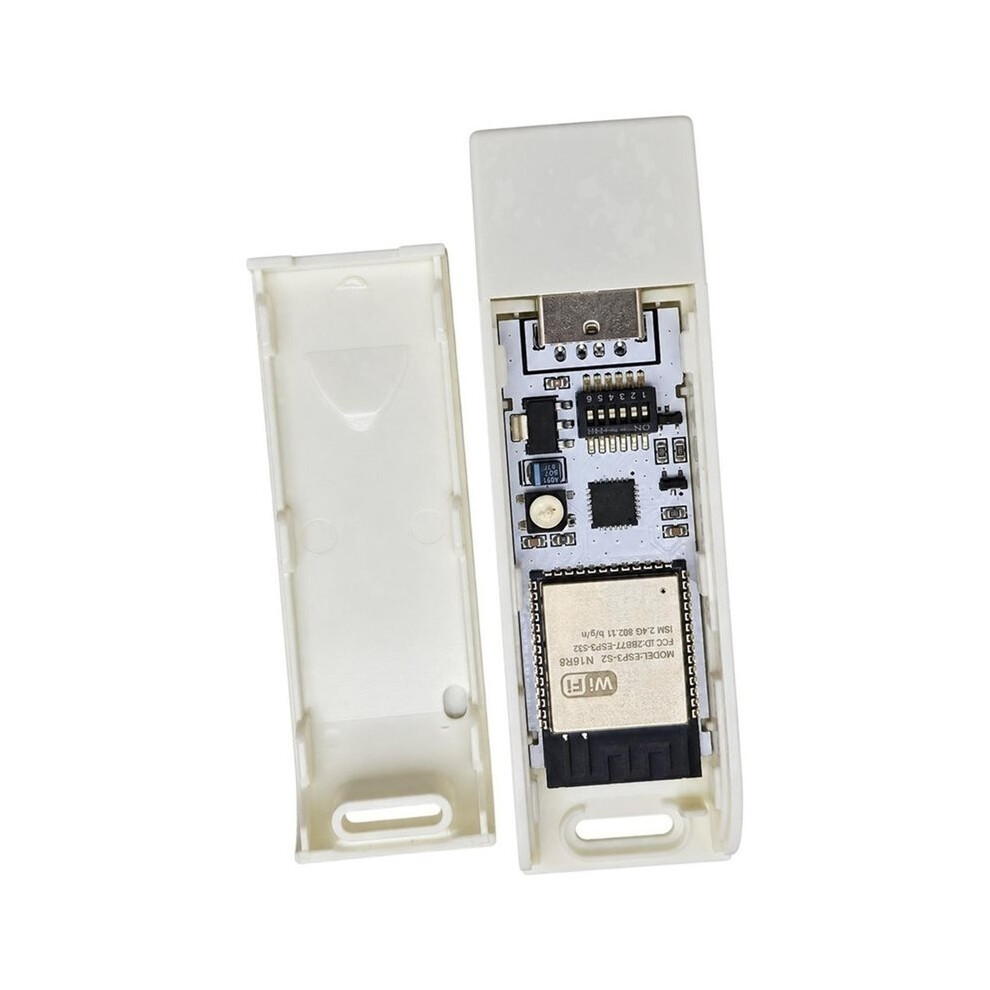

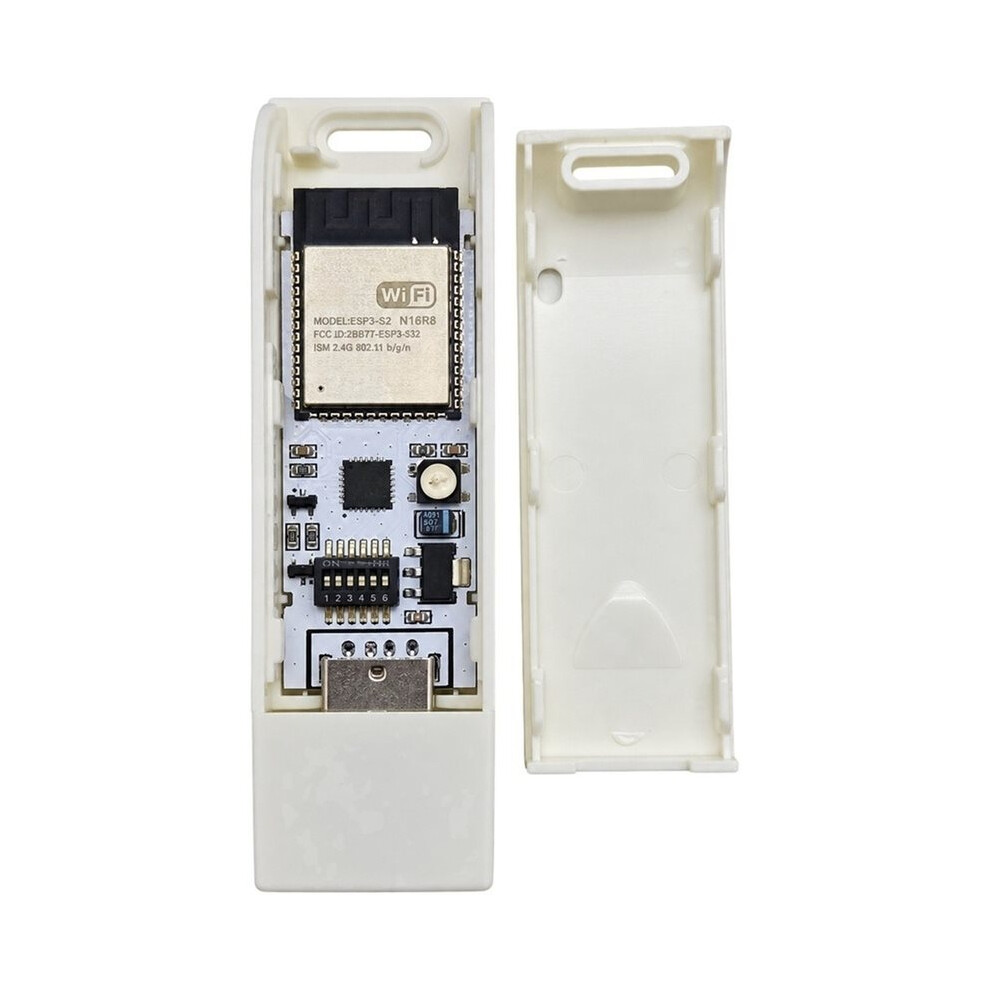

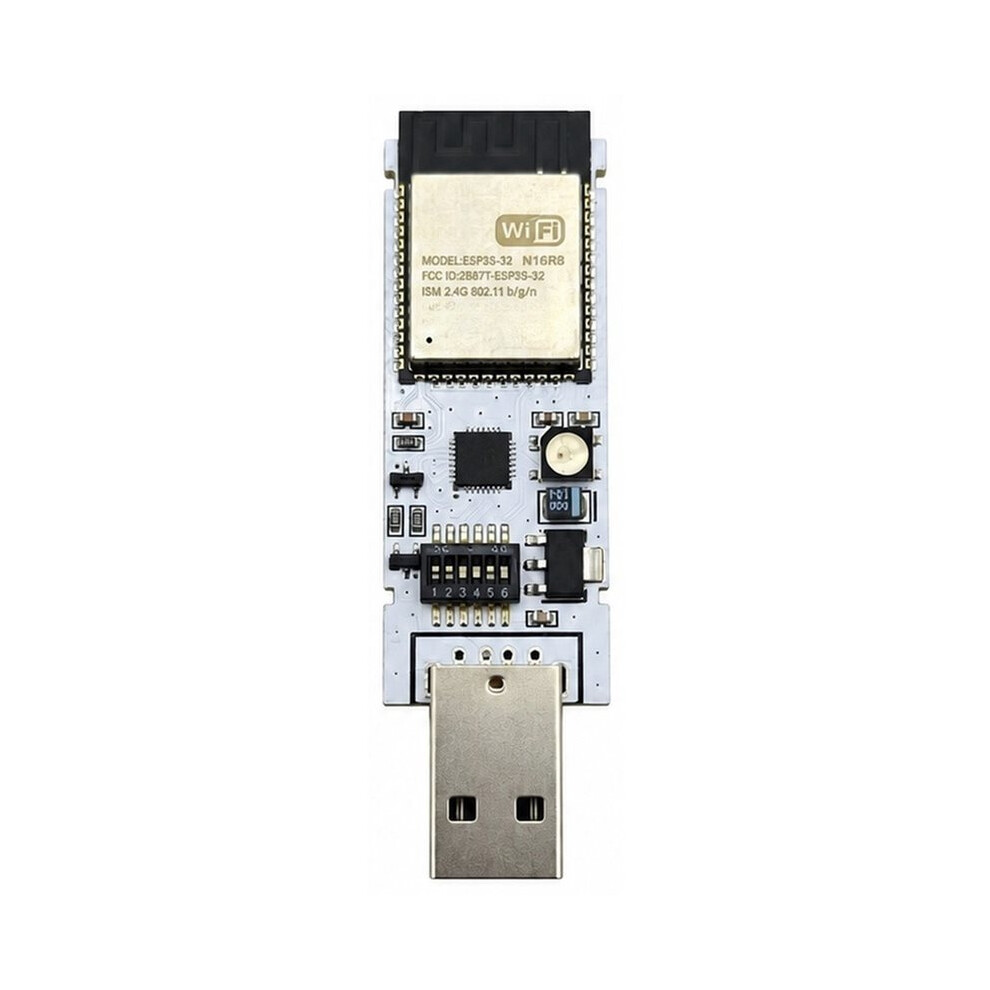

Built around an ESP32-S3 N16R8 module with 16 MB Flash and 8 MB PSRAM, it features a USB-A connector, a six-position DIP and a front-facing WS2812B RGB status LED. A white enclosure and removable USB connector cap are included.

Wi-Fi script management: Upload, replace, view, download and delete payload.txt through an English-language web interface.
USB HID keyboard output: Send text and keyboard shortcuts to the physically connected computer.
Persistent storage: Scripts remain in onboard Flash after normal power cycles.
Manual execution by default: Powering the board or uploading a script does not automatically run it.

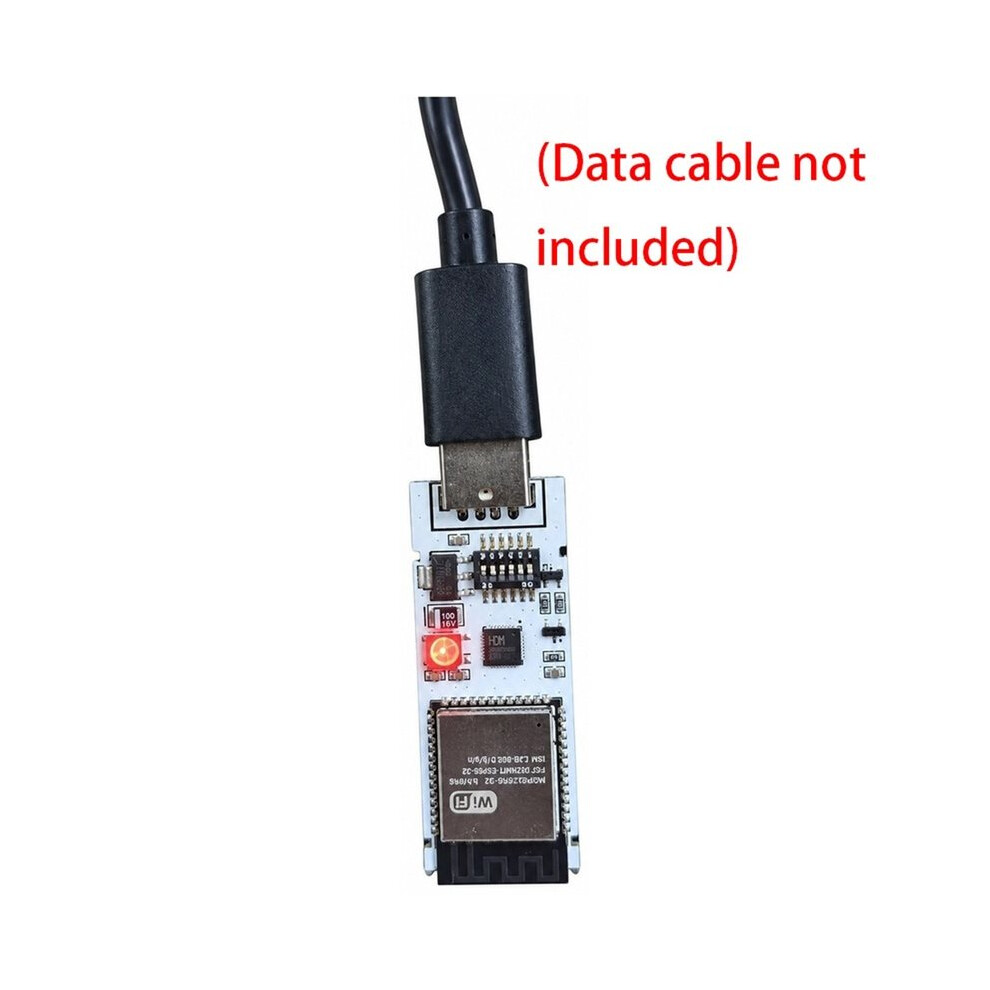

Visible status: A front-facing RGB LED changes from red to green when execution is triggered.

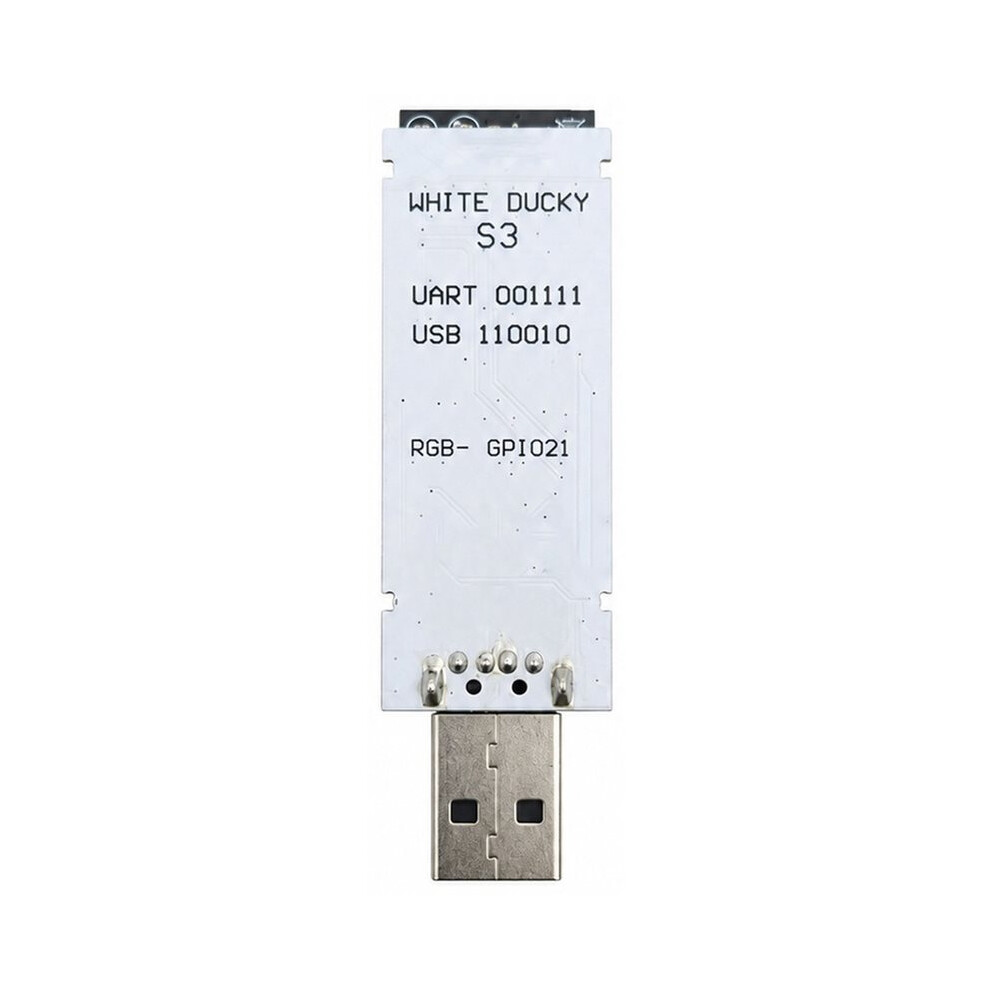

Selectable operating modes: Use the DIP to select UART firmware programming or USB keyboard operation.
For development: Customize the firmware for your own USB HID and Wi-Fi-controlled projects.
Project source code and documentation are available GitHub.

Specification:
Model: White Ducky S3
Module: ESP32-S3 N16R8
Flash: 16 MB
PSRAM: 8 MB PSRAM
Connection and power: USB-A
Mode selector: Six-position DIP
Status LED: WS2812B RGB
LED control pin: GPIO21
Color: White
Material: PCB+Plastic

Package Contents:
1 * Development board
