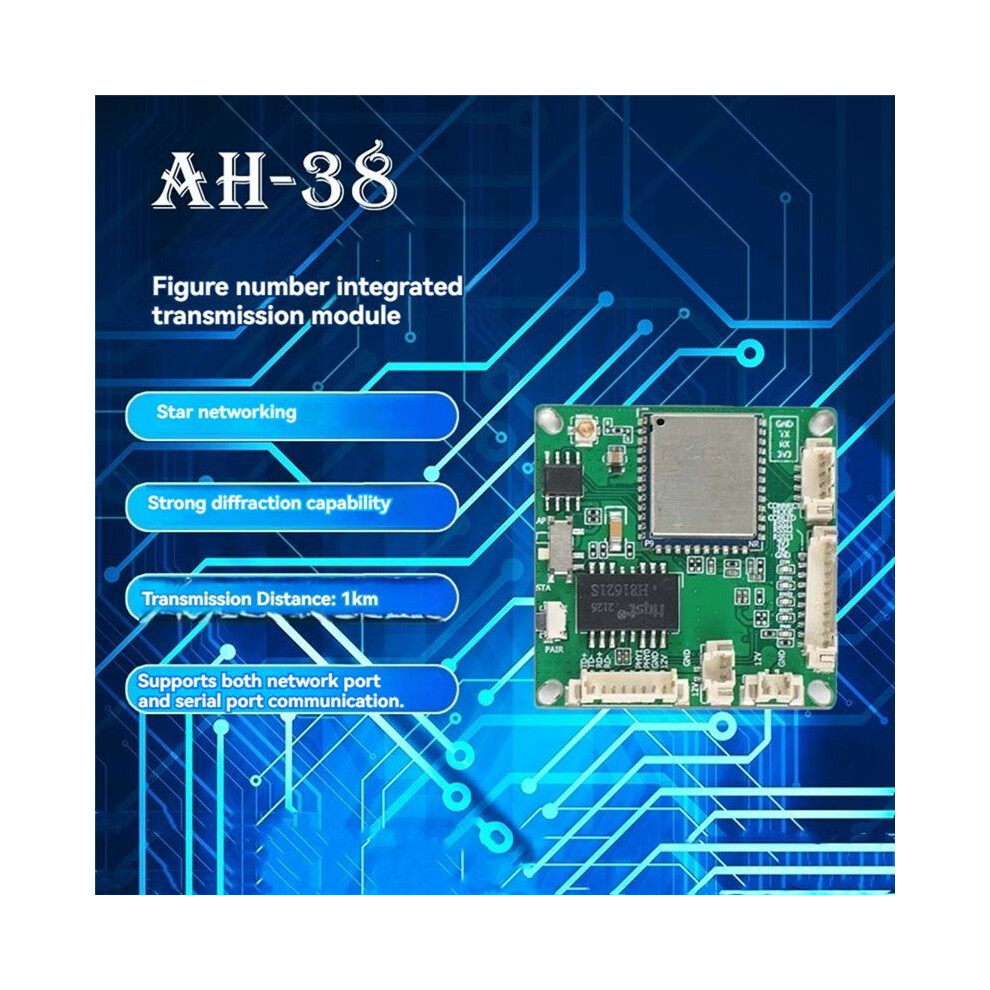

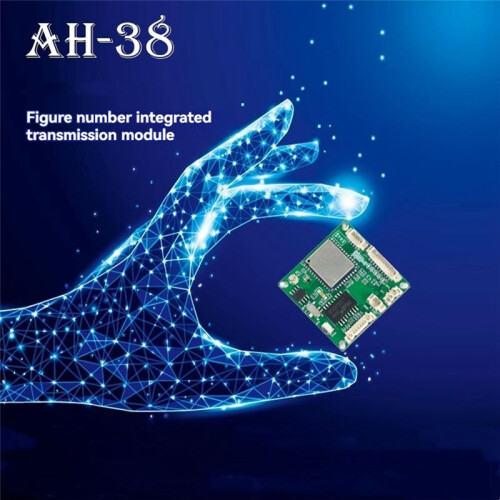

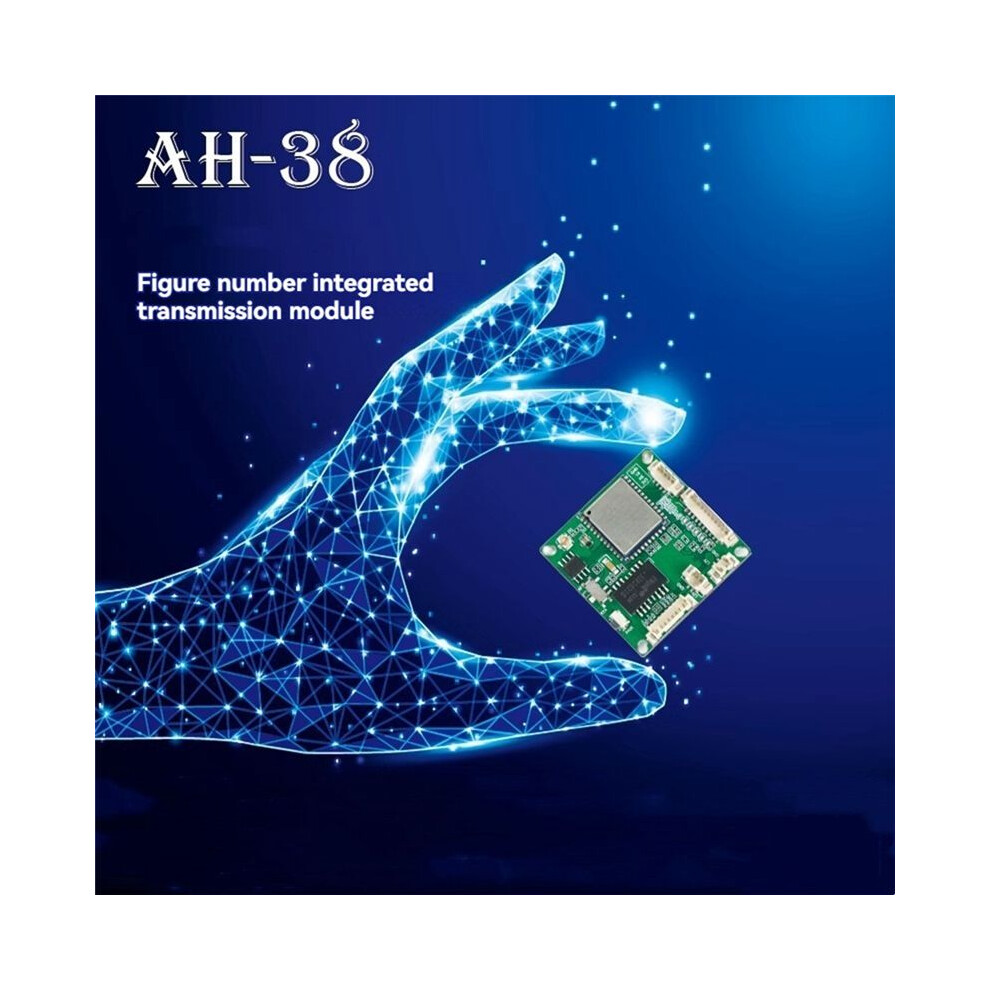

WiFi HaLow Image Data Transmission 802.11AH Low-Frequency Module Unmanned Aerial Vehicle Robot Image Transmission

WiFi HaLow Image Data Transmission 802.11AH Low-Frequency Module Unmanned Aerial Vehicle Robot Image Transmission Περιγραφή

Based IEEE802.11ah (Halow) protocol
Data Handle rate: 16Mbps
The 1 transmission handle rate is higher than 1 Mbps
Support multiple interfaces: serial port/network port
With super ability to go around obstacle

Work for IP camera transmitting by GSM networks , max. 500 meters with obstacle and 1000 meters in open air .
Suitable for: wireless package; baby video monitoring; UAV ;robot industrial control; Internet of Things; Intelligent wearings.
Colour:green
Material:plastic
Operating instructions:
1. Buckle one end of the IPEX to SMA wire the IPEX and connect the other end to the antenna
2. Turn the of one module to the AP (receive) position, and turn an other to the STA (transmit) position
3. After the module is powered , the five LED indicators will flash for self inspection. After the self inspection is completed, the AP red indicator of the module will be in status and the first indicator the left are always too
4. Press the pairing button at the same , then the signal indicators of AP module and STA module will flashe, means successful pairing . Release the pairing button, and the signal indicator led of the two modules will stay ,then finish.
The actual product may have slight color difference or difference, which will not affect the use

Package Contents:
1 x Image Data Transmission Module
