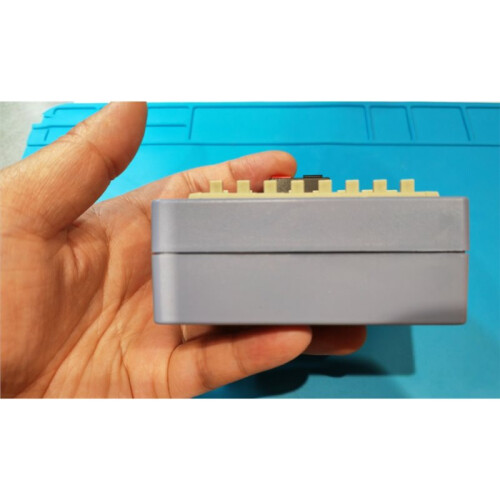

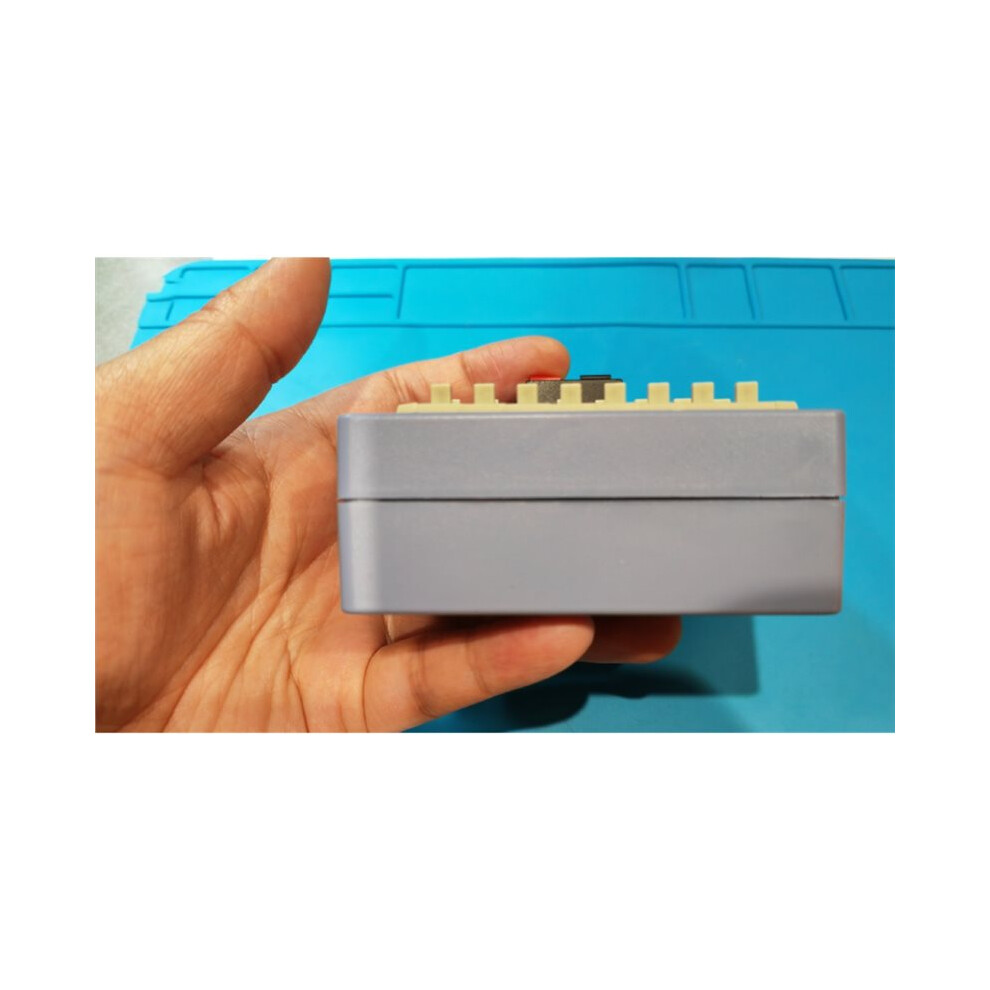

portable, compact, and flexible resistor box
This is a convenient alternative to potentiometers and larger resistor boxes. When not in use, you can simply stash it in a drawer or bag.

Features:

A portable, compact, and flexible resistor box.

This is a convenient alternative to potentiometers and larger resistor boxes. When not in use, you can simply stash it in a drawer or bag. No more searching for it everywhere. You've made the right choice!

Instructions:

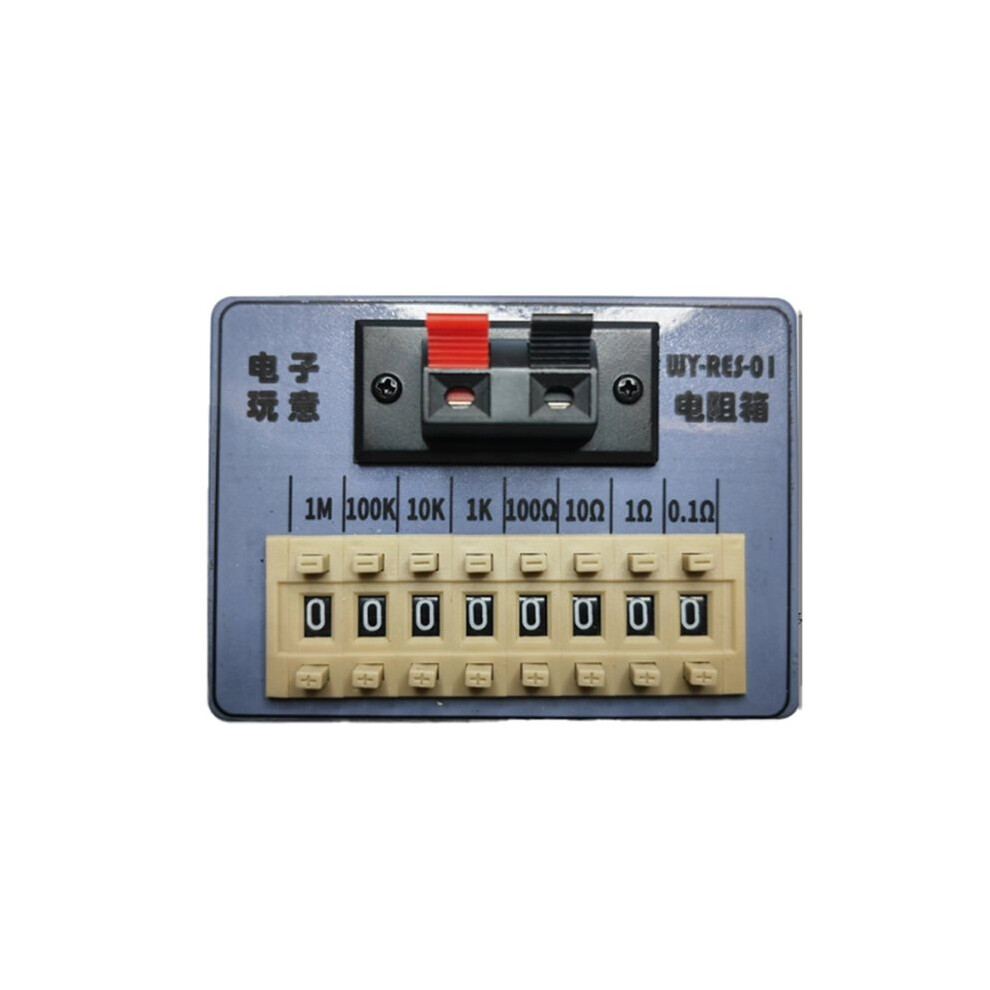

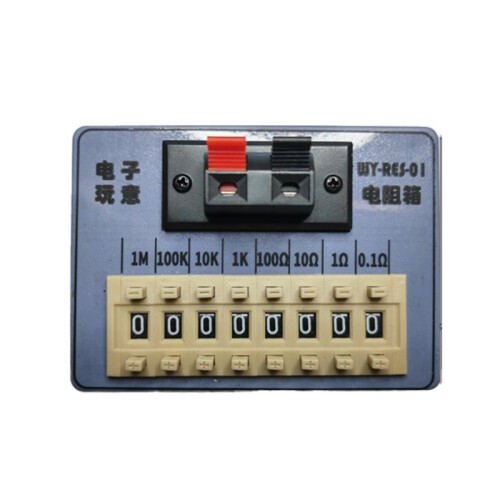

The resistance box has 8 levels, each adjustable from 0 to 9.

These are 1M, 100k, 10k, 1k, 100Ω, 10Ω, 1Ω, and 0.1Ω. For example, to select 23.6K, then:

x1M, select 0;

x100K, select 0;

x10K, select 2;

x1K, select 3;

x100R, select 6;

x10R, select 0;

x1R, select 0;

x0.1R, select 0.

Resistance value = 0x1M + 0x100K + 2x10K + 3x1K + 6x100R + 0x10R + 0x1R + 0x0.1R = 23.6K



Specifications:

Part Name: WY-RES-01 Resistor Box

Material: ABS

Color: Gray

size: As shown

Adjustment Range: 2Ω~9999999.9Ω

Resolution: 0.1Ω

Accuracy: 1%

Power: 250mW




1*WY-RES-01 Resistor Box

Package Contents:
1*Resistance Box
