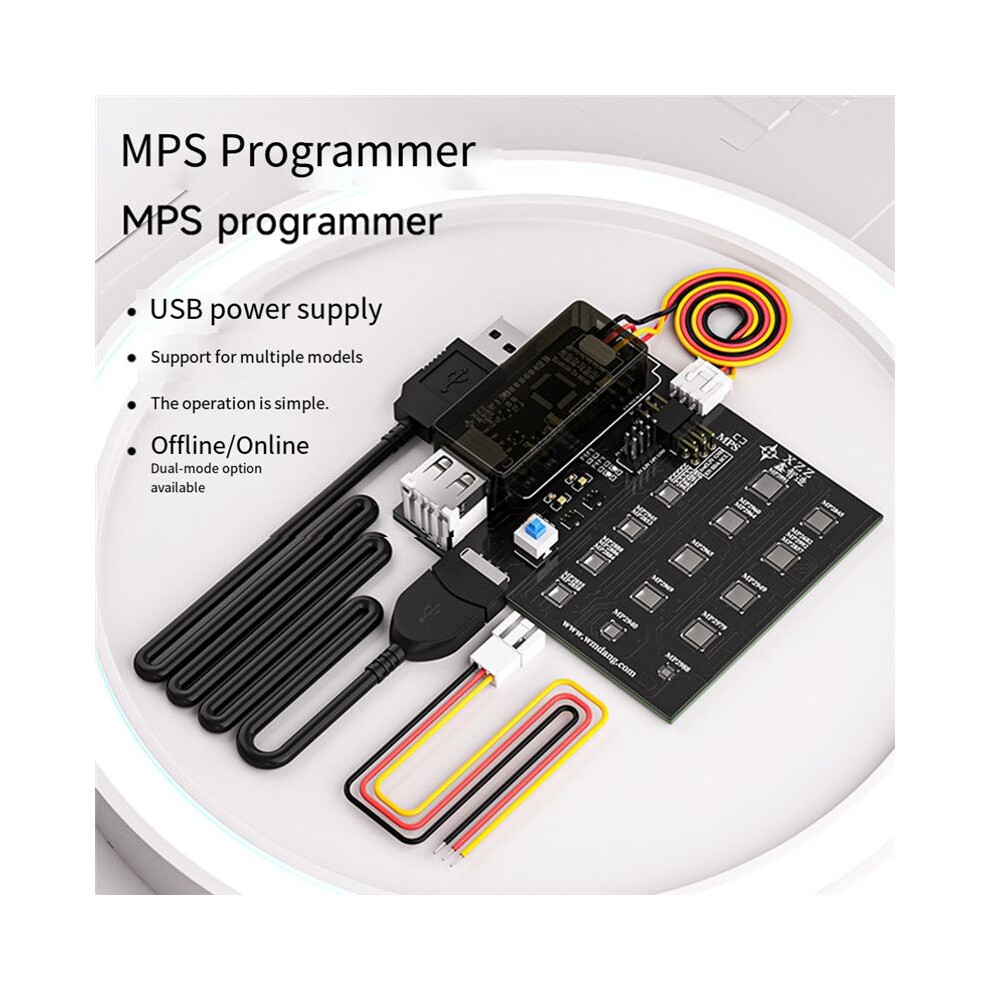

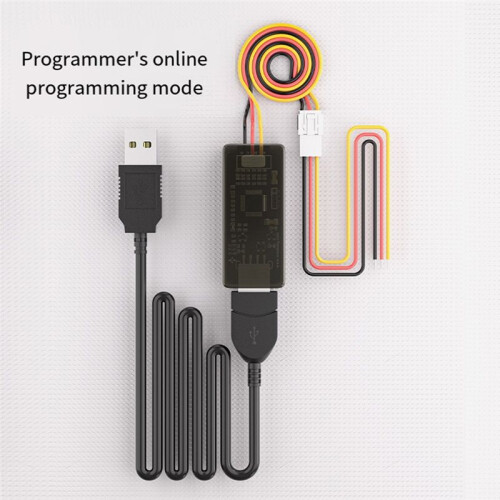

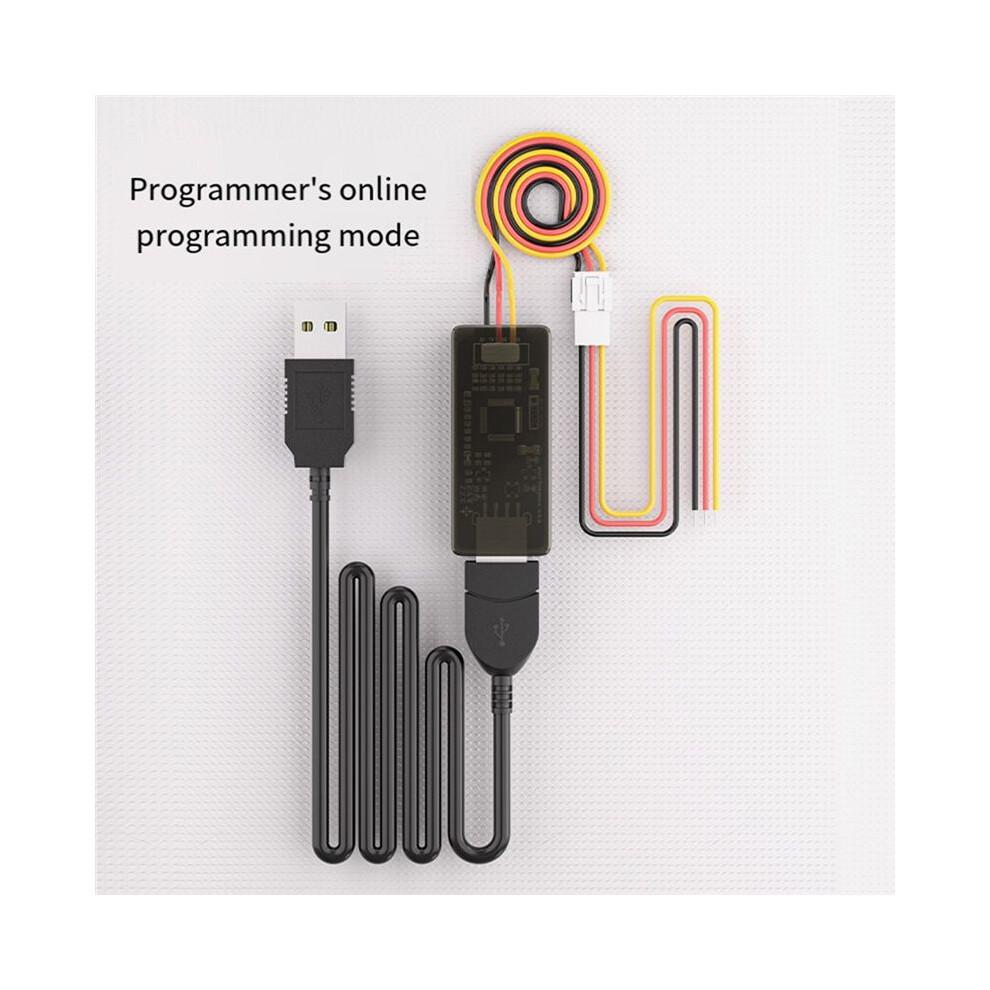

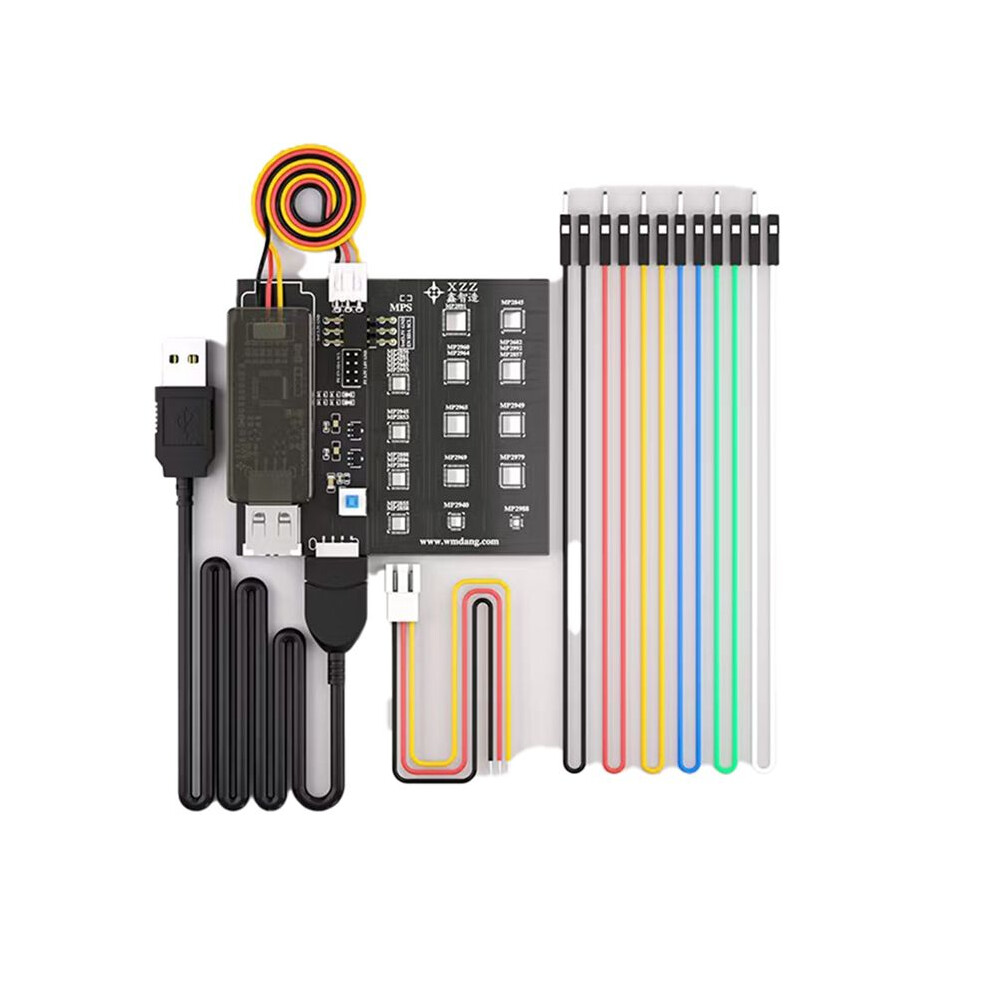

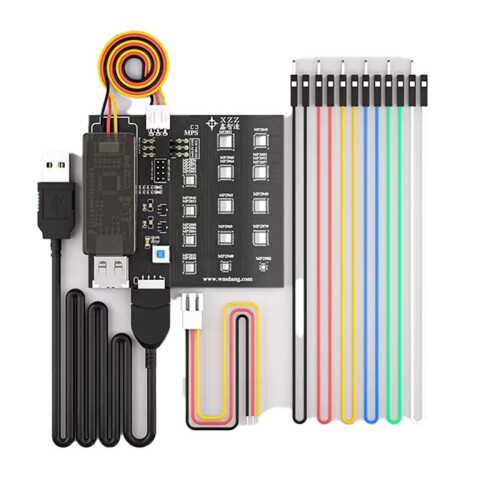

XZZ Notebook MPS Programmer with Offline Board supports offline/online dual mode operation, allowing notebook chip read, write and repair without disassembly. Jumping wires connect the motherboard for online programming, and the CPU is soldered the MPS board for offline programming.
List of devices supported by the programmer:
1. Notebook Core Power Monitor Programming: MP2940, MP2940A, MP2940C, MP2942, MP2943, MP2944, MP2945, MP2948C, MP2949A, MP2950, MP2959, MP2962, MP2969, MP2979A.
2. Server Telecom Core Power Monitor Programming: MP2955/56/58, MP2951, MP2853, MP2888/86/84, MP2965/66/68, MP5023, MP2975/78/72, MP2855, MP2949A, MP5920, MP5922, MP2926, MP2988.
3. Computing and Telecom Core: MP2971/73, MP2845/45A, MP2856/57, MP2880, MP2882/72/74/78, MP2960, MP2964, MP9941, MP2975/72/76178, MP2985/92/93, MP2986/83, MP2995, MP5990, MPQ2977, MPQ2967, MPQ2861/MP2862, MPQ8646, MP2860/MP2891, MP2890/MP2891A.

MPS Import and Export Program Tutorial:
1. When opening the MPS software and program-ming is not connected, a red message "USB is not connected!" will appear below.
2. When the programmer is connected, the red message "USB is not connected!" will disappear below.
3. The programmer is connected to the chip through a 3P plug, with a black wire of GND, a red wire of SDA, and a yellow wire of SCL.
4. If you are unsure of the specific point, please refer to the chip PDF, such as MP28888, where pin 34 is SCL and pin 35 is SDA.
5. Power the target board and click SCAN to search for the chip. Note that the chip needs to be powered to recognize it.
6. ldentified chip MP2888A with PMBUS address of 20H and Vendor ID of 25H.
7. If there are multiple chips, the list will be displayed the left. Click the chip title to select.
8. Input is used to set the basic parameters of the chip, such as the number of phases, etc.
9. Click "Reglster" to backup and flash programs this interface.
