3V-30V Jog Touch Key Sensing Module Bistable Light Touch LED Light Band Module,3-Wire Light

3V-30V Jog Touch Key Sensing Module Bistable Light Touch LED Light Band Module,3-Wire Light leírása

Touch type single key bistable , which can be set to self-locking or inching mode. The maximum sensing distance can reach 8mm, which can be widely used in the touch control of acrylic panels, various casings and veneers.
The working voltage is 3 - 30V , and the maximum output current can reach 2.5A. It can directly drive various low-power electrical appliances, lamp belts, LED lamps and other electrical appliances.

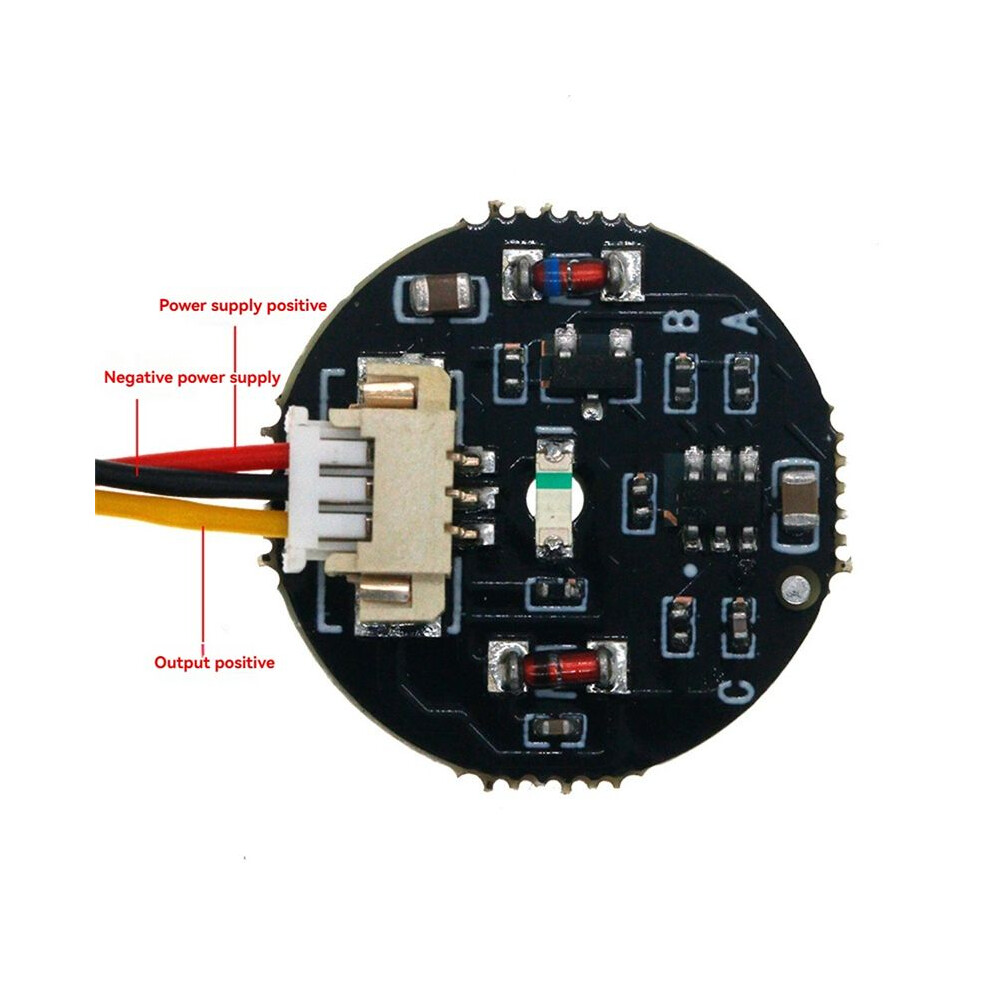

(There is or resistance by default) select the output state after power . When there is or resistance at point a, the output is closed after power . When there is no 0r resistance at point a, the voltage is directly output after power .
Adjust the distance of touch sensing. The default is the maximum distance (7-8mm). If you want to reduce the sensitivity, you can add a capacitor of 1 - 50pF according to the actual situation. The smaller the capacitor, the higher the sensitivity, and the larger the capacitor, the lower the sensitivity.

Hign-concerned Chemical:None
Model Number: sensing module
Operating Temperature:-40-+85
Dissipation Power:2.5A
Supply Voltage:3-30V
Application:Computer
Type:B:3-wire Light
Colour:As Shown
Material:PCB

Package Contents:
1 * module
1 * power cord
1 * double-sided tape
