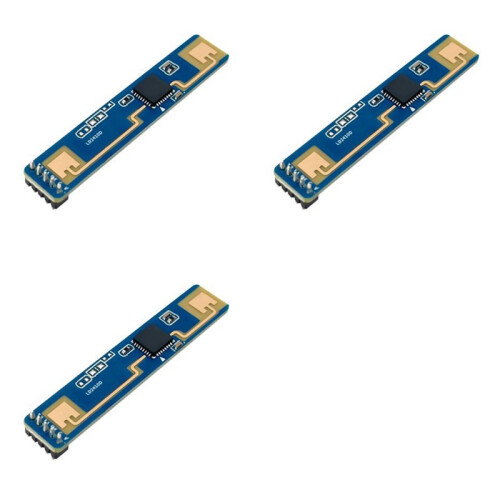

3X HLK-LD2410D 24GHz Human Presence Status Sensor Human Micromotion Movement Module 5V

3X HLK-LD2410D 24GHz Human Presence Status Sensor Human Micromotion Movement Module 5V leírása

The LD2410D is a stationary human presence sensor consisting of minimalist 24 GHz sensor hardware and intelligent human micro-motion sensing algorithm firmware. The hardware features an AIoT millimeter-wave sensor, a high-performance 24 GHz transmit-receive antenna, and peripheral circuitry.
It utilizes millimeter-wave distance measurement technology and the chip's advanced proprietary signal processing to accurately sense motion, micro-motion, and human presence.The human presence sensing intelligent algorithm firmware is mainly used in indoor scenarios to sense whether there is movement, micro-movement or the presence of a human body in the area, and refresh the detection results in real .

Supported frequency band: 24GHz-24.25GHz
Sweep bandwidth: 0.25GHz
Maximum equivalent isotropic radiated power: 11dBm
Add LDO power supply voltage: 5V
Dimensions: 7x35mm
Ambient temperature: -40-+85
Average operating current: 50mA
Data refresh cycle: 165ms
Detection range: static greater than equal 4m / dynamic greater than equal 5m
Distance resolution: 0.75m
Detection angle: 60
Distance measurement accuracy: 0.15 m
(The product printed words may vary depending the batch, but this does not affect use)
Color:As Shown
Material:PCB

Package Contents:
3 x 24G FMCW Module
