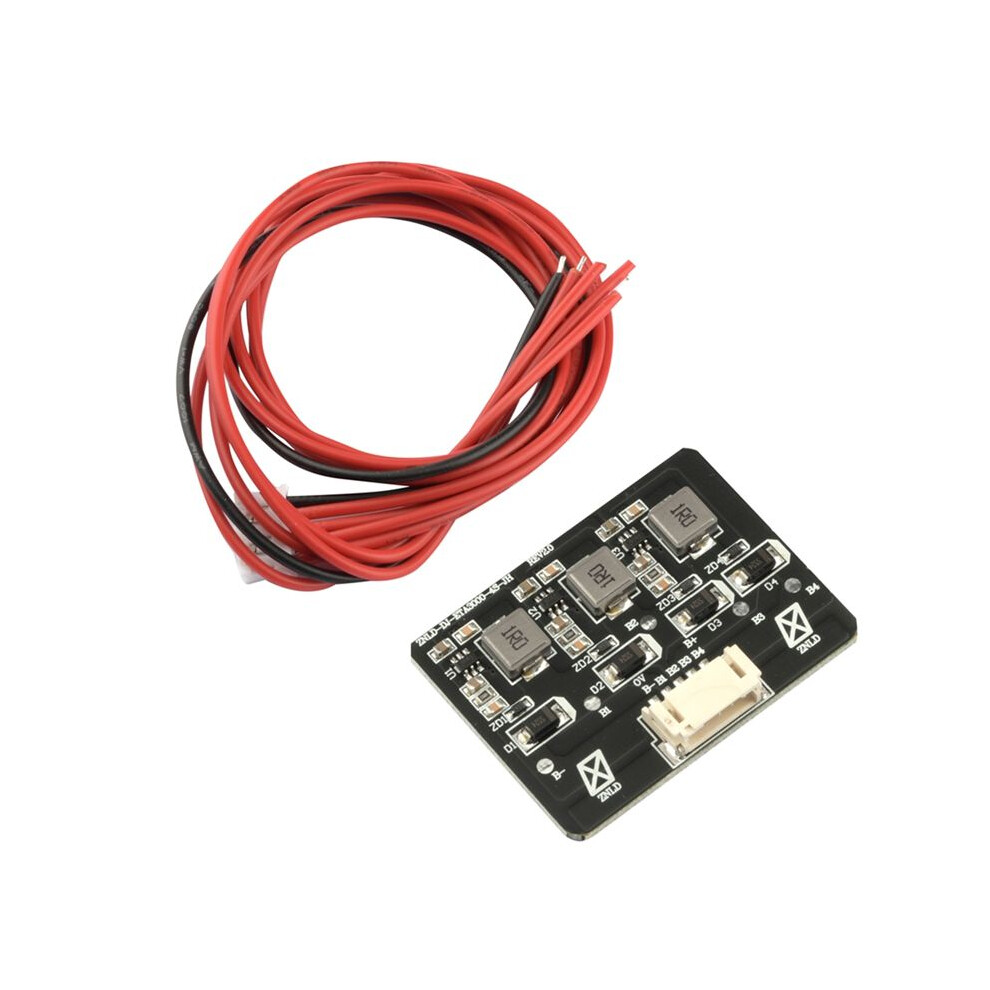

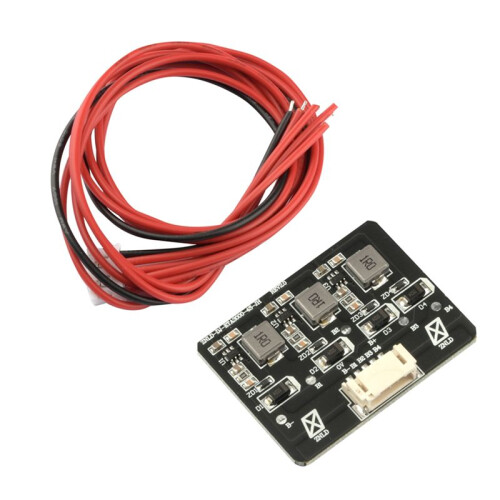

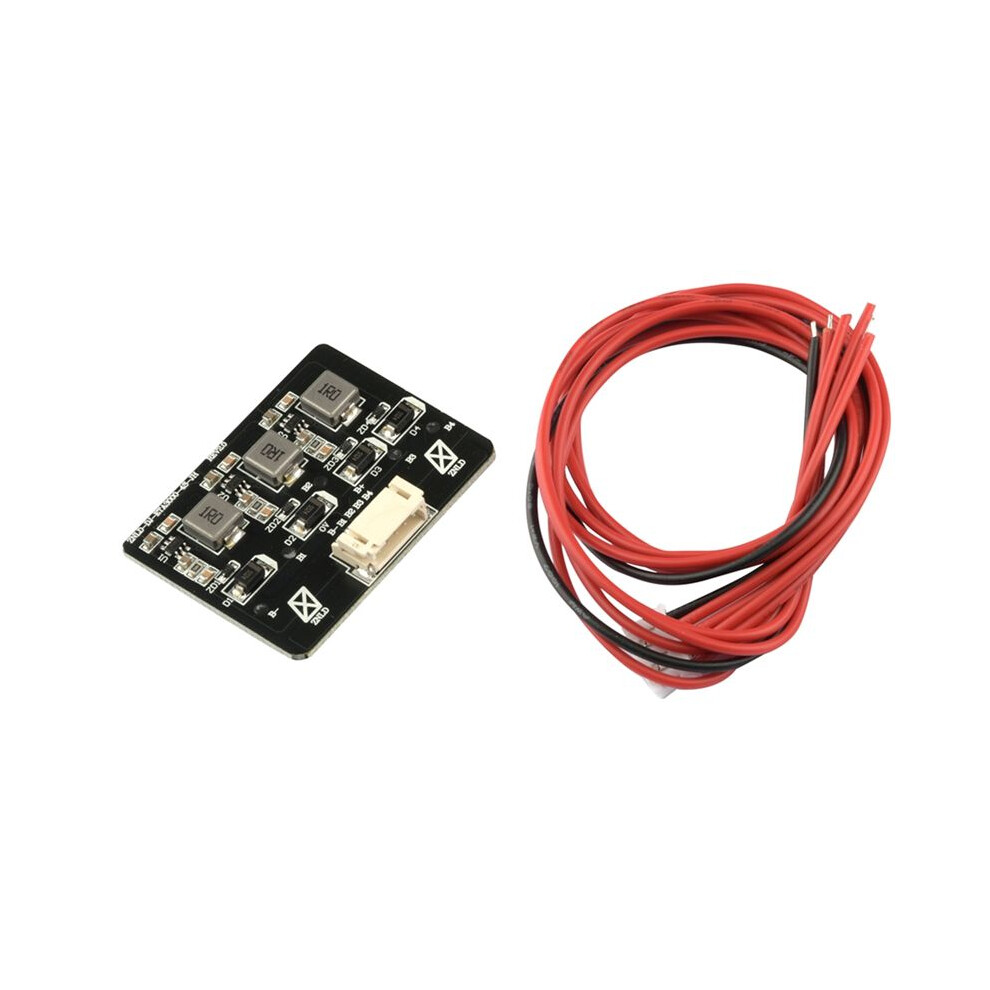

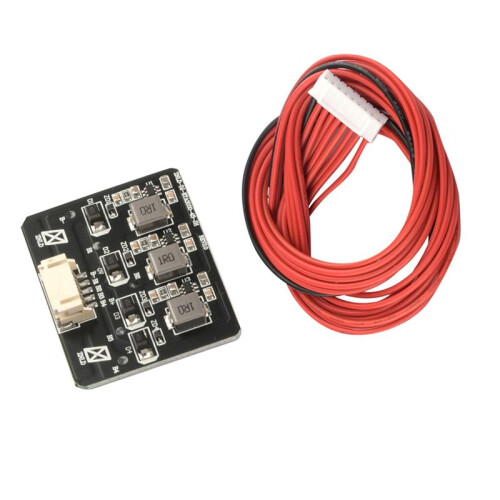

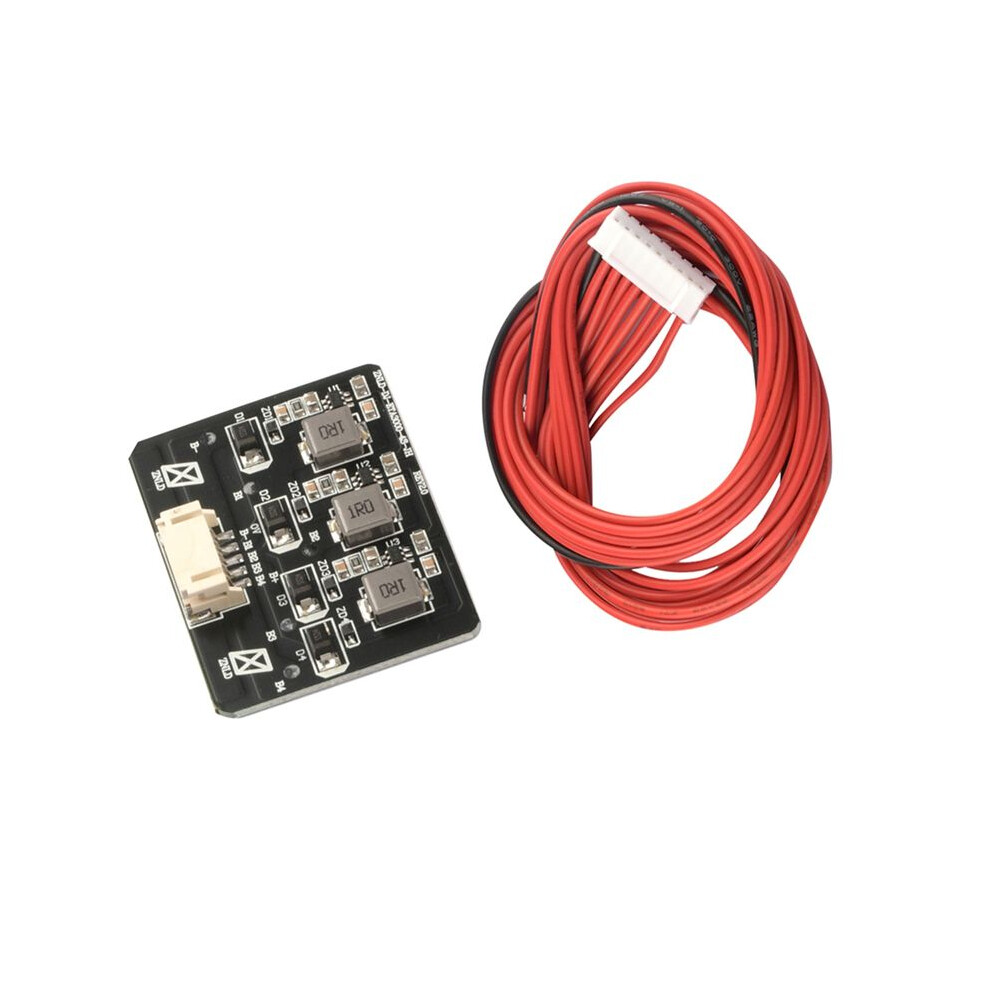

4S Lithium Battery Active Balance Transfer Board Active Equalizer Inductive Transfer Board 1.2A

4S Lithium Battery Active Balance Transfer Board Active Equalizer Inductive Transfer Board 1.2A leírása

Widely used
Easy to use
Compact appearance
High precision transfer equalization
High current 1.2A

Parameter:Inductive transfer active equalization board
Balanced version :High precision transfer equalization, exclusive equalization IC, high current 1.2A transfer battery voltage balancer, significantly balancing battery voltage and improving the overall efficiency of the battery pack.
Working voltage range: 2.0V-4.5V, universal for ternary/lithium iron batteries.
Equalizing current:
Adjacent voltage difference above 0.1V (current around 0.5-0.7A);
Adjacent voltage difference above 0.2V (reaching maximum balanced current of 1.2A);
The smaller the voltage difference, the smaller the equilibrium current.
Wiring definition:
B -, total negative electrode of the battery pack (negative electrode of the first battery) B1, positive electrode of the first battery
B2, the positive electrode of the second battery, B3, and the positive electrode of the third battery, and so .
Colour:As Shown
Material:PC+Plastic

Package Contents:
1 x Equalizer board module
