BBC Microbit Go Start Kit with MicroBit BBC IO V2.0 Expansion Board DIY Projects Programmable Learning Development Board

BBC Microbit Go Start Kit with MicroBit BBC IO V2.0 Expansion Board DIY Projects Programmable Learning Development Board leírása

1. Support the PXT graphical programming interface developed by
2. Support WINDOWS, MACOS, IOS, Android and other operating systems
3. The programming environment is based WEB services, no need to download additional compilers
4. Program the computer through USB programming and emulation
5. The mobile terminal wirelessly writes and emulates the program through

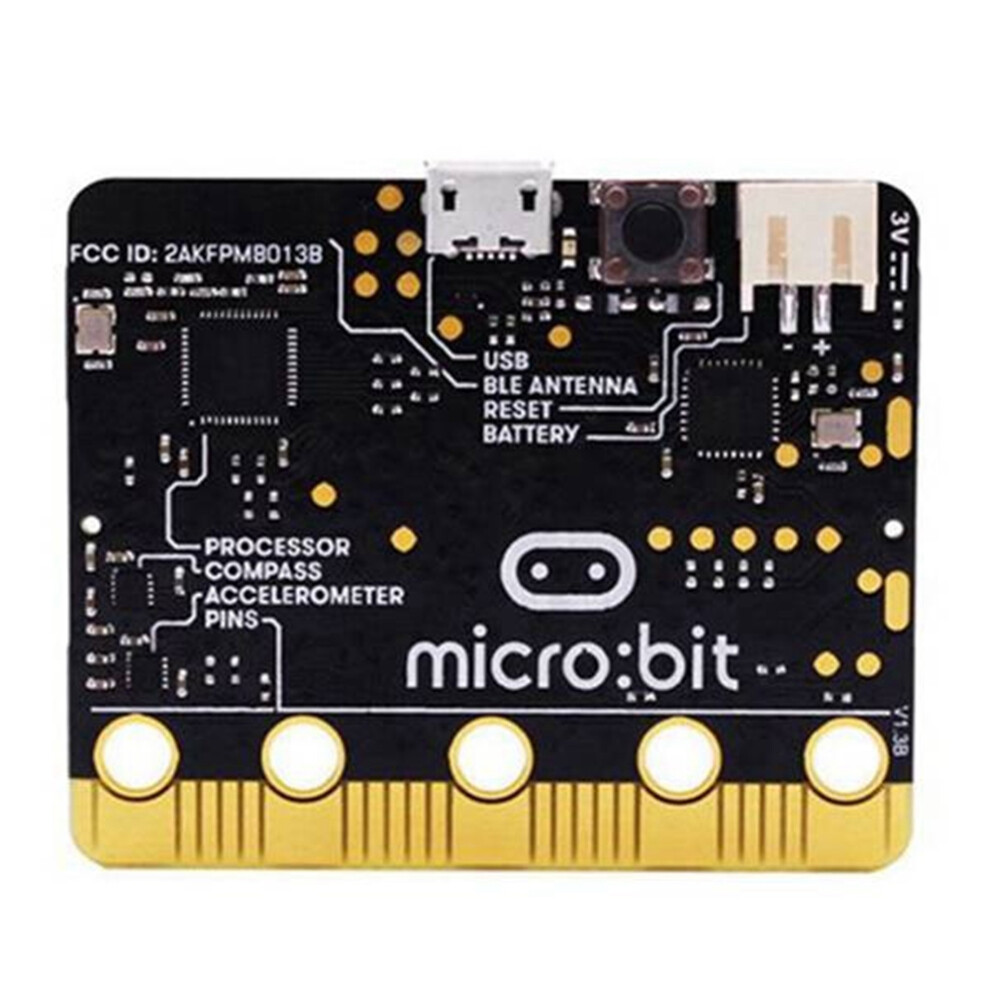

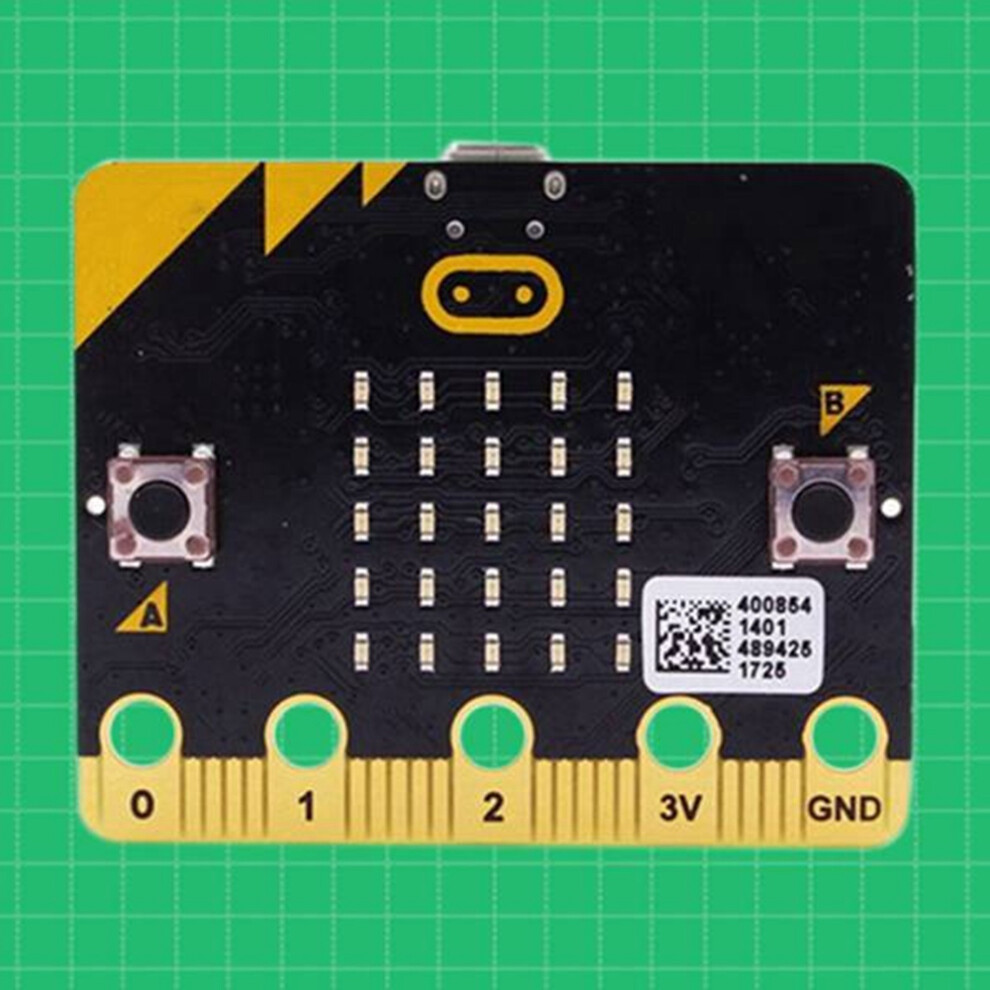

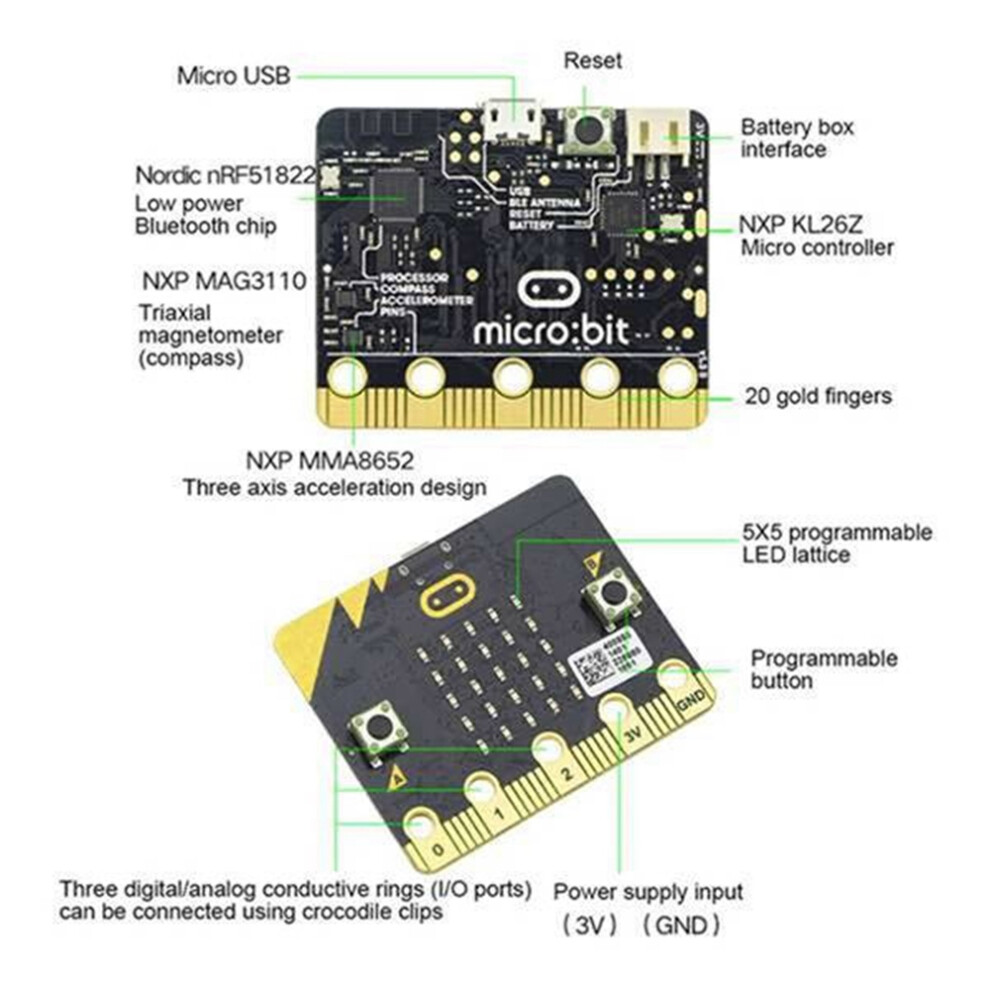

Micro:bit V1.5 version parameters
Memory: 256kb Flash 16kb RAM
External chip: NXP KL26Z 16KB RAM
Working current: 90MA
Connection: The interface adopts a flat design
I2C: bus sharing (multiplexing) I2C bus
Wireless: 2.4GHZ radio/ 4.0
Supports a variety of mainstream programming languages including JAVASRIPT, PHYTHON, MBED C
Applicable population: primary school, junior middle school and senior high school
Operating system: windows, MacOS, IOS, Android, etc
Programming software: javasript, python, mbed C, etc

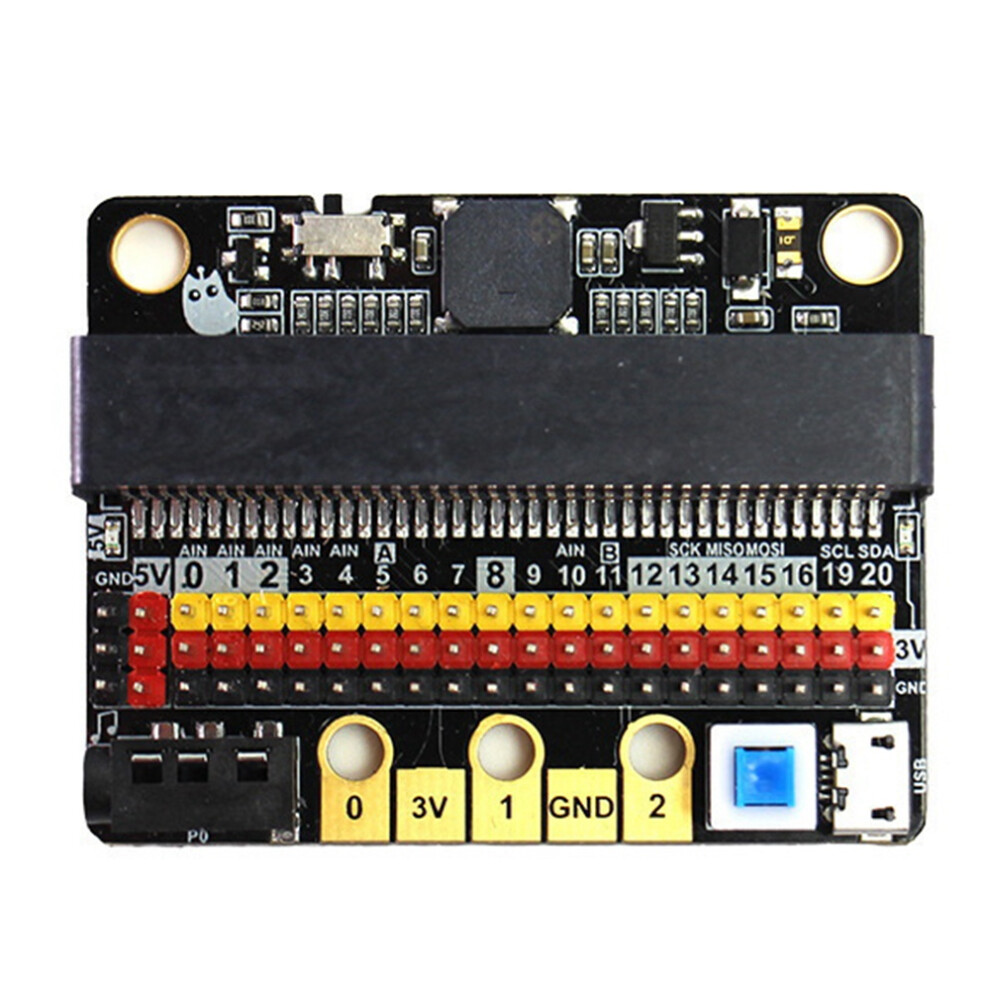

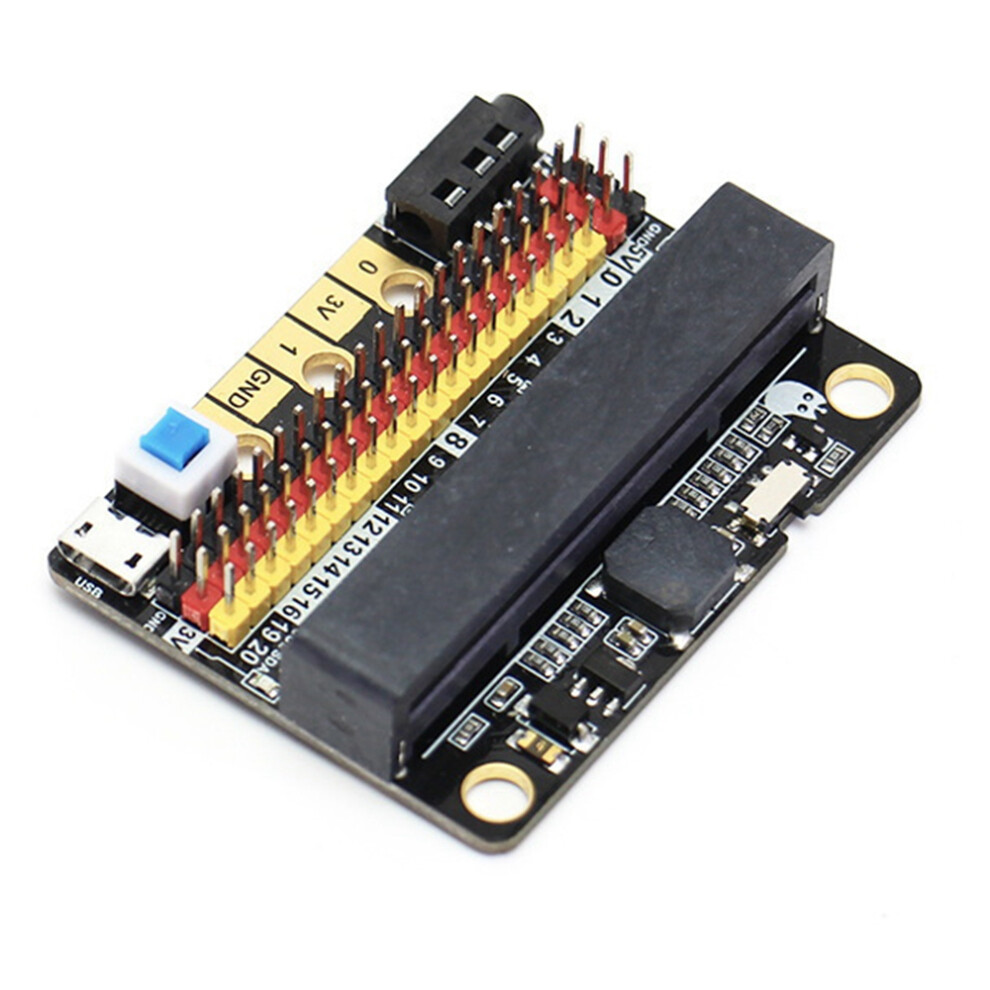

IOBIT V2.0 expansion board parameters
Power supply mode: USB 5V 1A
Onboard Features:
5V 1A resettable fuse;
Buzzer (P0 interface);
3.5mm audio port (P0 interface);
Toggle (for switching the buzzer music output and audio port sound output);
USB power
5 gold fingers, seamless connection with microbit 0, 1, 2, 3V, GND pins to protect microbit gold fingers
Provide 5V and 3.3V power interface, support 3-5V sensor module (onboard 5V and 3.3V power indicator)
Pins include: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 19, 20
Analog feet: 0, 1, 2
Material:PCB
colour:black

Package Contents:
1 * BBC Micro:bit Development board (Random color, don't accept the specified color)
1 * IO BIT V2. 0 Expansion Board
