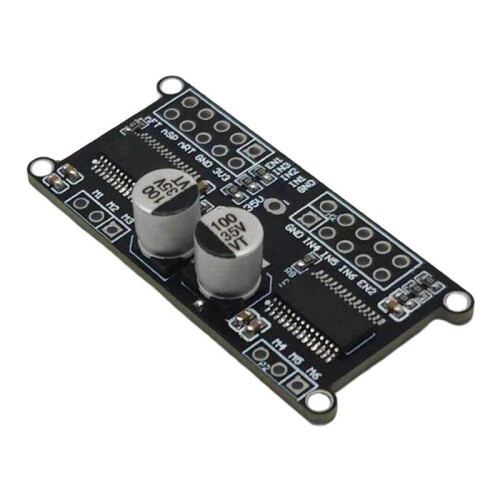

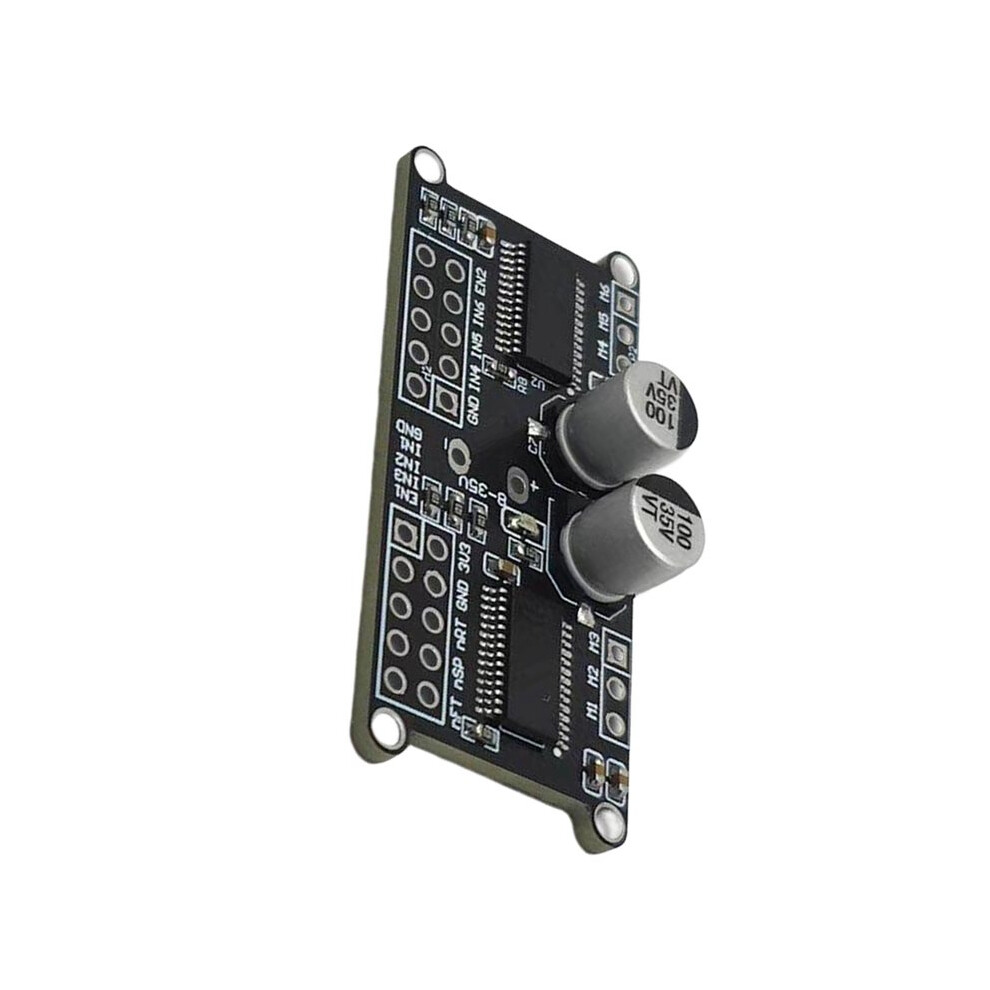

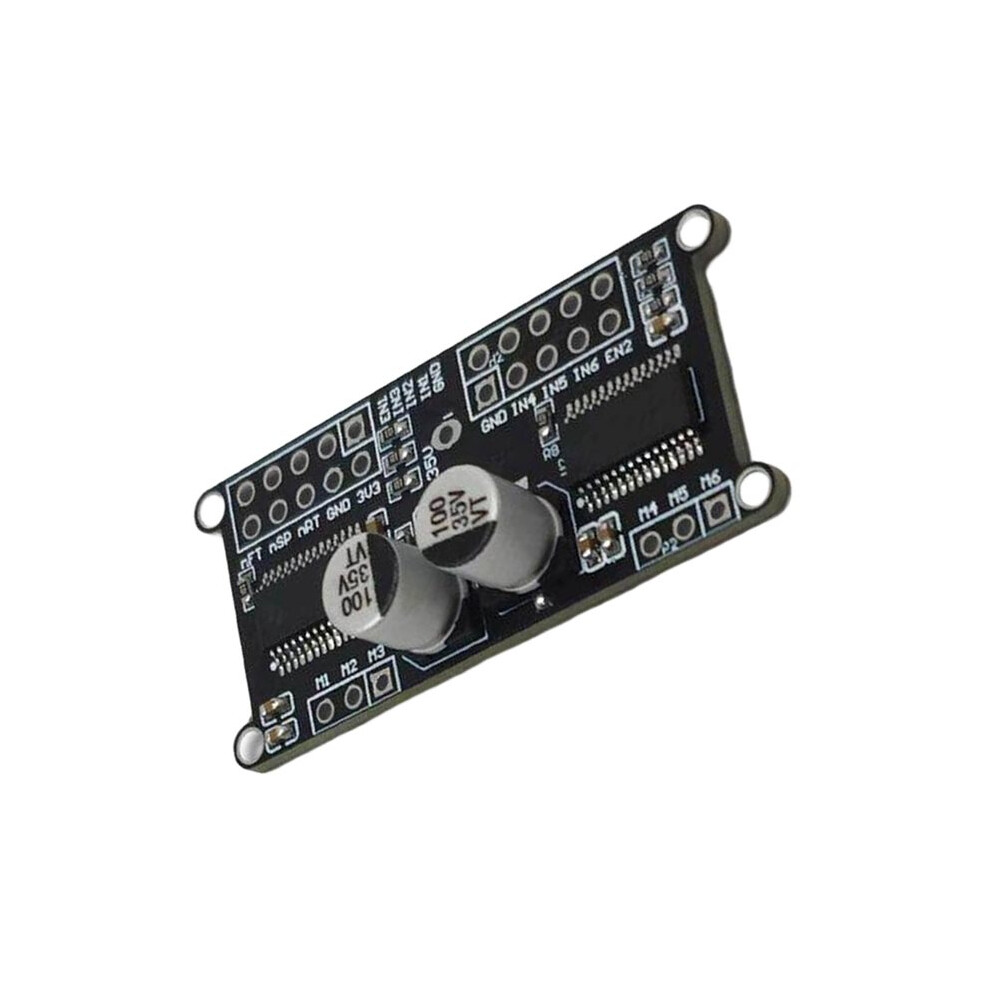

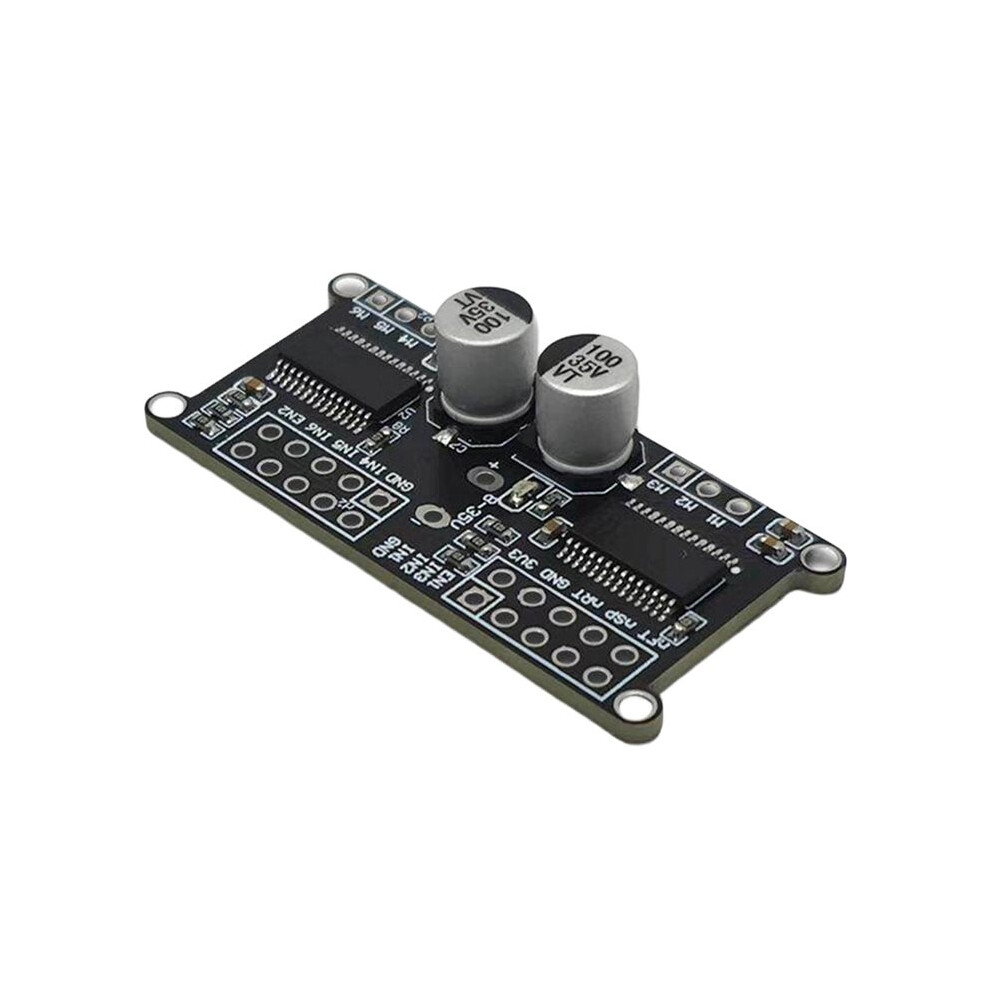

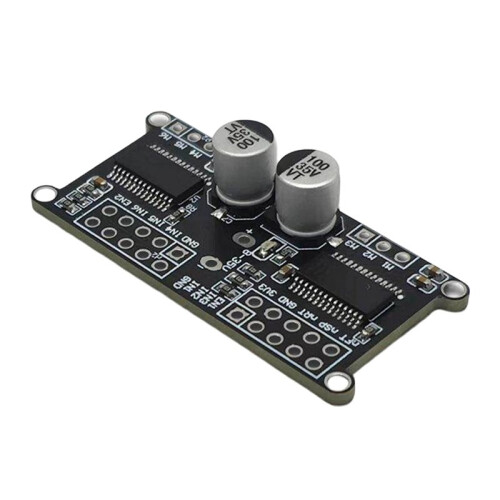

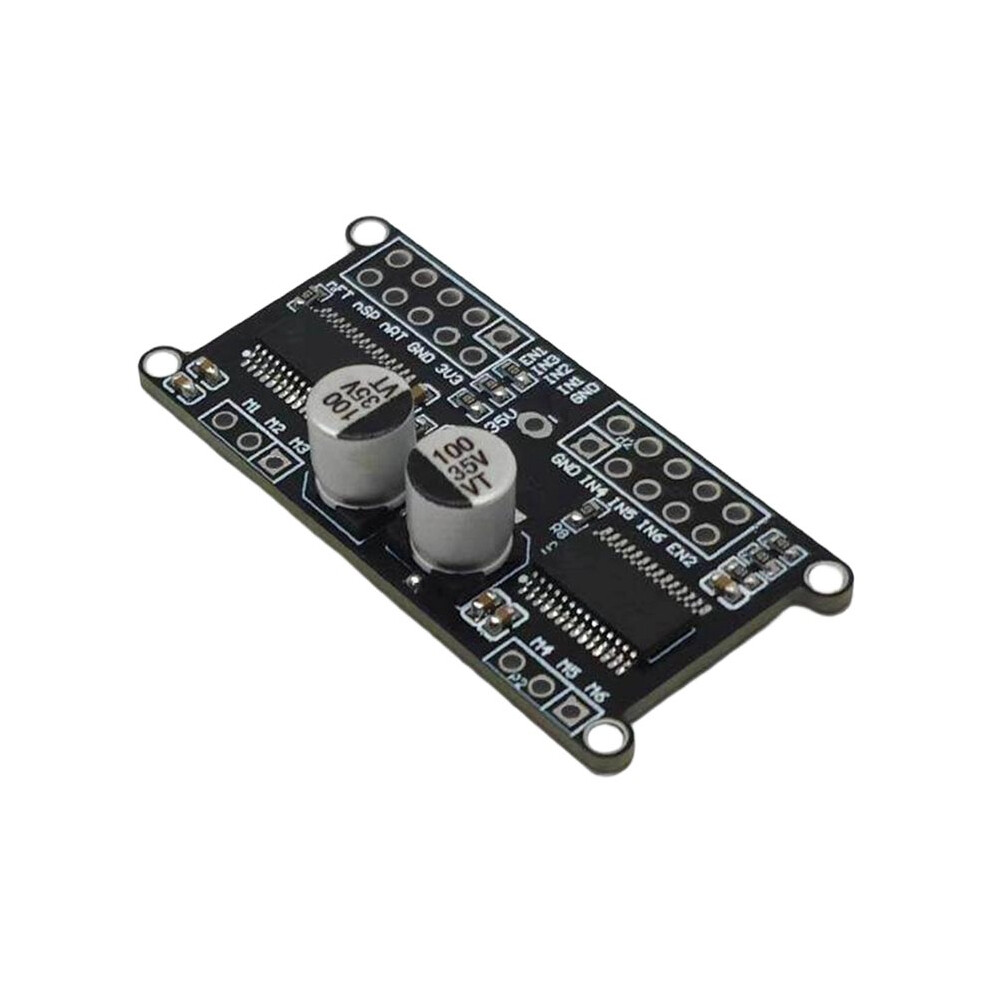

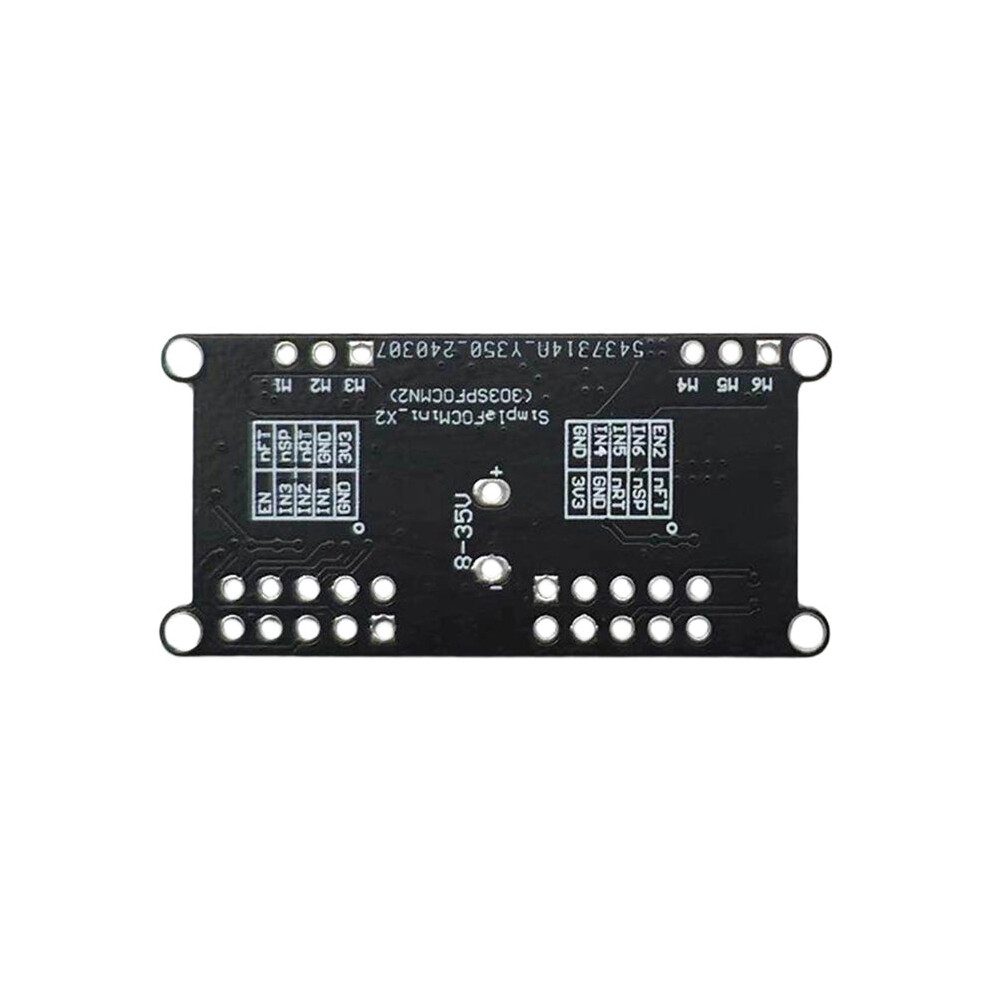

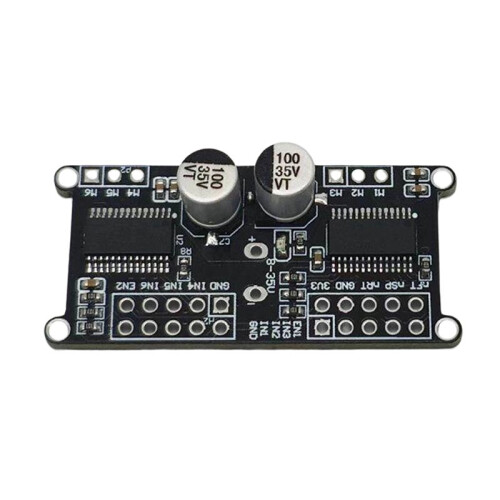

Brushless Motor Driver Board FOC Control Driver SVPWM Control Algorithm Dual-Output Brushless Motor Driver Board

Brushless Motor Driver Board FOC Control Driver SVPWM Control Algorithm Dual-Output Brushless Motor Driver Board leírása

1. Input power supply voltage: 8~30V

2. Maximum output current per channel is 2.5A
3. Onboard 3.3V LDO output, maximum current 10mA;
4. Input control signal compatible with 3.3V and 5V.
5. Support SPWM and SPVMW control algorithms;
6. Powerful open source library, quick start.
7. With dual-channel signal input and output, drive two brushless motors.
Product Overview:
dual-channel output brushless motor driver board uses domestic chip MS8313.
MS8313 provides three independently controllable half-H bridge drivers, mainly used to drive brushless motors. Only need to connect the control signal and the motor UVW three-phase to control the motor rotation. Support SPWM and SPVMW control algorithms, do not support the traditional 6-step commutation control algorithm. Can be quickly used through SimpleFOC.
Color: Black
Material: PCB

Package Contents:
1*Module
