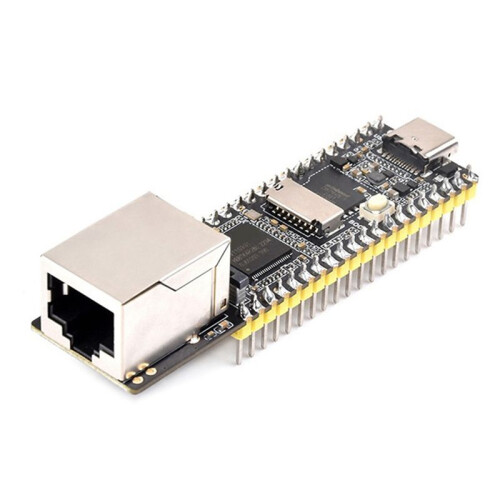

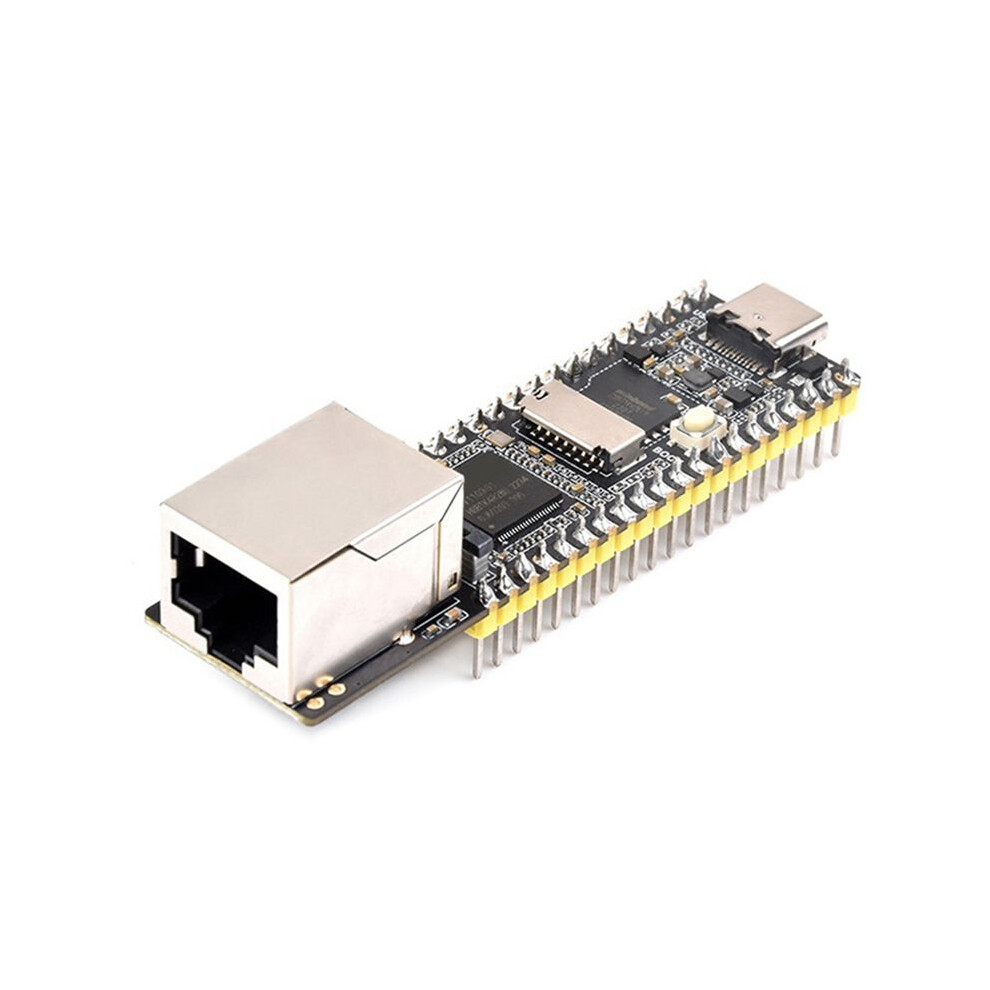

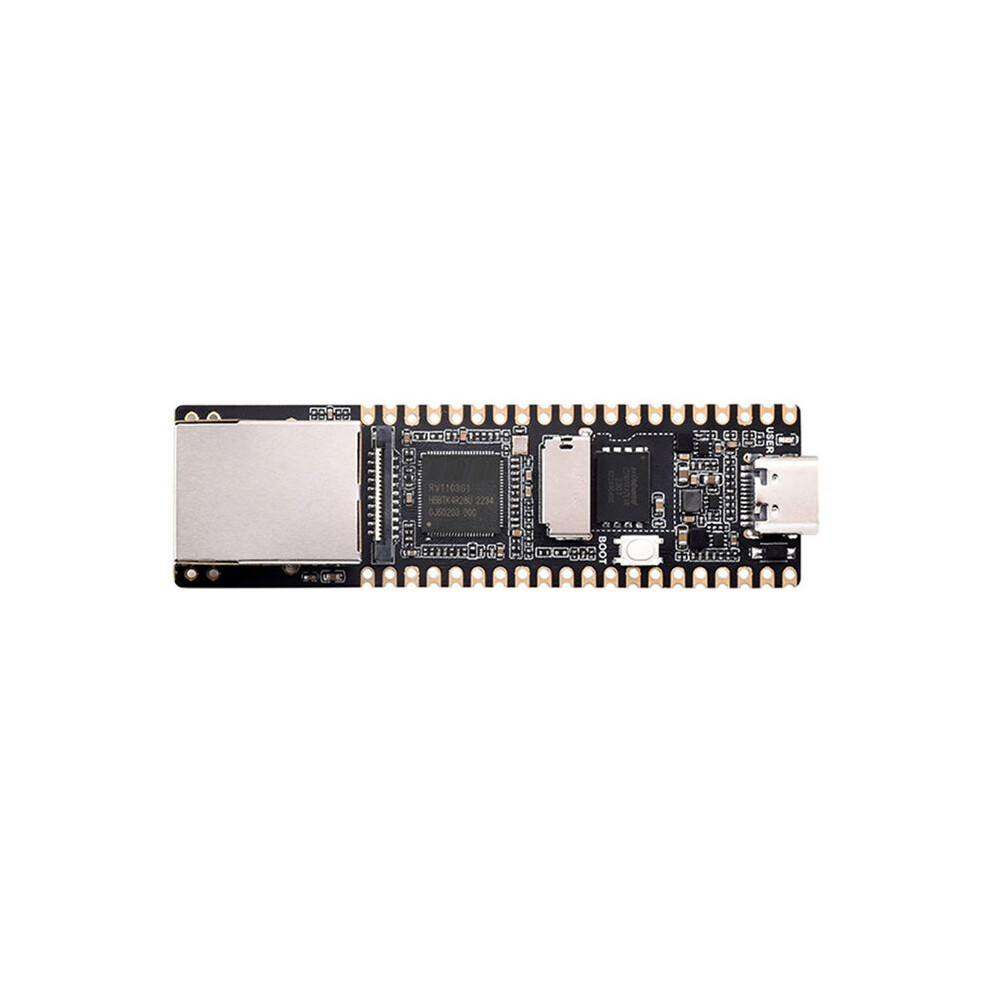

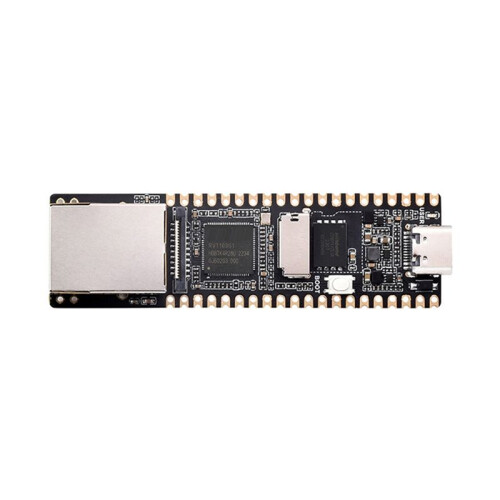

Development Board Module for Luckfox M Luckfox RV1103 Linux Cortex-A7 Development Board with Network Port

Development Board Module for Luckfox M Luckfox RV1103 Linux Cortex-A7 Development Board with Network Port leírása

1. Single-core ARM Cortex-A732-bit core, integrating NEON and FPU, LuckFox is a cost-effective Micro-Linux development board based Rockchip RV1103 chip, aiming to provide developers with a simple and efficient development platform ;Supports multiple interfaces, including MIPI CSI, GPIO, UART, SPI, I2C, USB, etc., to facilitate rapid development and debugging
2. Built-in Rockchip's self-developed 4th generation NPU, with high computing accuracy, supports int4, in8, and int16 mixed quantization. The int8 computing power is 0.5TOPS, and the int4 computing power can reach 1.0TOPS. It is highly integrated with powerful performance, integrated CPU, NPU, ISP and other processors
3. Built-in self-developed 3rd generation ISP3.2, supports 4 million pixels, supports HDR, WDR, multi-level noise reduction and other image enhancement and correction algorithms
4. It has powerful encoding performance, supports intelligent encoding, and adaptively saves bit streams according to the scene. It saves more than 50% bit rate than the conventional CBR mode, making the shooting pictures high-definition, smaller in size, and doubled in storage space.
5. Built-in RISC-V The design of the MCU supports low power consumption and fast startup, supports 25Oms fast picture capture, and loads the Al model library at the same , enabling face recognition to be completed "within 1 second".Built-in 16-bit DRAMDDR2 to sustain demanding memory bandwidth Integrated built-in POR, audio codec and PHY.

Description:
1. Processor: Cortex [email protected] + RISC-V
2. Neural network processor (NPU): 0.5TOPS, supports int4, int8, int16
3.Image Processor (ISP): Input 4M @30fps (Max)
4.Memory: 64MB DDR2
5.USB: USB 2.0 Host/Device

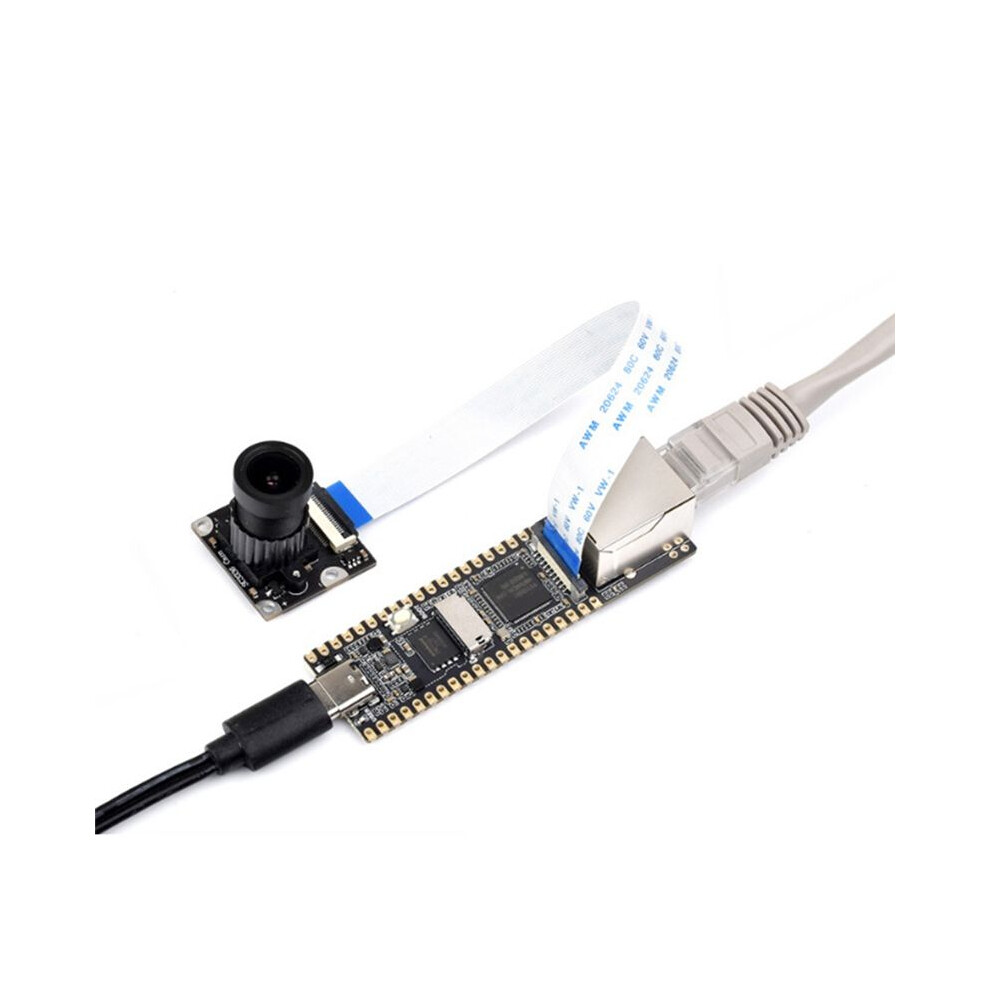

6.Camera interface: MIPI CSI 2-

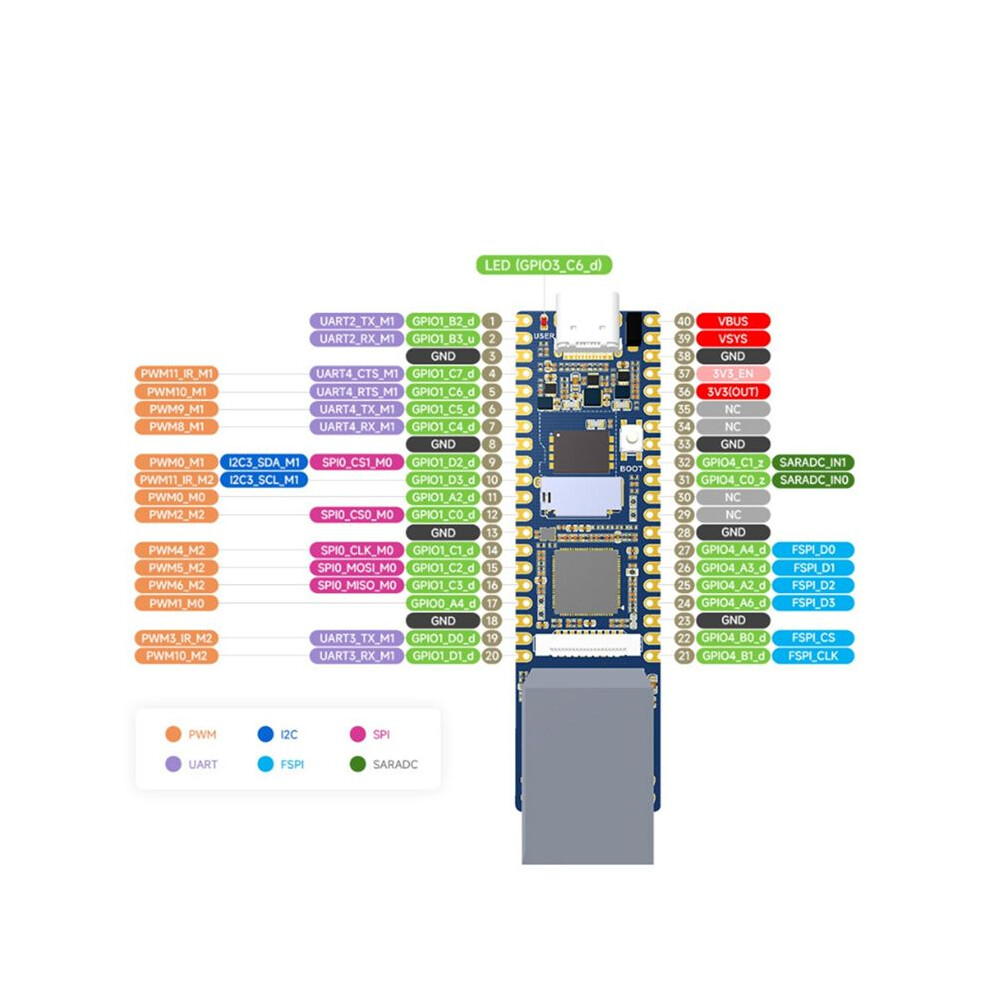

7.GPIO: 25 GPIO pins
8.Network port: 10/100M Ethernet controller and embe
