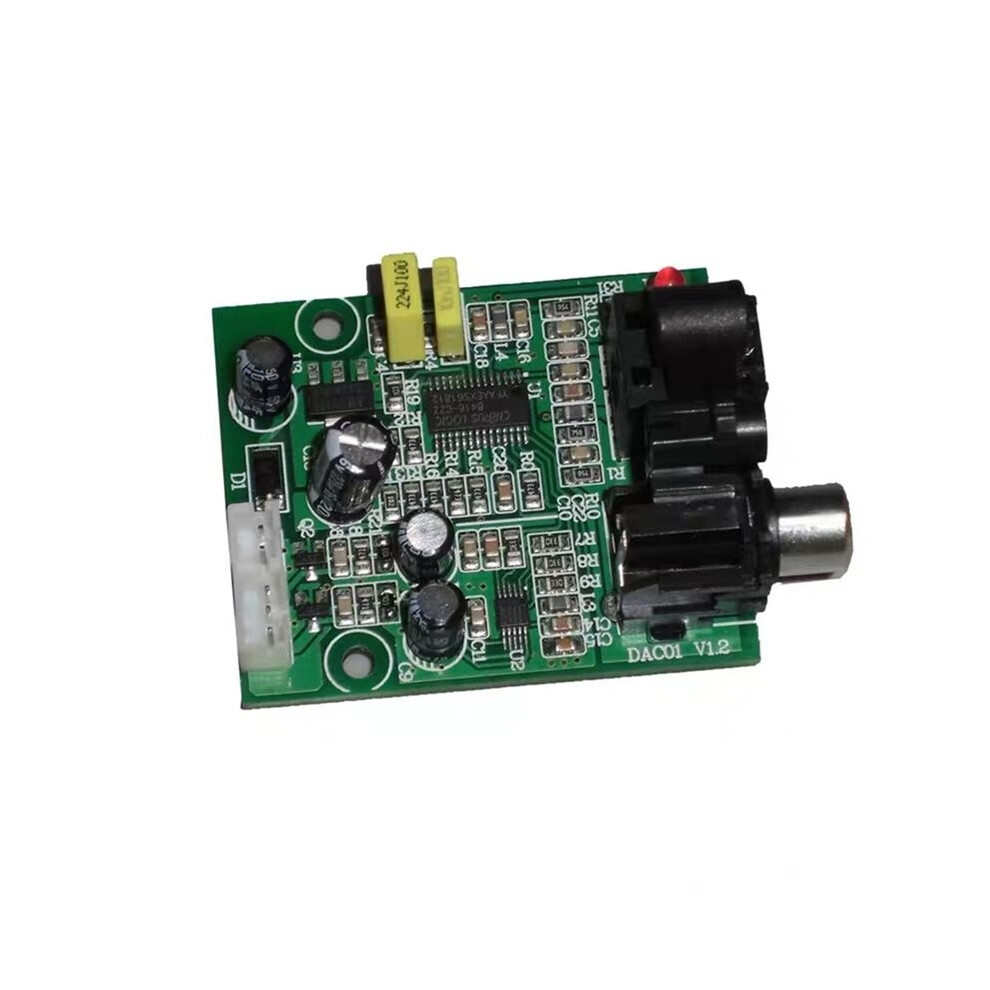

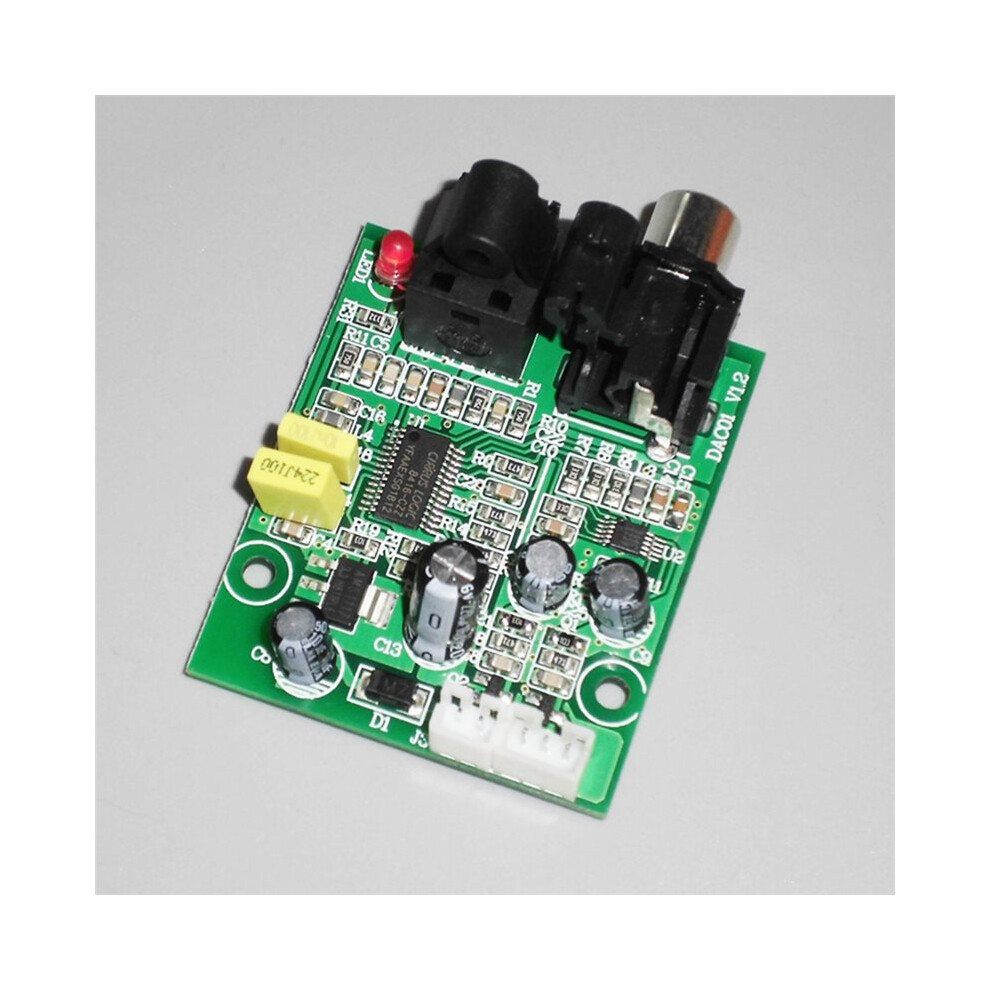

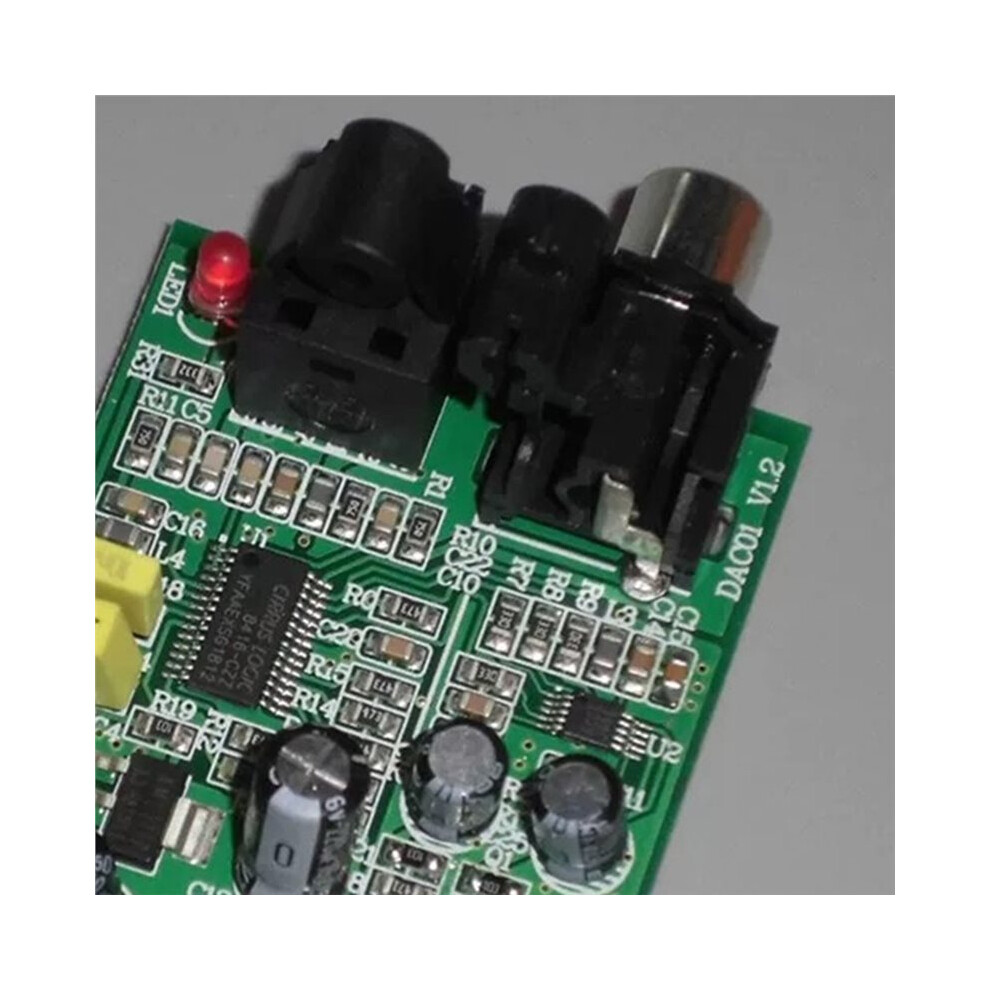

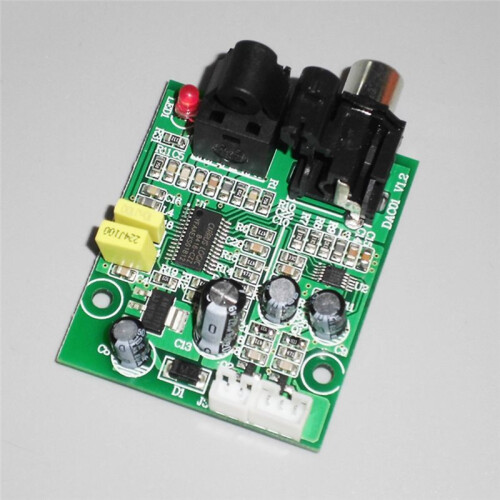

For DAC Digital Decoder CS8416+CS4344 Optical Fiber Coaxial Digital Signal Input Stereo Audio Output Decod

For DAC Digital Decoder CS8416+CS4344 Optical Fiber Coaxial Digital Signal Input Stereo Audio Output Decod leírása

Upgraded version

1. Support 32K-192K, increase power supply anti-reverse protection

2. LED elbow is parallel, 6MM LED bracket, LED center point to PCB is about 6.5MM, easy to install for DAC digital decoder decoder board, for DAC module, can be installed in the power amplifier to expand the power amplifier input interface, connect the PC with optical fiber or coaxial , TV box and other digital output interface.
3. 24-BIT D / A [Support 16-24 BIT]
4. Sampling rate to 192K [supports 32K 44.1K 48K 96K 192K]
5. Function description:
①. Optical fiber and coaxial digital signal input (optical fiber priority) without fiber, the input is the default coaxial
②. Output stereo audio signal 0.7VA (with mute function)
6. Power input:
①. + 5V to + 12V (Do not exceed the power supply range). Do not use AC adapter to supply power. Avoid individual + 5V power supply voltage is too low, for DAC chip power supply voltage is too low, which causes various problems, please use a power supply higher than + 5V, 6V-12V test. The + 5V power test can be used without any problems without any impact.
②. The actual measured (192K) current of the for DAC board is not less than 0.1A, so the power of the general power supply can be satisfied.
Color: As Shown
Material: PC

Package Contents:
1*DAC Digital Decoder
