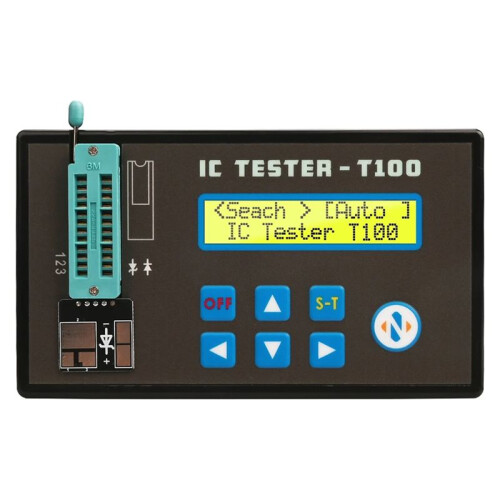

Handheld Rechargeable LED Integrated Circuit Tester Transistor Tester Digital Transistor IC Chip Detector with 2 Bases

Handheld Rechargeable LED Integrated Circuit Tester Transistor Tester Digital Transistor IC Chip Detector with 2 Bases leírása

1.Can test 74HC series, 74LS series, CD4000 series, HEF400 series, 4500 series, op amp, interface chip, optocouplers, transistors automatically identify the regulator voltage regulator value identification and so .
2.Built-in various types of chip data model more than 1,300 kinds, more than 420 kinds of transistor data model,
3.Covers most of the common 24-pin devices, can significantly reduce the workload and improve work efficiency.

Instructions:There are seven buttons the panel are , down, left, right and Enter keys, and shortcut keys O, P keys.
and down keys used to adjust the directory and change the model number, left and right keys for moving the cursor left and right to select the item you want to change. Enter key is used to machine and execute test command. Open the battery cover, into the 2x AA 1.5v battery, and then close the battery cover. Press Enter for more than 2 seconds to boot, boot automatically displays the current battery voltage, when the battery is too low, please replace the battery, the voltage is too low will affect the reliability of the test results and protective automatic shutdown.
Power : Press Enter key for more than 2 seconds to turn .
Shut down: 1 Press the Enter key in the OFF directory immediately shut down.
2 Press Enter in any directory for more than 10 seconds to shut down.
3 After 60 seconds without any operation, it will automatically shut down
Battery: 1 x lithium battery, 800mAh (included)
Color: As Shown
Material: ABS

Package Contents:

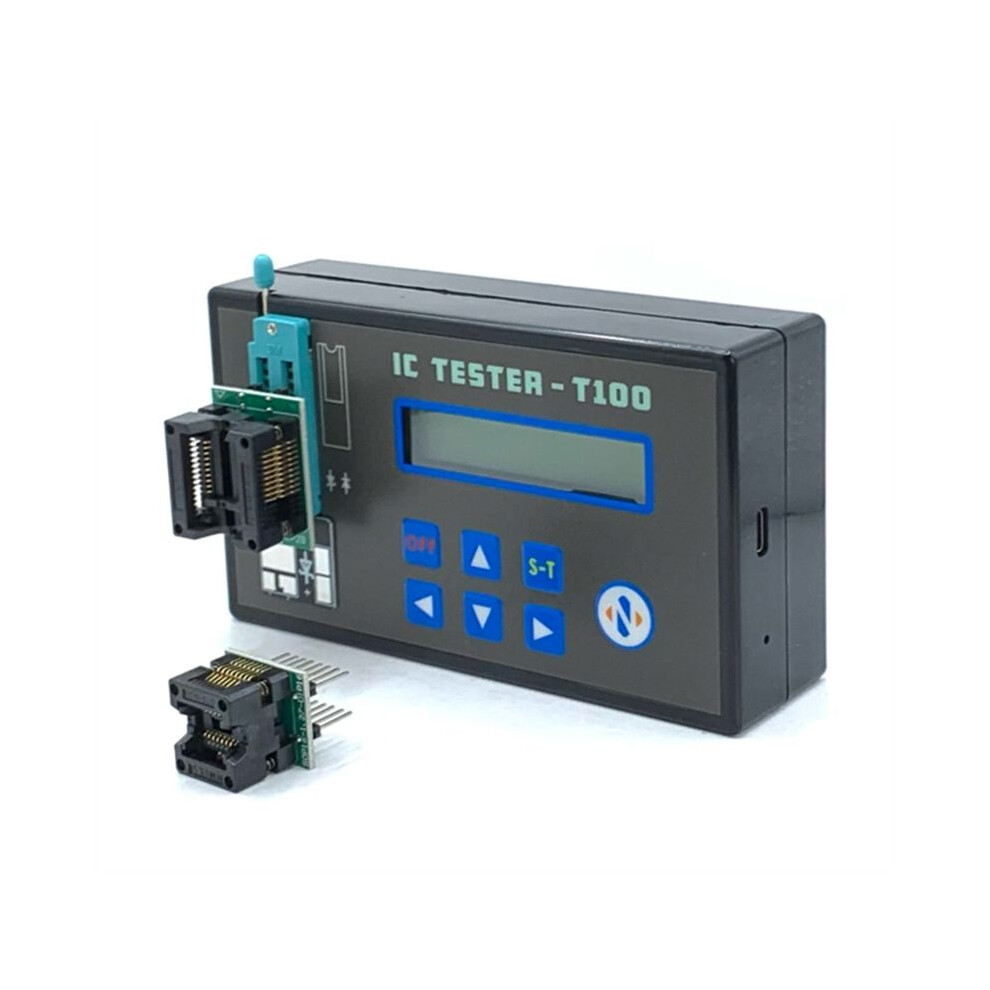

1set x LED integrated circuit tester (with two test sockets)
